Siemens 3VA9263-0JA12

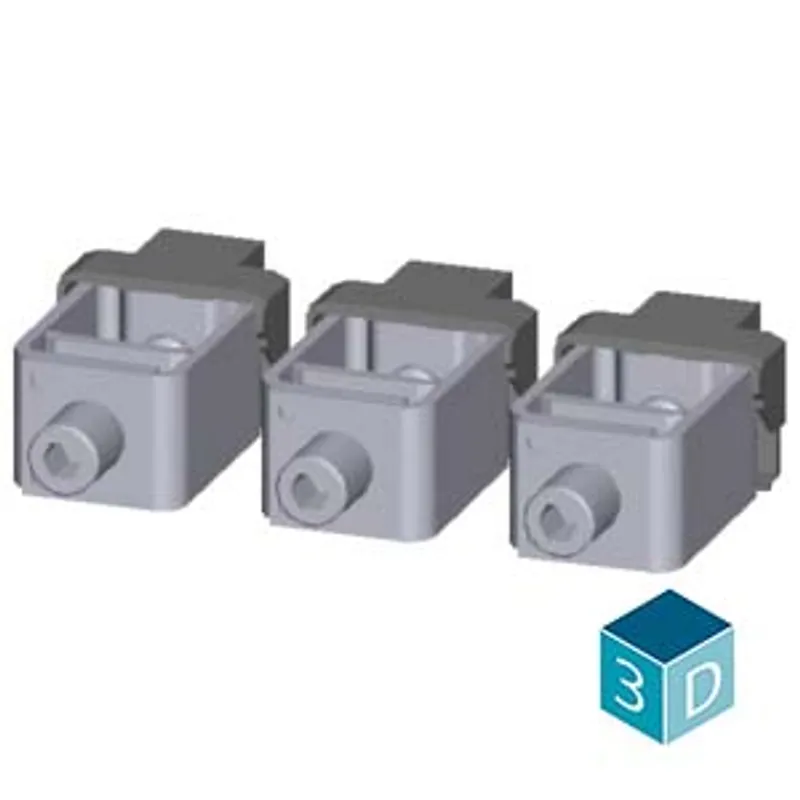

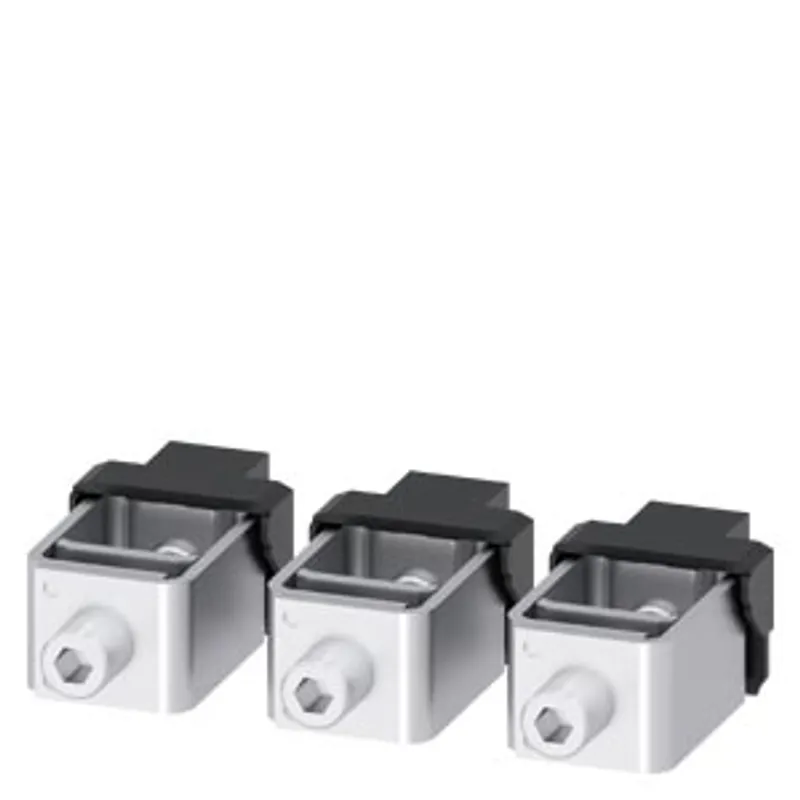

Box terminal; 3 units accessory for: 3VA20/21/22

MPN: 3VA9263-0JA12
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9263-0JA12?

box terminal; 3 units accessory for: 3VA20/21/22

Specifications

Model

product brand name	SENTRON
product designation	box terminal 3 units
design of the product	Connection method
accessories	Box terminal

General technical data

designation / of the terminal	TS1.4
type of electrical connection / with control wire tap	No

Mechanical Design

Net Weight

190 g

Connections according IEC

connectable conductor cross-section — for copper cable / stranded / minimum	25 mm²
connectable conductor cross-section — for copper cable / stranded / maximum	185 mm²
type of connectable conductor cross-sections / of the laminated conductor rails — minimum	5 x 15.5mm x 0.8mm, 4 x 20mm x 1mm
type of connectable conductor cross-sections / of the laminated conductor rails — maximum	6 x 15.5mm x 0.8mm, 6 x 20mm x 1mm
stripped length	19 mm
tightening torque / when using copper cables — stranded	25 - 35 mm²: 6 Nm, 50 - 185 mm²: 12 Nm
tightening torque / when using copper cables — finely stranded	35 mm²: 6 Nm 50 -150 mm²: 12 Nm
tightening torque / when using copper cables — finely stranded / with core end processing	25 - 35 mm²: 6 Nm, 50 -150 mm²: 12 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B	75 °C
stripped length	0.75 in
connectable conductor cross-section — for copper cable / stranded / minimum	4 AWG
connectable conductor cross-section — for copper cable / stranded / maximum	350 kcmil
tightening torque / when using copper cables — stranded	4 - 1 AWG: 70 lb-in; 1/0 AWG - 350 kcmil: 140 lb-in
