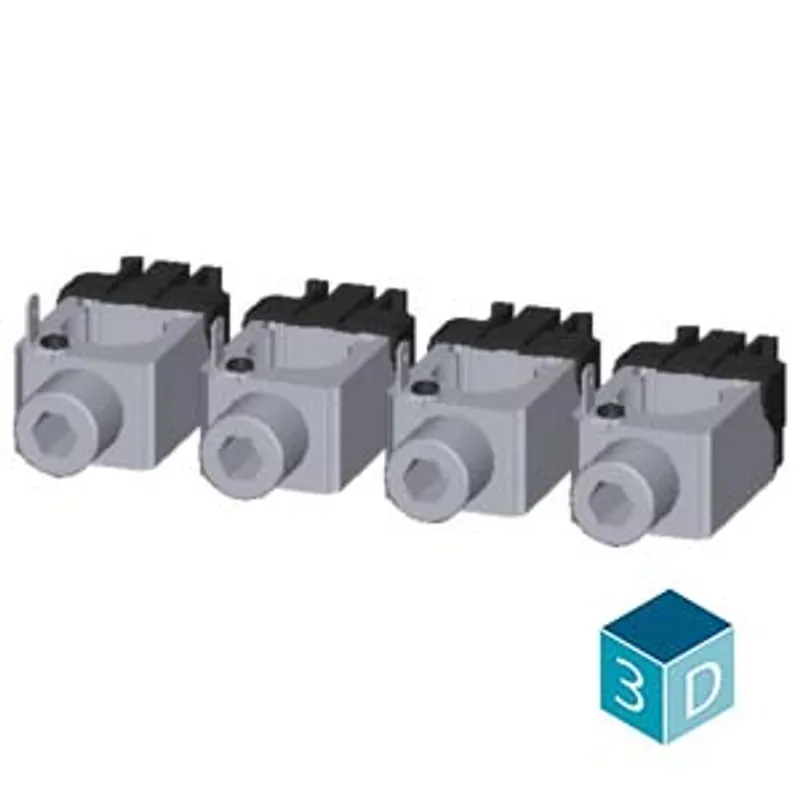

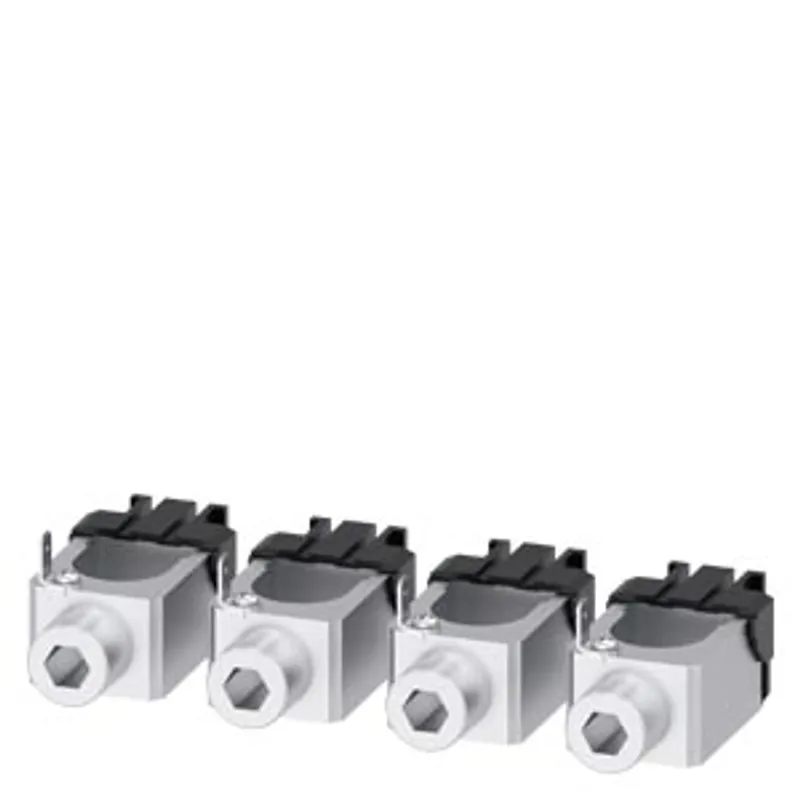

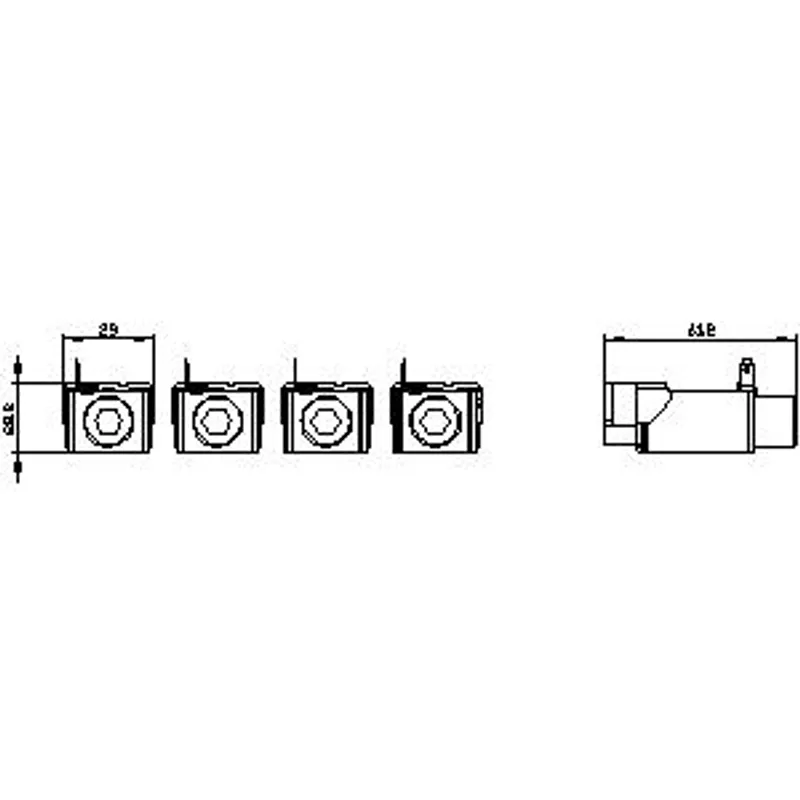

Siemens 3VA9254-0JG12
Circular conduc. terminal TA1.2 35…185 mm² with auxiliary conductor voltage tap 4 units accessory for: 3VA12
- MPN
- 3VA9254-0JG12
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9254-0JG12?
circular conduc. terminal TA1.2 35…185 mm² with auxiliary conductor voltage tap 4 units accessory for: 3VA12
Specifications
Model
| product brand name | SENTRON |
| product designation | Circular conductor terminal voltage tap 4 units |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA1.2 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 162 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 50 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 185 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 50 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 185 mm² |
| stripped length | 20 mm |
| tightening torque / when using copper cables — stranded | 50 - 185 mm²: 22.6 Nm |
| tightening torque / when using copper cables — finely stranded | 95 - 150 mm²: 22.6 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 35 - 120 mm²: 22.6 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 0.8 in |
