Home / Siemens / Accessories and Spare Parts / Siemens 3VA9234-0JK12

Siemens

Siemens 3VA9234-0JK12

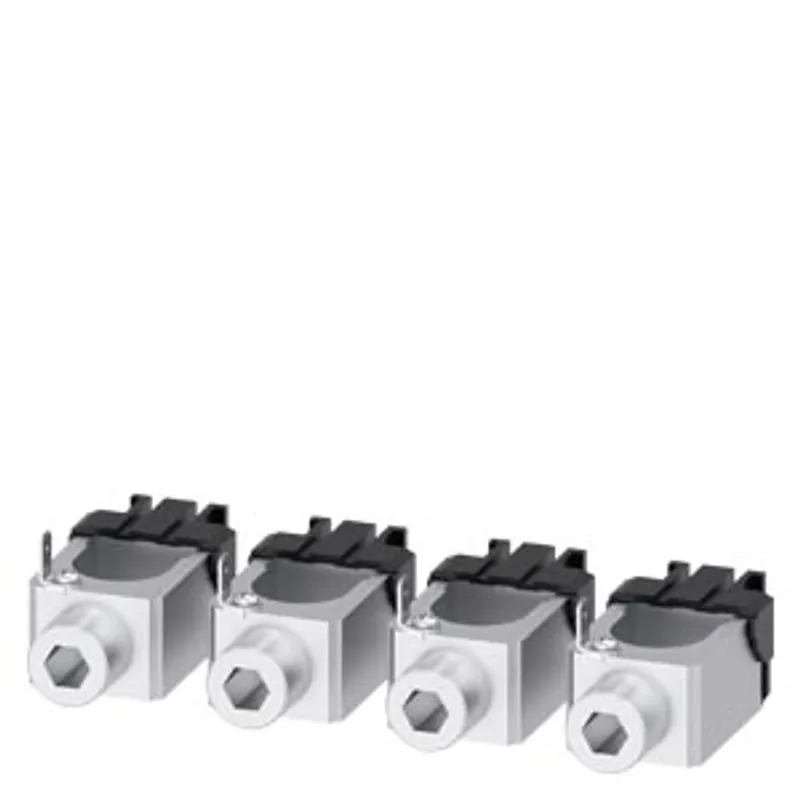

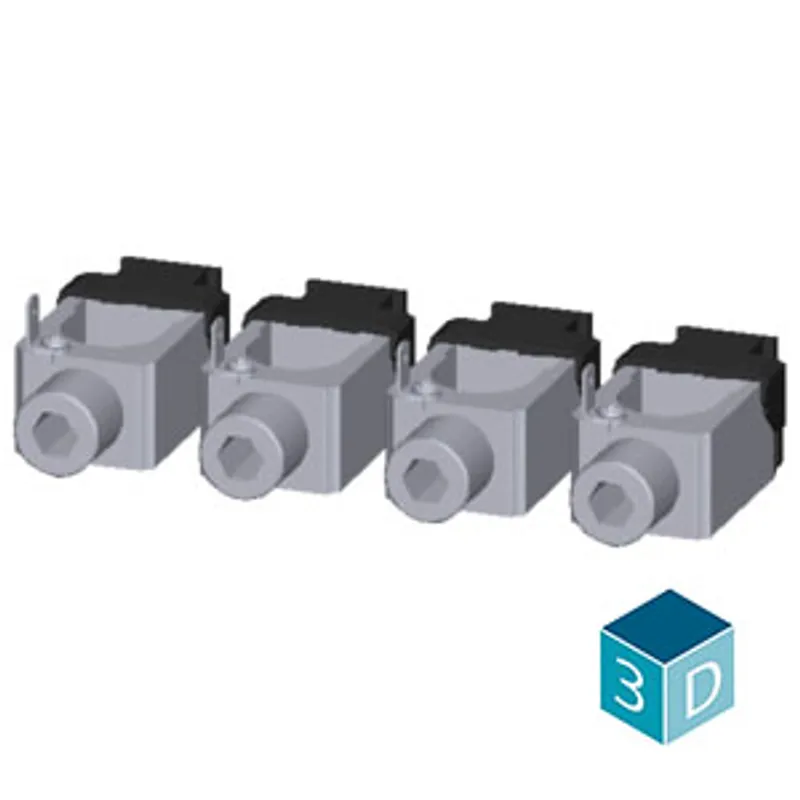

Wire connector TC1.4 6 AWG...350 kcmil Cu with control wire voltage tap 4 units accessory for: 3VA52

MPN: 3VA9234-0JK12
Category: Accessories and Spare Parts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9234-0JK12?

wire connector TC1.4 6 AWG...350 kcmil Cu with control wire voltage tap 4 units accessory for: 3VA52

Specifications

Model

product brand name	SENTRON
product designation	circular conductor terminal
design of the product	Connection method
accessories	Wire connector

General technical data

designation / of the terminal	TC1.4
type of electrical connection / with control wire tap	Yes

Mechanical Design

Net Weight

421 g

Connections according IEC

stripped length

20 mm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B	90 °C
stripped length	0.8 in
connectable conductor cross-section — for copper cable / stranded / minimum	6 AWG
connectable conductor cross-section — for copper cable / stranded / maximum	350 kcmil
tightening torque / when using copper cables — stranded	6 - 2 AWG: 140 lb-in; 1 AWG - 350 kcmil: 275 lb-in

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3VA9234-0JK12PDF

3VA9234-0JK12: frequently asked questions

When can 3VA9234-0JK12 be shipped?

3VA9234-0JK12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3VA9234-0JK12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3VA9234-0JK12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9234-0JK12, subject to availability and destination.
