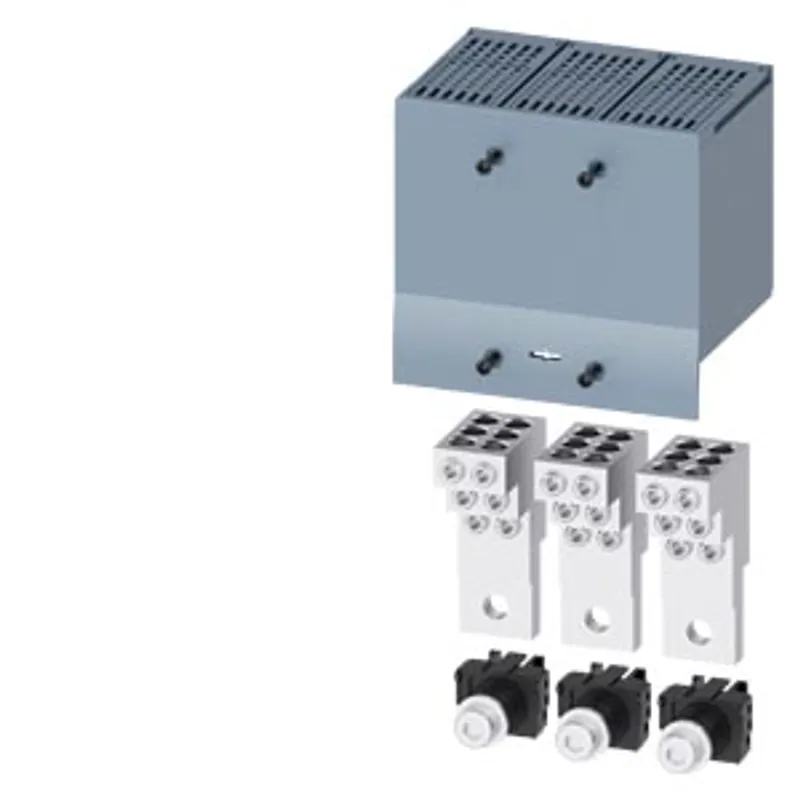

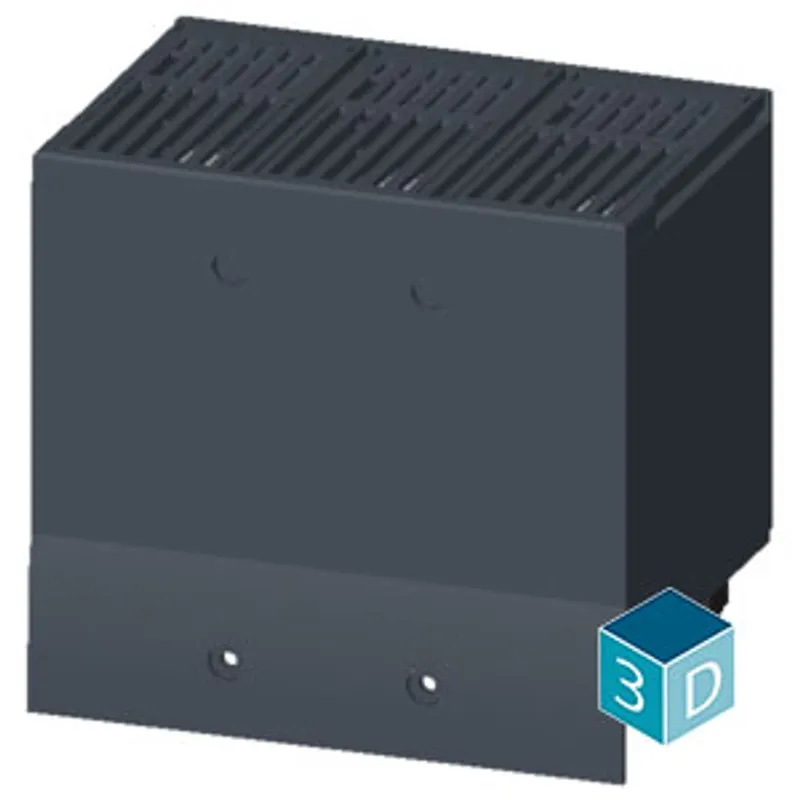

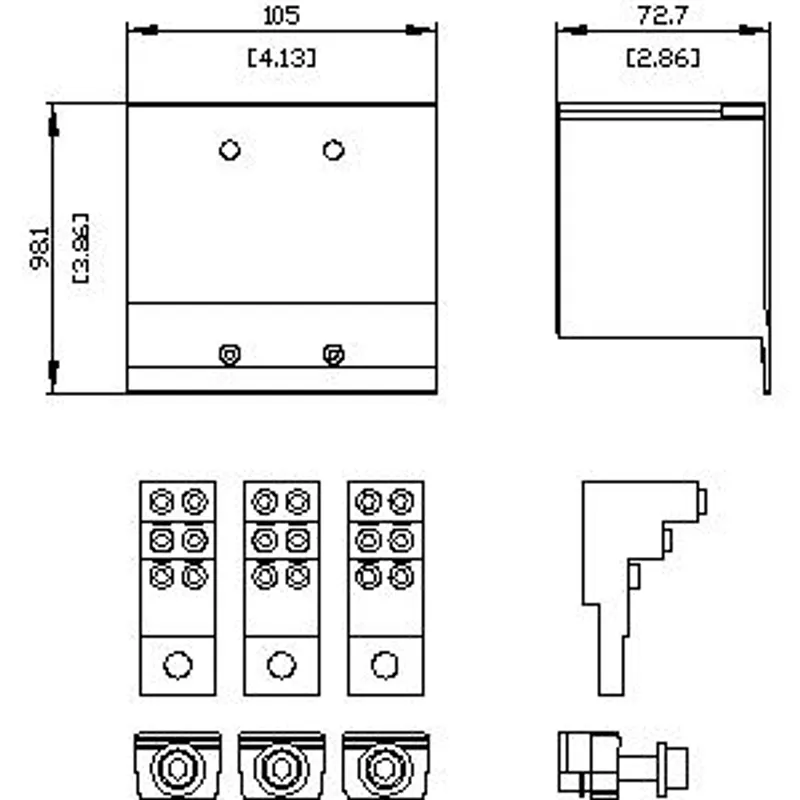

Siemens 3VA9233-0JF60
Wire connector TA2.6 6 x 14 AWG...2 AWG for 6 cables 3 units accessory for: 3VA52
- MPN
- 3VA9233-0JF60
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9233-0JF60?
wire connector TA2.6 6 x 14 AWG...2 AWG for 6 cables 3 units accessory for: 3VA52
Specifications
Model
| product brand name | SENTRON |
| product designation | Circular conductor terminal 6 cables 3 units |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA2.6 |
| type of electrical connection / with control wire tap | No |
Mechanical Design
| Net Weight | 463 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 1.5 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 35 mm² |
| stripped length | 13.5 / 26 / 38.5 mm |
| tightening torque / when using copper cables — solid | 1.5 mm²: 2.8 Nm, 2.5-10 mm²: 6.2 Nm, 16 mm²: 7 Nm |
| tightening torque / when using copper cables — stranded | 1.5 mm²: 2.8 Nm; 2.5 - 10 mm²: 6.2 Nm; 16 - 35 mm²: 7 Nm |
| tightening torque / when using copper cables — finely stranded | 1.5 mm²: 2.8 Nm, 2.5 - 10 mm²: 6.2 Nm, 16 - 25 mm²: 7 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 1.5 mm²: 2.8 Nm, 2.5 - 10 mm²: 6.2 Nm, 16 - 25 mm²: 7 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 0.53 / 1.0 / 1.5 in |
| connectable conductor cross-section — for copper cable / solid / minimum | 14 AWG |
| connectable conductor cross-section — for copper cable / solid / maximum | 10 AWG |
| connectable conductor cross-section — for copper cable / stranded / minimum | 14 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 2 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 8 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 2 AWG |
| tightening torque / when using copper cables — solid | 14-10 AWG: 55 lb-in |
| tightening torque / when using copper cables — stranded | 14 - 8 AWG: 55 lb-in; 6 - 2 AWG: 62 lb-in |
