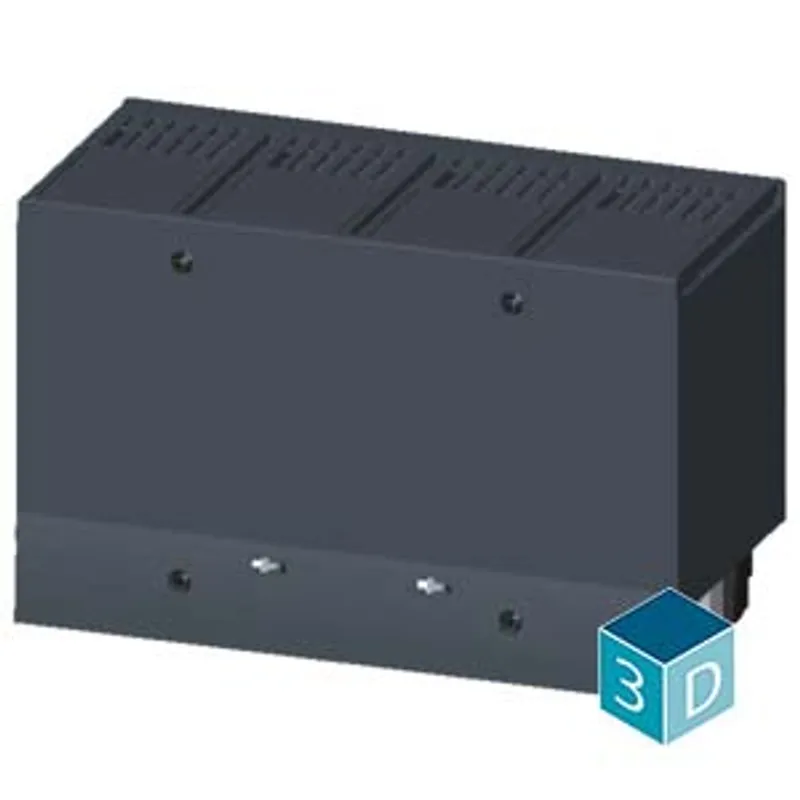

Siemens 3VA9214-0JC22
Circular conduc. terminal TA2.3 2 x 25…150 mm² for 2 cables
- MPN
- 3VA9214-0JC22
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9214-0JC22?

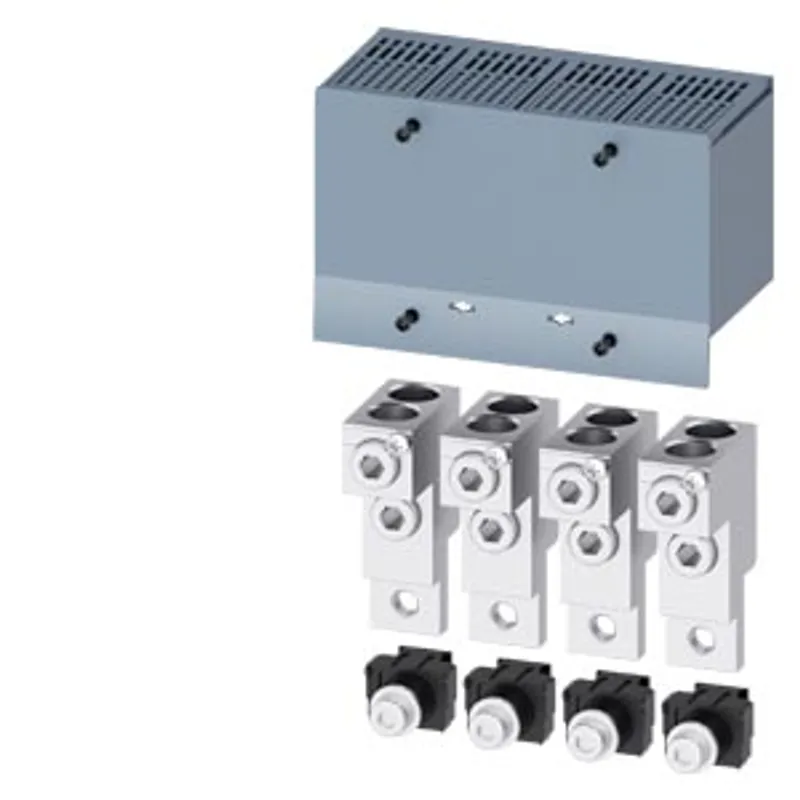

circular conduc. terminal TA2.3 2 x 25…150 mm² for 2 cables; 4 units auxiliary conductor voltage tap 4 units accessory for: 3VA12
Specifications
Model
| product brand name | SENTRON |
| product designation | circular conductor terminal |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA2.3 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 704 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 25 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 150 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 25 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 150 mm² |
| stripped length | 26 / 51 mm |
| tightening torque / when using copper cables — stranded | 25 - 150 mm²: 31.1 Nm |
| tightening torque / when using copper cables — finely stranded | 25 - 150 mm²: 31.1 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 25 - 70 mm²: 31.1 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 1.0 / 2.0 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 4 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 300 kcmil |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 4 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 300 kcmil |
| tightening torque / when using copper cables — stranded | 4 AWG - 300 kcmil: 275 lb-in |
