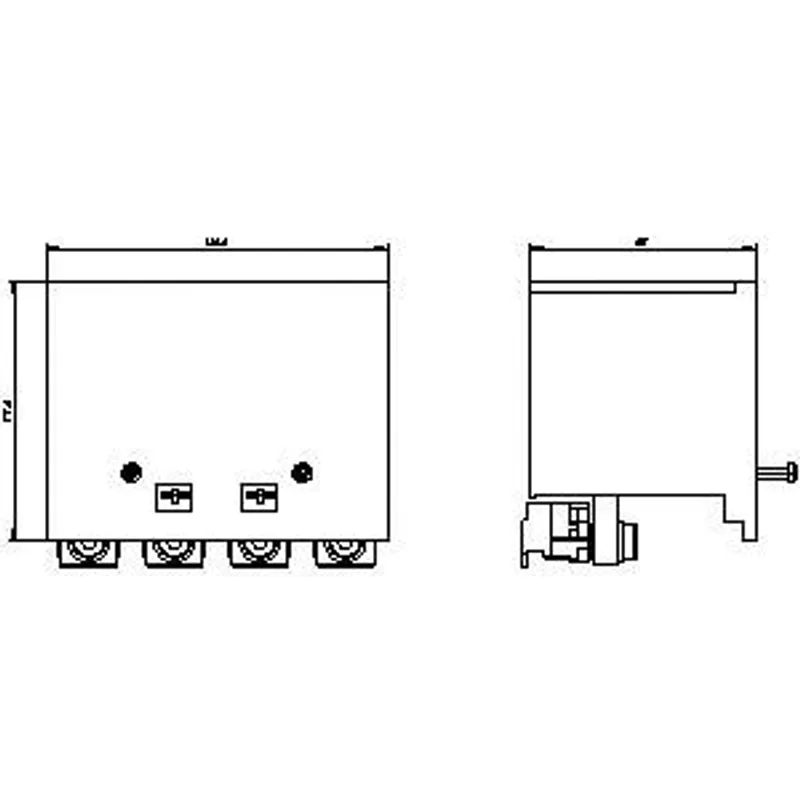

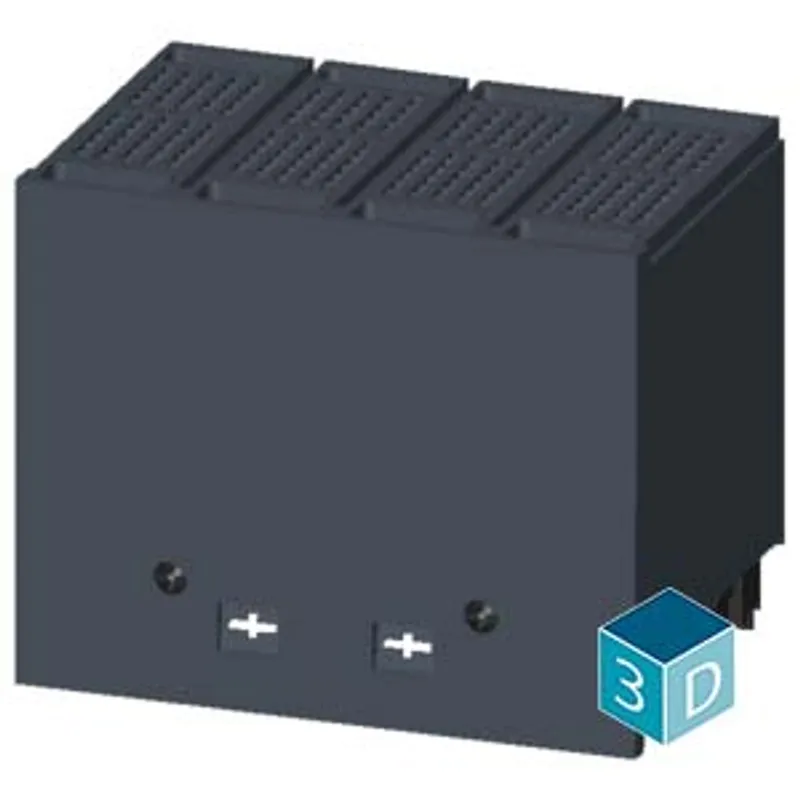

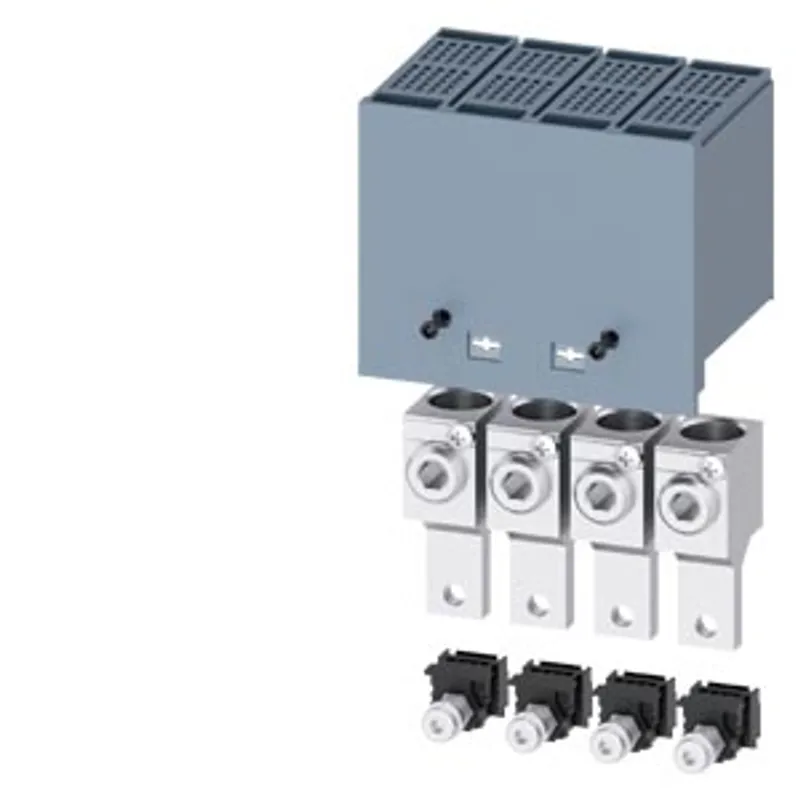

Siemens 3VA9114-0JC12
Circular conduc. terminal TA2.1 25…150 mm² large with auxiliary conductor voltage tap 4 units accessory for…
- MPN
- 3VA9114-0JC12
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9114-0JC12?
circular conduc. terminal TA2.1 25…150 mm² large with auxiliary conductor voltage tap 4 units accessory for: 3VA10/11
Specifications
Model
| product brand name | SENTRON |
| product designation | circular conductor terminal |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA2.1 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 442 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 25 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 150 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 25 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 150 mm² |
| stripped length | 30,5 mm |
| tightening torque / when using copper cables — stranded | 25 - 150 mm²: 28.5 Nm |
| tightening torque / when using copper cables — finely stranded | 25 - 120 mm²: 28.5 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 25 - 95 mm²: 28.5 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 1.2 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 4 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 300 kcmil |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 4 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 300 kcmil |
| tightening torque / when using copper cables — stranded | 4 AWG - 300 kcmil: 252 lb-in |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9114-0JC12: frequently asked questions
When can 3VA9114-0JC12 be shipped?
3VA9114-0JC12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9114-0JC12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9114-0JC12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9114-0JC12, subject to availability and destination.
