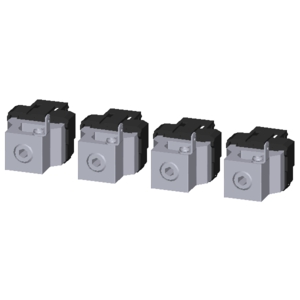

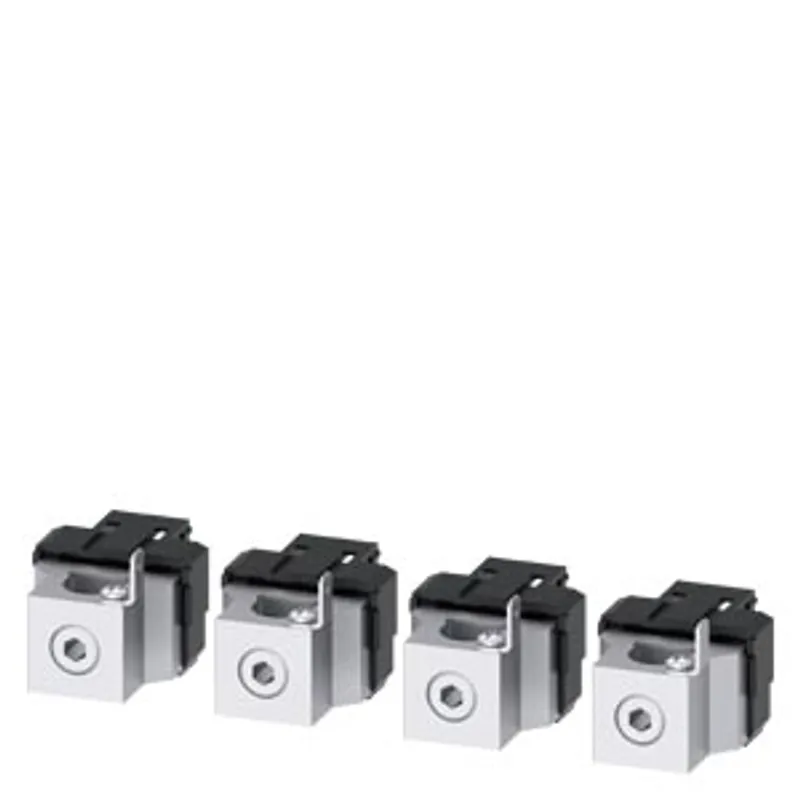

Siemens 3VA9104-0JG11
Circular conduc. terminal TA1.3 1.5…50 mm² with auxiliary conductor voltage tap 4 units accessory for…
- MPN
- 3VA9104-0JG11
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9104-0JG11?
circular conduc. terminal TA1.3 1.5…50 mm² with auxiliary conductor voltage tap 4 units accessory for: 3VA20/21/22
Specifications
Model
| product brand name | SENTRON |
| product designation | Circular conductor terminal voltage tap 4 units |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA1.3 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 131 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 1.5 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 50 mm² |
| stripped length | 18 mm |
| tightening torque / when using copper cables — solid | 1.5 -10 mm²: 6.2 Nm, 16 mm²: 8.5 Nm |
| tightening torque / when using copper cables — stranded | 1.5 - 10 mm²: 6.2 Nm; 16 - 35 mm²: 8.5 Nm; 50 mm²: 13.6 Nm |
| tightening torque / when using copper cables — finely stranded | 1.5 -10 mm²: 6.2 Nm, 16 - 35 mm²: 8.5 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 1.5 - 10 mm²: 6.2 Nm, 16 - 35 mm²: 8.5 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 0.7 in |
| connectable conductor cross-section — for copper cable / solid / minimum | 14 AWG |
| connectable conductor cross-section — for copper cable / solid / maximum | 10 AWG |
| connectable conductor cross-section — for copper cable / stranded / minimum | 14 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 1/0 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 8 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 1/0 AWG |
| tightening torque / when using copper cables — solid | 14-10 AWG: 55 lb-in |
| tightening torque / when using copper cables — stranded | 14 - 8 AWG: 55 lb-in; 6 - 2 AWG: 75 lb-in; 1 - 1/0 AWG: 120 lb-in |
