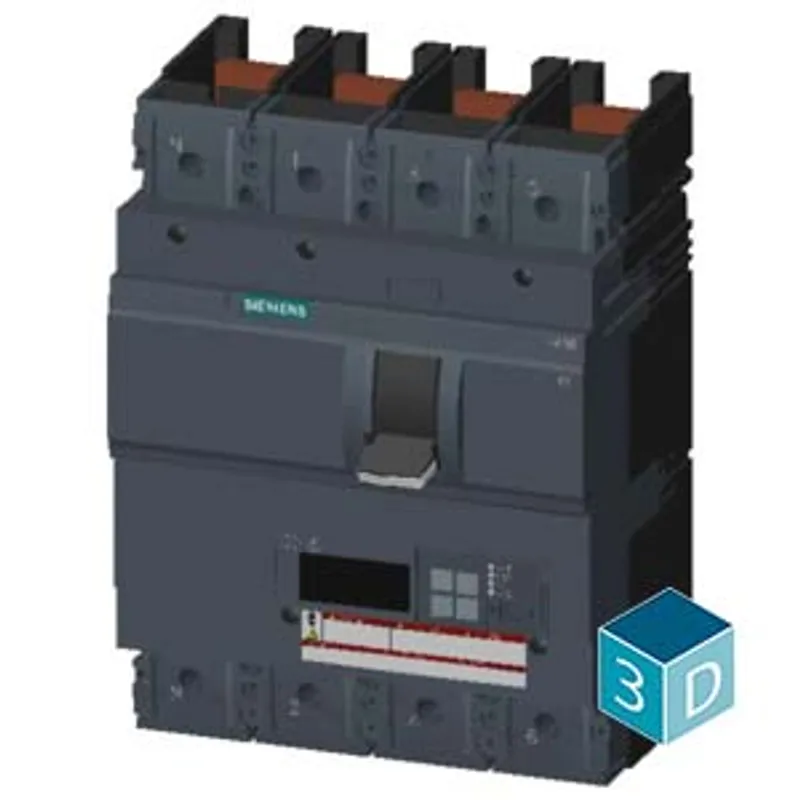

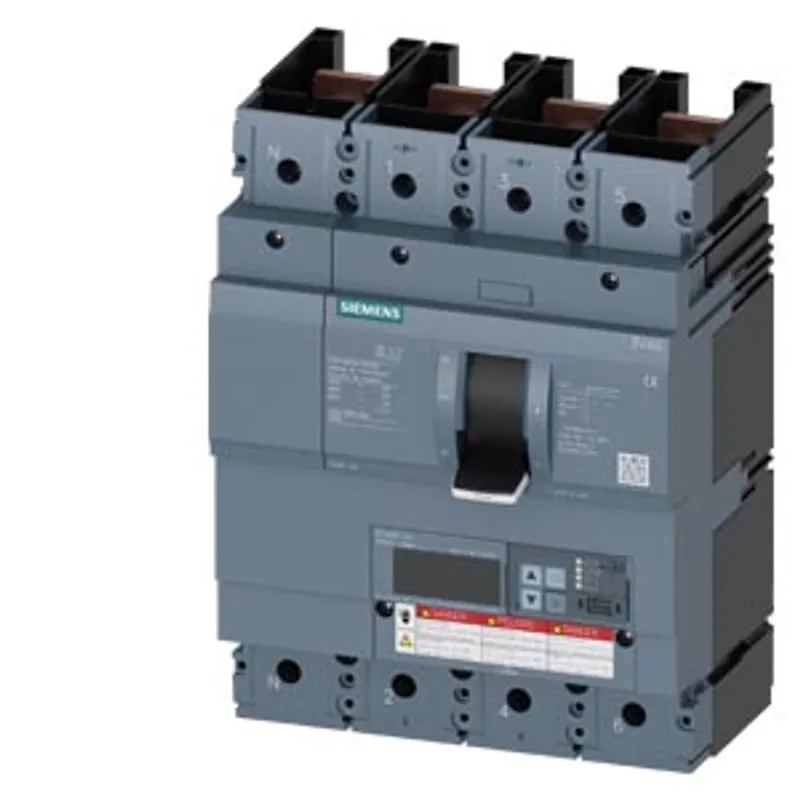

Siemens 3VA6325-7KM41-0AA0
Circuit breaker 3VA6 UL Frame 400 breaking capacity class C 100 kA @ 480 V 4-pole, line protection ETU830
- MPN
- 3VA6325-7KM41-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA6325-7KM41-0AA0?

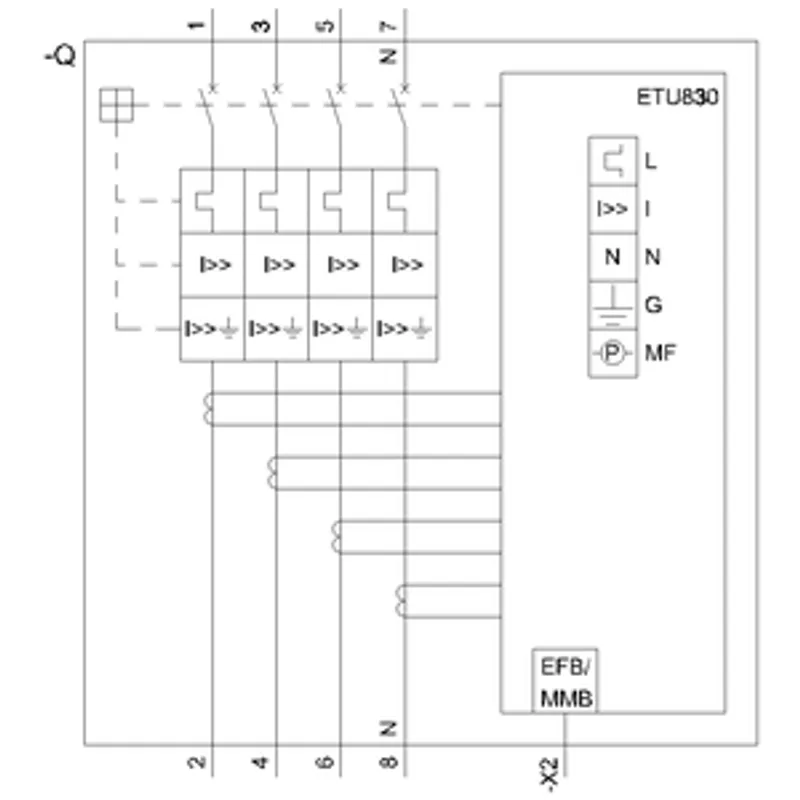

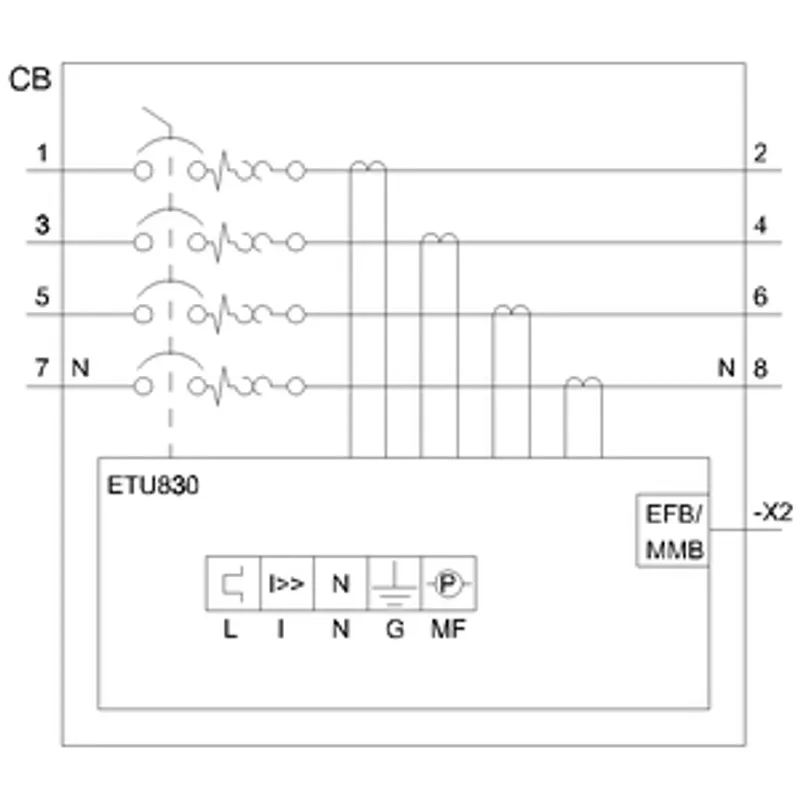

circuit breaker 3VA6 UL Frame 400 breaking capacity class C 100 kA @ 480 V 4-pole, line protection ETU830, LIG, In=250 A overload protection Ir=100 A...250 A short-circuit protection Ii=1.5...12 x In ground-fault protection Ig=0.2...1 x In, tg=0.05-0.8s without connection
Specifications
Model
| product brand name | SENTRON |
| product designation | Molded-case circuit breaker |
| product designation / according to UL file | CJAE |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| design of the overcurrent release | ETU830 |
| protection function of the overcurrent release | LIG |
| number of poles | 4 |
General technical data
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| power loss [W] / maximum | 27 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 9 W |
| mechanical service life (operating cycles) / typical | 20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 6 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 4 200 |
| electrical endurance (operating cycles) / at 480 V | 6 000 |
| electrical endurance (operating cycles) / at 600 V | 4 200 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Summation current formation L + N-conductor |
| product function — communication function | Yes |
| product function — other measurement function | Yes |
| Net Weight | 6.9 kg |
Current
| marking / according to UL 489 / 100%-rated breaker | No |
| operational current — at 40 °C | 250 A |
| operational current — at 45 °C | 250 A |
| operational current — at 50 °C | 250 A |
| operational current — at 55 °C | 250 A |
| operational current — at 60 °C | 250 A |
| operational current — at 65 °C | 250 A |
| operational current — at 70 °C | 250 A |
Switching capacity according to IEC 60947
| switching capacity class of the circuit breaker | C |
| maximum short-circuit current breaking capacity (Icu) — at 240 V | 150 kA |
| maximum short-circuit current breaking capacity (Icu) — at 415 V | 110 kA |
| maximum short-circuit current breaking capacity (Icu) — at 690 V | 5 kA |
| operating short-circuit current breaking capacity (Ics) — at 240 V | 150 kA |
| operating short-circuit current breaking capacity (Ics) — at 415 V | 110 kA |
| operating short-circuit current breaking capacity (Ics) — at 690 V | 5 kA |
| short-circuit current making capacity (Icm) — at 240 V | 330 kA |
| short-circuit current making capacity (Icm) — at 415 V | 242 kA |
| short-circuit current making capacity (Icm) — at 690 V | 7.5 kA |
Switching capacity according to UL 489
| current breaking capacity — at 240 V | 200 kA |
| current breaking capacity — at 480 V | 100 kA |
| current breaking capacity — at 600 V | 35 kA |
Adjustable parameters
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | 100 A |
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — maximum | 250 A |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 0.5 s |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — maximum | 25 s |
| adjustable response value setting current (Ii) / for I-tripping — minimum | 375 A |
| adjustable response value setting current (Ii) / for I-tripping — maximum | 3 000 A |
| adjustable current response value current / for G-tripping / with standard characteristic — initial value | 50 A |
| adjustable current response value current / for G-tripping / with standard characteristic — full-scale value | 250 A |
| adjustable response value delay time (tg) / for G-tripping / with I0t characteristic — minimum | 0.05 s |
| adjustable response value delay time (tg) / for G-tripping / with I0t characteristic — maximum | 0.8 s |
| adjustable response value setting current (Ig) / for G-tripping / with I2t characteristic — minimum | 50 A |
| adjustable response value setting current (Ig) / for G-tripping / with I2t characteristic — maximum | 250 A |
| adjustable response value delay time (tg) / for G-tripping / with I2t characteristic — minimum | 0.05 s |
| adjustable response value delay time (tg) / for G-tripping / with I2t characteristic — maximum | 0.8 s |
| adjustable setting current (InN) / for N-tripping — minimum | 50 A |
| adjustable setting current (InN) / for N-tripping — maximum | 400 A |
| design of the N-conductor protection | adjustable OFF; 20% to 160% |
| product function / grounding protection | Yes |

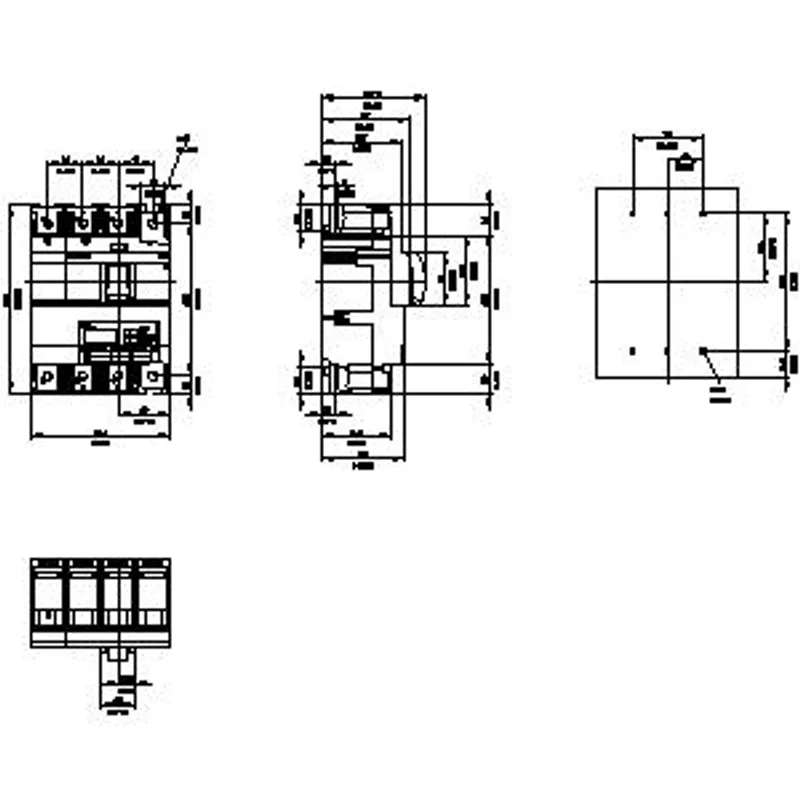

Mechanical Design
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| height [in] | 9.76 in |
| height | 248 mm |
| width [in] | 7.24 in |
| width | 184 mm |
| depth [in] | 4.33 in |
| depth | 110 mm |
Connections
| arrangement of electrical connectors / for main current circuit | Without connection |
| type of electrical connection / for main current circuit | Without |
Auxiliary circuit
| number of CO contacts / for auxiliary contacts | 0 |
Accessories
| product extension / optional / motor drive | Yes |
Environmental conditions
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
| ambient temperature — during operation / maximum | 70 °C |
| ambient temperature — during storage / minimum | -40 °C |
| ambient temperature — during storage / maximum | 80 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] / total | 495 kg |
| global warming potential [CO2 eq] / during manufacturing | 28.7 kg |
| global warming potential [CO2 eq] / during operation | 470 kg |
| global warming potential [CO2 eq] / after end of life | -4.07 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
| reference code / according to IEC 81346-2 | Q |
