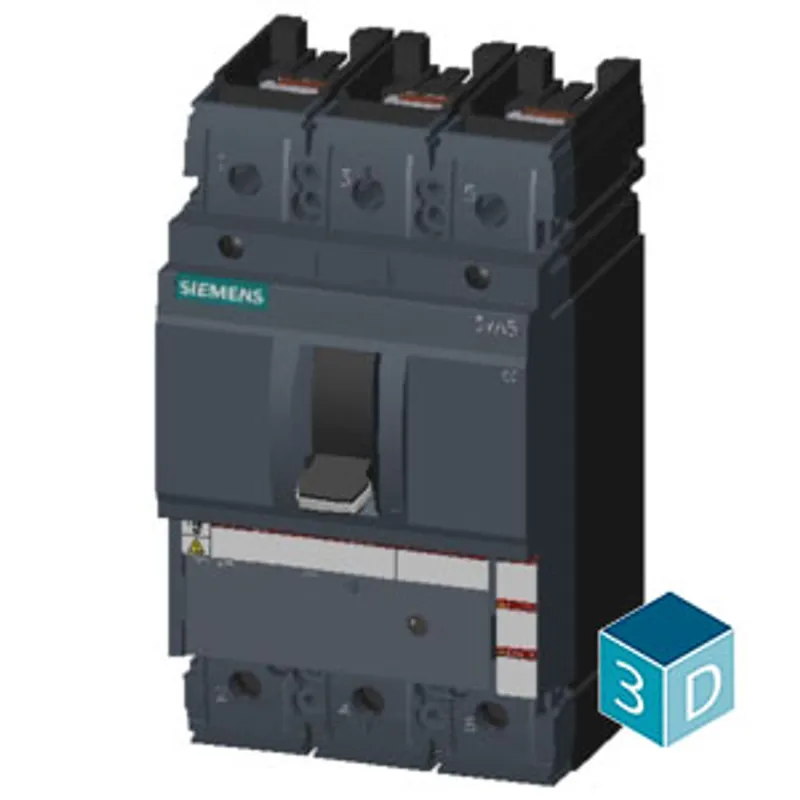

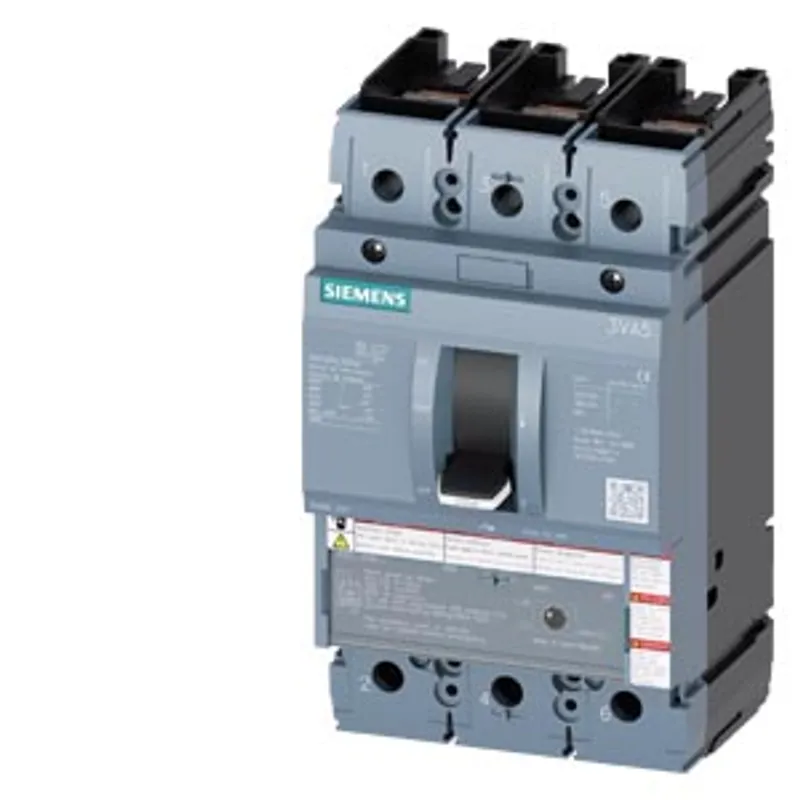

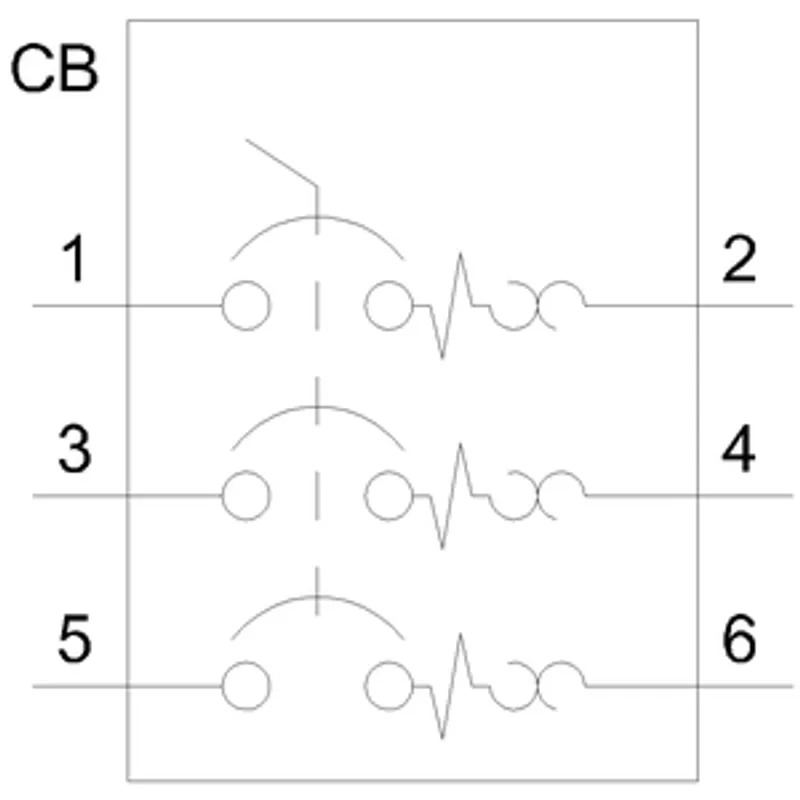

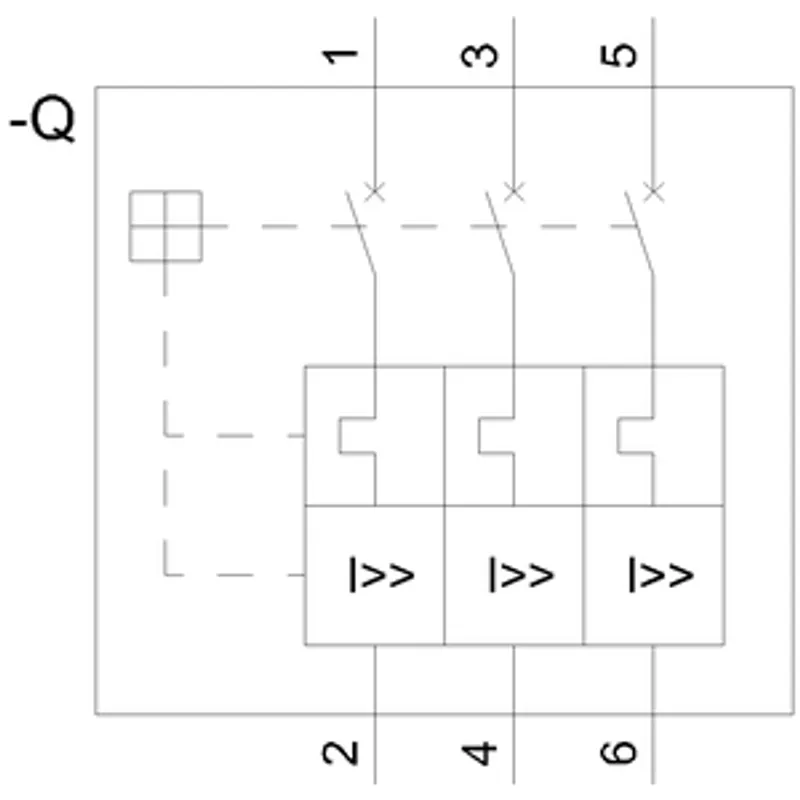

Siemens 3VA5230-5ED36-0AA0

Circuit breaker 3VA5 UL Frame 250 breaking capacity class M 35 kA @ 480 V 3-pole, line protection TM210

MPN: 3VA5230-5ED36-0AA0
Category: 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA5230-5ED36-0AA0?

circuit breaker 3VA5 UL Frame 250 breaking capacity class M 35 kA @ 480 V 3-pole, line protection TM210, FTFM, In=30 A overload protection Ir=30 A permanently set short-circuit protection Ii=11.67 x In cable connection on two sides

Specifications

Model

product brand name	SENTRON
product designation	Molded-case circuit breaker
product designation / according to UL file	MFAS
design of the product	System protection
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)	Yes
design of the load switch / according to UL 489 / High-Intensity-Discharge circuit breaker (HID Type)	Yes
design of the load switch / according to UL 489 / Switching Duty circuit breaker (SWD Type)	No
design of the overcurrent release	TM210
protection function of the overcurrent release	LI
number of poles	3

General technical data

insulation voltage / rated value	800 V
operating voltage / at DC / rated value	750 V
operating voltage / at AC / rated value	690 V
power loss [W] / maximum	18.5 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole	6.2 W
mechanical service life (operating cycles) / typical	20 000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V	8 000
electrical endurance (operating cycles) / at AC-1 / at 690 V	4 000
electrical endurance (operating cycles) / at 480 V	8 000
electrical endurance (operating cycles) / at 600 V	4 000
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof	No
product function — communication function	No
product function — other measurement function	No
Net Weight	2 100 g

Current

marking / according to UL 489 / 100%-rated breaker	No
operational current — at 40 °C	30 A
operational current — at 45 °C	29.4 A
operational current — at 50 °C	28.8 A
operational current — at 55 °C	28.2 A
operational current — at 60 °C	27.6 A
operational current — at 65 °C	27 A
operational current — at 70 °C	26.4 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breaker	M
maximum short-circuit current breaking capacity (Icu) — at 240 V	85 kA
maximum short-circuit current breaking capacity (Icu) — at 415 V	55 kA
maximum short-circuit current breaking capacity (Icu) — at 690 V	7 kA
operating short-circuit current breaking capacity (Ics) — at 240 V	85 kA
operating short-circuit current breaking capacity (Ics) — at 415 V	55 kA
operating short-circuit current breaking capacity (Ics) — at 690 V	7 kA
short-circuit current making capacity (Icm) — at 240 V	187 kA
short-circuit current making capacity (Icm) — at 415 V	121 kA
short-circuit current making capacity (Icm) — at 690 V	11.9 kA
design of short-circuit protection	For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter

Switching capacity according to UL 489

current breaking capacity — at 240 V	85 kA
current breaking capacity — at 480 V	35 kA
current breaking capacity — at 600 V	18 kA

Adjustable parameters

adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum	30 A
adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — maximum	30 A
adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum	1 s
adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — maximum	1 s
adjustable response value setting current (Ii) / for I-tripping — minimum	400 A
adjustable response value setting current (Ii) / for I-tripping — maximum	400 A
product function / grounding protection	No

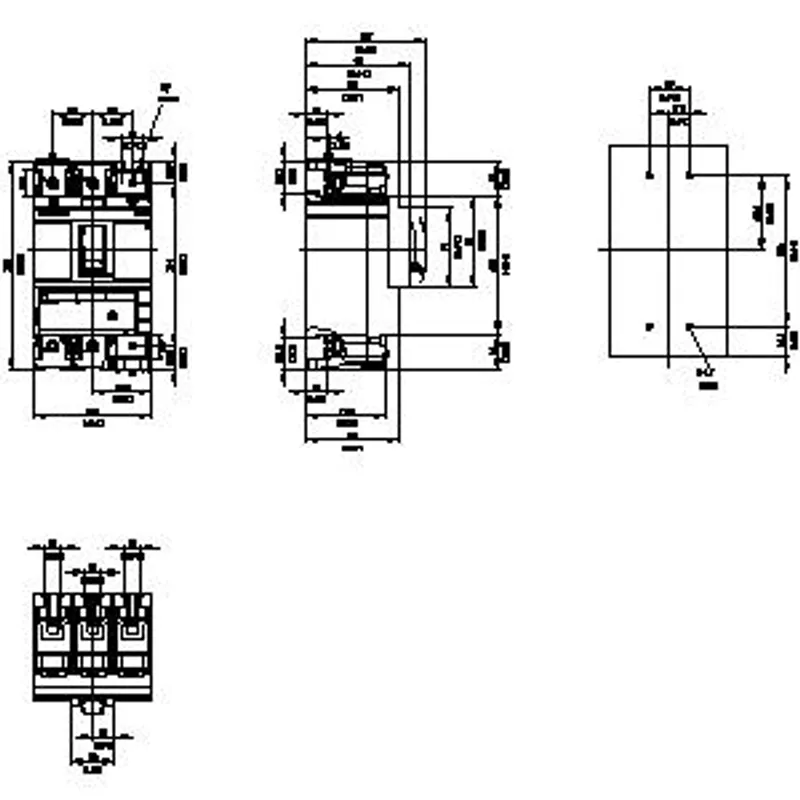

Mechanical Design

product component — undervoltage release	No
product component — voltage trigger	No
product component — trip indicator	No
height [in]	7.28 in
height	185 mm
width [in]	4.13 in
type of connectable conductor cross-sections / of the round conductor terminal / stranded	1 x (14 AWG - 1/0)
width	105 mm
depth [in]	3.27 in
depth	83 mm

Connections

arrangement of electrical connectors / for main current circuit	Front connection
type of electrical connection / for main current circuit	circular conductor terminal on both sides

Auxiliary circuit

number of CO contacts / for auxiliary contacts

Accessories

product extension / optional / motor drive

Yes

Environmental conditions

protection class IP / on the front	IP40
ambient temperature — during operation / minimum	-25 °C
ambient temperature — during operation / maximum	70 °C
ambient temperature — during storage / minimum	-40 °C
ambient temperature — during storage / maximum	80 °C
reference code / according to IEC 81346-2	Q
