Siemens 3VA4190-4ED24-3AA0

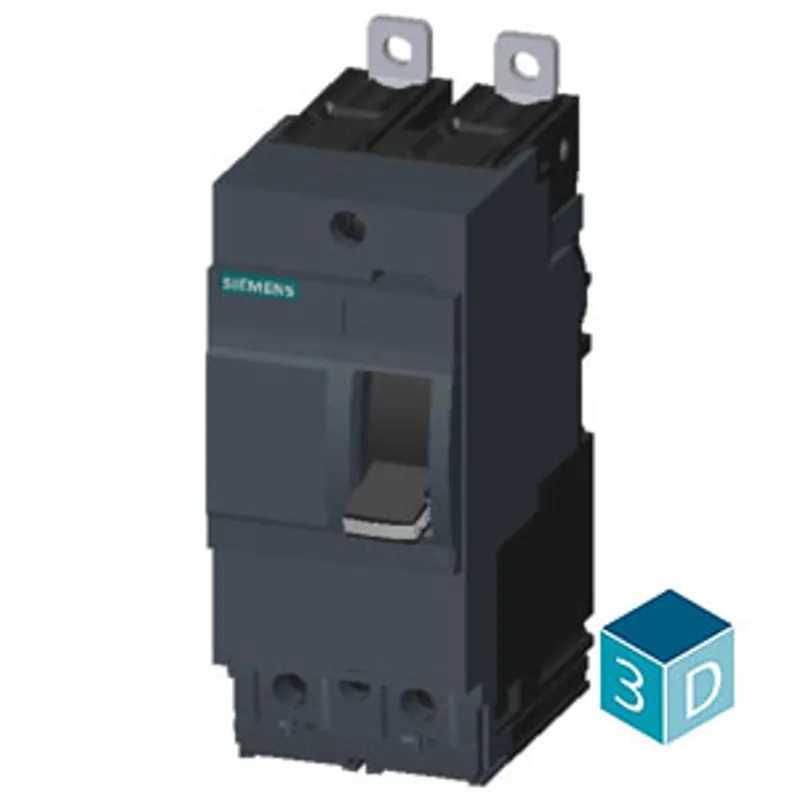

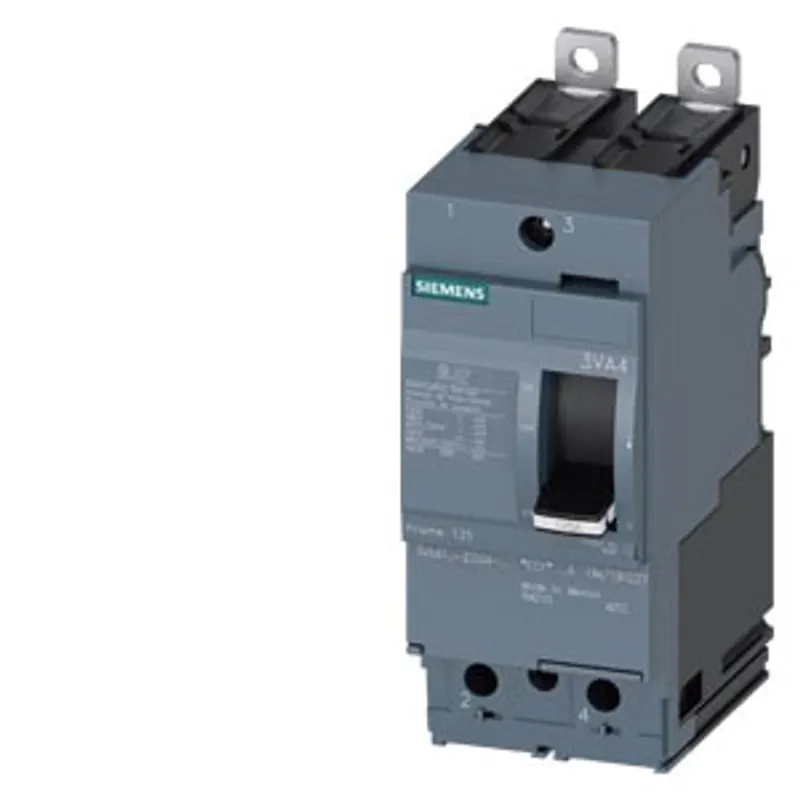

Circuit breaker 3VA4 UL Frame 125 breaking capacity class S 25 kA @ 480 V 2-pole, line protection TM210, FTFM
- MPN
- 3VA4190-4ED24-3AA0
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA4190-4ED24-3AA0?
circuit breaker 3VA4 UL Frame 125 breaking capacity class S 25 kA @ 480 V 2-pole, line protection TM210, FTFM, In=90 A overload protection Ir=90 A permanently set short-circuit protection Ii=10 x In
Specifications
Model
| product brand name | SENTRON |
| product designation | Molded-case circuit breaker |
| product designation / according to UL file | SEAB |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| design of the load switch / according to UL 489 / High-Intensity-Discharge circuit breaker (HID Type) | No |
| design of the load switch / according to UL 489 / Switching Duty circuit breaker (SWD Type) | No |
| design of the overcurrent release | TM210 |
| protection function of the overcurrent release | LI |
| number of poles | 2 |
General technical data
| operating voltage / at AC / rated value | 480 V |
| power loss [W] / maximum | 11.8 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 5.9 W |
| mechanical service life (operating cycles) / typical | 15 000 |
| electrical endurance (operating cycles) / at 480 V | 8 000 |
| electrical endurance (operating cycles) / at 600 V | 4 000 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
| product function — communication function | No |
| product function — other measurement function | No |
| Net Weight | 0.514 kg |
Current
| marking / according to UL 489 / 100%-rated breaker | No |
| operational current — at 40 °C | 90 A |
| operational current — at 45 °C | 88 A |
| operational current — at 50 °C | 86 A |
| operational current — at 55 °C | 84 A |
| operational current — at 60 °C | 81 A |
| operational current — at 65 °C | 79 A |
| operational current — at 70 °C | 77 A |
Switching capacity according to IEC 60947
| switching capacity class of the circuit breaker | S |
| design of short-circuit protection | For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter |
Switching capacity according to UL 489
| current breaking capacity — at 240 V | 65 kA |
| current breaking capacity — at 480 Y/277 V | 25 kA |
| current breaking capacity — at 480 V | 25 kA |
| current breaking capacity — at 600 Y/347 V | 14 kA |
Adjustable parameters
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 1 s |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — maximum | 1 s |
| product function / grounding protection | No |
Mechanical Design
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| height [in] | 5.09 in |
| height | 129.4 mm |
| width [in] | 2 in |
| type of connectable conductor cross-sections / of the round conductor terminal / stranded | 1 x (8 AWG - 3/0) |
| width | 50.8 mm |
| depth [in] | 2.96 in |
| depth | 75.1 mm |
Connections
| arrangement of electrical connectors / for main current circuit | output side: circular conductor connection |
| type of electrical connection / for main current circuit | Infeed side: Low tab |
| design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) | Tin |
Auxiliary circuit
| number of CO contacts / for auxiliary contacts | 0 |
Accessories
| product extension / optional / motor drive | No |
Environmental conditions
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
| ambient temperature — during operation / maximum | 70 °C |
| ambient temperature — during storage / minimum | -40 °C |
| ambient temperature — during storage / maximum | 80 °C |
