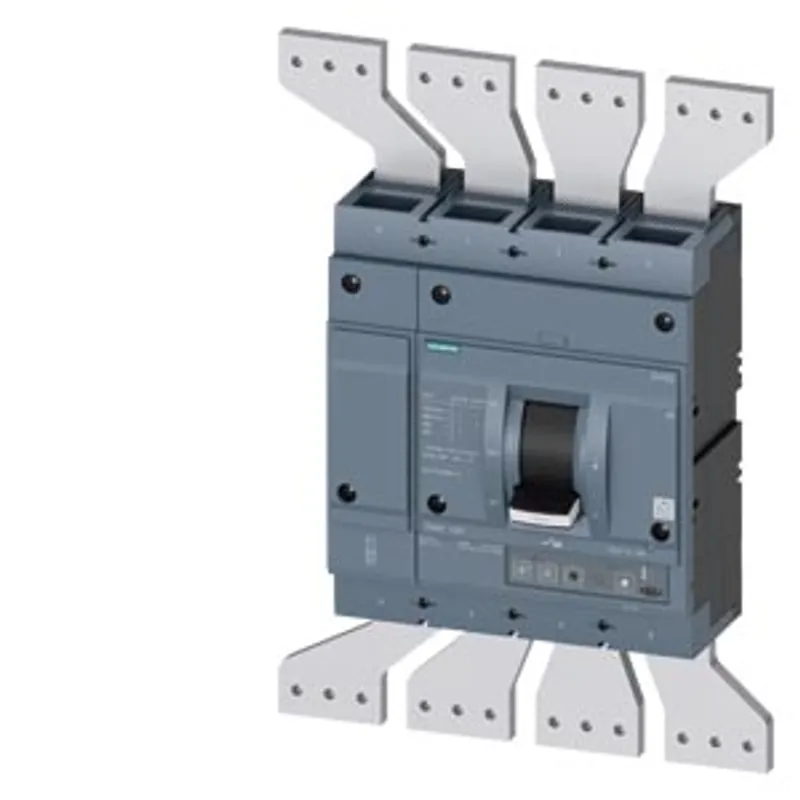

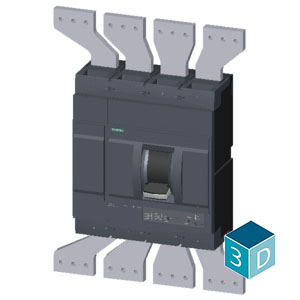

Siemens 3VA2612-6HL42-0AA0
Circuit breaker 3VA2 IEC Frame 1250 breaking capacity class H Icu=85 kA @ 415 V 4-pole, line protection ETU320
- MPN
- 3VA2612-6HL42-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA2612-6HL42-0AA0?

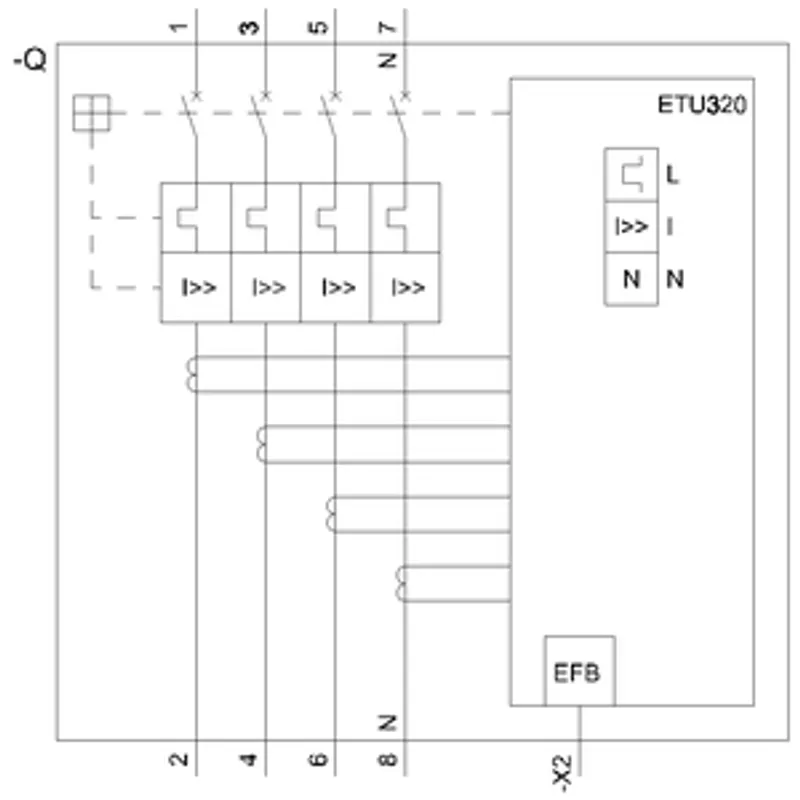

circuit breaker 3VA2 IEC Frame 1250 breaking capacity class H Icu=85 kA @ 415 V 4-pole, line protection ETU320, LI, In=1250 A overload protection Ir=500 A ...1250 A short-circuit protection Ii=1.5...10 x In neutral conductor protection adjustable (OFF, 50%, 100%) bus connectors broadened
Specifications
Model
| product brand name | SENTRON |
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| design of the overcurrent release | ETU320 |
| protection function of the overcurrent release | LI |
| number of poles | 4 |
General technical data
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| power loss [W] / maximum | 516 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 172 W |
| mechanical service life (operating cycles) / typical | 10 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 4 600 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 3 200 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
| product function — communication function | No |
| product function — other measurement function | No |
| Net Weight | 28.24 kg |
Current
| operational current — at 40 °C | 1 250 A |
| operational current — at 45 °C | 1 250 A |
| operational current — at 50 °C | 1 250 A |
| operational current — at 55 °C | 1 187 A |
| operational current — at 60 °C | 1 125 A |
| operational current — at 65 °C | 1 000 A |
| operational current — at 70 °C | 875 A |
Switching capacity according to IEC 60947
| switching capacity class of the circuit breaker | H |
| maximum short-circuit current breaking capacity (Icu) — at 240 V | 110 kA |
| maximum short-circuit current breaking capacity (Icu) — at 415 V | 85 kA |
| maximum short-circuit current breaking capacity (Icu) — at 440 V | 85 kA |
| maximum short-circuit current breaking capacity (Icu) — at 500 V | 55 kA |
| maximum short-circuit current breaking capacity (Icu) — at 690 V | 35 kA |
| operating short-circuit current breaking capacity (Ics) — at 240 V | 110 kA |
| operating short-circuit current breaking capacity (Ics) — at 415 V | 85 kA |
| operating short-circuit current breaking capacity (Ics) — at 440 V | 70 kA |
| operating short-circuit current breaking capacity (Ics) — at 500 V | 55 kA |
| operating short-circuit current breaking capacity (Ics) — at 690 V | 19 kA |
| short-circuit current making capacity (Icm) — at 240 V | 242 kA |
| short-circuit current making capacity (Icm) — at 415 V | 187 kA |
| short-circuit current making capacity (Icm) — at 440 V | 187 kA |
| short-circuit current making capacity (Icm) — at 500 V | 121 kA |
| short-circuit current making capacity (Icm) — at 690 V | 73.5 kA |
Adjustable parameters
| product feature / for L-tripping / can be switched on/off | No |
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | 500 A |
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — maximum | 1 250 A |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 0.5 s |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — maximum | 17 s |
| adjustable response value setting current (Ii) / for I-tripping — minimum | 1 875 A |
| adjustable response value setting current (Ii) / for I-tripping — maximum | 12 500 A |
| adjustable setting current (InN) / for N-tripping — minimum | 250 A |
| adjustable setting current (InN) / for N-tripping — maximum | 1 250 A |
| design of the N-conductor protection | adjustable OFF; 50%; 100% |
| product function / grounding protection | No |

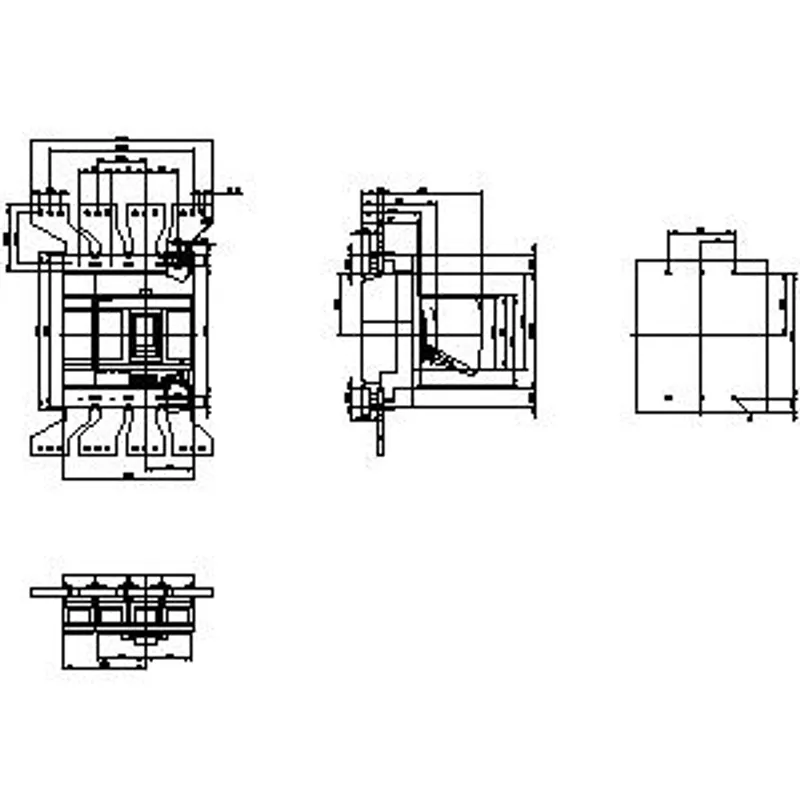

Mechanical Design
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| height [in] | 12.6 in |
| height | 320 mm |
| width [in] | 11.02 in |
| width | 280 mm |
| depth [in] | 4.72 in |
| depth | 120 mm |
Connections
| arrangement of electrical connectors / for main current circuit | Front terminal |
| type of electrical connection / for main current circuit | both sides processed busbar connection piece |
| design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) | silver |
| design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) | silver |
Auxiliary circuit
| number of CO contacts / for auxiliary contacts | 0 |
Accessories
| product extension / optional / motor drive | No |
Environmental conditions
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
| ambient temperature — during operation / maximum | 70 °C |
| ambient temperature — during storage / minimum | -40 °C |
| ambient temperature — during storage / maximum | 80 °C |
| reference code / according to IEC 81346-2 | Q |
