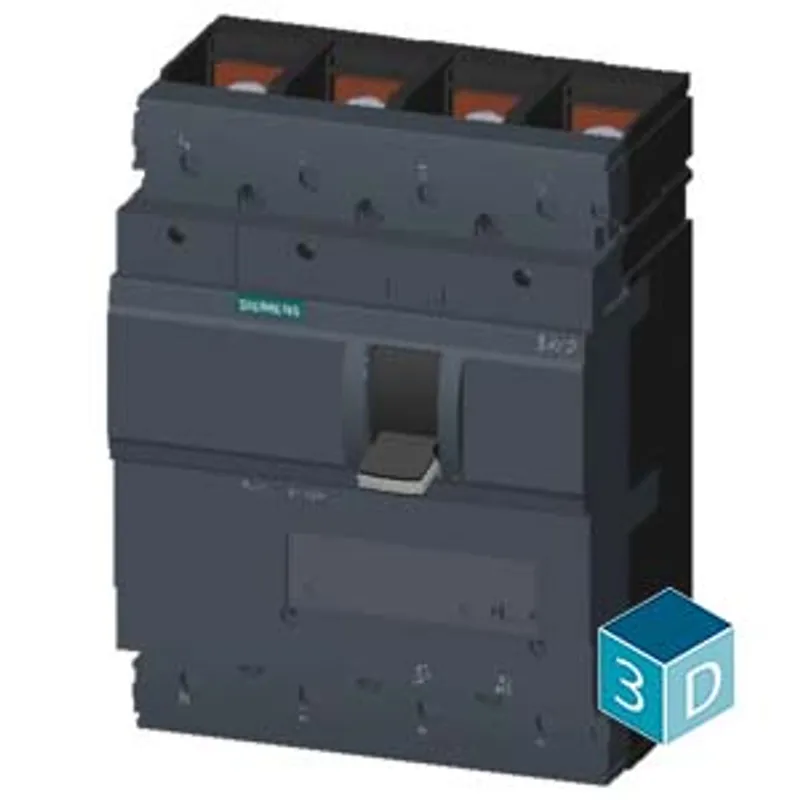

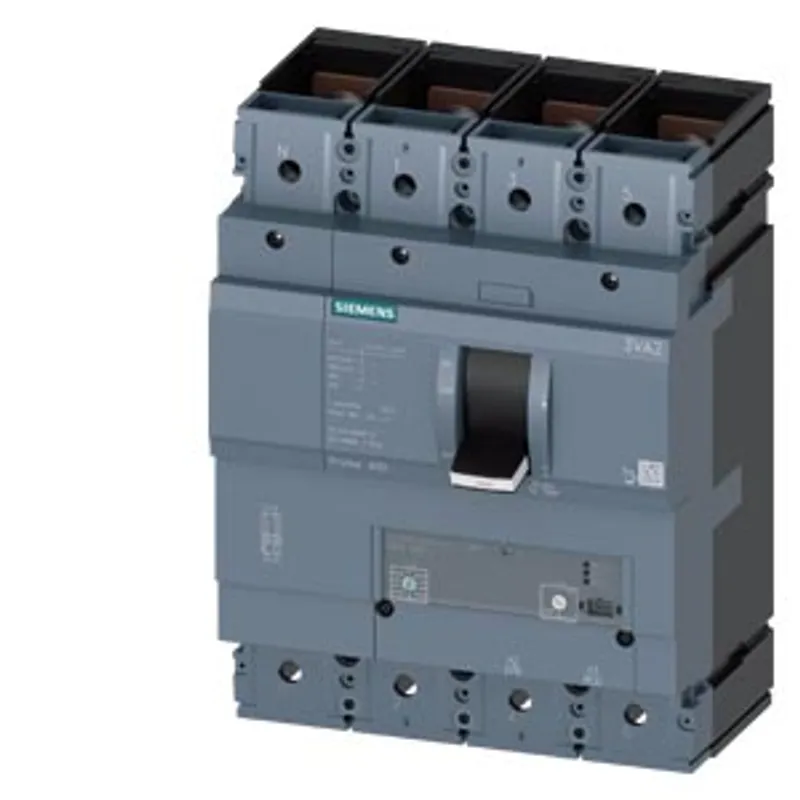

Siemens 3VA2325-8HK42-0AA0
Circuit breaker 3VA2 IEC Frame 400 breaking capacity class L Icu=150 kA @ 415 V 4-pole
- MPN
- 3VA2325-8HK42-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA2325-8HK42-0AA0?

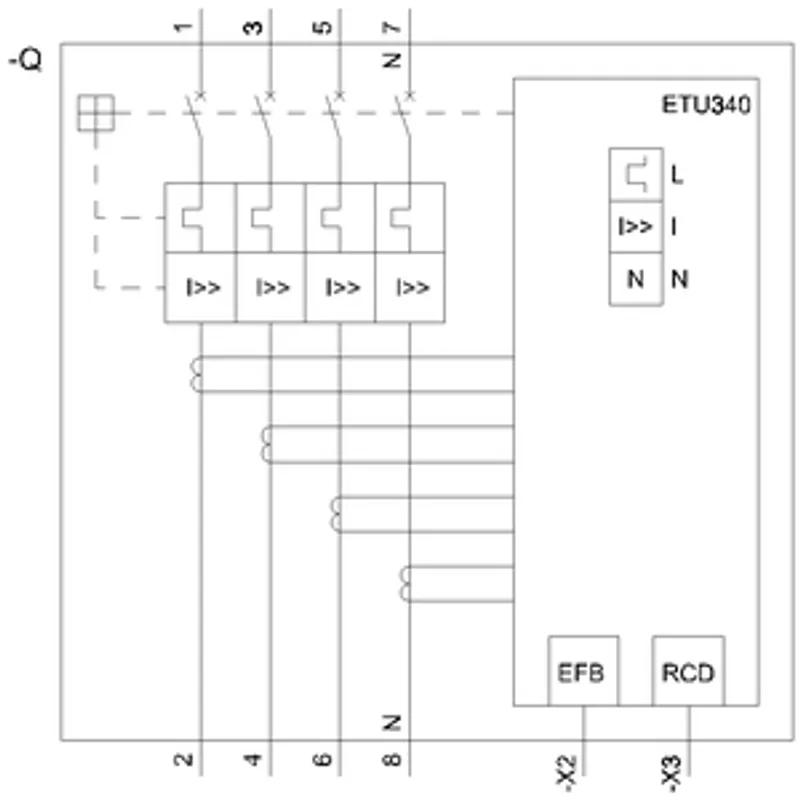

circuit breaker 3VA2 IEC Frame 400 breaking capacity class L Icu=150 kA @ 415 V 4-pole, line protection ETU340, ELISA LI, In=250 A overload protection Ir=100 A...250 A short-circuit protection Ii=15 x In neutral conductor protection adjustable (OFF, 50%, 100%) nut keeper kit
Specifications
Model
| product brand name | SENTRON |
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| design of the overcurrent release | ETU340 |
| protection function of the overcurrent release | ELISA LI |
| number of poles | 4 |
General technical data
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| power loss [W] / maximum | 37.5 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 12.5 W |
| mechanical service life (operating cycles) / typical | 20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 6 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 4 200 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
| product function — communication function | No |
| product function — other measurement function | No |
| Net Weight | 5 700 g |
Current
| operational current — at 40 °C | 250 A |
| operational current — at 45 °C | 250 A |
| operational current — at 50 °C | 250 A |
| operational current — at 55 °C | 250 A |
| operational current — at 60 °C | 250 A |
| operational current — at 65 °C | 250 A |
| operational current — at 70 °C | 250 A |
Switching capacity according to IEC 60947
| switching capacity class of the circuit breaker | L |
| maximum short-circuit current breaking capacity (Icu) — at 240 V | 200 kA |
| maximum short-circuit current breaking capacity (Icu) — at 415 V | 150 kA |
| maximum short-circuit current breaking capacity (Icu) — at 440 V | 150 kA |
| maximum short-circuit current breaking capacity (Icu) — at 500 V | 100 kA |
| maximum short-circuit current breaking capacity (Icu) — at 690 V | 25 kA |
| operating short-circuit current breaking capacity (Ics) — at 240 V | 200 kA |
| operating short-circuit current breaking capacity (Ics) — at 415 V | 150 kA |
| operating short-circuit current breaking capacity (Ics) — at 440 V | 150 kA |
| operating short-circuit current breaking capacity (Ics) — at 500 V | 100 kA |
| operating short-circuit current breaking capacity (Ics) — at 690 V | 18 kA |
| short-circuit current making capacity (Icm) — at 240 V | 440 kA |
| short-circuit current making capacity (Icm) — at 415 V | 330 kA |
| short-circuit current making capacity (Icm) — at 440 V | 330 kA |
| short-circuit current making capacity (Icm) — at 500 V | 220 kA |
| short-circuit current making capacity (Icm) — at 690 V | 52.5 kA |
Adjustable parameters
| product feature / for L-tripping / can be switched on/off | No |
| adjustable current response value current / of the L-trip / with I4t characteristic | 100 ... 250 A |
| adjustable response value delay time (tr) / for L-tripping / with I4t characteristic — minimum | 1 500 s |
| adjustable response value delay time (tr) / for L-tripping / with I4t characteristic — maximum | 1 500 s |
| adjustable response value setting current (Ii) / for I-tripping — minimum | 3 750 A |
| adjustable response value setting current (Ii) / for I-tripping — maximum | 3 750 A |
| adjustable setting current (InN) / for N-tripping — minimum | 125 A |
| adjustable setting current (InN) / for N-tripping — maximum | 250 A |
| design of the N-conductor protection | adjustable OFF; 50%; 100% |
| product function / grounding protection | No |

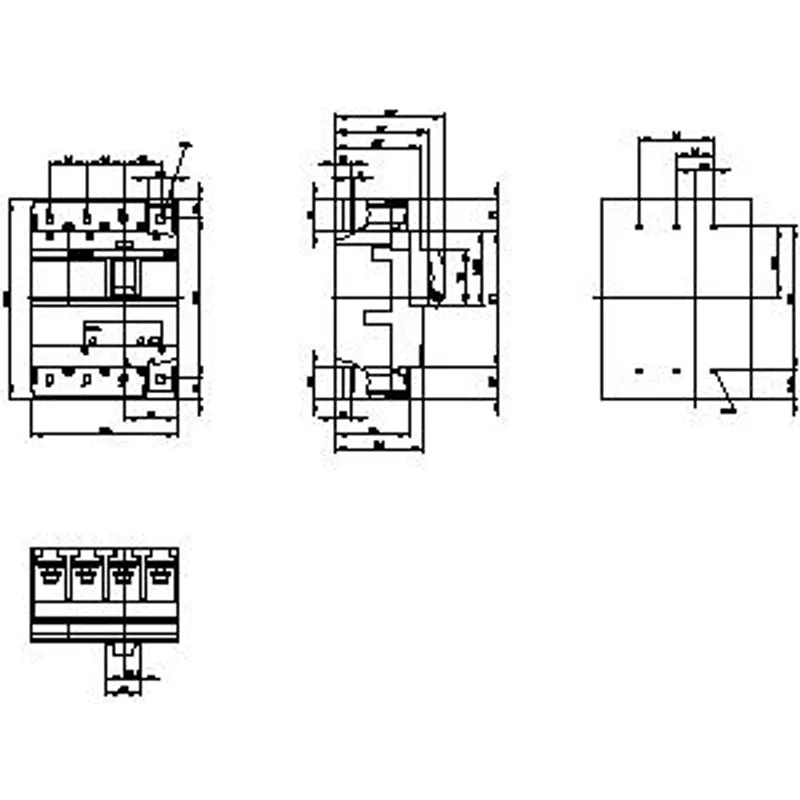

Mechanical Design
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| height [in] | 9.76 in |
| height | 248 mm |
| width [in] | 7.24 in |
| width | 184 mm |
| depth [in] | 4.33 in |
| depth | 110 mm |
Connections
| arrangement of electrical connectors / for main current circuit | Front terminal |
| type of electrical connection / for main current circuit | on both sides nut keeper kit |
| type of connectable conductor cross-sections / for flat-bar terminal connection / minimum | 20 x 1 mm |
| type of connectable conductor cross-sections / for flat-bar terminal connection / maximum | 35 x 10 mm |
| design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) | silver |
| design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) | silver |
Auxiliary circuit
| number of CO contacts / for auxiliary contacts | 0 |
Accessories
| product extension / optional / motor drive | Yes |
Environmental conditions
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
| ambient temperature — during operation / maximum | 70 °C |
| ambient temperature — during storage / minimum | -40 °C |
| ambient temperature — during storage / maximum | 80 °C |
Environmental footprint
| global warming potential [CO2 eq] / total | 495 kg |
| global warming potential [CO2 eq] / during manufacturing | 28.7 kg |
| global warming potential [CO2 eq] / during operation | 470 kg |
| global warming potential [CO2 eq] / after end of life | -4.07 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
| reference code / according to IEC 81346-2 | Q |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA2325-8HK42-0AA0: frequently asked questions
When can 3VA2325-8HK42-0AA0 be shipped?
3VA2325-8HK42-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA2325-8HK42-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA2325-8HK42-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA2325-8HK42-0AA0, subject to availability and destination.
