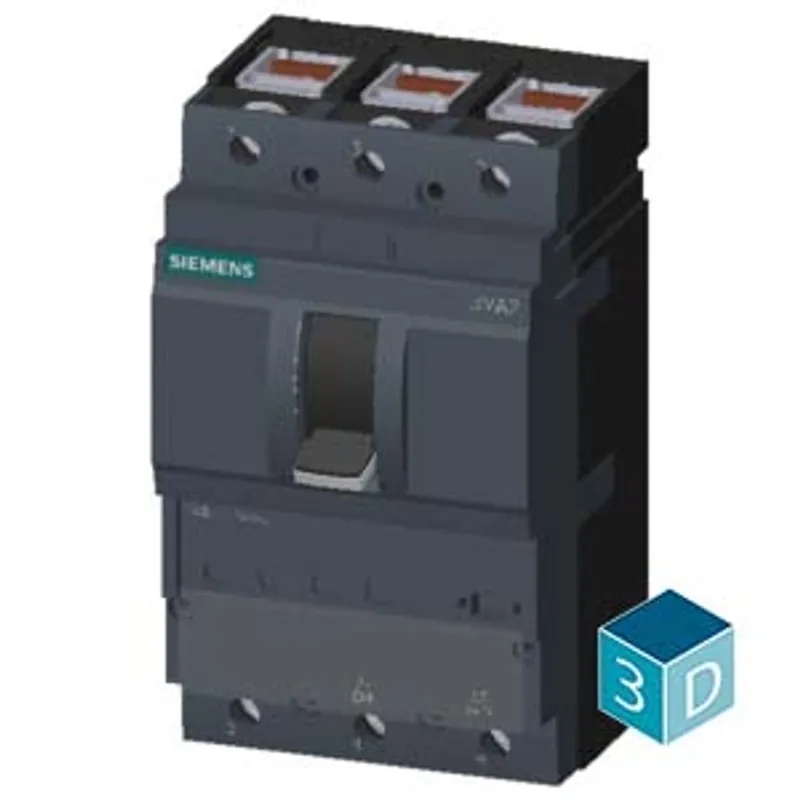

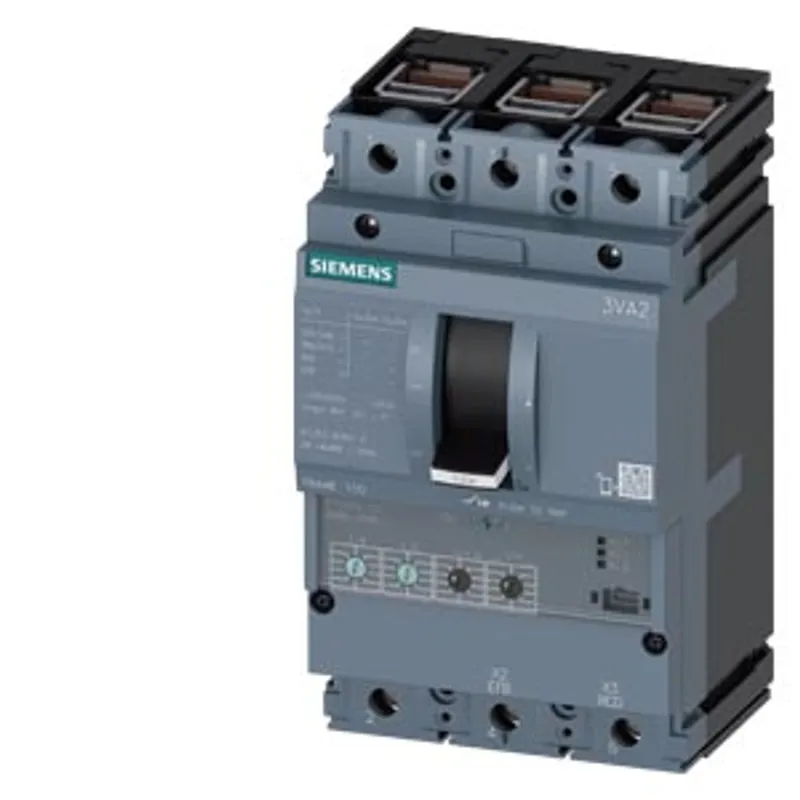

Siemens 3VA2010-5HN36-0AA0
Circuit breaker 3VA2 IEC Frame 100 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU350
- MPN
- 3VA2010-5HN36-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA2010-5HN36-0AA0?
circuit breaker 3VA2 IEC Frame 100 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection ETU350, LSI, In=100 A overload protection Ir=40 A...100 A short-circuit protection Isd=1.5...10 x Ir, Ii=12 x In terminal connection
Specifications
Model
| product brand name | SENTRON |
| product designation | Molded case circuit breaker |
| design of the product | Line protection |

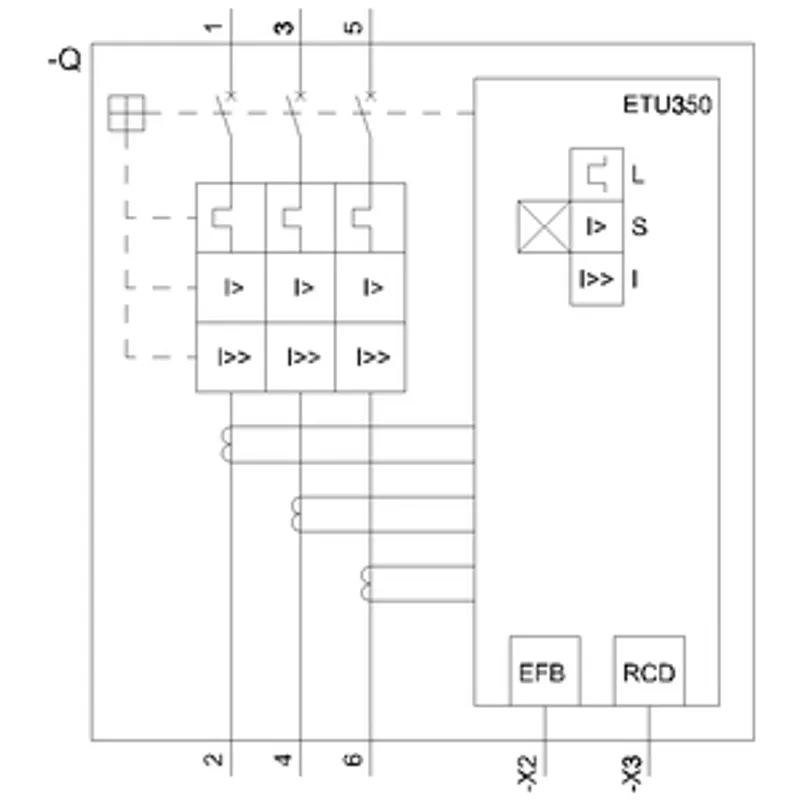

| design of the overcurrent release | ETU350 |
| protection function of the overcurrent release | LSI |
| number of poles | 3 |
General technical data
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| power loss [W] / maximum | 13.5 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 4.5 W |
| mechanical service life (operating cycles) / typical | 25 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 15 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 10 500 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
| product function — communication function | No |
| product function — other measurement function | No |
| Net Weight | 2.235 kg |
Current
| operational current — at 40 °C | 100 A |
| operational current — at 45 °C | 100 A |
| operational current — at 50 °C | 100 A |
| operational current — at 55 °C | 100 A |
| operational current — at 60 °C | 100 A |
| operational current — at 65 °C | 100 A |
| operational current — at 70 °C | 100 A |
Switching capacity according to IEC 60947
| switching capacity class of the circuit breaker | M |
| maximum short-circuit current breaking capacity (Icu) — at 240 V | 85 kA |
| maximum short-circuit current breaking capacity (Icu) — at 415 V | 55 kA |
| maximum short-circuit current breaking capacity (Icu) — at 440 V | 55 kA |
| maximum short-circuit current breaking capacity (Icu) — at 500 V | 36 kA |
| maximum short-circuit current breaking capacity (Icu) — at 690 V | 2 kA |
| operating short-circuit current breaking capacity (Ics) — at 240 V | 85 kA |
| operating short-circuit current breaking capacity (Ics) — at 415 V | 55 kA |
| operating short-circuit current breaking capacity (Ics) — at 440 V | 55 kA |
| operating short-circuit current breaking capacity (Ics) — at 500 V | 36 kA |
| operating short-circuit current breaking capacity (Ics) — at 690 V | 2 kA |
| short-circuit current making capacity (Icm) — at 240 V | 187 kA |
| short-circuit current making capacity (Icm) — at 415 V | 121 kA |
| short-circuit current making capacity (Icm) — at 440 V | 121 kA |
| short-circuit current making capacity (Icm) — at 500 V | 75.6 kA |
| short-circuit current making capacity (Icm) — at 690 V | 3 kA |
Adjustable parameters
| product feature / for L-tripping / can be switched on/off | No |
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | 40 A |
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — maximum | 100 A |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 0.5 s |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — maximum | 17 s |
| adjustable response value setting current (Isd) / of S-trip / with I2t characteristic — minimum | 60 A |
| adjustable response value setting current (Isd) / of S-trip / with I2t characteristic — maximum | 1 000 A |
| adjustable response value delay time (tsd) / for S-tripping / with I2t characteristic — minimum | 0.0001 s |
| adjustable response value delay time (tsd) / for S-tripping / with I2t characteristic — maximum | 0.4 s |
| adjustable response value setting current (Ii) / for I-tripping — minimum | 1 200 A |
| adjustable response value setting current (Ii) / for I-tripping — maximum | 1 200 A |
| product function / grounding protection | No |
Mechanical Design
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| height [in] | 7.13 in |
| height | 181 mm |
| width [in] | 4.13 in |
| type of connectable conductor cross-sections / of the round conductor terminal / stranded | 1 x (6 - 120 mm²) |
| width | 105 mm |
| depth [in] | 3.39 in |
| depth | 86 mm |
Connections
| arrangement of electrical connectors / for main current circuit | Front terminal |
| type of electrical connection / for main current circuit | double-sided box terminal |
| design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) | tin |
| design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) | tin |
Auxiliary circuit
| number of CO contacts / for auxiliary contacts | 0 |
Accessories
| product extension / optional / motor drive | Yes |
Environmental conditions
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
| ambient temperature — during operation / maximum | 70 °C |
| ambient temperature — during storage / minimum | -40 °C |
| ambient temperature — during storage / maximum | 80 °C |
Environmental footprint
| global warming potential [CO2 eq] / total | 61.814 kg |
| global warming potential [CO2 eq] / during manufacturing | 14.6 kg |
| global warming potential [CO2 eq] / during operation | 48.9 kg |
| global warming potential [CO2 eq] / after end of life | -2.2 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
| reference code / according to IEC 81346-2 | Q |
