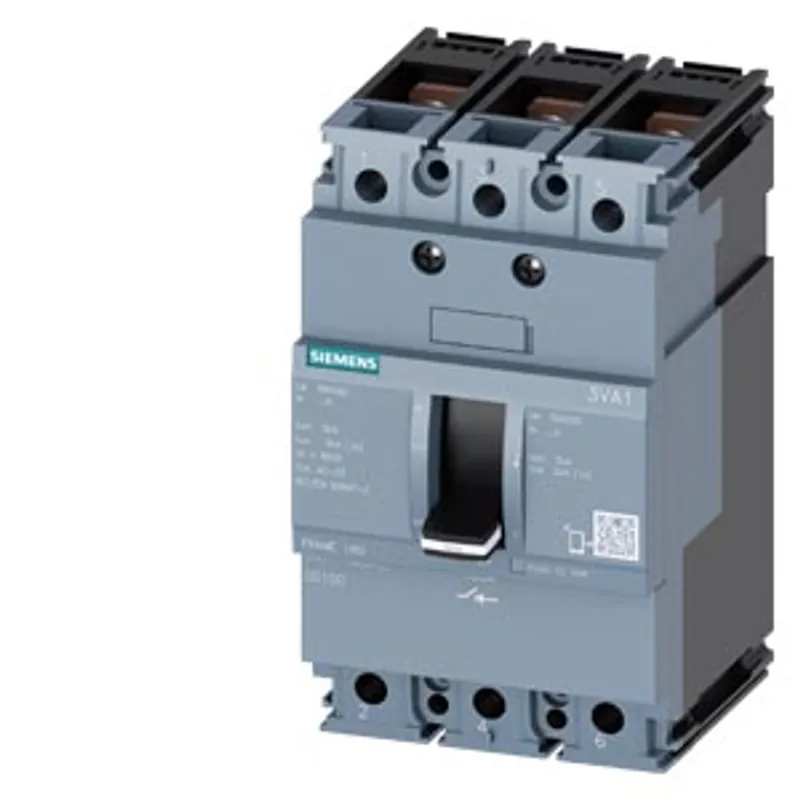

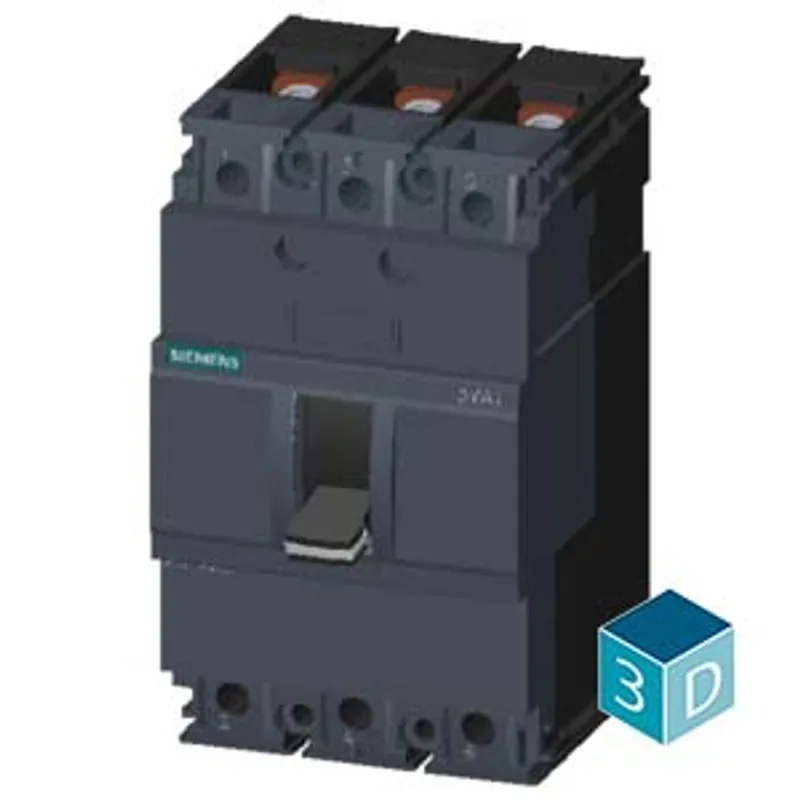

Siemens 3VA1110-1AA32-0AA0

Switch disconnector 3VA1 IEC frame 160 3-pole SD100

MPN: 3VA1110-1AA32-0AA0
Category: SENTRON 3VA Switch Disconnectors in MCCB design up to 250 A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA1110-1AA32-0AA0?

switch disconnector 3VA1 IEC frame 160 3-pole SD100, In=100A without overload protection w/o short-circuit protection nut keeper kit

Specifications

Model

product brand name	SENTRON
product designation	Molded case circuit breaker
product version	General applications
design of the product	in MCCB design
number of poles	3
design of the auxiliary release	without
design of the auxiliary switch	Without

General technical data

insulation voltage / rated value	800 V
operating voltage / at DC / rated value	500 V
operating voltage / at AC / rated value	690 V
surge voltage resistance / rated value	8 kV
power loss [W] / maximum	38 W
mechanical service life (operating cycles) / typical	20 000
type of device	fixed mounting
suitability for use / switch disconnector	Yes
suitability for use / main switch	Yes
suitability for use / EMERGENCY OFF switch	Yes
suitability for use / maintenance/repair switch	Yes
product function / communication function	No
Net Weight	853 g

Current

short-time withstand current (Icw) / at AC / limited to 0.5 s / rated value	2 kA
operational current / rated value	100 A
operational current — at 40 °C	100 A
operational current — at 45 °C	100 A
operational current — at 50 °C	100 A
operational current — at 55 °C	100 A
operational current — at 60 °C	100 A
operational current — at 65 °C	100 A
operational current — at 70 °C	100 A
let-through I2t value / at AC-23 B — at 400 V / maximum permissible	475 000 A²·s
let-through I2t value / at AC-23 B — at 500 V / maximum permissible	475 000 A²·s
let-through I2t value / at AC-23 B — at 690 V / maximum permissible	475 000 A²·s
let-through current (Ic) / at AC-23 B — at 400 V / maximum permissible	20 kA
let-through current (Ic) / at AC-23 B — at 500 V / maximum permissible	3 kA
let-through current (Ic) / at AC-23 B — at 690 V / maximum permissible	3 kA

Switching capacity according to IEC 60947

conditional short-circuit current (Iq) / with line-side fuse protection — at 415 V / by LV HRC fuse link 3NA, 3ND (sizes 00/000, 1, 2, type gL/gG) / rated value

70 kA

Mechanical Design

overvoltage category	IV
fastening method	screw fixing
fastening method / 4-hole front mounting	Yes
fastening method / front mounting with central attachment	No
fastening method / rail mounting	No
product component — undervoltage release	No
product component — voltage trigger	No
product component — undervoltage release with leading contact	No
product component — trip indicator	No
product feature / interlock	No

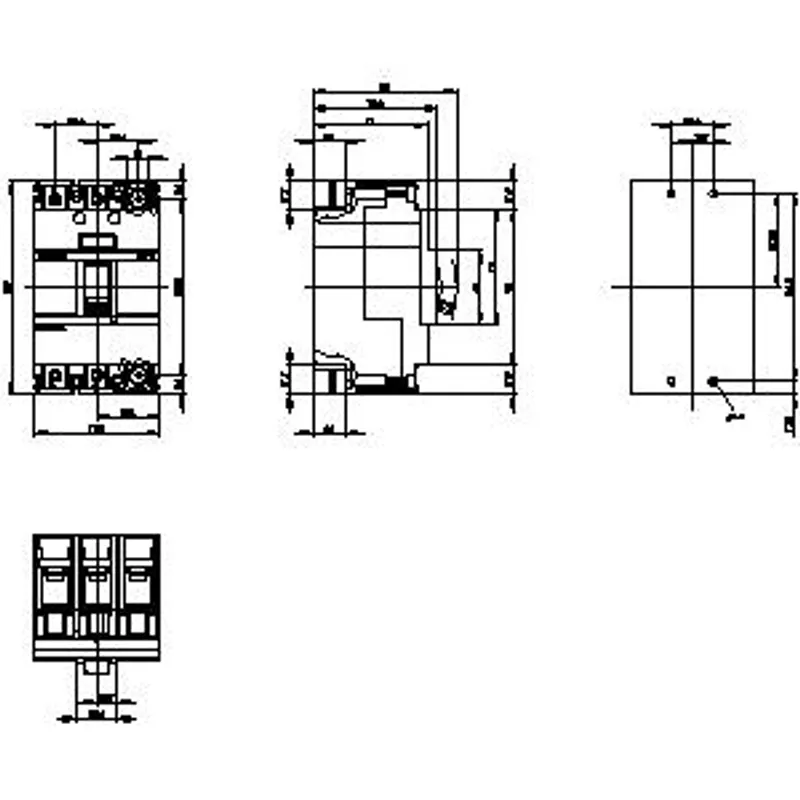

height	130 mm
width	76.2 mm
depth	70 mm
display version / for switch position indicator	Handle switch position On, Trip, Off
design of the actuating element	toggle handle
type of the driving mechanism / motor drive	No

Connections

arrangement of electrical connectors / for main current circuit	Front terminal
type of electrical connection / for main current circuit	busbar connection
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)	silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)	Silver

Auxiliary circuit

number of CO contacts / for auxiliary contacts	0
number of NC contacts / for auxiliary contacts	0
number of NO contacts / for auxiliary contacts	0

Accessories

product extension / auxiliary switch	No
product extension / optional / motor drive	Yes

Environmental conditions

protection class IP / on the front	IP40
ambient temperature — during operation / minimum	-25 °C
ambient temperature — during operation / maximum	70 °C
ambient temperature — during storage / minimum	-40 °C
ambient temperature — during storage / maximum	80 °C
reference code / according to IEC 81346-2	Q
