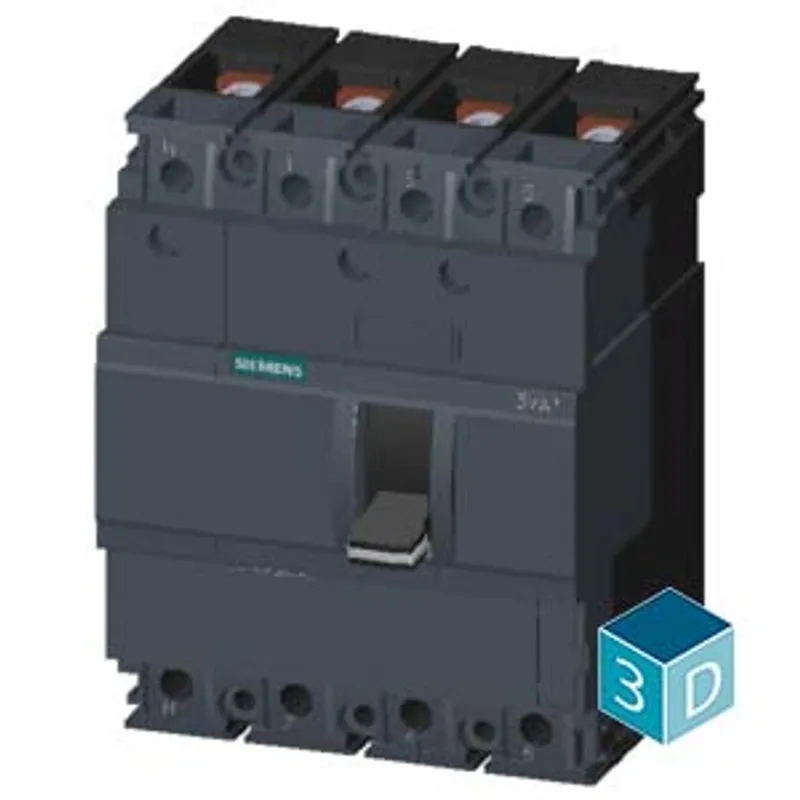

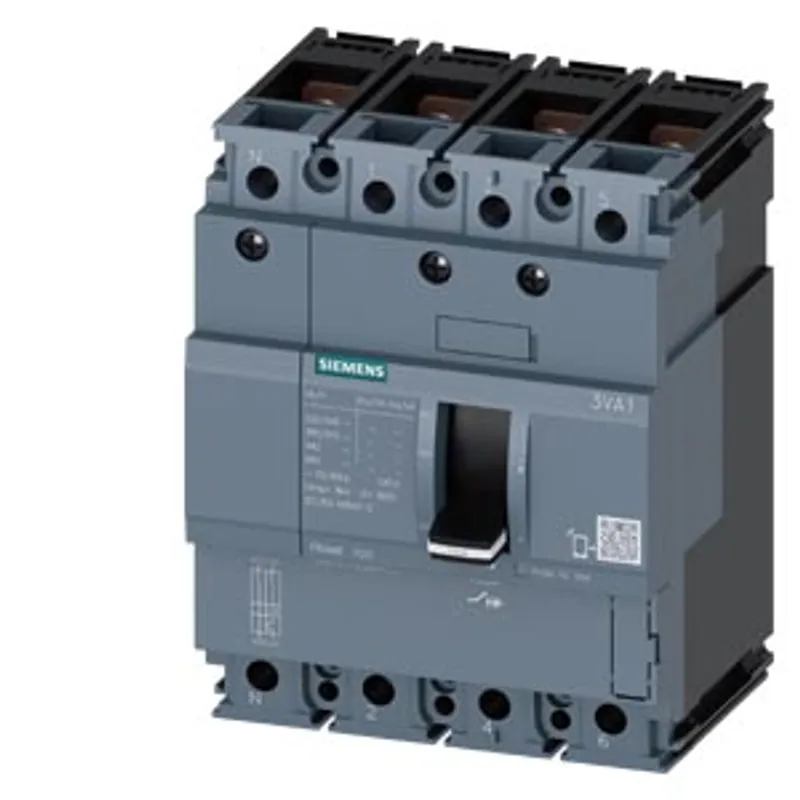

Siemens 3VA1040-3ED42-0AA0
Circuit breaker 3VA1 IEC Frame 100 breaking capacity class N Icu=25 kA @ 415 V 4-pole, line protection TM210
- MPN
- 3VA1040-3ED42-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA1040-3ED42-0AA0?

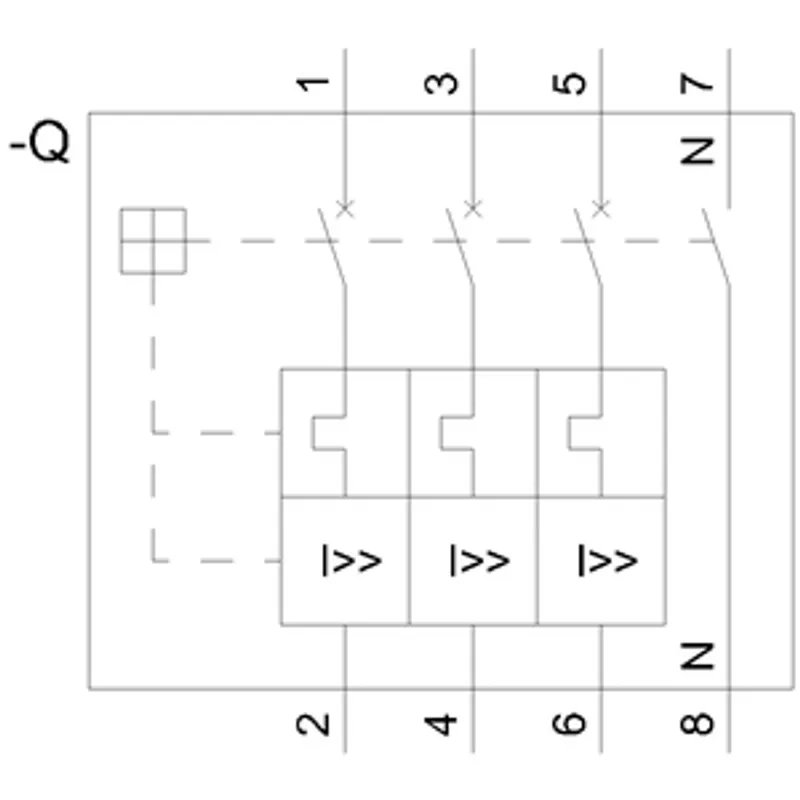

circuit breaker 3VA1 IEC Frame 100 breaking capacity class N Icu=25 kA @ 415 V 4-pole, line protection TM210, FTFM, In=40 A overload protection Ir=40 A permanently set short-circuit protection Ii=10 x In N conductor unprotected nut keeper kit
Specifications
Model
| product brand name | SENTRON |
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| design of the overcurrent release | TM210 |
| protection function of the overcurrent release | LI |
| number of poles | 4 |
General technical data
| insulation voltage / rated value | 800 V |
| operating voltage / at DC / rated value | 600 V |
| operating voltage / at AC / rated value | 690 V |
| power loss [W] / maximum | 10.8 W |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 3.6 W |
| mechanical service life (operating cycles) / typical | 20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 9 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 6 300 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
| product function — communication function | No |
| product function — other measurement function | No |
| Net Weight | 1.178 kg |
Current
| operational current — at 40 °C | 40 A |
| operational current — at 45 °C | 40 A |
| operational current — at 50 °C | 40 A |
| operational current — at 55 °C | 39 A |
| operational current — at 60 °C | 39 A |
| operational current — at 65 °C | 38 A |
| operational current — at 70 °C | 37 A |
Switching capacity according to IEC 60947
| switching capacity class of the circuit breaker | N |
| maximum short-circuit current breaking capacity (Icu) — at 240 V | 36 kA |
| maximum short-circuit current breaking capacity (Icu) — at 415 V | 25 kA |
| maximum short-circuit current breaking capacity (Icu) — at 440 V | 16 kA |
| maximum short-circuit current breaking capacity (Icu) — at 500 V | 5 kA |
| maximum short-circuit current breaking capacity (Icu) — at 690 V | 5 kA |
| operating short-circuit current breaking capacity (Ics) — at 240 V | 36 kA |
| operating short-circuit current breaking capacity (Ics) — at 415 V | 25 kA |
| operating short-circuit current breaking capacity (Ics) — at 440 V | 16 kA |
| operating short-circuit current breaking capacity (Ics) — at 500 V | 5 kA |
| operating short-circuit current breaking capacity (Ics) — at 690 V | 5 kA |
| short-circuit current making capacity (Icm) — at 240 V | 75.6 kA |
| short-circuit current making capacity (Icm) — at 415 V | 52.5 kA |
| short-circuit current making capacity (Icm) — at 440 V | 32 kA |
| short-circuit current making capacity (Icm) — at 500 V | 7.5 kA |
| short-circuit current making capacity (Icm) — at 690 V | 7.5 kA |
| design of short-circuit protection | For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter |
Adjustable parameters
| product feature / for L-tripping / can be switched on/off | No |
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | 40 A |
| adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — maximum | 40 A |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 1 s |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — maximum | 1 s |
| adjustable response value setting current (Ii) / for I-tripping — minimum | 400 A |
| adjustable response value setting current (Ii) / for I-tripping — maximum | 400 A |
| adjustable setting current (InN) / for N-tripping — minimum | 0 A |
| adjustable setting current (InN) / for N-tripping — maximum | 0 A |
| design of the N-conductor protection | without |
| product function / grounding protection | No |

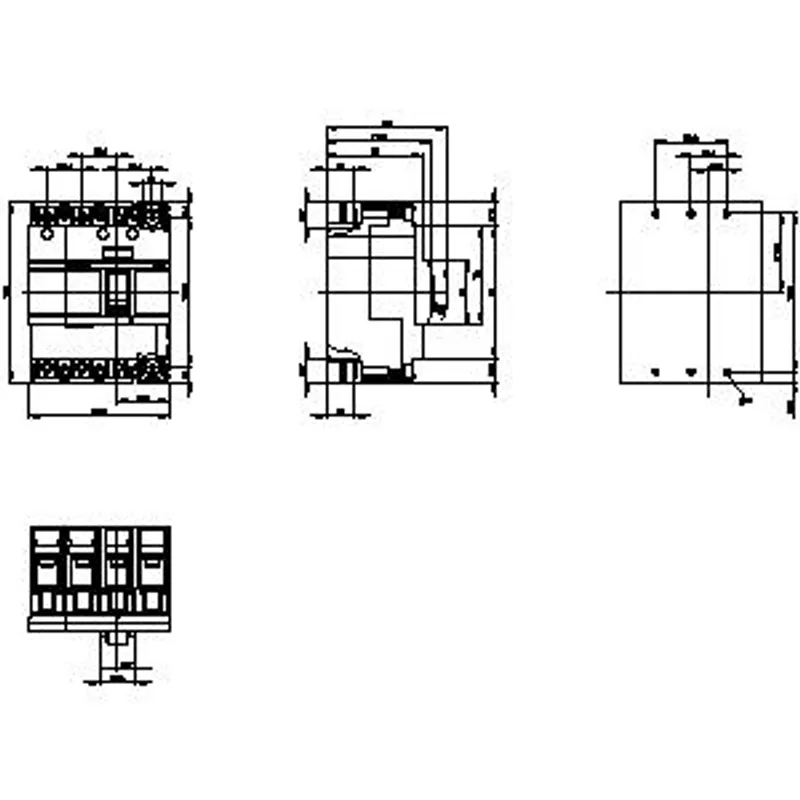

Mechanical Design
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| height [in] | 5.12 in |
| height | 130 mm |
| width [in] | 4 in |
| width | 101.6 mm |
| depth [in] | 2.76 in |
| depth | 70 mm |
Connections
| arrangement of electrical connectors / for main current circuit | Front terminal |
| type of electrical connection / for main current circuit | nut keeper kit on both ends |
| type of connectable conductor cross-sections / for flat-bar terminal connection / minimum | 12 x 1 mm |
| type of connectable conductor cross-sections / for flat-bar terminal connection / maximum | 17 x 6,5 mm |
| design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) | Silver |
| design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) | Tin |
Auxiliary circuit
| number of CO contacts / for auxiliary contacts | 0 |
Accessories
| product extension / optional / motor drive | No |
Environmental conditions
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
| ambient temperature — during operation / maximum | 70 °C |
| ambient temperature — during storage / minimum | -40 °C |
| ambient temperature — during storage / maximum | 80 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] / total | 190 kg |
| global warming potential [CO2 eq] / during manufacturing | 4.67 kg |
| global warming potential [CO2 eq] / during operation | 186 kg |
| global warming potential [CO2 eq] / after end of life | -0.826 kg |
| reference code / according to IEC 81346-2 | Q |
