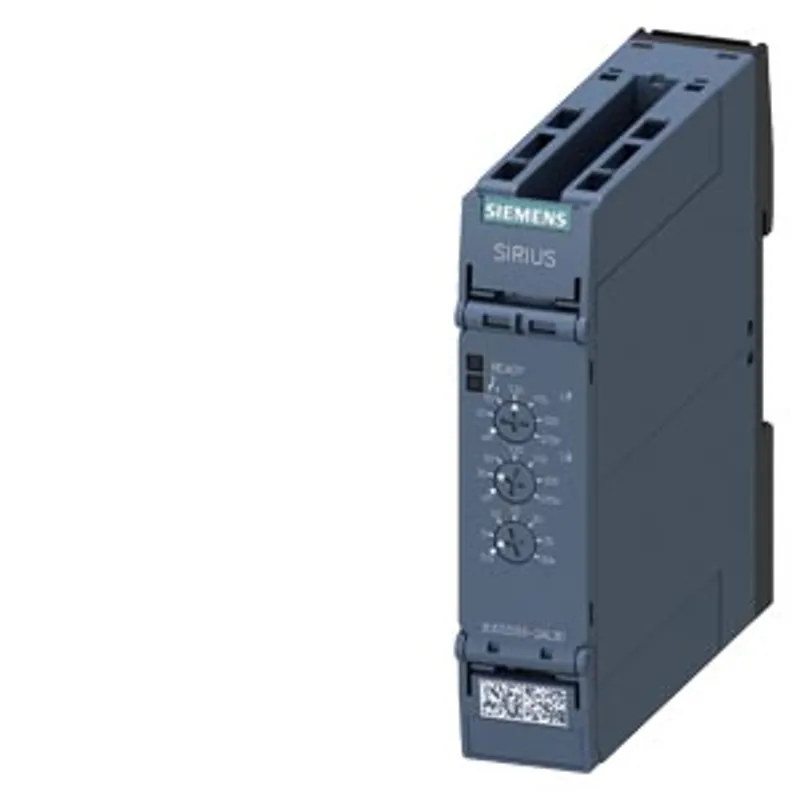

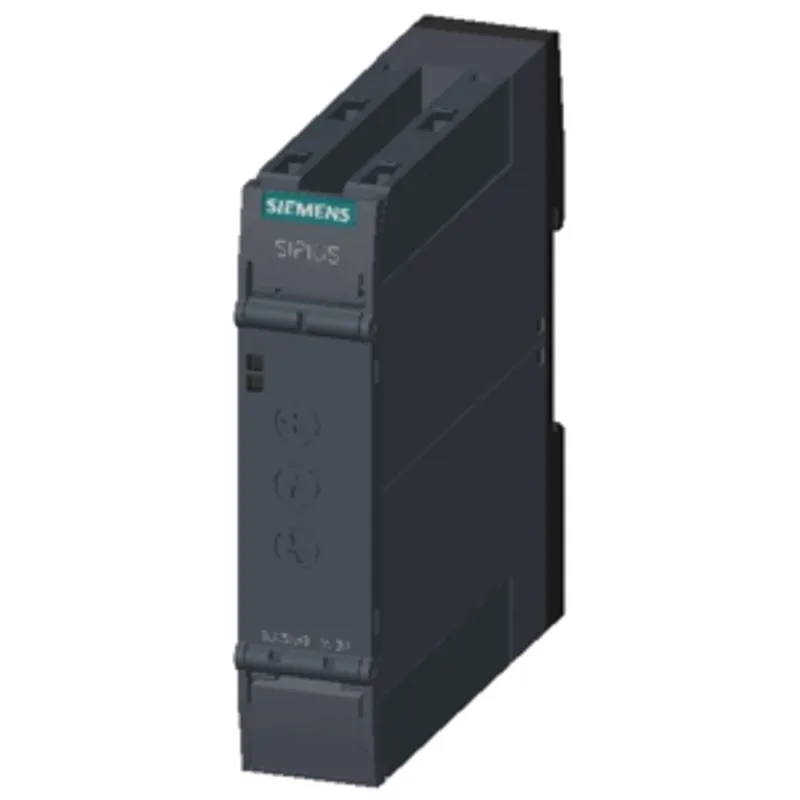

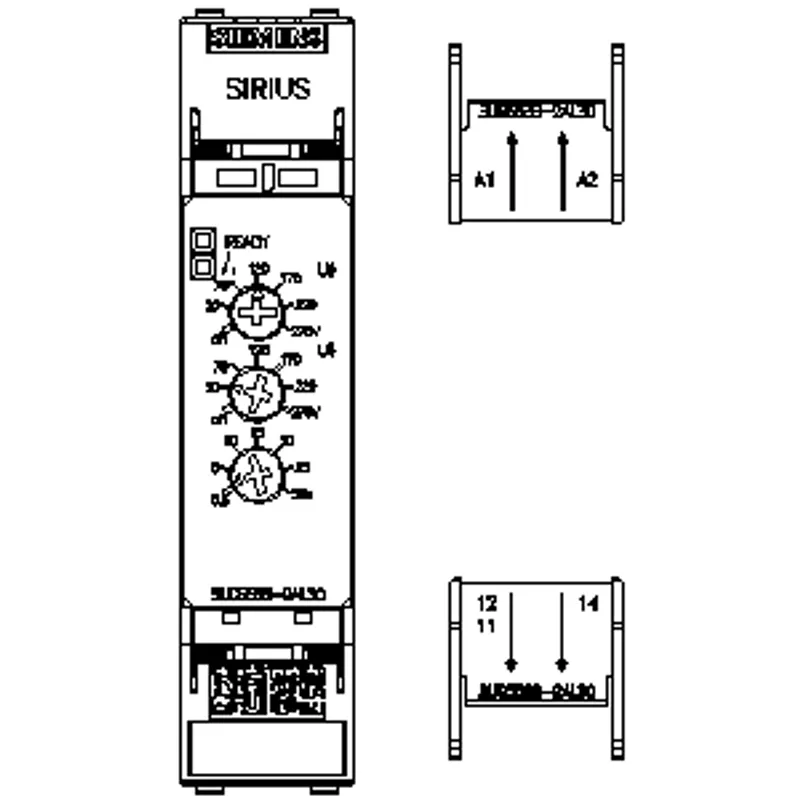

Siemens 3UG5533-2AL30
Analog monitoring relay voltage monitoring from 17 to 275 V AC/DC overshoot and undershoot self-supplied 24…
- MPN
- 3UG5533-2AL30
- Category
- Voltage monitoring
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3UG5533-2AL30?
analog monitoring relay voltage monitoring from 17 to 275 V AC/DC overshoot and undershoot self-supplied 24 to 240 V DC and AC 50 to 60 Hz ON delay and tripping delay 0.1..999.9 s 1 changeover contact spring-loaded terminal
Specifications
General
| product brand name | SIRIUS |
| product designation | Analog setting voltage monitoring relay |
| design of the product | monitoring of undervoltage and overvoltage, internally powered without auxiliary voltage |
| product type designation | 3UG5 |
General technical data
| product function | Voltage monitoring relay |
| power loss [W] maximum | 1.5 W |
| power loss [V∙A] maximum | 3 V·A |
| consumed active power | 1.5 W |
| insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 2 rated value | 690 V |
| insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 3 rated value | 690 V |
| degree of pollution | 3 |
| type of voltage — for monitoring | AC |
| type of voltage — of the control supply voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| thermal current of the switching element with contacts maximum | 5 A |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 % |
| Substance Prohibitance (day/month/year) | 06/01/2023 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 |
| Net Weight | 0.119 kg |
Product Function
| product function — undervoltage detection | Yes |
| product function — overvoltage detection | Yes |
| product function — phase sequence recognition | No |
| product function — phase failure detection | No |
| product function — asymmetry detection | No |
| product function — voltage monitoring | Yes |
| product function — current monitoring | No |
| product function — overvoltage detection 1 phase | Yes |
| product function — overvoltage detection 3 phase | No |
| product function — overvoltage detection DC | Yes |
| product function — undervoltage detection 1 phase | Yes |
| product function — undervoltage detection 3 phases | No |
| product function — undervoltage detection DC | Yes |
| product function — voltage window recognition 1 phase | Yes |
| product function — voltage window recognition 3 phase | No |
| product function — voltage window recognition DC | Yes |
| product function — auto-RESET | Yes |
| measurable line frequency initial value | 15 Hz |
| measurable line frequency full-scale value | 500 Hz |
Control circuit/ Control
| control supply voltage at AC — at 50 Hz rated value | 24 ... 240 V |
| control supply voltage at AC — at 60 Hz rated value | 24 ... 240 V |
| control supply voltage at DC rated value | 24 ... 240 V |
| operating range factor control supply voltage rated value at DC — initial value | 0.85 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 50 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 60 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 60 Hz — full-scale value | 1.1 |
| starting time after the control supply voltage has been applied | 1 300 ms |
Measuring circuit
| measurable line frequency | 15 ... 500 Hz |
| measurable voltage at AC | 20 ... 275 V |
| adjustable response delay time — with lower or upper limit violation | 0.5 ... 30 s |
| response time maximum | 500 ms |
| relative temperature-related measurement deviation | 0.1 % |
Precision
| relative metering precision | 20 % |
Auxiliary circuit
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| number of CO contacts delayed switching | 1 |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
Main circuit
| number of poles for main current circuit | 1 |
| operating voltage — at AC at 60 Hz rated value | 24 ... 240 V |
| operating voltage — at DC rated value | 24 ... 240 V |
| ampacity of the output relay at AC-15 at 400 V at 50/60 Hz | 3 A |
| ampacity of the output relay at DC-13 — at 24 V | 1 A |
| ampacity of the output relay at DC-13 — at 125 V | 0.2 A |
| ampacity of the output relay at DC-13 — at 250 V | 0.1 A |
| operational current at 17 V minimum | 5 mA |
| continuous current of the DIAZED fuse link of the output relay | 6 A |
Electromagnetic compatibility
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
Galvanic isolation
| design of the electrical isolation | galvanic isolation |
| galvanic isolation — between input and output | Yes |
| galvanic isolation — between the voltage supply and other circuits | Yes |
Safety related data
| product function suitable for safety function | No |
| protection class IP on the front according to IEC 60529 | IP20 |

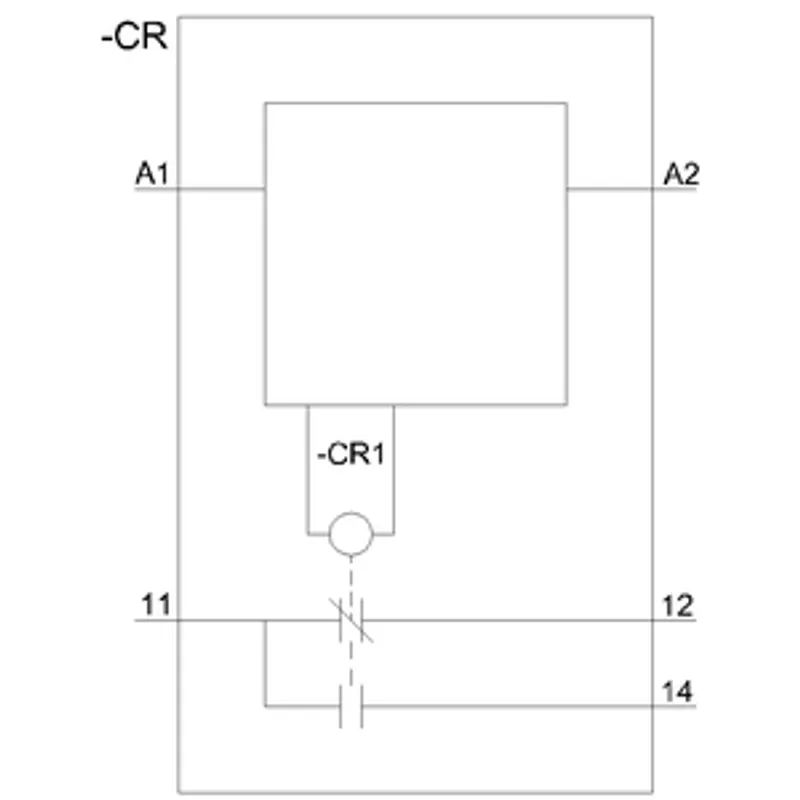

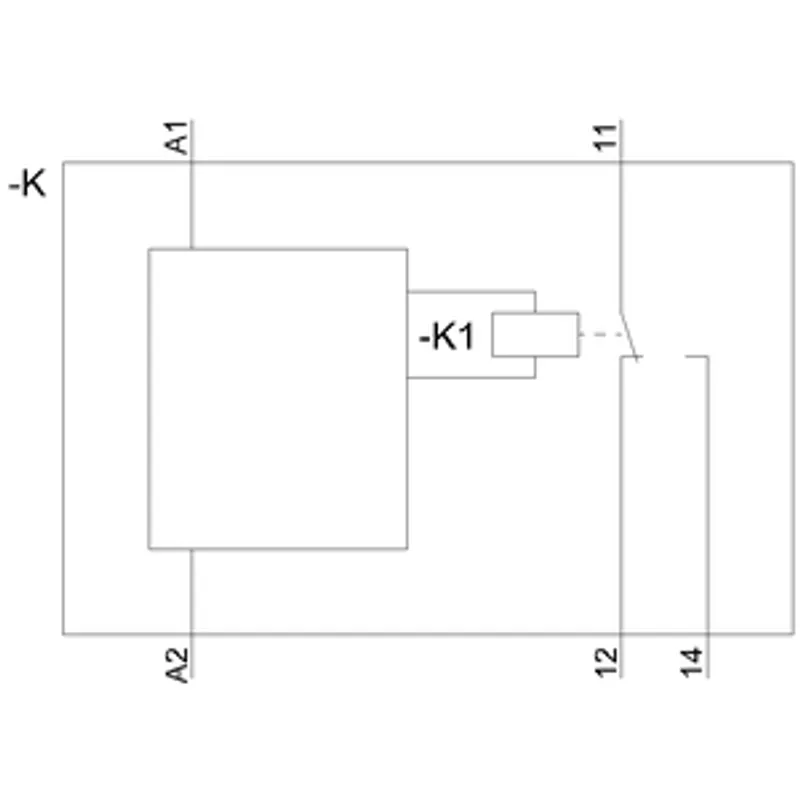

Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection | spring-loaded terminal (push-in) |
| type of connectable conductor cross-sections — solid | 1x (0.5 ... 4 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 0.5 ... 4 mm² |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (20 ... 12) |
| type of connectable conductor cross-sections — for AWG cables stranded | 20 ... 12 |
| connectable conductor cross-section — solid | 0.5 ... 4 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.5 ... 2.5 mm² |
| connectable conductor cross-section — finely stranded without core end processing | 0.5 ... 4 mm² |
| AWG number as coded connectable conductor cross section — solid | 20 ... 12 |
| AWG number as coded connectable conductor cross section — stranded | 20 ... 12 |

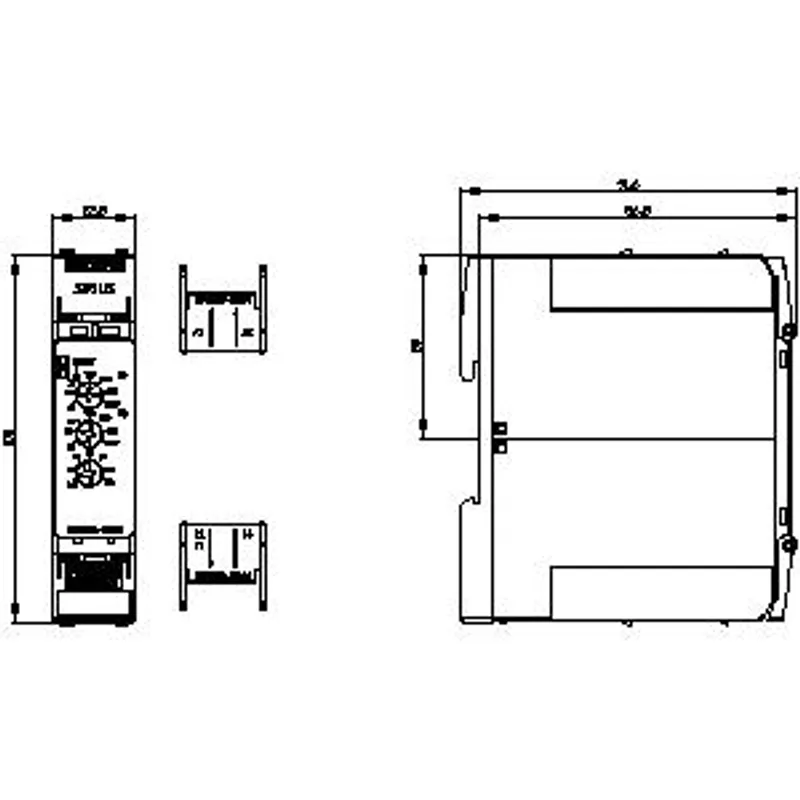

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw and snap-on mounting |
| height | 100 mm |
| width | 22.5 mm |
| depth | 90 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 0 mm |
| required spacing — with side-by-side mounting — downwards | 0 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 0 mm |
| required spacing — for grounded parts — at the side | 0 mm |
| required spacing — for grounded parts — downwards | 0 mm |
| required spacing — for live parts — forwards | 0 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 0 mm |
| required spacing — for live parts — at the side | 0 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
