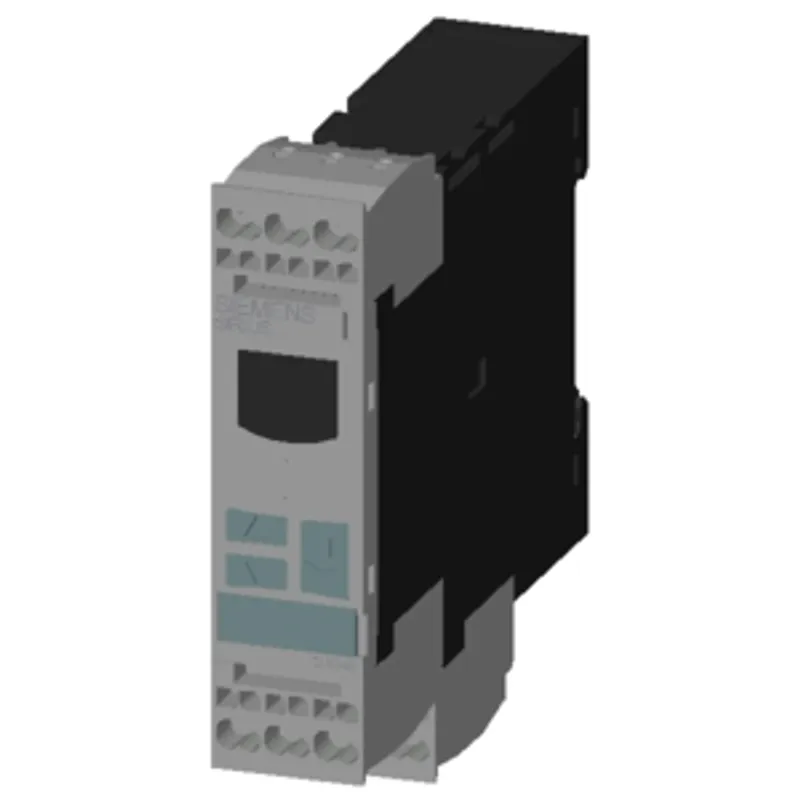

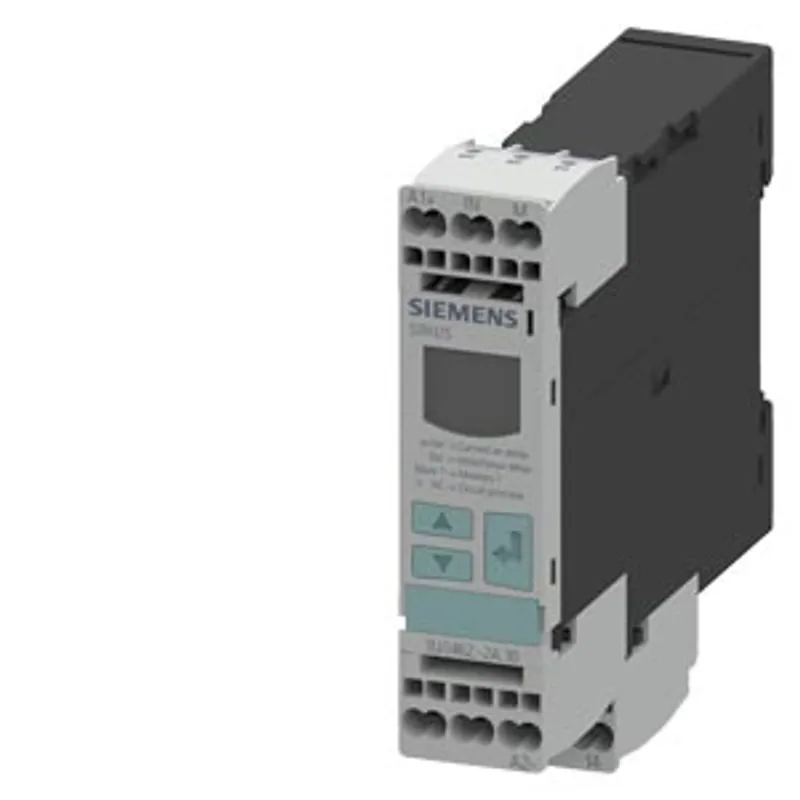

Siemens 3UG4622-2AW30
!!! product phase-out !!! the preferred successor is 3UG5642-2CW30 digital monitoring relay current…
- MPN
- 3UG4622-2AW30
- Category
- Current monitoring
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3UG4622-2AW30?
!!! product phase-out !!! the preferred successor is 3UG5642-2CW30 digital monitoring relay current monitoring, 22.5 mm from 0.05 to 10 A AC/DC overshoot and undershoot 24 to 240 V AC/DC 50 to 60 Hz DC and AC ON-delay and noise pulses delay 0.1 to 20 s hysteresis 0.01 to 5 A 1 changeover contact with or without fault buffer spring-loaded connection system
Specifications
General
| product brand name | SIRIUS |
| product designation | Current monitoring relay with digital setting |
| product type designation | 3UG4 |
General technical data
| product function | Current monitoring relay |
| design of the display | LCD |
| insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 3 rated value | 690 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| surge voltage resistance rated value | 4 kV |
| maximum permissible voltage for protective separation — between auxiliary and auxiliary circuit | 300 V |
| maximum permissible voltage for protective separation — between control and auxiliary circuit | 300 V |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2 g |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| thermal current of the switching element with contacts maximum | 5 A |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 % |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead CAS-No. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| Net Weight | 0.131 kg |
Product Function
| product function — undervoltage detection | No |
| product function — overvoltage detection | No |
| product function — phase sequence recognition | No |
| product function — phase failure detection | No |
| product function — voltage monitoring | No |
| product function — current monitoring | Yes |
| product function — overcurrent detection 1 phase | Yes |
| product function — overcurrent detection 3 phase | No |
| product function — undercurrent detection 1 phase | Yes |
| product function — undercurrent detection 3 phases | No |
| product function — overcurrent detection DC | Yes |
| product function — undercurrent detection DC | Yes |
| product function — current window recognition DC | Yes |
| product function — voltage window recognition 1 phase | No |
| product function — voltage window recognition 3 phase | No |
| product function — adjustable open/closed-circuit current principle | Yes |
| product function — external reset | Yes |
| product function — auto-RESET | Yes |
Control circuit/ Control
| control supply voltage at AC — at 50 Hz rated value | 24 ... 240 V |
| control supply voltage at AC — at 60 Hz rated value | 24 ... 240 V |
| control supply voltage at DC rated value | 24 ... 240 V |
Supply voltage
| type of voltage of the supply voltage | AC/DC |
| supply voltage 1 at AC — at 50 Hz | 20.4 ... 264 V |
| supply voltage 1 at AC — at 60 Hz | 20.4 ... 264 V |
| supply voltage 1 at DC | 20.4 ... 264 V |
Measuring circuit
| type of current for monitoring | AC/DC |
| measurable current | 0.05 ... 15 A |
| measurable line frequency | 40 ... 500 Hz |
| adjustable current response value current — 1 | 0.1 ... 10 A |
| adjustable current response value current — 2 | 0.1 ... 10 A |
| adjustable response delay time — when starting | 0.1 ... 20 s |
| adjustable response delay time — with lower or upper limit violation | 0.1 ... 20 s |
| adjustable switching hysteresis for measured current value | 10 ... 5 000 mA |
| buffering time in the event of power failure minimum | 10 ms |
| accuracy of digital display | +/-1 digit |
| relative temperature-related measurement deviation | 5 % |
| internal resistance of the measuring circuit | 5 mΩ |
Precision
| relative metering precision | 5 % |
| temperature drift per °C | 0.1 %/°C |
Communication/ Protocol
| protocol is supported IO-Link protocol | No |
Auxiliary circuit
| number of NC contacts delayed switching | 0 |
| number of NO contacts delayed switching | 0 |
| number of CO contacts — delayed switching | 1 |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
Main circuit
| number of poles for main current circuit | 1 |
| operating voltage rated value | 24 ... 240 V |
| ampacity of the output relay at AC-15 — at 250 V at 50/60 Hz | 3 A |
| ampacity of the output relay at AC-15 — at 400 V at 50/60 Hz | 3 A |
| ampacity of the output relay at DC-13 — at 24 V | 1 A |
| ampacity of the output relay at DC-13 — at 125 V | 0.2 A |
| ampacity of the output relay at DC-13 — at 250 V | 0.1 A |
| operational current at 17 V minimum | 0 A |
| continuous current of the DIAZED fuse link of the output relay | 4 A |
Electromagnetic compatibility
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
Galvanic isolation
| design of the electrical isolation | Protective separation |
| galvanic isolation — between input and output | Yes |
| galvanic isolation — between the outputs | Yes |
| galvanic isolation — between the voltage supply and other circuits | Yes |
Safety related data
| product function suitable for safety function | No |
| protection class IP on the front according to IEC 60529 | IP20 |
Connections/ Terminals
| product component removable terminal for main circuit | Yes |
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection | spring-loaded terminals |
| type of electrical connection — for main current circuit | spring-loaded terminals |
| type of electrical connection — for auxiliary and control circuit | spring-loaded terminals |
| type of connectable conductor cross-sections — solid | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2 x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 2x (24 ... 16) |
| type of connectable conductor cross-sections — for AWG cables stranded | 2x (24 ... 16) |
| connectable conductor cross-section — solid | 0.25 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.25 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded without core end processing | 0.25 ... 1.5 mm² |
| AWG number as coded connectable conductor cross section — solid | 24 ... 16 |
| AWG number as coded connectable conductor cross section — stranded | 24 ... 16 |

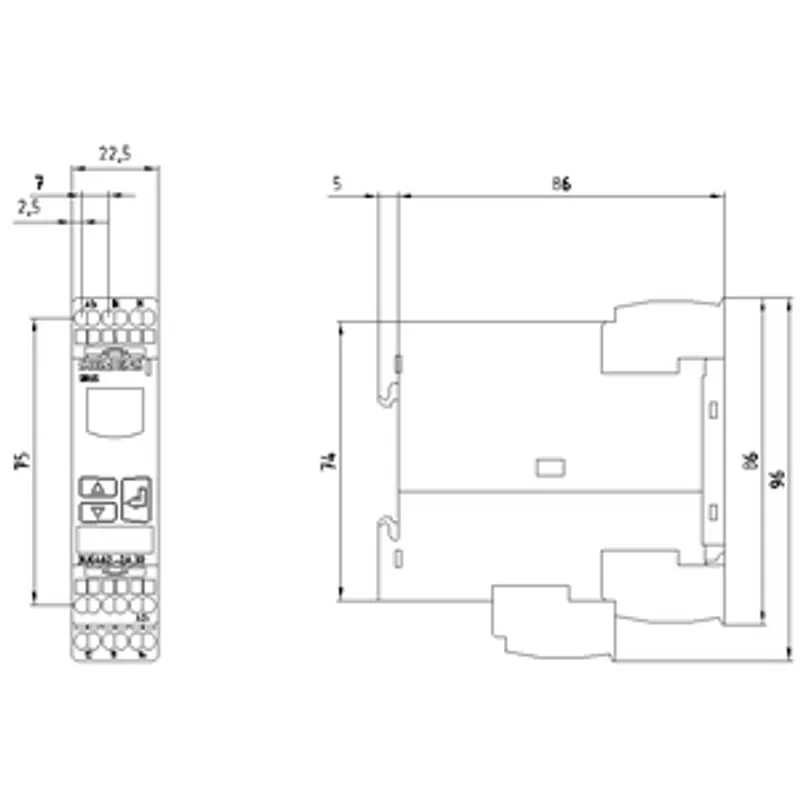

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | snap-on mounting |
| height | 94 mm |
| width | 22.5 mm |
| depth | 91 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 0 mm |
| required spacing — with side-by-side mounting — downwards | 0 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 0 mm |
| required spacing — for grounded parts — at the side | 0 mm |
| required spacing — for grounded parts — downwards | 0 mm |
| required spacing — for live parts — forwards | 0 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 0 mm |
| required spacing — for live parts — downwards | 0 mm |
| required spacing — for live parts — at the side | 0 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
