Siemens

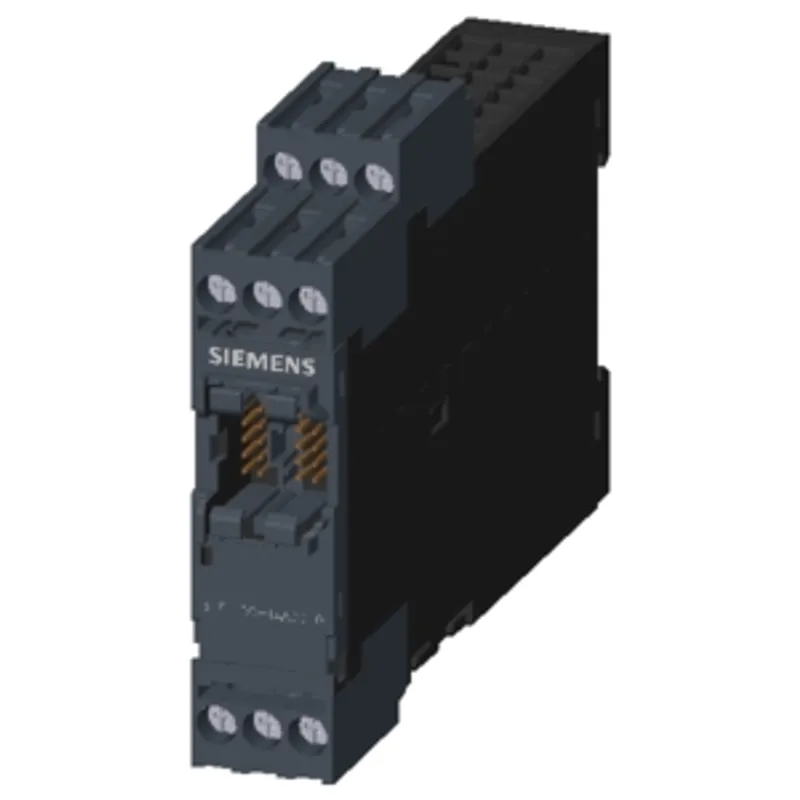

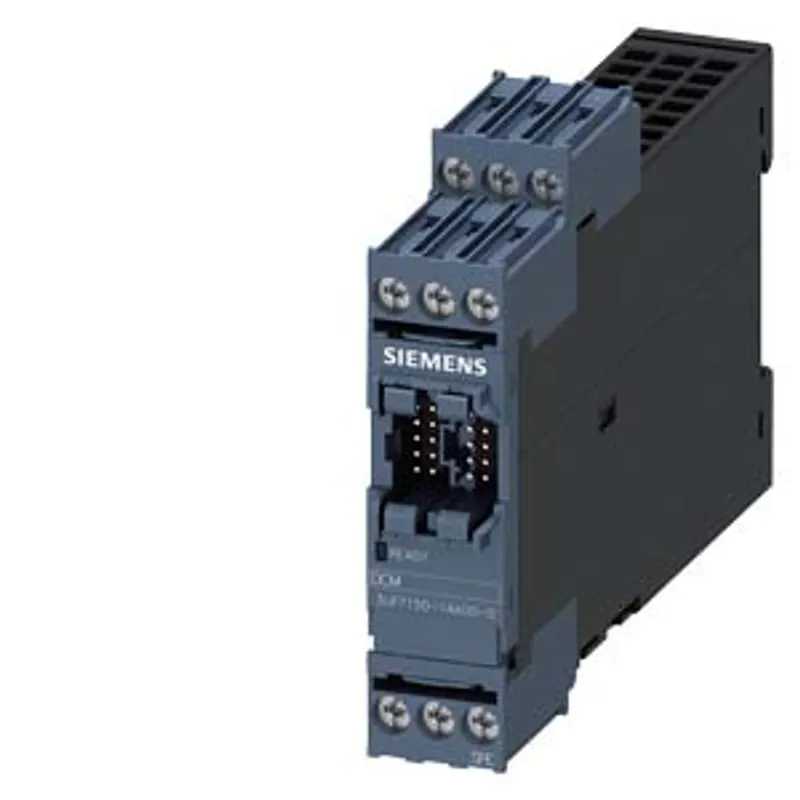

Siemens 3UF7150-1AA00-0

Decoupling module for installation upstream of the current/voltage measuring module at the system interface…

MPN: 3UF7150-1AA00-0
Category: SIMOCODE pro 3UF7 motor management and control devices

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3UF7150-1AA00-0?

Decoupling module for installation upstream of the current/voltage measuring module at the system interface for application in ungrounded supply systems

Specifications

General

product brand name	SIMOCODE
product designation	Decoupling module
product type designation	3UF7

General technical data

product component — input for thermistor connection	No
insulation voltage — for wires of main circuit according to IEC 60947-1 rated value	6 kV
surge voltage resistance rated value	4 000 V
vibration resistance	1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g
reference code according to IEC 81346-2	Q
Substance Prohibitance (day/month/year)	05/01/2012
SVHC substance name	Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1
Net Weight	0.114 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1	class A
EMC immunity according to IEC 60947-1	corresponds to degree of severity 3
conducted interference — due to burst according to IEC 61000-4-4	1 kV
conducted interference — due to conductor-earth surge according to IEC 61000-4-5	2 kV
conducted interference — due to conductor-conductor surge according to IEC 61000-4-5	1 kV
field-based interference according to IEC 61000-4-3	10 V/m

Inputs/ Outputs

number of outputs as contact-affected switching element

Protective and monitoring functions

product function — voltage detection	No
product function — current detection	No

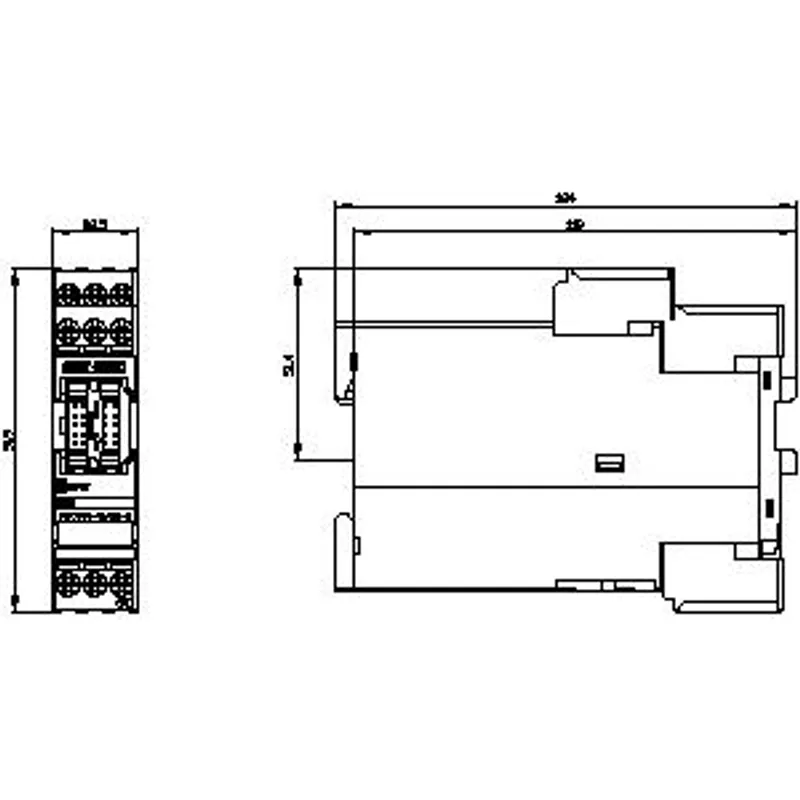

Installation/ mounting/ dimensions

mounting position	any
fastening method	screw and snap-on mounting
height	92 mm
width	22.5 mm
depth	124 mm

Connections/ Terminals

type of electrical connection — for main current circuit	straight-through transformers
type of electrical connection — for auxiliary and control circuit	screw-type terminals

Ambient conditions

installation altitude at height above sea level — 3 maximum	4 000 m
ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-40 ... +80 °C
ambient temperature — during transport	-40 ... +80 °C
environmental category — during operation according to IEC 60721	3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category — during storage according to IEC 60721	1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
environmental category — during transport according to IEC 60721	2K2, 2C1, 2S1, 2M2
relative humidity during operation	5 ... 95 %
Safety Integrity Level (SIL) according to IEC 61508	1
