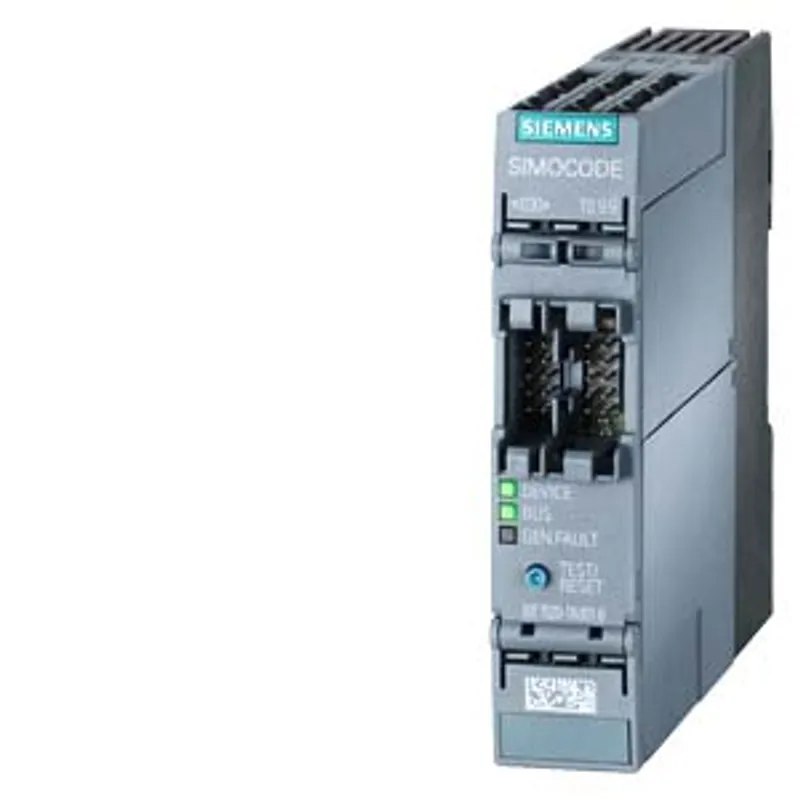

Siemens 3UF7020-1AU01-0AX0
Basic device SIMOCODE pro S, PROFIBUS DP interface 1.5 Mbps, 4 I/2 O freely configurable
- MPN
- 3UF7020-1AU01-0AX0
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3UF7020-1AU01-0AX0?
basic device SIMOCODE pro S, PROFIBUS DP interface 1.5 Mbps, 4 I/2 O freely configurable, Us: 110...240 V AC/DC, input for thermistor connection monostable relay outputs, expandable by a multifunction module with coated printed circuit boards
Specifications
General
| product brand name | SIMOCODE |
| product designation | Motor management system |
| design of the product | Basic device 0 |
| product type designation | pro S |
General technical data
| product function — current measurement | No |
| product function — voltage measurement | No |
| product function — active power measurement | No |
| product function — energy measurement | No |
| product function — frequency measurement | No |
| product function — bus communication | Yes |
| product function — data acquisition function | Yes |
| product function — diagnostics function | Yes |
| product function — password protection | Yes |
| product function — test function | Yes |
| product function — maintenance function | Yes |
| product function — MRRT redundancy procedure | No |
| product feature protective coating on printed-circuit board | Yes; acc. to IPC-A-610 |
| product component — input for thermistor connection | Yes |
| product component — digital input | Yes |
| product component — input for analog temperature sensors | No |
| product component — input for ground fault detection | No |
| product component — relay output | Yes |
| product extension — temperature monitoring module | Yes |
| product extension — current measuring module | Yes |
| product extension — current/voltage measuring module | No |
| product extension — fail-safe digital I/O module | No |
| product extension — ground-fault monitoring module | Yes |
| product extension — decoupling module | No |
| product extension — analog I/O module | No |
| product extension — digital I/O module with monostable outputs | Yes |
| product extension — digital I/O module with bistable outputs | No |
| product extension — control unit with display | No |
| product extension — control unit | Yes |
| apparent power consumption | 4.7 V·A |
| consumed active power | 2.5 W |
| insulation voltage with degree of pollution 3 at AC rated value | 300 V |
| surge voltage resistance rated value | 4 000 V |
| shock resistance — when mounted on current measuring module according to IEC 60068-2-27 | 10 g / 11 ms |
| shock resistance — according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance | 1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g |
| vibration resistance when mounted on current measuring module according to IEC 60068-2-6 | 1 ... 4 Hz / 15 mm, 4 ... 500 Hz / 1g |
| switching capacity current of the NO contacts of the relay outputs at AC-15 — at 24 V | 6 A |
| switching capacity current of the NO contacts of the relay outputs at AC-15 — at 120 V | 6 A |
| switching capacity current of the NO contacts of the relay outputs at AC-15 — at 230 V | 3 A |
| switching capacity current of the NO contacts of the relay outputs at DC-13 — at 24 V | 2 A |
| switching capacity current of the NO contacts of the relay outputs at DC-13 — at 60 V | 0.55 A |
| switching capacity current of the NO contacts of the relay outputs at DC-13 — at 125 V | 0.25 A |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) typical | 100 000 |
| buffering time in the event of power failure | 0.05 s |
| reference code according to IEC 81346-2 | F |
| continuous current of the NO contacts of the relay outputs — at 50 °C | 6 A |
| continuous current of the NO contacts of the relay outputs — at 60 °C | 5 A |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| Net Weight | 0.224 kg |
Electromagnetic compatibility
| EMC emitted interference according to IEC 60947-1 | class A |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV (power ports) / 1 kV (signal ports) |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| conducted interference — due to high-frequency radiation according to IEC 61000-4-6 | 10 V |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| conducted HF interference emissions according to CISPR11 | corresponds to degree of severity A |
| field-bound HF interference emission according to CISPR11 | corresponds to degree of severity A |
Inputs/ Outputs
| product function — parameterizable inputs | Yes |
| product function — parameterizable outputs | Yes |
| number of inputs | 4 |
| number of inputs — for thermistor connection | 1 |
| number of digital inputs with a common reference potential | 4 |
| digital input version — type 1 acc. to IEC 61131 | Yes |
| input voltage at digital input at DC — rated value | 24 V |
| number of outputs | 2 |
| number of semiconductor outputs | 0 |
| number of outputs as contact-affected switching element | 2 |
| switching behavior | monostable |
| number of relay outputs | 2 |
| type of relay outputs | Monostable |
| wire length for digital signals maximum | 300 m |
| wire length for thermistor connection — with conductor cross-section = 0.5 mm² maximum | 50 m |
| wire length for thermistor connection — with conductor cross-section = 1.5 mm² maximum | 150 m |
| wire length for thermistor connection — with conductor cross-section = 2.5 mm² maximum | 250 m |
Protective and monitoring functions
| product function — asymmetry detection | Yes |
| product function — blocking current evaluation | Yes |
| product function — power factor monitoring | No |
| product function — ground fault detection | Yes |
| product function — ground-fault monitoring | No |
| product function — phase failure detection | Yes |
| product function — phase sequence recognition | No |
| product function — voltage detection | No |
| product function — monitoring of number of start operations | Yes |
| product function — overvoltage detection | No |
| product function — overcurrent detection 1 phase | Yes |
| product function — undervoltage detection | No |
| product function — undercurrent detection 1 phase | Yes |
| product function — active power monitoring | No |
| product function — current detection | Yes |
| product function — overload protection | Yes |
| product function — evaluation of thermistor motor protection | Yes |
| total cold resistance number of sensors in series maximum | 1.5 kΩ |
| response value of thermoresistor | 3 400 ... 3 800 Ω |
| response value of thermoresistor — of the short-circuit control | 9 Ω |
| release value of thermoresistor | 1 500 ... 1 650 Ω |
Motor control functions
| product function — parameterizable overload relay | Yes |
| product function — circuit breaker control | Yes |
| product function — direct start | Yes |
| product function — reverse starting | Yes |
| product function — star-delta circuit | Yes |
| product function — star-delta reversing circuit | No |
| product function — Dahlander circuit | No |
| product function — Dahlander reversing circuit | No |
| product function — pole-changing switch circuit | No |
| product function — pole-changing switch reversing circuit | No |
| product function — slide control | No |
| product function — valve control | No |
Communication/ Protocol
| protocol is supported — PROFIBUS DP protocol | Yes |
| protocol is supported — PROFINET IO protocol | No |
| protocol is supported — PROFIsafe protocol | No |
| protocol is supported — Modbus RTU | No |
| protocol is supported — EtherNet/IP | No |
| protocol is supported — OPC UA Server | No |
| protocol is supported — LLDP | No |
| protocol is supported — Address Resolution Protocol (ARP) | No |
| protocol is supported — SNMP | No |
| protocol is supported — HTTPS | No |
| protocol is supported — NTP | No |
| protocol is supported — Media Redundancy Protocol (MRP) | No |
| product function — web server | No |
| product function — shared device | No |
| product function — at the Ethernet interface Autocrossover | No |
| product function — at the Ethernet interface Autonegotiation | No |
| product function — at the Ethernet interface Autosensing | No |
| product function — is supported Device Level Ring (DLR) | No |
| product function — is supported PROFINET system redundancy (S2) | No |
| product function — supports PROFIenergy measured values | No |
| product function — supports PROFIenergy shutdown | No |
| transfer rate maximum | 1.5 Mbit/s |
| identification & maintenance function — I&M0 - device-specific information | Yes |
| identification & maintenance function — I&M1 - higher level designation/location designation | Yes |
| identification & maintenance function — I&M2 - installation date | Yes |
| identification & maintenance function — I&M3 - comment | Yes |
| type of electrical connection of the communication interface | Screw-type terminal (1.5 Mbit) |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw and snap-on mounting |
| height | 100 mm |
| width | 22.5 mm |
| depth | 124.5 mm |
| required spacing — top | 40 mm |
| required spacing — bottom | 40 mm |
| required spacing — left | 0 mm |
| required spacing — right | 0 mm |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections — solid | 1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (20 ... 14), 2x (20 ... 16) |
| tightening torque with screw-type terminals | 0.6 ... 0.8 N·m |
| tightening torque [lbf·in] with screw-type terminals | 5.2 ... 7 lbf·in |
| type of connectable conductor cross-sections for PROFIBUS wire | 2x 0.34 mm², AWG 22 |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| installation altitude at height above sea level maximum — note | Restrictions apply to higher installation altitudes, see: https://support.industry.siemens.com/cs/document/109995153 |
| ambient temperature — during operation | -25 ... +50 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| environmental category — during operation according to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| environmental category — during storage according to IEC 60721 | 1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4 |
| environmental category — during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 |
| relative humidity — during operation | 10 ... 95 % |
| contact rating of auxiliary contacts according to UL | B300 / R300 |
Short-circuit protection
| design of short-circuit protection per output | Fuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A) |
| touch protection against electrical shock | finger-safe |
ATEX
| certificate of suitability — acc. to Equipment and Protective System Intended for Use in Potentially Explosive Atmospheres Regulations 2016 (S.I. 2016 No.1107) | ITS21UKEX0464, ITS21UKEX0455X |
Galvanic isolation
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) |
| design of the electrical isolation | Protective separation in accordance with IEC 60947-1 for all circuits |
| design of the electrical isolation — note | Test report No. A0258 must be observed (https://support.industry.siemens.com/cs/document/109748152) |
Control circuit/ Control
| product function soft starter control | Yes |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC — at 50 Hz rated value | 110 ... 240 V |
| control supply voltage at AC — at 60 Hz rated value | 110 ... 240 V |
| control supply voltage frequency — 1 rated value | 50 Hz |
| control supply voltage frequency — 2 rated value | 60 Hz |
| relative symmetrical tolerance of the control supply voltage frequency | 5 % |
| control supply voltage at DC rated value | 110 ... 240 V |
| operating range factor control supply voltage rated value at DC — initial value | 0.85 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 50 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 60 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 60 Hz — full-scale value | 1.1 |
| inrush current peak — at 240 V | 10 A |
| duration of inrush current peak — at 240 V | 1 ms |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3UF7020-1AU01-0AX0: frequently asked questions
When can 3UF7020-1AU01-0AX0 be shipped?
3UF7020-1AU01-0AX0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3UF7020-1AU01-0AX0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3UF7020-1AU01-0AX0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3UF7020-1AU01-0AX0, subject to availability and destination.
More Siemens parts
Siemens 3UF7020-1AU01-0AX0Price and lead time confirmed within 1 business day
Request a Quote
