Siemens 3TY7561-1UA00
Auxiliary switch block, solid-state compatible, for 3TF44-69, 3TK4/5
- MPN
- 3TY7561-1UA00
- Category
- For 3TF6 vacuum contactors
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

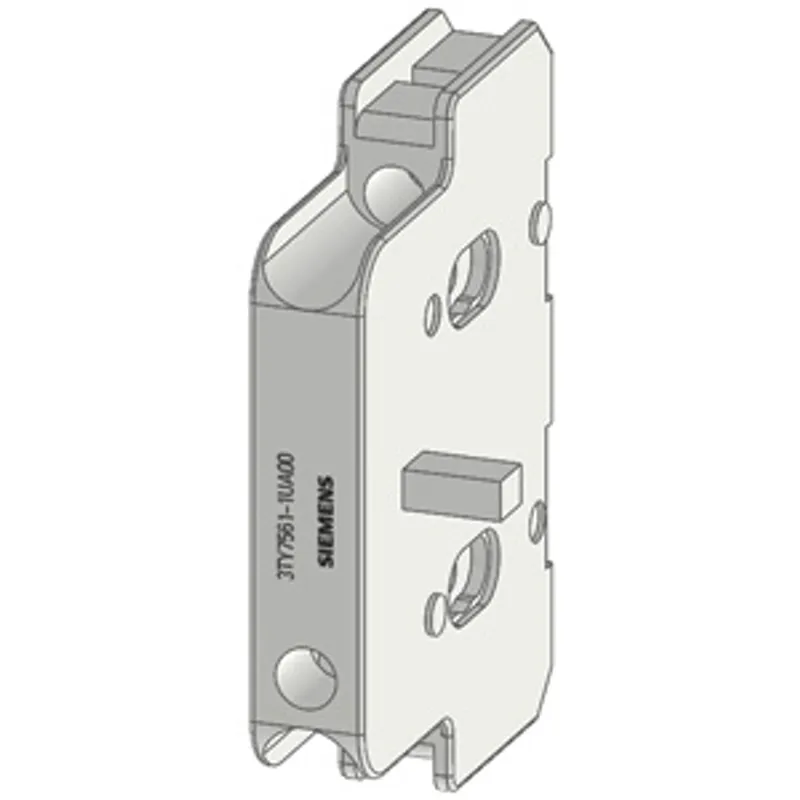

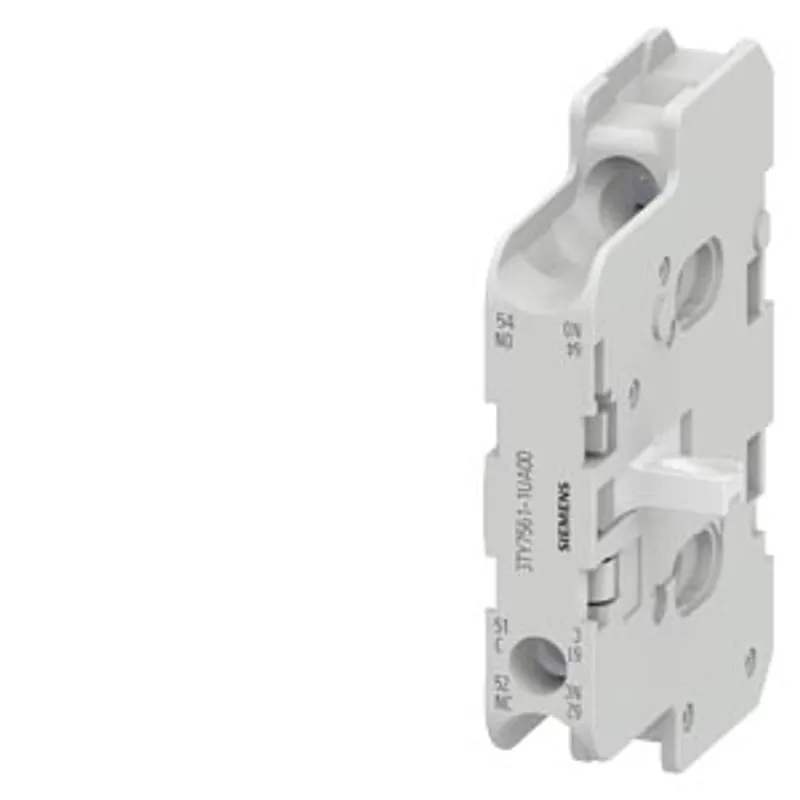

What is the Siemens 3TY7561-1UA00?
Auxiliary switch block, solid-state compatible, for 3TF44-69, 3TK4/5, 3TC4/5 for mounting left or right (replacement for 3TY7561-1U/- 1V)
Specifications
General
| product category | Auxiliary switch |
| product designation | auxiliary switch |
| product type designation | 3TY7 |
| suitability for use | Contactor relay and power contactor |
General technical data
| size of contactor | 2 ... 14 |
| protection class IP on the front | IP20 |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 50.714 g |
| number of NC contacts for auxiliary contacts — instantaneous contact | 0 |
| number of NC contacts for auxiliary contacts — lagging switching | 0 |
| number of NO contacts for auxiliary contacts — instantaneous contact | 0 |
| number of NO contacts for auxiliary contacts — leading contact | 0 |

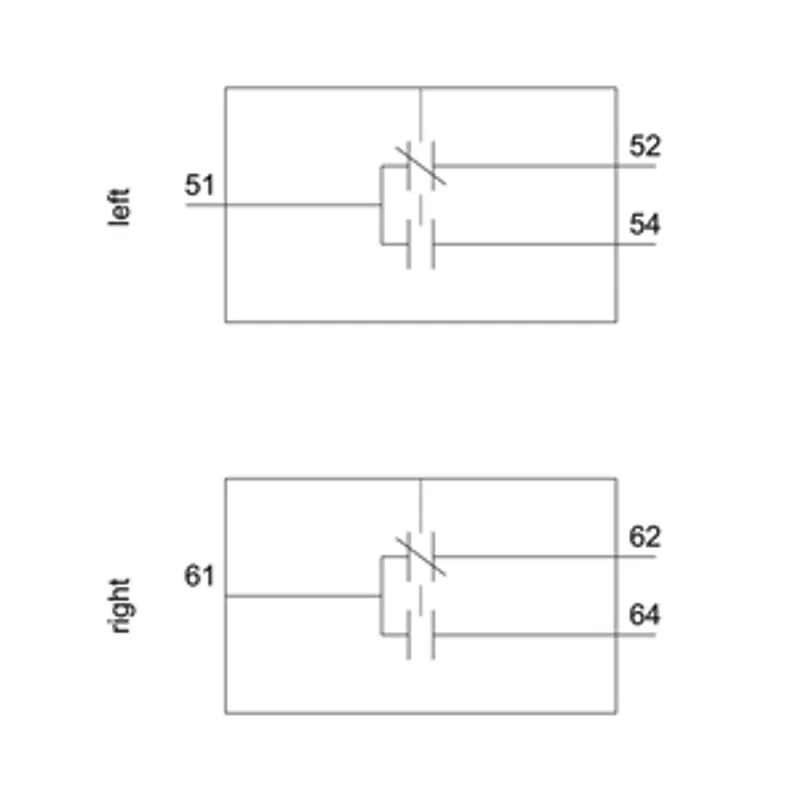

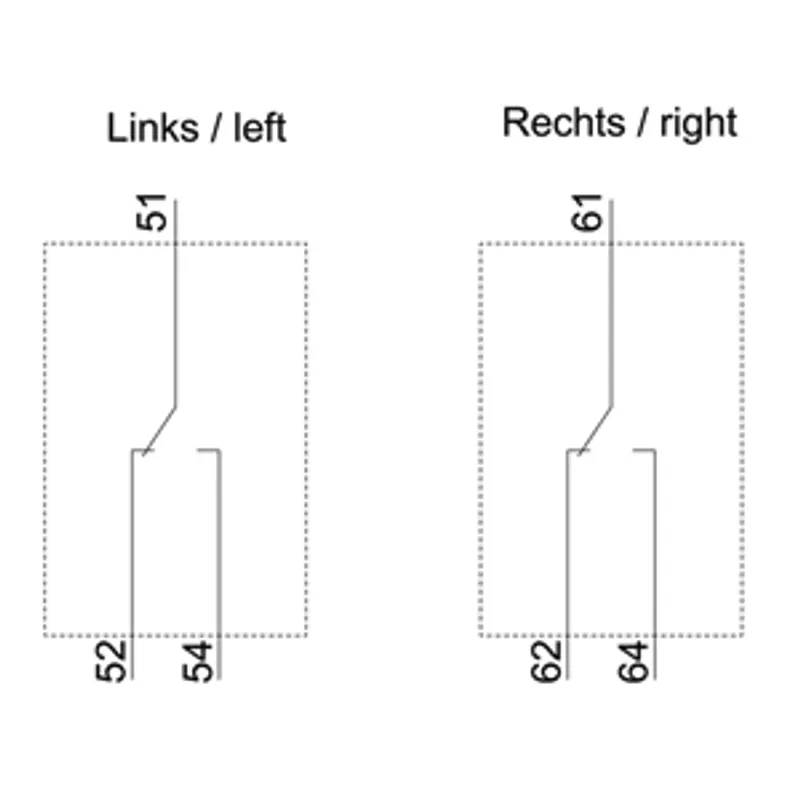

| number of CO contacts of auxiliary contacts instantaneous contact | 1 |
| operational current of auxiliary contacts at AC-15 — at 24 V | 0.3 A |
| operational current of auxiliary contacts at DC-13 — at 24 V | 0.3 A |
| operational current of auxiliary contacts at DC-13 — at 48 V | 0.3 A |
| operational current of auxiliary contacts at DC-13 — at 60 V | 0.3 A |
Ambient conditions
| ambient temperature — during operation | -25 ... +55 °C |
| ambient temperature — during storage | -55 ... +80 °C |

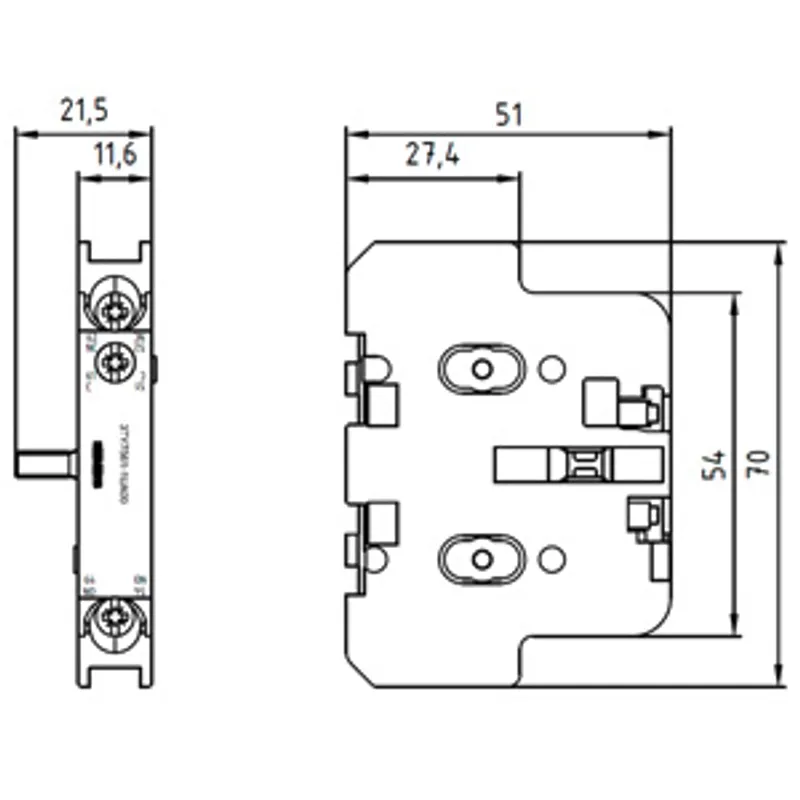

Installation/ mounting/ dimensions
| fastening method | snap-on mounting |
| height | 70 mm |
| width | 15 mm |
| depth | 51.5 mm |
Connections/ Terminals
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| connectable conductor cross-section for auxiliary contacts — solid or stranded | 0.5 ... 2.5 mm² |
| connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing | 0.5 ... 2.5 mm² |
| type of connectable conductor cross-sections — for auxiliary contacts — solid or stranded | 2x (0,5 ... 1,0 mm²), 2x (1,0 ... 2,5 mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing | 2x (0.5 ... 1.0 mm²), 2x (0.75 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary contacts | 2x (18 ... 12) |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 18 ... 12 |
