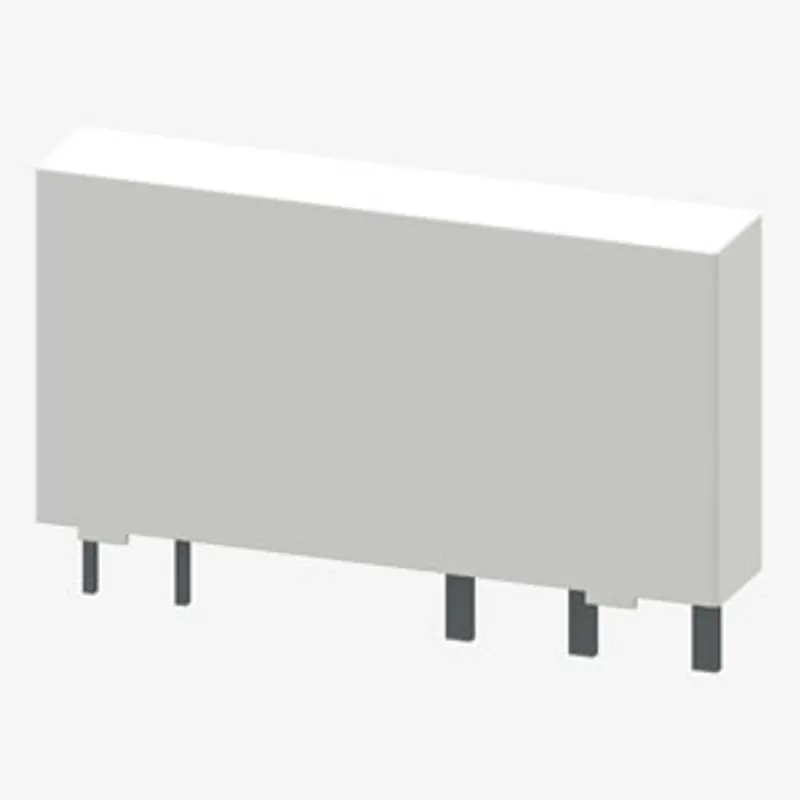

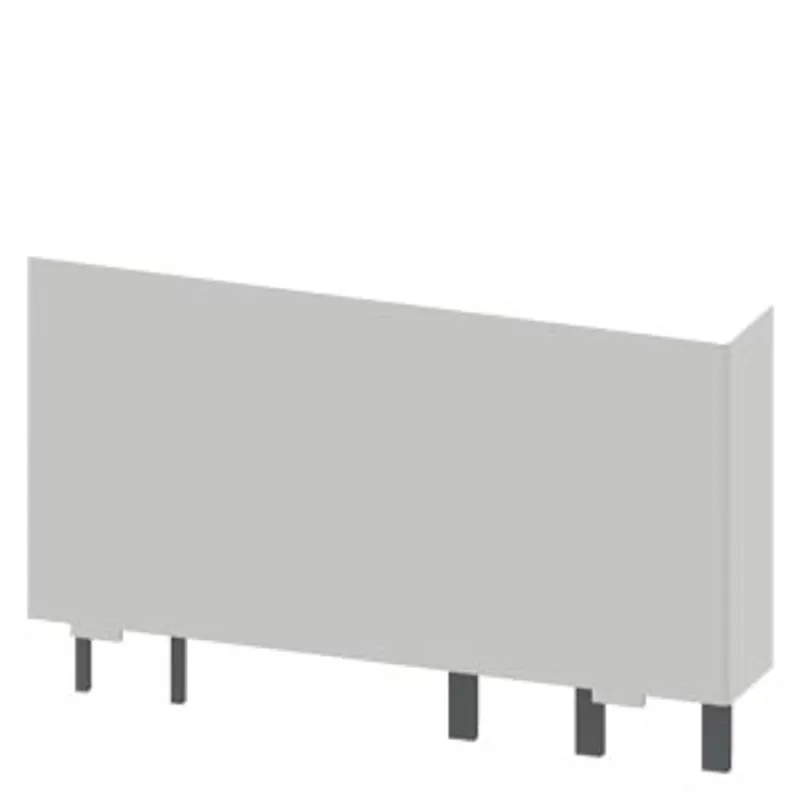

Siemens 3TX7014-7BP02
!!! phased-out product !!! the preferred successor is 3RQ4914-7BP02 relay, 1 change-over contact
- MPN
- 3TX7014-7BP02
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3TX7014-7BP02?
!!! phased-out product !!! the preferred successor is 3RQ4914-7BP02 relay, 1 change-over contact, hard gold-plated, 60 V DC, can be used with 115/230 V AC/DC, complete unit
Specifications
General
| product category | Replacement modules for coupling relays with plug-in relay |
| product designation | Replacement module for coupling relays with plug-in relay |
| design of the product | AC/DC 115 V, AC/DC 230 V |
| product type designation | 3TX7 |
General technical data
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 6 g |
Control circuit/ Control
| control supply voltage at DC rated value | 60 V |
| design of the switching function | changeover switch |
Mechanical data
| design of the relay operating mechanism | poled |
Auxiliary circuit
| type of switching contact | single contact |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 1 |
| operational current of auxiliary contacts at AC-15 — at 230 V | 3 A |
| operational current of auxiliary contacts at DC-13 at 230 V | 0.1 A |
Main circuit
| type of voltage | DC |
| ambient temperature during operation | -25 ... +55 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3TX7014-7BP02: frequently asked questions
When can 3TX7014-7BP02 be shipped?
3TX7014-7BP02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3TX7014-7BP02 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3TX7014-7BP02 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3TX7014-7BP02, subject to availability and destination.
