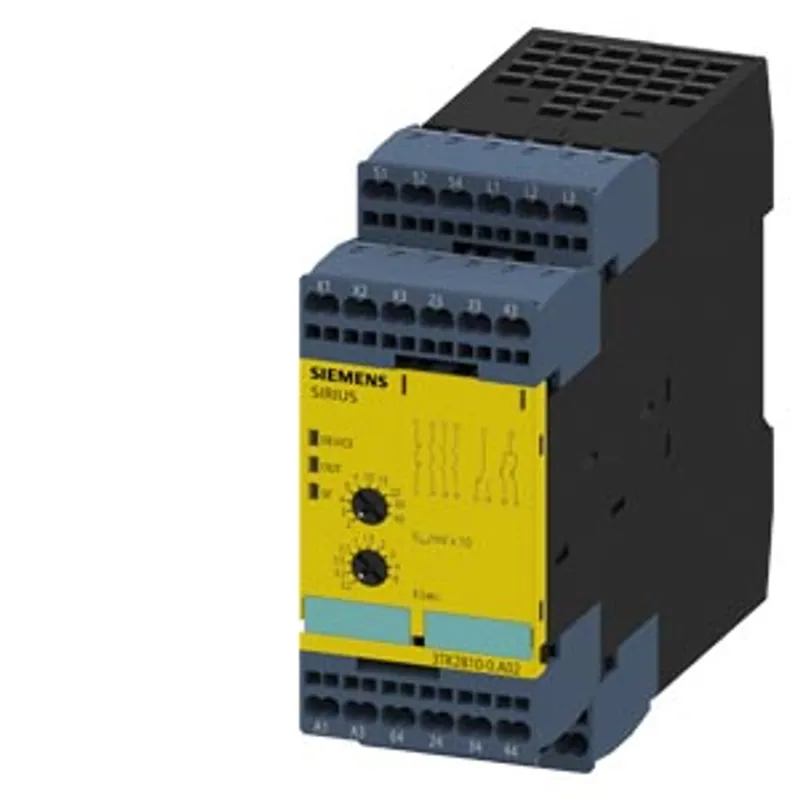

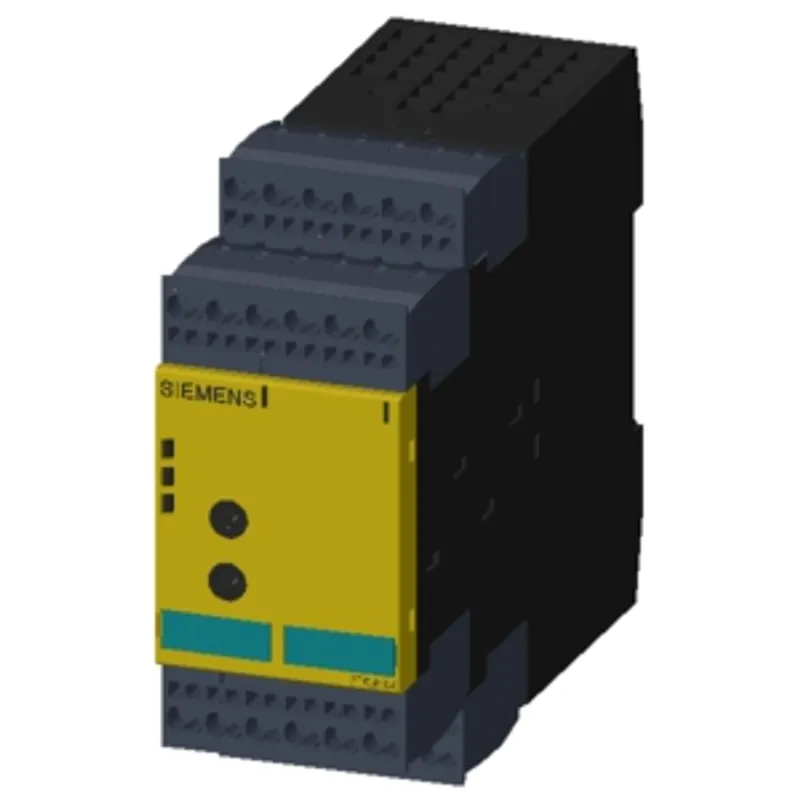

Siemens 3TK2810-0JA02
SIRIUS safety relay safety-oriented Standstill monitoring 400 V AC
- MPN
- 3TK2810-0JA02
- Category
- With special functions
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

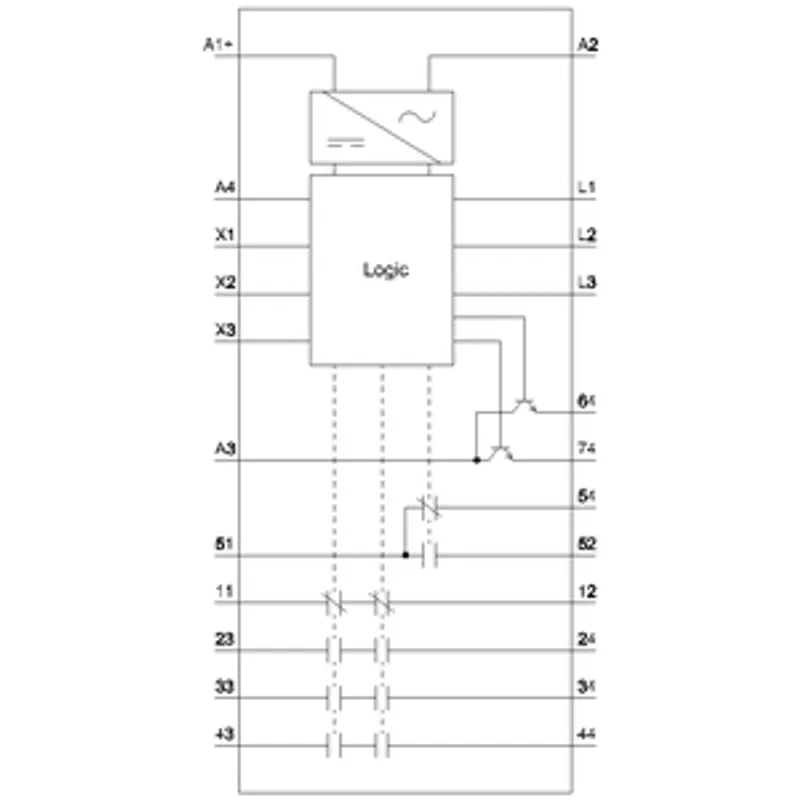

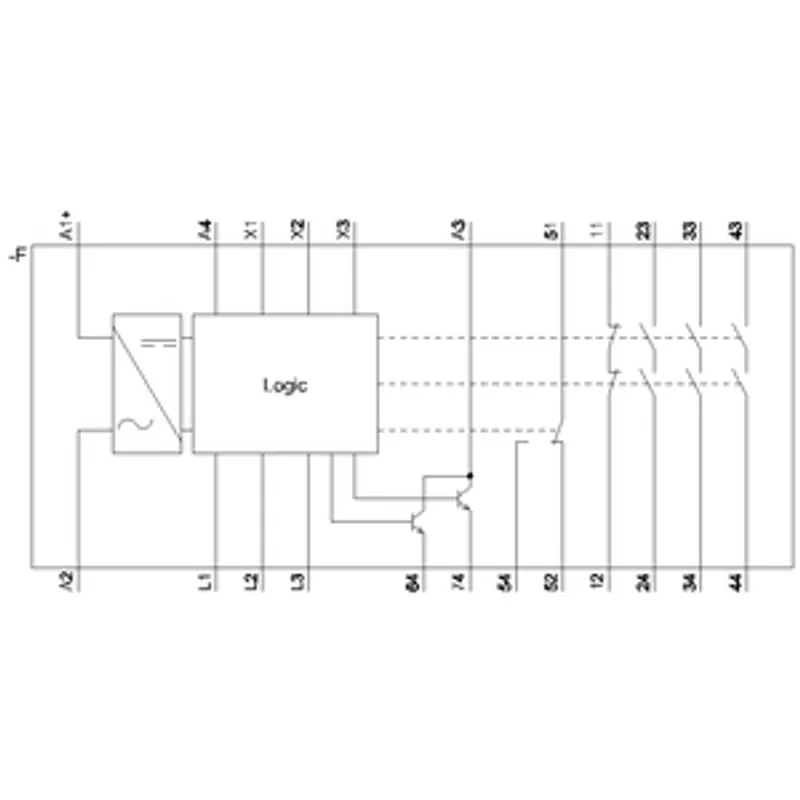

What is the Siemens 3TK2810-0JA02?
SIRIUS safety relay safety-oriented Standstill monitoring 400 V AC, 45 mm Spring-type terminal EC instantaneous: 3 NO + 1 NC EC delayed: 0 SC: 3 Auto-start Basic unit max. error category EN 954-1: 4 Maximum achievable PL according to EN 13849-1: Maximum achievable SIL according to IEC 61508: 3
Specifications
General
| product brand name | SIRIUS |
| product designation | Standstill monitor |
| design of the product | for safe stoppage monitoring |
| product type designation | 3TK28 |
Product Function
| product function — automatic start | No |
| product function — light barrier monitoring | No |
| product function — standstill monitoring | Yes |
| product function — protective door monitoring | No |
| product function — magnetically operated switch monitoring NC-NO | No |
| product function — magnetically operated switch monitoring NC-NC | No |
| product function — rotation speed monitoring | No |
| product function — laser scanner monitoring | No |
| product function — light array monitoring | No |
| product function — EMERGENCY OFF function | No |
| product function — monitored start-up | No |
| product function — pressure-sensitive mat monitoring | No |
| product feature cross-circuit-proof | No |
| suitability for interaction press control | No |
| suitability for use — position switch monitoring | No |
| suitability for use — EMERGENCY-OFF circuit monitoring | No |
| suitability for use — valve monitoring | No |
| suitability for use — opto-electronic protection device monitoring | No |
| suitability for use — tactile sensor monitoring | No |
| suitability for use — magnetically operated switch monitoring | No |
| suitability for use — proximity switch monitoring | No |
| suitability for use — safety-related circuits | Yes |
General technical data
| certificate of suitability UL approval | Yes |
| insulation voltage rated value | 690 V |
| surge voltage resistance rated value | 6 000 V |
| protection class IP — of the enclosure | IP20 |
| protection class IP — of the terminal | IP20 |
| shock resistance | 8 g / 10 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm |
| operating frequency maximum | 1 200 1/h |
| electrical endurance (operating cycles) typical | 200 000 |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 Diboron trioxide CAS-No. 1303-86-2 |
| Net Weight | 0.509 kg |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +75 °C |
| relative humidity during operation | 10 ... 95 % |
| air pressure according to SN 31205 | 90 ... 106 kPa |
Electromagnetic compatibility
| installation environment regarding EMC | This product is suitable for Class A environments only. In household environments, this device can cause unwanted radio interference. The user is required to implement appropriate measures in this case. |
| EMC emitted interference | IEC 61000-6-2, IEC 61000-6-3 |
Safety related data
| product function suitable for safety function | Yes |
| stop category according to IEC 60204-1 | 0 |
| average diagnostic coverage level (DCavg) | 99 % |
| SIL Claim Limit (subsystem) according to EN 62061 | 3 |
| Safety Integrity Level (SIL) according to IEC 62061 | SIL 3 |
| PFHD with high demand rate according to IEC 62061 | 1.5E-9 1/h |
| category according to EN ISO 13849-1 | 4 |
| performance level (PL) — according to ISO 13849-1 | PL e |
| Safety Integrity Level (SIL) — according to IEC 61508 | 3 |
| Safety Integrity Level (SIL) — for delayed release circuit according to IEC 61508 | SIL3 |
| safety device type according to IEC 61508-2 | Type B |
| hardware fault tolerance according to IEC 61508 | 1 |
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
| touch protection against electrical shock | finger-safe |
| adjustable response value voltage for standstill detection | 20 ... 400 mV |
| adjustable downtime | 0.2 ... 6 s |
Short-circuit protection
| design of the fuse link for short-circuit protection of the NO contacts of the relay outputs required | quick: 5 A |
Inputs
| design of input — cascading input/functional switching | No |
| design of input — feedback input | Yes |
| design of input — start input | No |
| number of sensor inputs — 1-channel or 2-channel | 1 |
Outputs
| number of outputs as contact-affected switching element — as NC contact — for signaling function instantaneous contact | 2 |
| number of outputs as contact-affected switching element — as NO contact — safety-related instantaneous contact | 4 |
| number of outputs as contact-affected switching element — as NO contact — safety-related delayed switching | 0 |
| mechanical service life (operating cycles) typical | 50 000 000 |
| thermal current of the switching element with contacts maximum | 5 A |
| number of outputs as contact-less semiconductor switching element — for signaling function — delayed switching | 0 |
| number of outputs as contact-less semiconductor switching element — for signaling function — instantaneous contact | 2 |
| number of outputs as contact-less semiconductor switching element — safety-related — delayed switching | 0 |
| number of outputs as contact-less semiconductor switching element — safety-related — instantaneous contact | 0 |
| switching capacity current of semiconductor outputs — for signaling function at DC-13 at 24 V | 0.1 A |
| switching capacity current of the NO contacts of the relay outputs at DC-13 — at 24 V | 2 A |
| switching capacity current of the NO contacts of the relay outputs at AC-15 — at 115 V | 3 A |
| switching capacity current of the NO contacts of the relay outputs at AC-15 — at 230 V | 3 A |
| switching capacity current of the NC contacts of the relay outputs at DC-13 — at 24 V | 2 A |
| switching capacity current of the NC contacts of the relay outputs at AC-15 — at 115 V | 2 A |
| switching capacity current of the NC contacts of the relay outputs at AC-15 — at 230 V | 2 A |
| voltage measuring range at the measurement inputs at AC according to UL maximum | 600 V |
| voltage measuring range at the measurement inputs at AC maximum | 690 V |
| adjustable response value voltage for standstill detection | 20 ... 400 mV |
| input resistance at the measurement inputs | 500 kΩ |
Times
| adjustable downtime initial value | 0.2 s |
| adjustable downtime full-scale value | 6 s |
Control circuit/ Control
| type of voltage of the control supply voltage | AC |
| control supply voltage 1 at AC — at 50 Hz rated value | 400 V |
| control supply voltage 1 at AC — at 60 Hz rated value | 400 V |
| control supply voltage frequency — 1 rated value | 50 Hz |
| control supply voltage frequency — 2 rated value | 60 Hz |
| operating range factor control supply voltage rated value of magnet coil at AC — at 50 Hz | 0.8 ... 1.1 |
| operating range factor control supply voltage rated value of magnet coil at AC — at 60 Hz | 0.8 ... 1.1 |

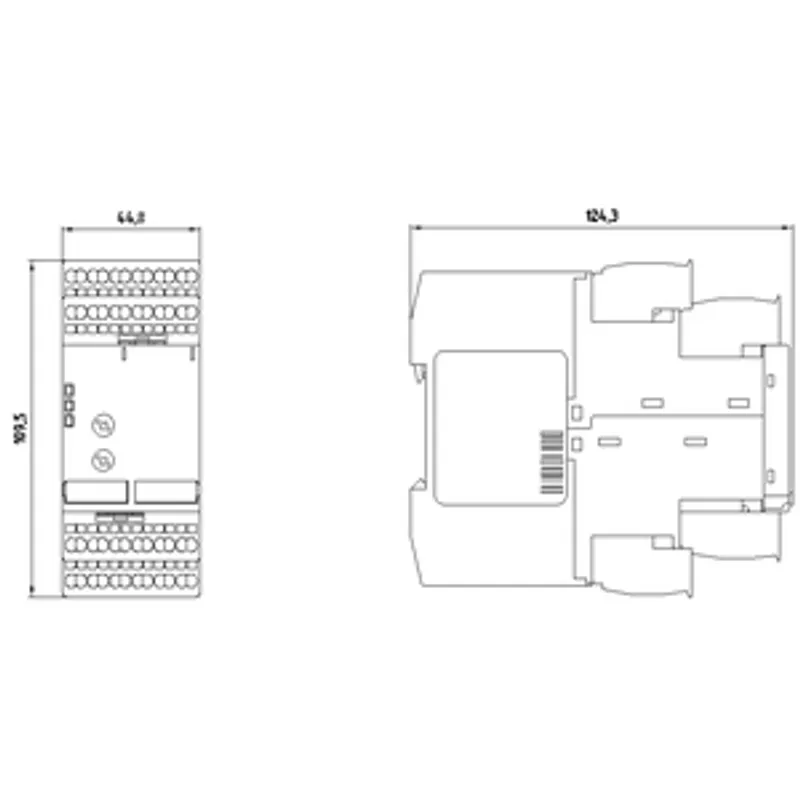

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw and snap-on mounting |
| height | 138.5 mm |
| width | 45 mm |
| depth | 120 mm |
Connections/ Terminals
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections — solid | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2 x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 2x (24 ... 16) |
| type of connectable conductor cross-sections — for AWG cables stranded | 2x (20 ... 16) |
| connectable conductor cross-section — solid | 0.25 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.25 ... 1.5 mm² |
| connectable conductor cross-section — finely stranded without core end processing | 0.25 ... 1.5 mm² |
| AWG number as coded connectable conductor cross section — solid | 24 ... 16 |
| AWG number as coded connectable conductor cross section — stranded | 24 ... 16 |
| type of electrical connection plug-in socket | Yes |
