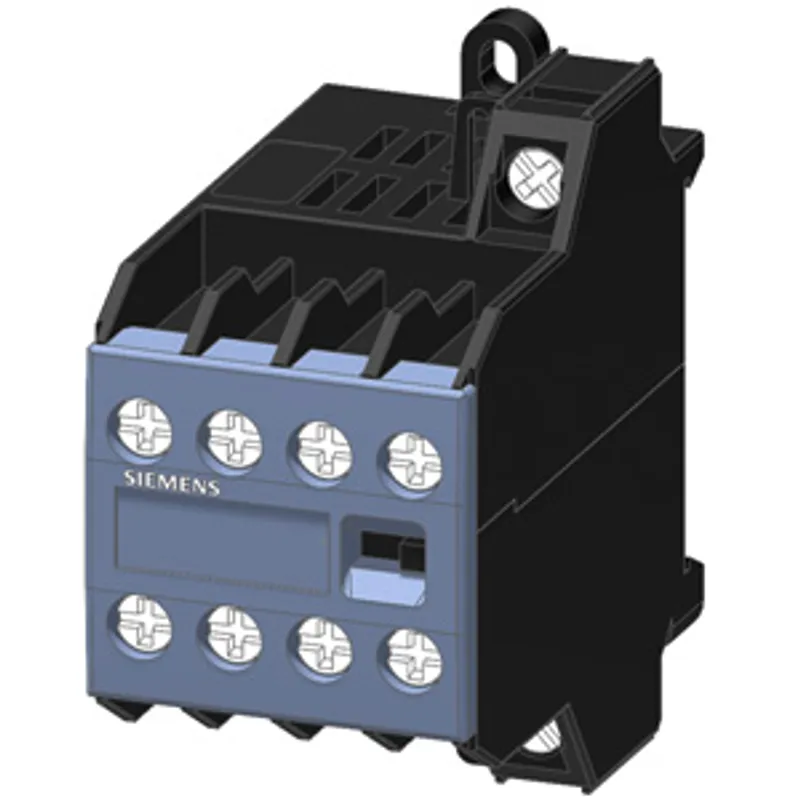

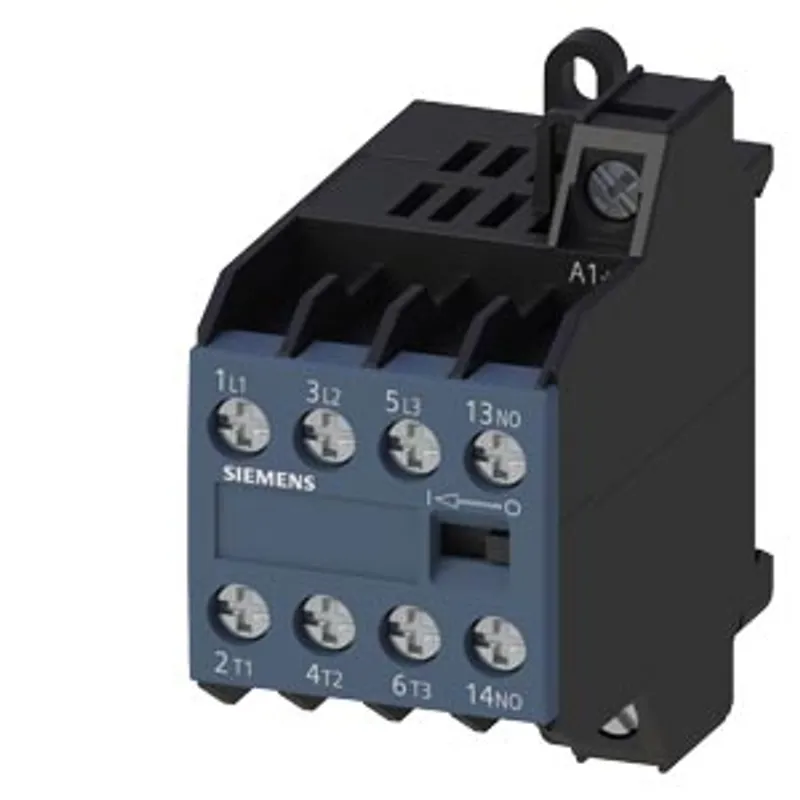

Siemens 3TG1010-0AC20-0AA0
Power relay, AC-3, 8.4 A, 4 kW / 400 V, 3-pole, 24 V AC, 45-450 Hz, auxiliary contacts: 1 NO, screw terminal
- MPN
- 3TG1010-0AC20-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3TG1010-0AC20-0AA0?
power relay, AC-3, 8.4 A, 4 kW / 400 V, 3-pole, 24 V AC, 45-450 Hz, auxiliary contacts: 1 NO, screw terminal, multi-unit packaging, pack = 50 units
Specifications
General
| consumed active power | 4 W |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.157 kg |
| ambient temperature during operation | -25 ... +55 °C |
| number of poles | 4 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
| type of voltage | AC |
| operational current — at AC-1 at 400 V rated value | 20 A |
| operational current — at AC-3 at 400 V rated value | 8.4 A |
| operational current — at AC-3e at 400 V rated value | 6.4 A |
| operating power — at AC-3 at 400 V rated value | 4 kW |
| operating power — at AC-3e at 400 V rated value | 3 kW |
| control supply voltage at AC — at 50 Hz rated value | 24 V |
| control supply voltage at AC — at 60 Hz rated value | 24 V |
| supply voltage frequency for auxiliary and control circuit rated value | 45 ... 450 Hz |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
| fastening method side-by-side mounting | Yes |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |

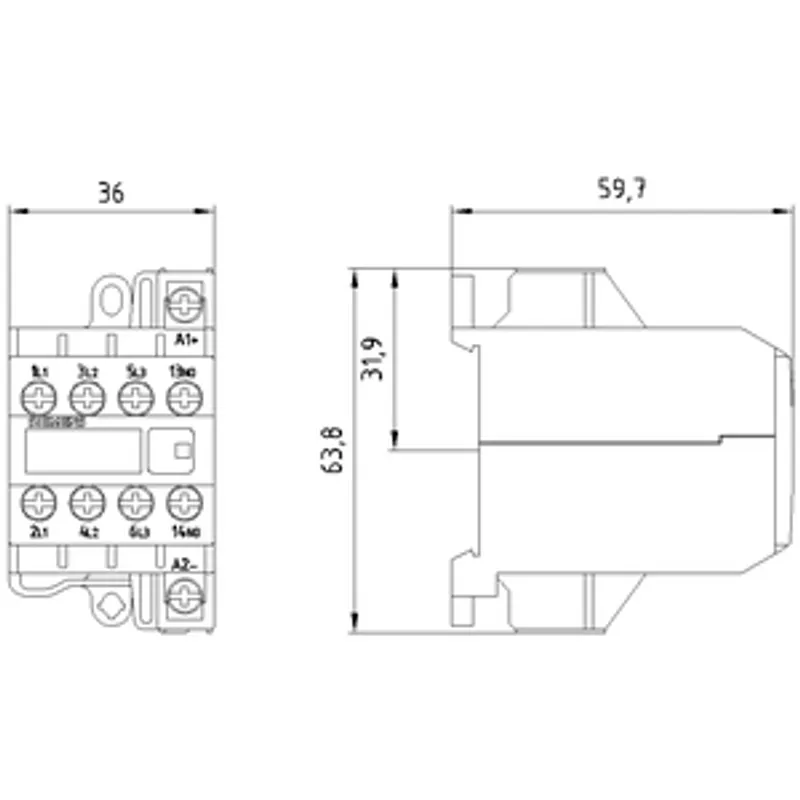

| height | 62 mm |
| width | 36 mm |
| depth | 60 mm |
| type of electrical connection — for main current circuit | screw-type terminals |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
Safety related data
| product function — mirror contact according to IEC 60947-4-1 | No |
| product function — suitable for safety function | Yes |
| service life maximum | 20 a |
| proportion of dangerous failures — with low demand rate according to SN 31920 | 40 % |
| proportion of dangerous failures — with high demand rate according to SN 31920 | 73 % |
| B10 value with high demand rate according to SN 31920 | 400 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 1/s |
| device type according to ISO 13849-1 | 3 |
| overdimensioning according to ISO 13849-2 necessary | Yes |
| safety device type according to IEC 61508-2 | Type A |
| protection class IP on the front according to IEC 60529 | IP00 |
