Siemens 3SU1851-0AD00-2AB1
Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray
- MPN
- 3SU1851-0AD00-2AB1
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1851-0AD00-2AB1?

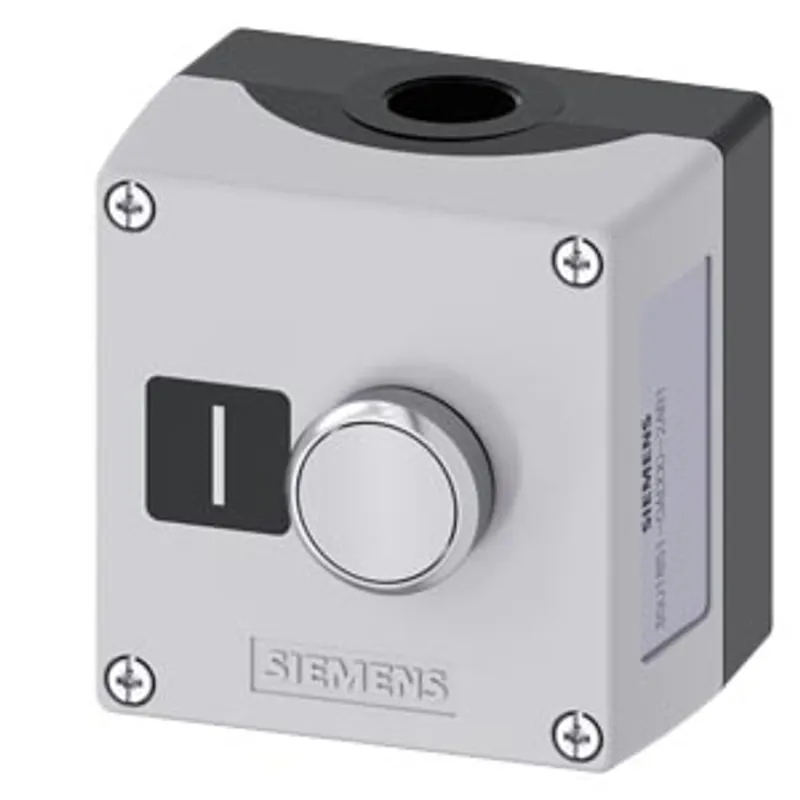

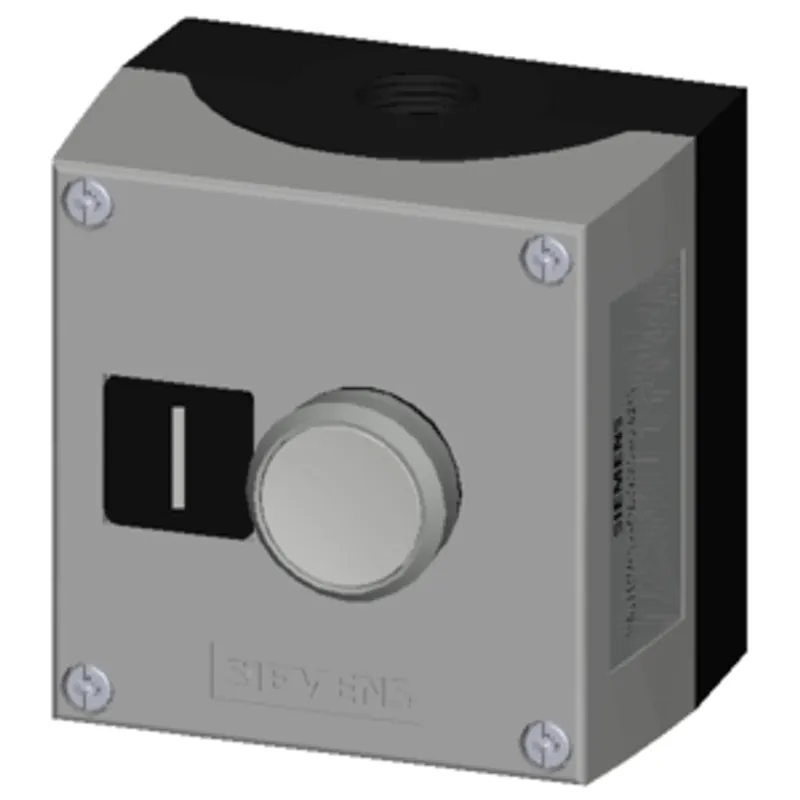

Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 1 control point metal, A=Pushbutton white, 1 NO, screw terminal, floor mounting, label: I, 1xM20 each on top and bottom, Label enclosed
Specifications
General
| product brand name | SIRIUS ACT |
| product designation | Enclosures |
| product type designation | 3SU1 |
| equipment of commanding and signaling device | A = Pushbutton |
| manufacturer's article number — of supplied contact module at the command point A 2 | 3SU1400-2AA10-1BA0 |
| manufacturer's article number — of the supplied holder at the command point A | 3SU1550-0AA10-0AA0 |
| manufacturer's article number — of the supplied actuator at the command point A | 3SU1050-0AB60-0AA0 |
| manufacturer's article number — of supplied empty enclosure | 3SU1851-0AA00-0AB1 |
| manufacturer's article number — of the supplied accessories at the command point A | 3SU1900-0AF16-0QB0 |
Enclosure
| design of the housing | with recess for label |
| shape of the enclosure front | Square |
| material of the enclosure | metal |
| number of command points | 1 |
| product component — EMERGENCY STOP device | No |
| product component — protective collar | No |
| color of the enclosure top part | grey |
| delivery state — as a kit | No |
| delivery state — pre-wired on strip terminal | No |
| fastening method of the enclosure | Vertical |
Actuator
| design of the actuating element | Pushbutton |
| suitability for use EMERGENCY OFF switch | No |
| product feature lockout | No |
| product extension optional light source | No |
| color of the actuating element | white |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| number of contact modules | 1 |
Front ring
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | Metal, high gloss |
| color of the front ring | silver |
Holder
| material of the holder | Plastic |
Display
| number of LED modules | 0 |
General technical data
| product function — positive opening | No |
| product function — EMERGENCY OFF function | No |
| product function — EMERGENCY STOP function | No |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance — according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance — for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance — according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance — for railway applications according to EN 61373 | Category 1, Class B |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
| Net Weight | 504.38 g |
| operating voltage — at AC — at 50 Hz rated value | 5 ... 500 V |
| operating voltage — at AC — at 60 Hz rated value | 5 ... 500 V |
| operating voltage — at DC rated value | 5 ... 500 V |
Communication/ Protocol
| design of the interface for communication | without |
Auxiliary circuit
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 0 |

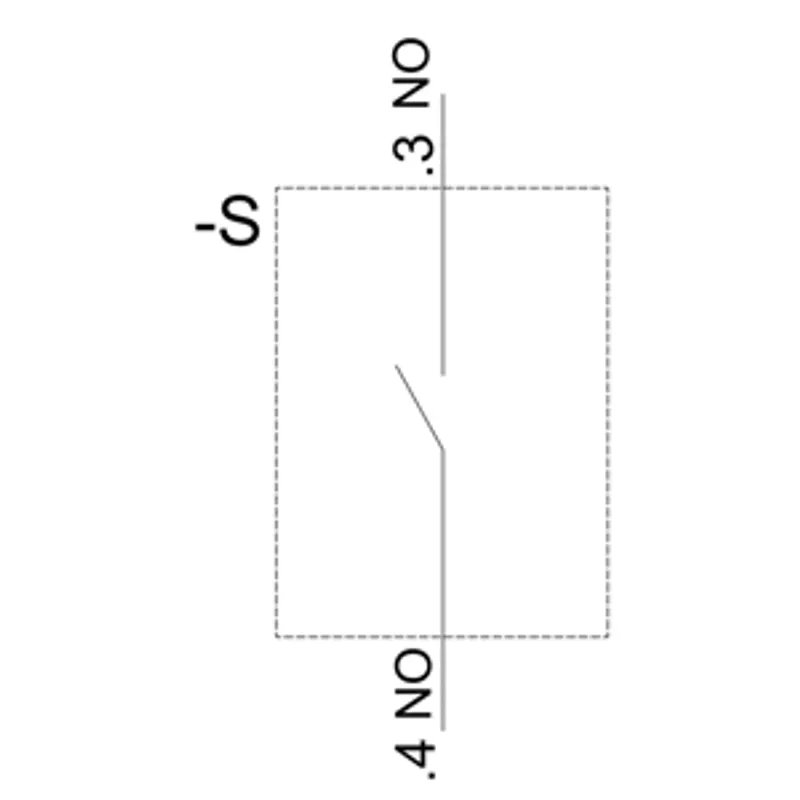

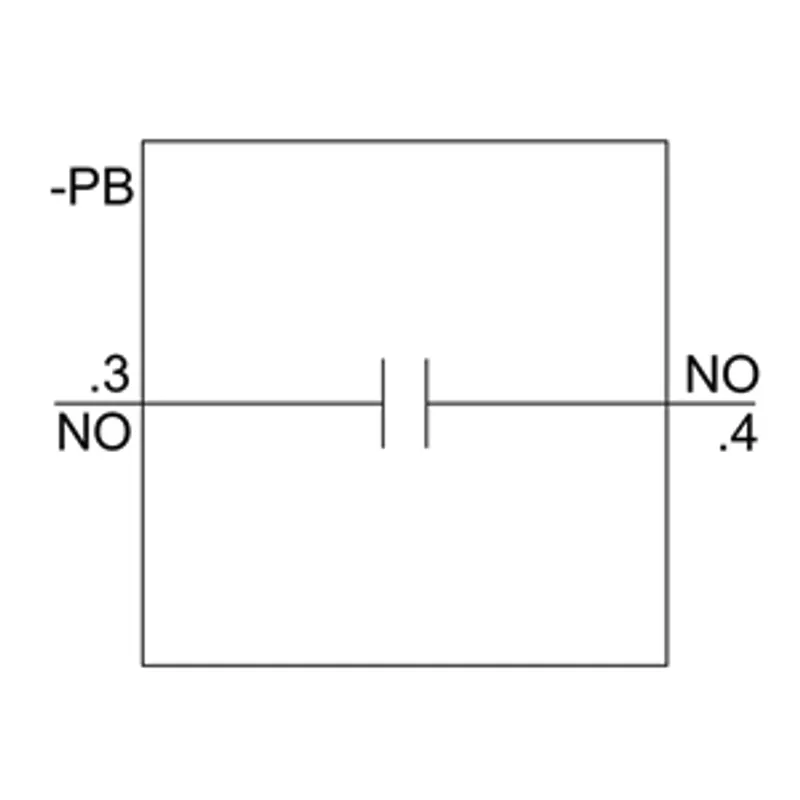

| number of NO contacts for auxiliary contacts | 1 |
Connections/ Terminals
| type of electrical connection of modules and accessories | Screw-type terminal |
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
Ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |
Installation/ mounting/ dimensions
| fastening method of modules and accessories | Floor mounting |
| height | 89.4 mm |
| width | 85 mm |
| depth | 75 mm |
| shape of the installation opening | round |
Accessories
| number of labels | 1 |
| marking of the name plate for command devices | A = I |
| color of the label | A = black |
| number of inscription plates | 0 |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.625 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.267 kg |
| global warming potential [CO2 eq] / total | 0.593 kg |
