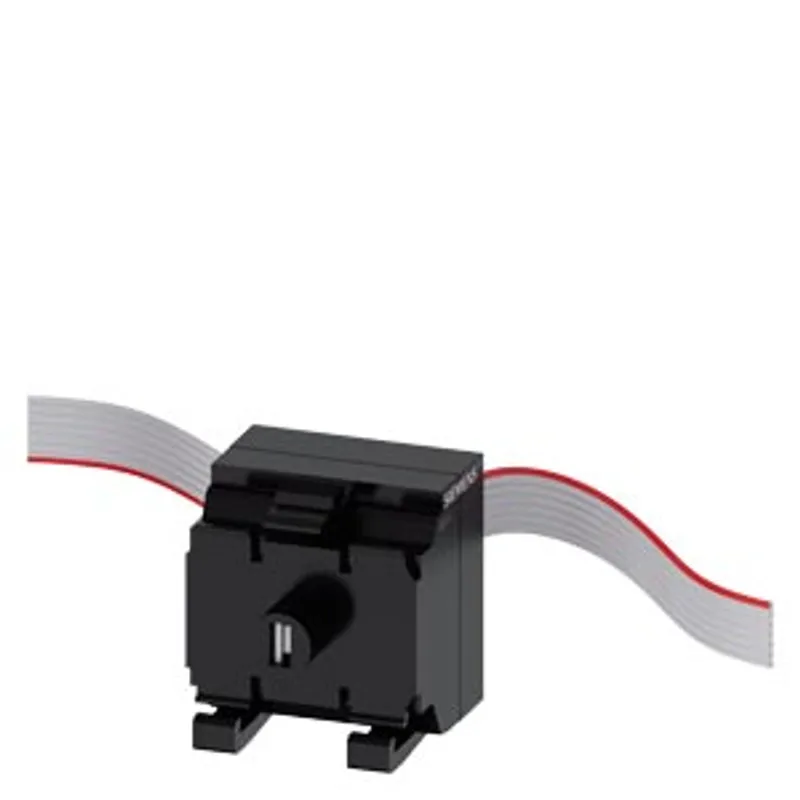

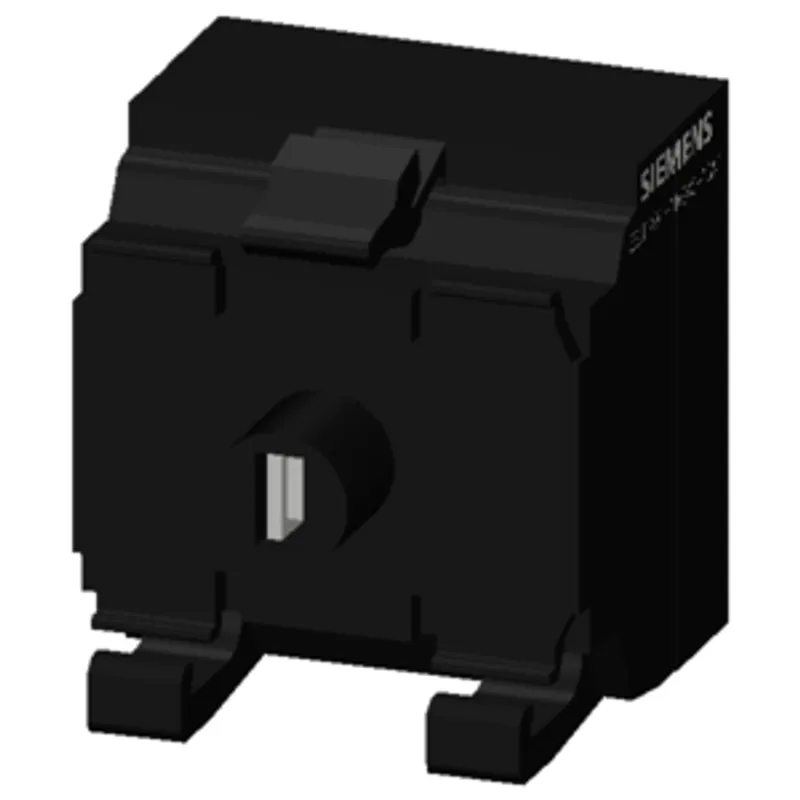

Siemens 3SU1401-1ME40-1DA1
SIRIUS ACT: terminal module (LED module), integrated LED green, for front plate mounting
- MPN
- 3SU1401-1ME40-1DA1
- Category
- Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1401-1ME40-1DA1?
SIRIUS ACT: terminal module (LED module), integrated LED green, for front plate mounting
Specifications
General
| product brand name | SIRIUS ACT |
| product designation | Terminal module |
| design of the product | with integrated LED |
| product type designation | 3SU1 |
Display
| display version — for diagnostic function: Supply voltage monitoring power LED | Yes |
| display version — status Tx/Rx link | No |
General technical data
| product function — reverse polarity protection | Yes; Ribbon cable can be rotated 180°. |
| product function — diagnostics function | Yes |
| firmware version | 1.0.0 |
| hardware version | 1 |
| software version with STEP 7 in the TIA Portal required | V13 SP1 (V13 SP1 and V14 with HSP0132) |
| power loss [W] typical | 0.115 W |
| degree of pollution | 3 |
| type of voltage — of the operating voltage | DC |
| type of voltage — of the input voltage | DC |
| surge voltage resistance rated value | 0.8 kV |
| consumed current — maximum | 27 mA |
| consumed current — rated value | 23 mA |
| protection class IP | IP20 |
| shock resistance — according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance — for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance — according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance — for railway applications according to EN 61373 | Category 1, Class B |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 12/19/2016 |
| SVHC substance name | 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 19 g |
Communication/ Protocol
| protocol is supported — PROFIsafe protocol | No |
Connections/ Terminals
| type of electrical connection | Insulation displacement connection |
| type of connectable conductor cross-sections | Ribbon cable 7-pole, 7 x 0.08 mm2 |
| connectable conductor cross-section for auxiliary contacts — solid or stranded | 0.08 mm² |
| connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing maximum | 0.08 mm² |
| connectable conductor cross-section — solid | 0.08 mm² |
| connectable conductor cross-section — solid with core end processing | 0.08 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.08 mm² |
| connectable conductor cross-section — finely stranded without core end processing | 0.08 mm² |
| AWG number as coded connectable conductor cross section | 28 |
Lamp
| color of the light source | green |
Safety related data
| product function suitable for safety function | No |
| service life maximum | 20 a |
Ambient conditions
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted) |
| explosion protection marking for intrinsic safety of related equipment EEx ia | No |
| explosion protection marking for intrinsic safety of related equipment EEx ib | No |

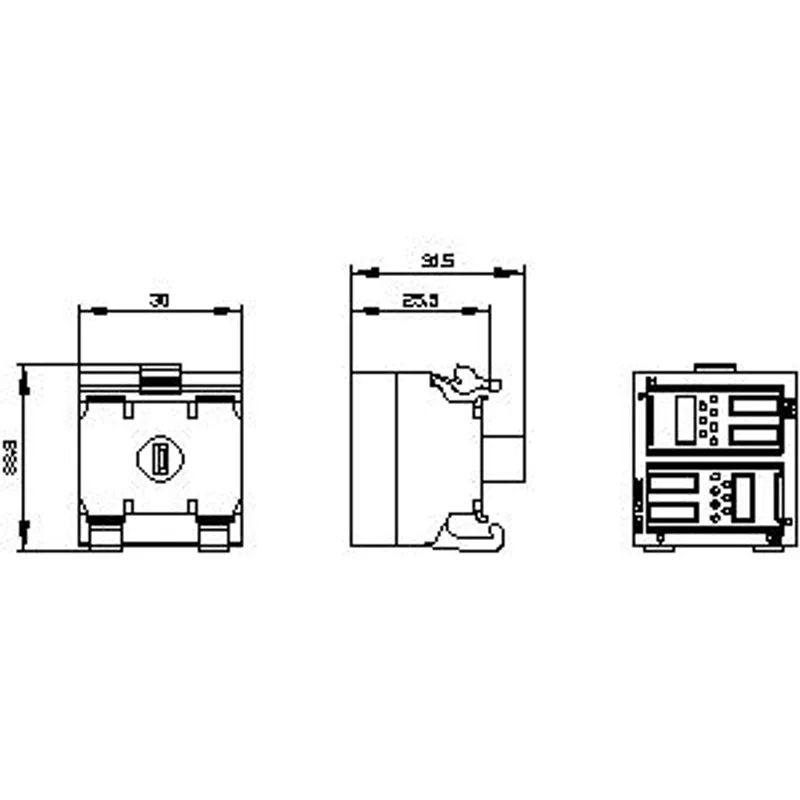

Installation/ mounting/ dimensions
| fastening method of modules and accessories | Front plate mounting |
| height | 32.6 mm |
| width | 30 mm |
| depth | 31.5 mm |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.0145 kg |
| global warming potential [CO2 eq] / total | 0.787 kg |
