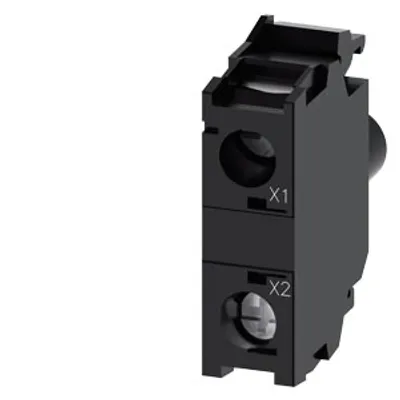

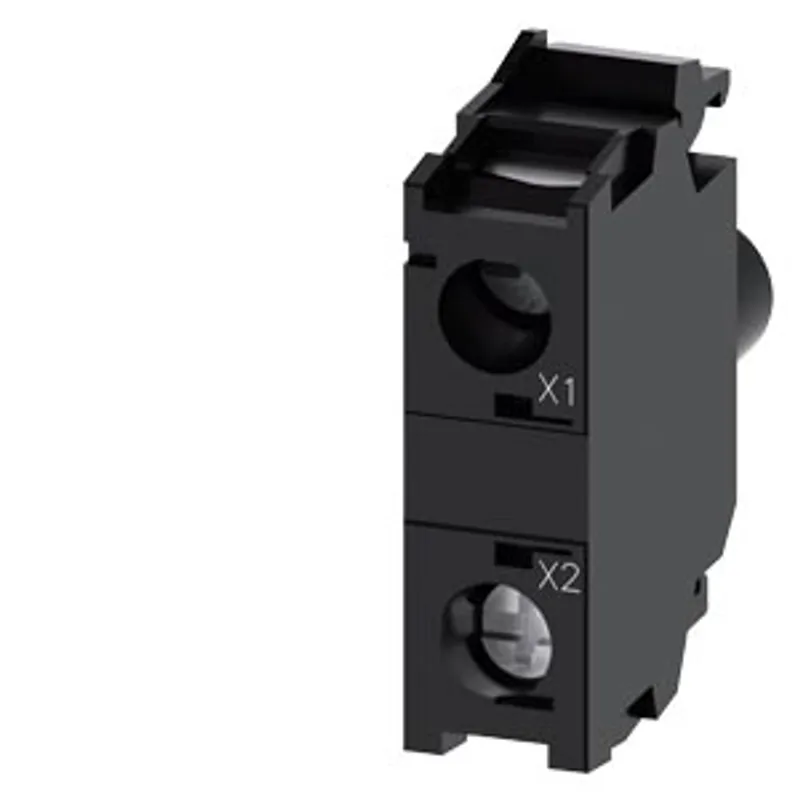

Siemens 3SU1401-1BH20-1AA0 – LED module with integrated LED, 24-240 V AC/DC, red

Name: Siemens 3SU1401-1BH20-1AA0 – LED module with integrated LED, 24-240 V AC/DC, red
Brand: Siemens
SKU: 3SU1401-1BH20-1AA0

MPN: 3SU1401-1BH20-1AA0 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.01 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3SU1401-1BH20-1AA0 be shipped?

3SU1401-1BH20-1AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SU1401-1BH20-1AA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SU1401-1BH20-1AA0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1401-1BH20-1AA0, subject to availability and destination.

LED module with integrated LED, 24-240 V AC/DC, red, screw terminal, for front plate mounting

Specifications

General technical data

product component – diode	Yes
product component – lamp transformer	No
product component – light source	Yes
product component – series resistor	No
insulation voltage rated value	320 V
degree of pollution	3
type of voltage of the operating voltage	AC/DC
for actuation	AC/DC
surge voltage resistance rated value	4 kV
consumed current maximum	20 mA
protection class IP – of the enclosure	IP40
protection class IP – of the terminal	IP20
shock resistance – according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
shock resistance – for railway applications according to EN 61373	Category 1, Class B
vibration resistance – according to IEC 60068-2-6	10 ... 500 Hz: 5 g
vibration resistance – for railway applications according to EN 61373	Category 1, Class B
operating period typical	100 000 h
reference code according to IEC 81346-2	P
Substance Prohibitance (day/month/year)	10/01/2014
SVHC substance name	2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1
Net Weight	10 g
at AC – — at 50 Hz rated value	24 ... 240 V
at AC – — at 60 Hz rated value	24 ... 240 V
at AC – at DC rated value	24 ... 240 V
relative positive tolerance of the operating voltage	20 %
relative negative tolerance of the operating voltage	20 %

Control circuit/ Control

inrush current maximum

3 A

Connections/ Terminals

type of electrical connection	screw terminal
type of connectable conductor cross-sections – solid with core end processing	2x (0.5 ... 0.75 mm²)
type of connectable conductor cross-sections – solid without core end processing	2x (1.0 ... 1.5 mm²)
type of connectable conductor cross-sections – finely stranded with core end processing	2x (0.5 ... 1.5 mm²)
type of connectable conductor cross-sections – finely stranded without core end processing	2x (1,0 ... 1,5 mm²)
type of connectable conductor cross-sections – for AWG cables	2x (18 ... 14)
connectable conductor cross-section finely stranded with core end processing	0.5 ... 1.5 mm²
tightening torque with screw-type terminals	0.8 ... 0.9 N·m

Lamp

type of light source	LED
color of the light source	red
light intensity	450 ... 1 120 mcd

ATEX

certificate of suitability – ATEX	No
certificate of suitability – IECEx	No

Ambient conditions

ambient temperature – during operation	-25 ... +70 °C
ambient temperature – during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted)

Installation/ mounting/ dimensions

fastening method – of modules and accessories	Front plate mounting
height	33.2 mm
width	9.8 mm
depth	29.4 mm

Environmental footprint

Environmental Product Declaration(EPD)	Yes
global warming potential [CO2 eq] total	0.787 kg
global warming potential [CO2 eq] during manufacturing	0.566 kg
global warming potential [CO2 eq] during operation	0.235 kg
global warming potential [CO2 eq] after end of life	-0.015 kg
