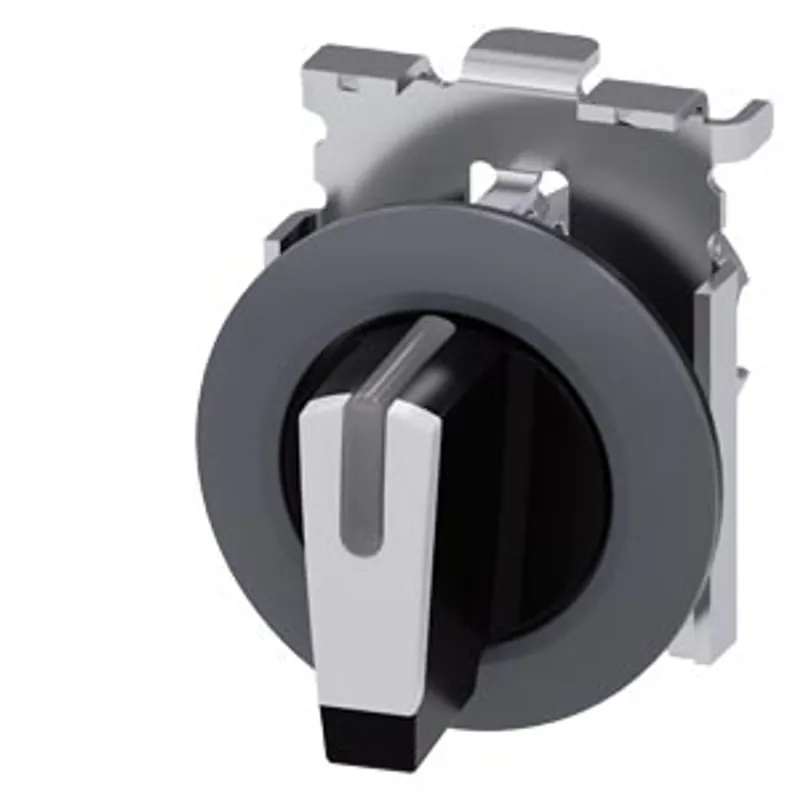

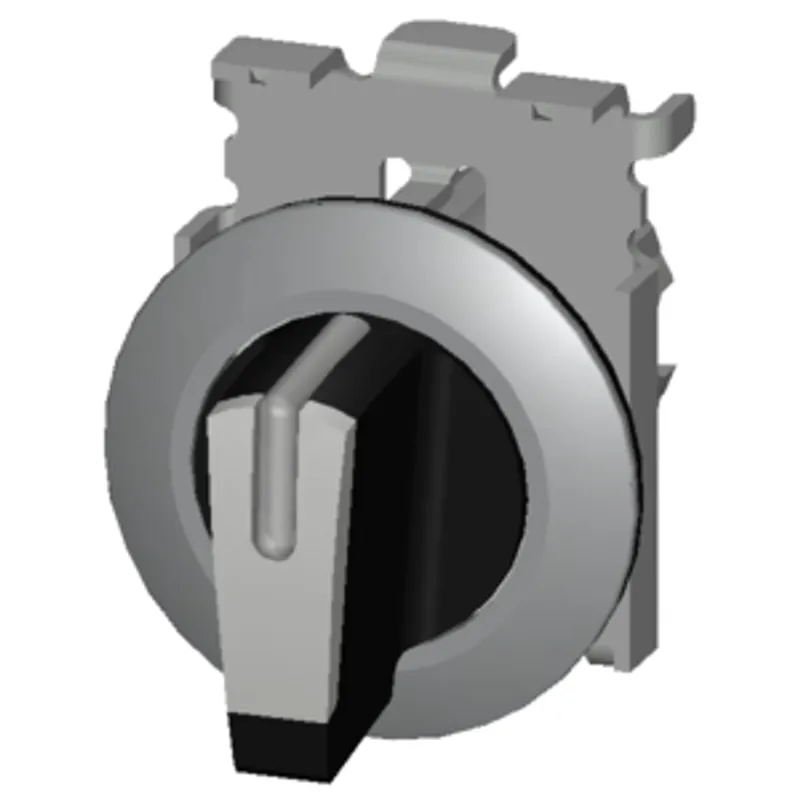

Siemens 3SU1062-2DN60-0AA0
Selector switch, illuminable, 30 mm, round, Metal, matte, white, selector switch, short
- MPN
- 3SU1062-2DN60-0AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1062-2DN60-0AA0?
Selector switch, illuminable, 30 mm, round, Metal, matte, white, selector switch, short, front ring for flush installation, 3 switch positions I-O<II, left latching, right momentary contact type, actuating angle 2x45°, 10:30h/12h/13:30h
Specifications
Enclosure
| number of command points | 1 |
Actuator
| design of the actuating element | Selector, short |
| principle of operation of the actuating element | latching/momentary contact, 2x45° (10:30 h/12 h/13:30 h), return from right, left latching |
| product extension optional – light source | Yes |
| product extension optional – contact module | Yes |
| color of the actuating element | white |
| material of the actuating element | plastic |
| shape of the actuating element | Handle |
| outer diameter of the actuating element | 38 mm |
| number of switching positions | 3 |
| actuating angle – clockwise | 45° |
| actuating angle – anticlockwise | 45° |
Front ring
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
General technical data
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance – according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance – for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance – according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance – for railway applications according to EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (operating cycles) typical | 300 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| SVHC substance name | 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-No. 3147-75-9 |
| Net Weight | 69.5 g |
Safety related data
| proportion of dangerous failures – with low demand rate according to SN 31920 | 20 % |
| proportion of dangerous failures – with high demand rate per NC contact according to SN 31920 | 20 % |
| proportion of dangerous failures – with high demand rate per NO contact according to SN 31920 | 50 % |
| B10 value with high demand rate according to SN 31920 | 300 000 |
| failure rate [FIT] with low demand rate per NC contact according to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
Ambient conditions
| ambient temperature – during operation | -25 ... +70 °C |
| ambient temperature – during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |

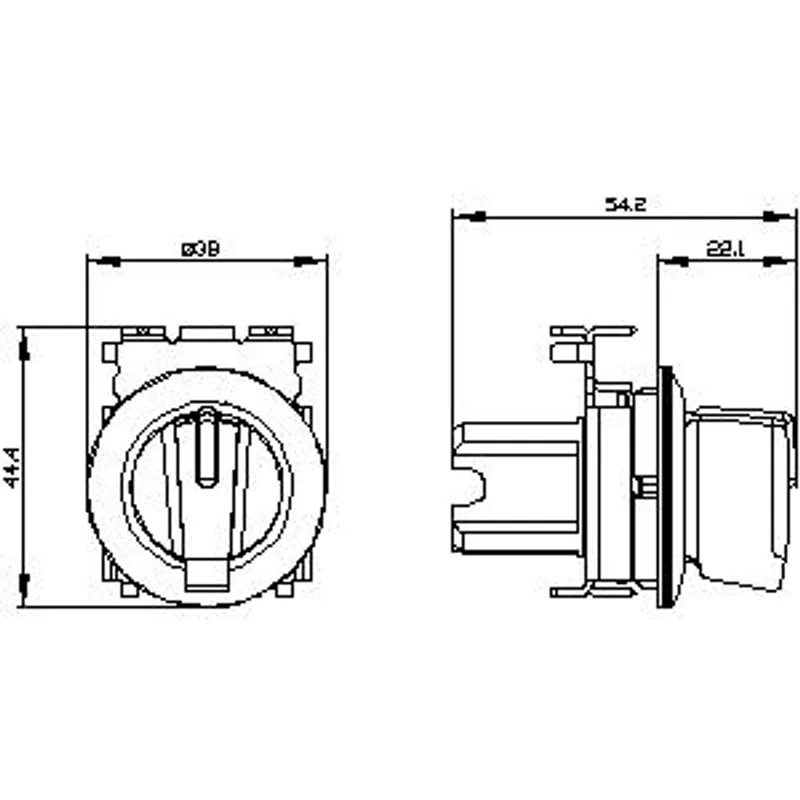

Installation/ mounting/ dimensions
| height | 44.8 mm |
| width | 38 mm |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 22.1 mm |
| installation width | 38 mm |
| installation depth | 32.1 mm |
