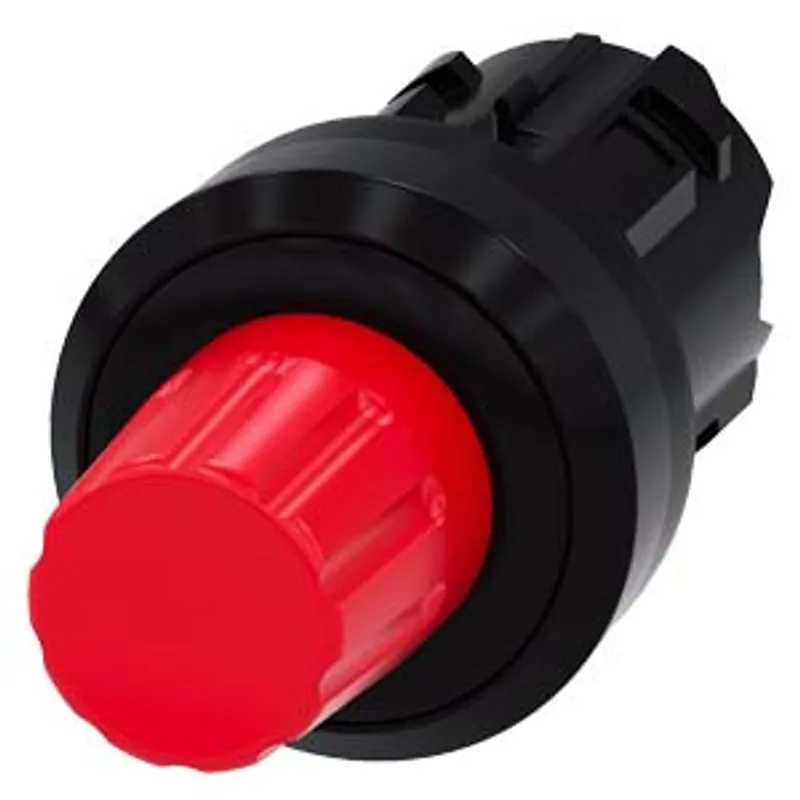

Siemens 3SU1000-0HC20-0AA0-Z Y13
Stop button, 22 mm, round, plastic, red, pushbutton raised, latchable after pushing in by rotating clockwise
- MPN
- 3SU1000-0HC20-0AA0-Z Y13
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1000-0HC20-0AA0-Z Y13?
stop button, 22 mm, round, plastic, red, pushbutton raised, latchable after pushing in by rotating clockwise, unlatches when turned counterclockwise, with laser inscription, symbol number according to ISO7000 or IEC60417
Specifications
Enclosure
| number of command points | 1 |
Actuator
| design of the actuating element | Stop pushbutton |
| principle of operation of the actuating element | momentary contact, can be latched after pressing by rotating to the right, anticlockwise rotation to unlatch |
| product extension optional – light source | No |
| product extension optional – contact module | Yes |
| color of the actuating element | red |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.5 mm |
| type of unlocking device | rotate-to-unlatch mechanism |
Front ring
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | plastic |
| color of the front ring | black |
General technical data
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance – according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance – for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance – according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance – for railway applications according to EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (operating cycles) typical | 1 000 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| Net Weight | 0.024 kg |
Ambient conditions
| ambient temperature – during operation | -25 ... +70 °C |
| ambient temperature – during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |
Installation/ mounting/ dimensions
| height | 29.5 mm |
| width | 29.5 mm |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 32.7 mm |
| installation width | 29.5 mm |
| installation depth | 24.3 mm |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
