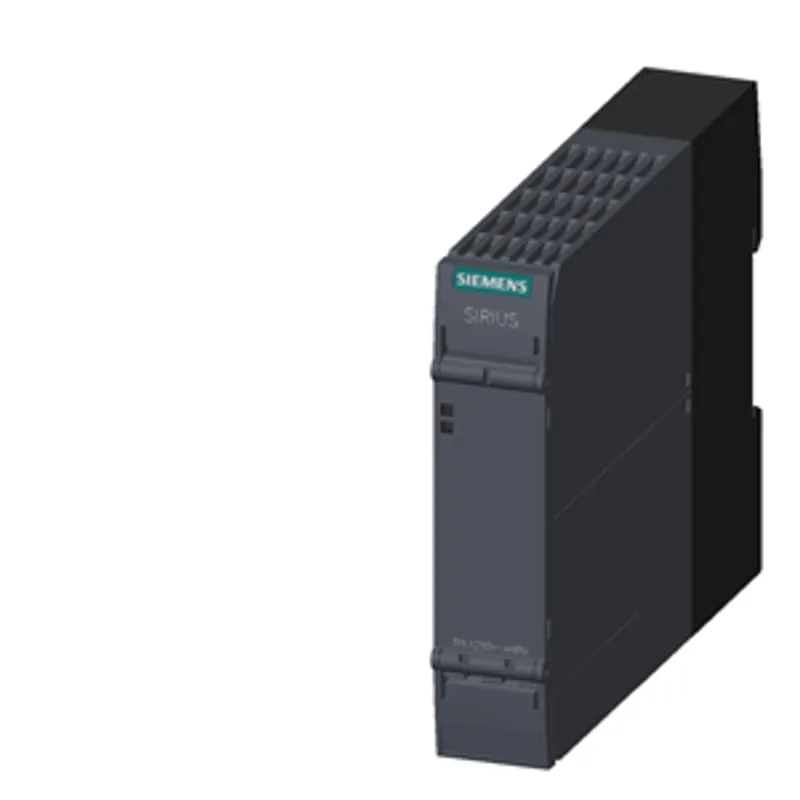

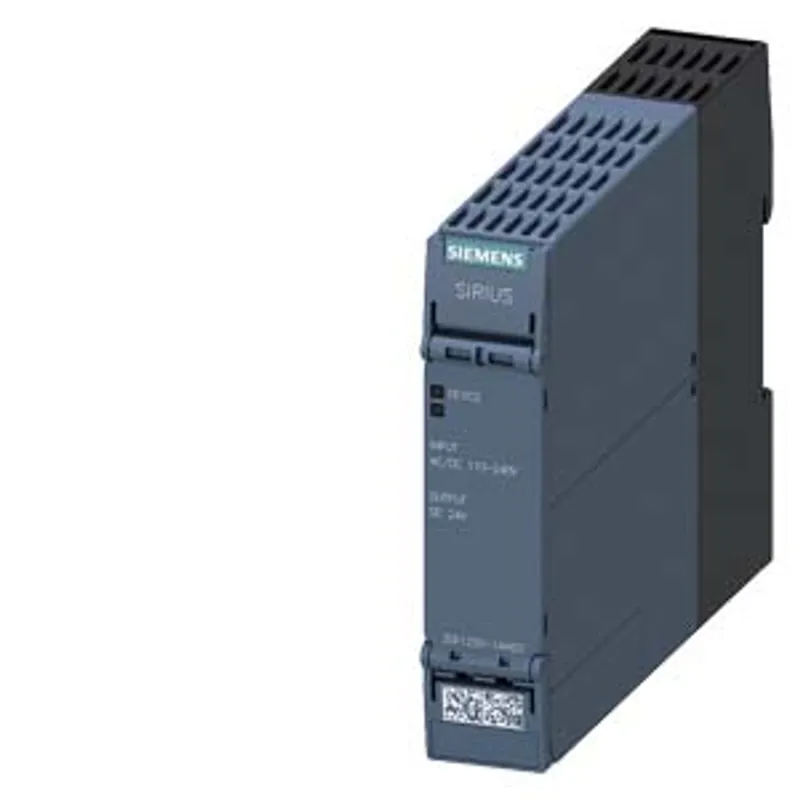

Siemens 3SK1230-1AW20
SIRIUS safety relay Power supply for 3SK1 Advanced series Us = 110-240 V AC/DC screw terminal
- MPN
- 3SK1230-1AW20
- Category
- Input expansions
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SK1230-1AW20?
SIRIUS safety relay Power supply for 3SK1 Advanced series Us = 110-240 V AC/DC screw terminal
Specifications
General
| product brand name | SIRIUS |
| product category | Safety relays |
| product designation | Power supply |
| product type designation | 3SK1 |
Product Function
| suitability for use safety-related function | Yes |
General technical data
| certificate of suitability UL approval | Yes |
| power loss [W] maximum | 2.5 W |
| insulation voltage rated value | 300 V |
| degree of pollution | 3 |
| overvoltage category | 3 |
| surge voltage resistance rated value | 4 000 V |
| consumed current maximum | 0.25 A |
| protection class IP of the enclosure | IP20 |
| shock resistance | 10 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 5 ... 500 Hz: 0.75 mm |
| reference code according to IEC 81346-2 | T |
| Substance Prohibitance (day/month/year) | 11/05/2012 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| Net Weight | 0.149 kg |
Ambient conditions
| installation altitude at height above sea level maximum | 4 000 m |
| installation altitude at height above sea level maximum — note | Derating, see Product Notification 109792701 |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| relative humidity during operation | 10 ... 95 % |
| air pressure according to SN 31205 | 900 ... 1 060 hPa |
Electromagnetic compatibility
| EMC emitted interference | IEC 60947-5-1, Class A |
Short-circuit protection
| design of short-circuit protection | automatically start-up |
Outputs
| property of the output short-circuit proof | Yes |
Control circuit/ Control
| type of voltage | AC/DC |
| control supply voltage at AC — at 50 Hz rated value | 110 ... 240 V |
| control supply voltage at AC — at 60 Hz rated value | 110 ... 240 V |
| control supply voltage at DC rated value | 110 ... 240 V |
| operating range factor control supply voltage rated value at DC — initial value | 0.85 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 50 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 60 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 60 Hz — full-scale value | 1.1 |

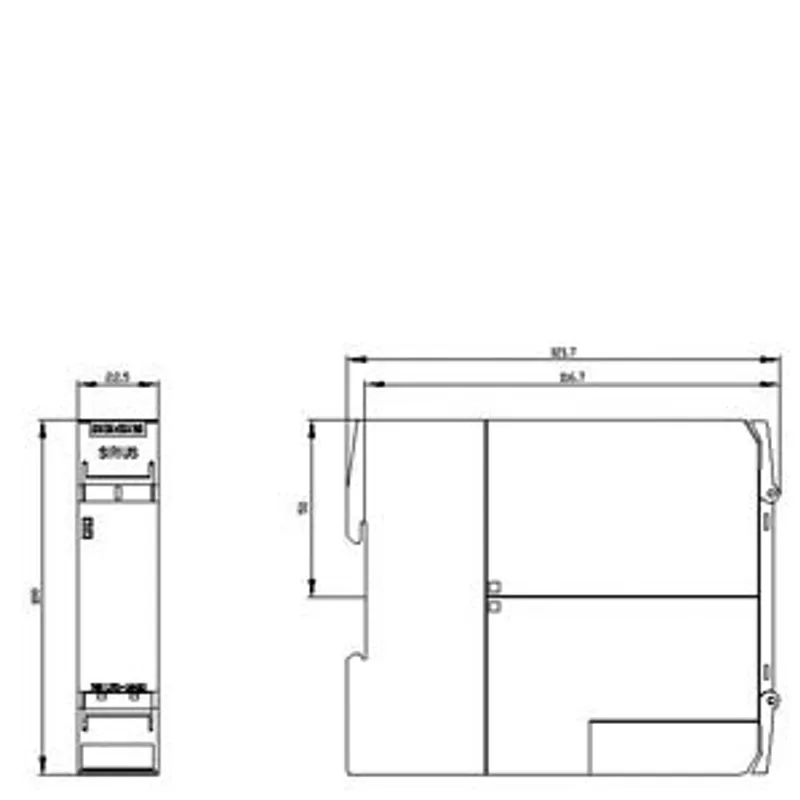

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw and snap-on mounting |
| height | 100 mm |
| width | 22.5 mm |
| depth | 121.6 mm |
| required spacing — with side-by-side mounting at the side | 0 mm |
| required spacing — for grounded parts at the side | 5 mm |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of connectable conductor cross-sections — solid | 1x (0.5 ... 2.5 mm²), 2x (1.0 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (20 ... 14), 2x (18 ... 16) |
