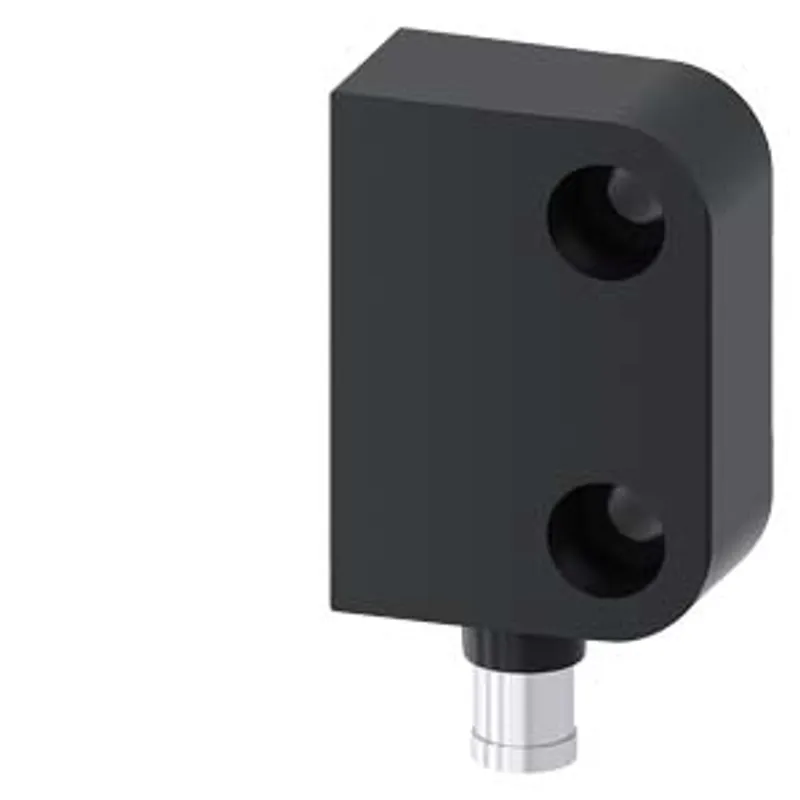

Siemens 3SE6617-3CA01
Magnetically operated switch contact block rectangular small 26 x 36 mm, for left-hinged door
- MPN
- 3SE6617-3CA01
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SE6617-3CA01?

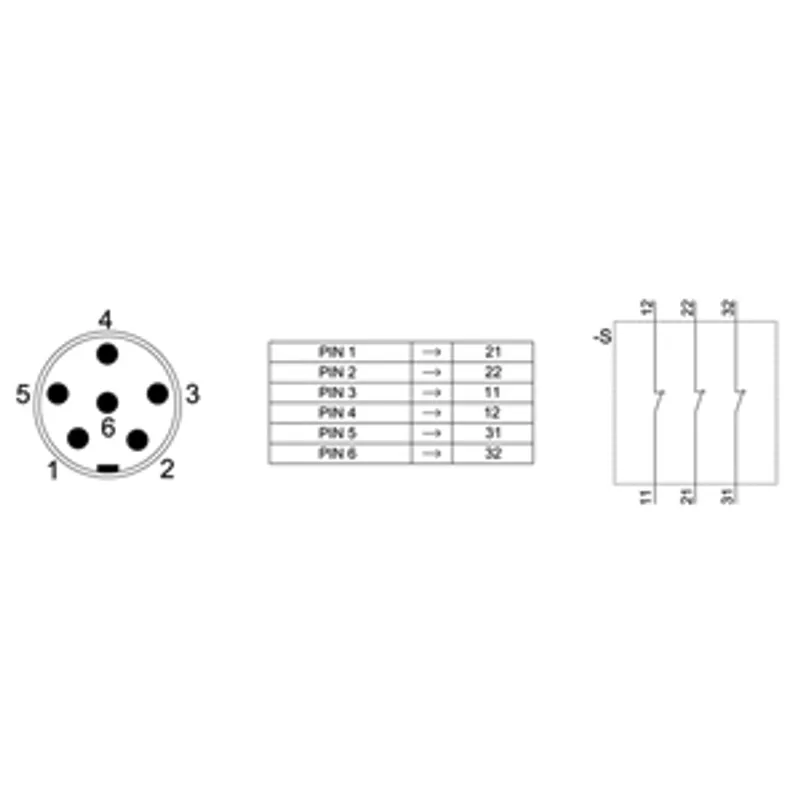

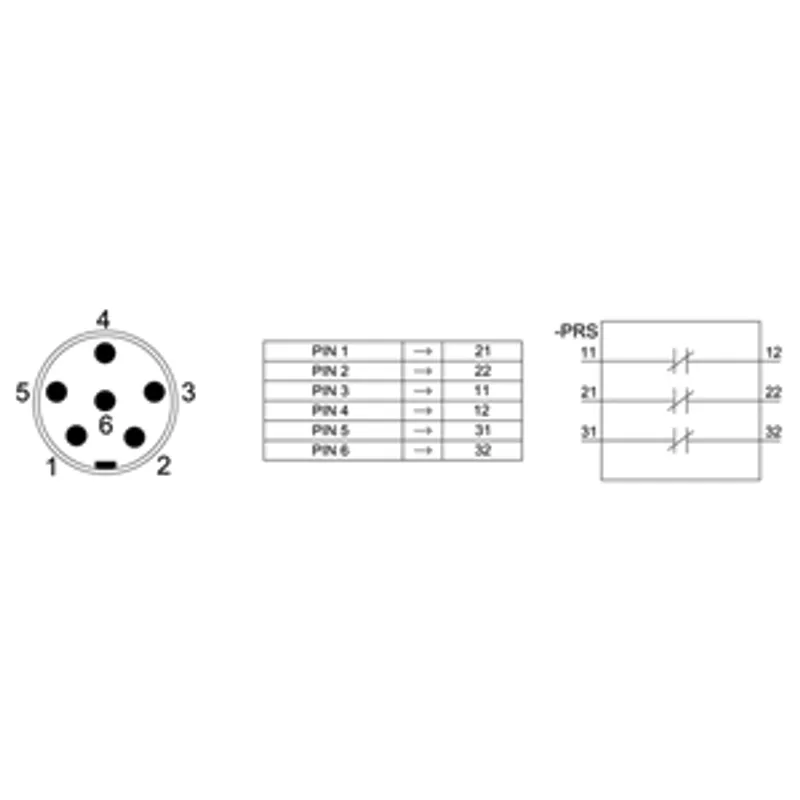

magnetically operated switch contact block rectangular small 26 x 36 mm, for left-hinged door, contacts: safety contacts 2 NC, signaling contact 1 NC (31-32), with 8 mm latching connection plug 6-pole, without LED, the matching solenoid 3SE6714-3CA or offset by 90° 3SE6724-3CA
Specifications
General
| product brand name | SIRIUS |
| product designation | Magnetically operated switch |
| design of the product | Rectangular sensor unit |
| product type designation | 3SE66 |
| suitability for use safety-related circuits | Yes |
General technical data
| product function — positive opening | No |
| product function — control function for downstream devices | No |
| product function — cross-circuit/short-circuit recognition | Yes |
| type of voltage of the operating voltage | DC |
| protection class IP | IP67 |
| shock resistance according to IEC 60068-2-27 | Sinusoidal half-wave 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 1 mm |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
| Net Weight | 0.031 kg |
| height of the sensor | 36 mm |
| length of the sensor | 13 mm |
| width of the sensor | 26 mm |
| material of the active sensor area | Plastic, glass-fiber reinforced thermoplastic |
Ambient conditions
| ambient temperature during operation | -25 ... +70 °C |
Control circuit/ Control
| type of voltage | DC |
| operating voltage rated value | 30 V |
| operational current rated value | 400 mA |
| operating power rated value | 10 W |
| number of NC contacts for auxiliary contacts | 3 |
| number of NC contacts safety-related | 2 |
| number of NO contacts for auxiliary contacts | 0 |
| number of NO contacts safety-related | 0 |
Enclosure
| material of the enclosure | Plastic, glass-fiber reinforced thermoplastic |
| opening direction of the door | left |
Actuator
| design of the actuating element | magnet |
Display
| evaluation unit required | yes |
Contact
| switching frequency | 5 Hz |
| assured operating distance OFF | 15 mm |
| assured operating distance ON | 5 mm |
| design of the switching function | NC contact |
| number of switching contacts for signaling function | 1 |
| number of switching contacts for signaling function — safety-related | 0 |
Installation/ mounting/ dimensions
| fastening method | screw fixing |
Connections/ Terminals
| type of electrical connection | Latching connection 8 mm, 6-pole |
Inputs/ Outputs
| number of semiconductor outputs — for signaling function | 0 |
| number of semiconductor outputs — safety-related | 0 |
| number of outputs as contact-affected switching element — as NC contact — for signaling function instantaneous contact | 1 |
| number of outputs as contact-affected switching element — as NC contact — safety-related instantaneous contact | 2 |
| number of outputs as contact-affected switching element — as NO contact safety-related instantaneous contact | 0 |
Safety related data
| proportion of dangerous failures — with low demand rate according to SN 31920 | 50 % |
| proportion of dangerous failures — with high demand rate according to SN 31920 | 50 % |
| B10 value with high demand rate according to SN 31920 | 12 500 000 |
| performance level (PL) according to EN ISO 13849-1 | e |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SE6617-3CA01: frequently asked questions
When can 3SE6617-3CA01 be shipped?
3SE6617-3CA01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SE6617-3CA01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SE6617-3CA01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE6617-3CA01, subject to availability and destination.
