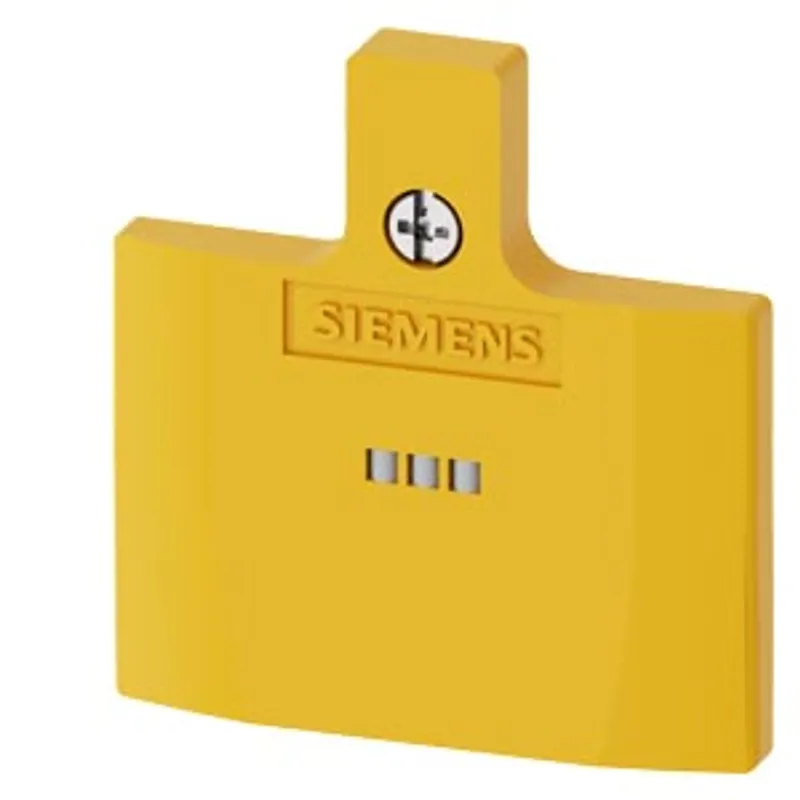

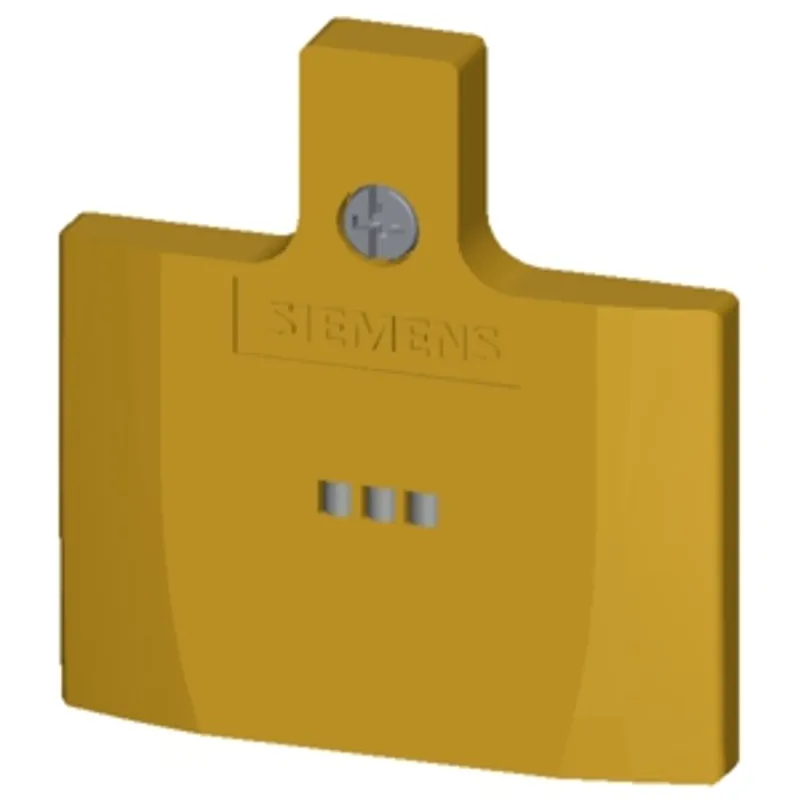

Siemens 3SE5240-1AA00-1AG0
LED cover for position switch for plastic enclosure 50 mm LEDs, yellow/green, 24 V DC Color yellow
- MPN
- 3SE5240-1AA00-1AG0
- Category
- Accessories and spare parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5240-1AA00-1AG0?
LED cover for position switch for plastic enclosure 50 mm LEDs, yellow/green, 24 V DC Color yellow
Specifications
General
| product brand name | SIRIUS |
| product designation | cover with LEDs 24 V DC, for 50 mm wide enclosures, plastic, yellow |
| product type designation | 3SE5 |
General technical data
| protection class IP | IP66/IP67 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance — according to IEC 60068-2-6 | 0.35 mm/5 g |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.015 kg |

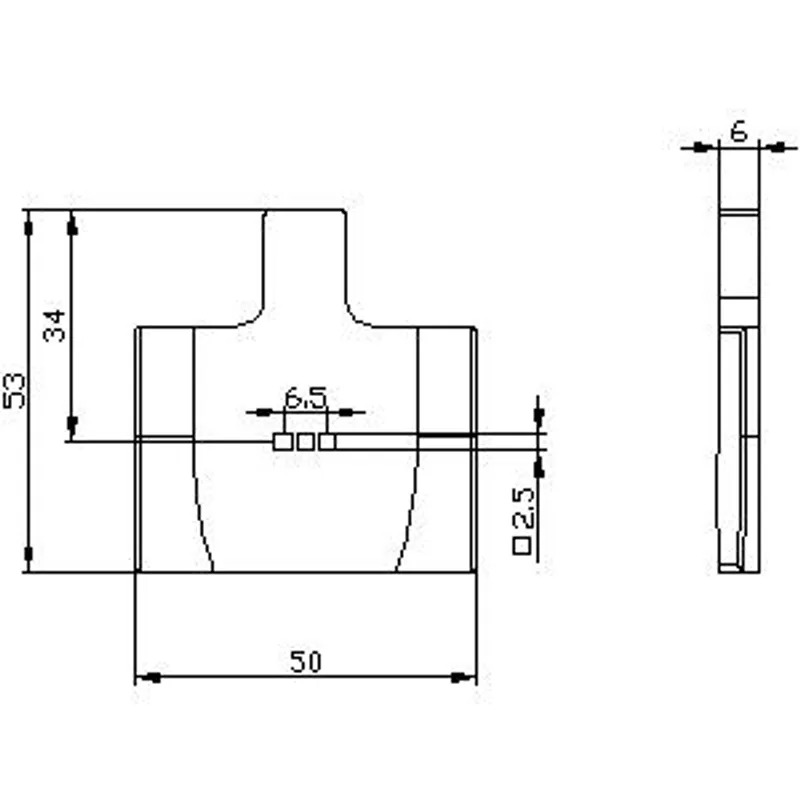

| length of the sensor | 53 mm |
| width of the sensor | 50 mm |
Ambient conditions
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Enclosure
| design of the housing | block, wide |
| coating of the enclosure | Other types |
Drive Head
| design of the actuating element | without |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
Supply voltage
| type of voltage of the supply voltage of the optional LED display | DC |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SE5240-1AA00-1AG0: frequently asked questions
When can 3SE5240-1AA00-1AG0 be shipped?
3SE5240-1AA00-1AG0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SE5240-1AA00-1AG0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SE5240-1AA00-1AG0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE5240-1AA00-1AG0, subject to availability and destination.
