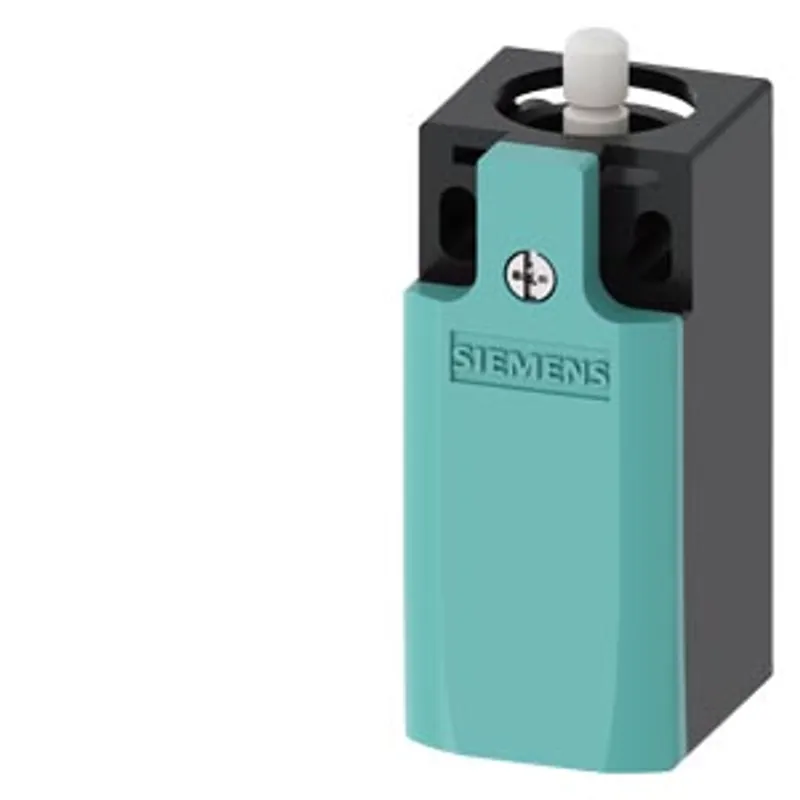

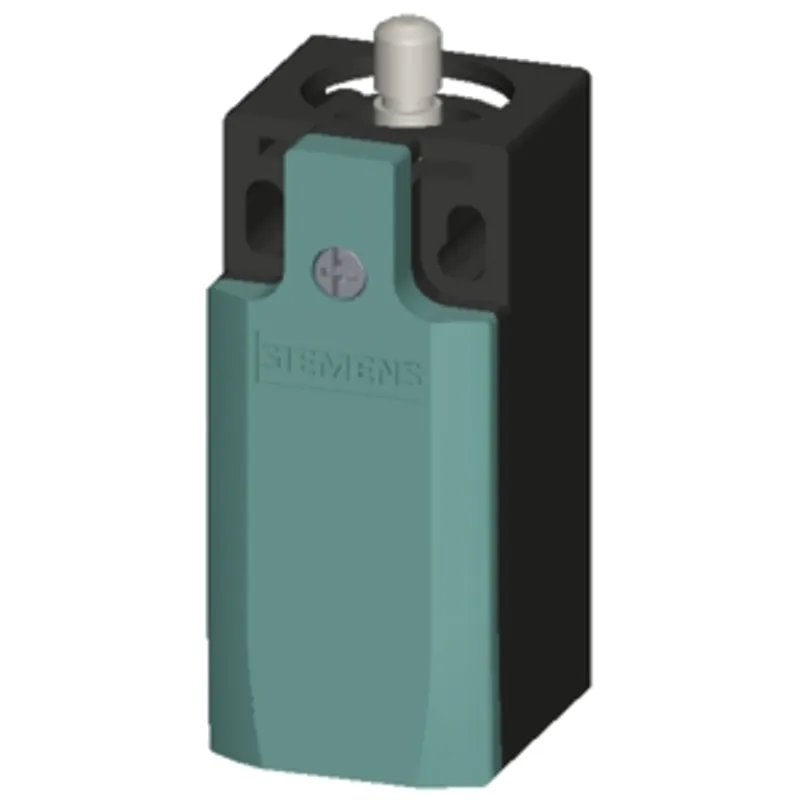

Siemens 3SE5212-0AC05
Empty enclosure for position switch Metal enclosure according to EN 50047
- MPN
- 3SE5212-0AC05
- Category
- Accessories and spare parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5212-0AC05?
Empty enclosure for position switch Metal enclosure according to EN 50047, 31 mm M20 x 1.5 with cover Color turquoise and plunger
Specifications
General
| product brand name | SIRIUS |
| product designation | empty enclosure EN 50047, cover turquoise |
| product type designation | 3SE5 |
General technical data
| product function positive opening | Yes |
| insulation voltage rated value | 400 V |
| protection class IP | IP66/IP67 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance — according to IEC 60068-2-6 | 0.35 mm/5 g |
| material of the enclosure of the switch head | metal |
| reference code according to IEC 81346-2 | U |
| repeat accuracy | 0.05 mm |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7 |
| Net Weight | 0.149 kg |
| minimum actuating force in directions of actuation | 20 N |
| length of the sensor | 75.7 mm |
| width of the sensor | 31 mm |
Ambient conditions
| ambient temperature — during operation | -25 ... +85 °C |
| ambient temperature — during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Enclosure
| design of the housing | block, narrow |
| material of the enclosure | metal |
| coating of the enclosure | cathodic dip coating |
| design of the housing according to standard | Yes |
Drive Head
| design of the actuating element | Rounded plunger, plastic plunger |
| standard-compliant actuator head | EN 50047, design B |
| shape of the switch head | rounded |
| design of the switching function | Positive opening with appropriate positive opening actuator head and switching element |
| cable entry type | 1x (M20 x 1.5) |

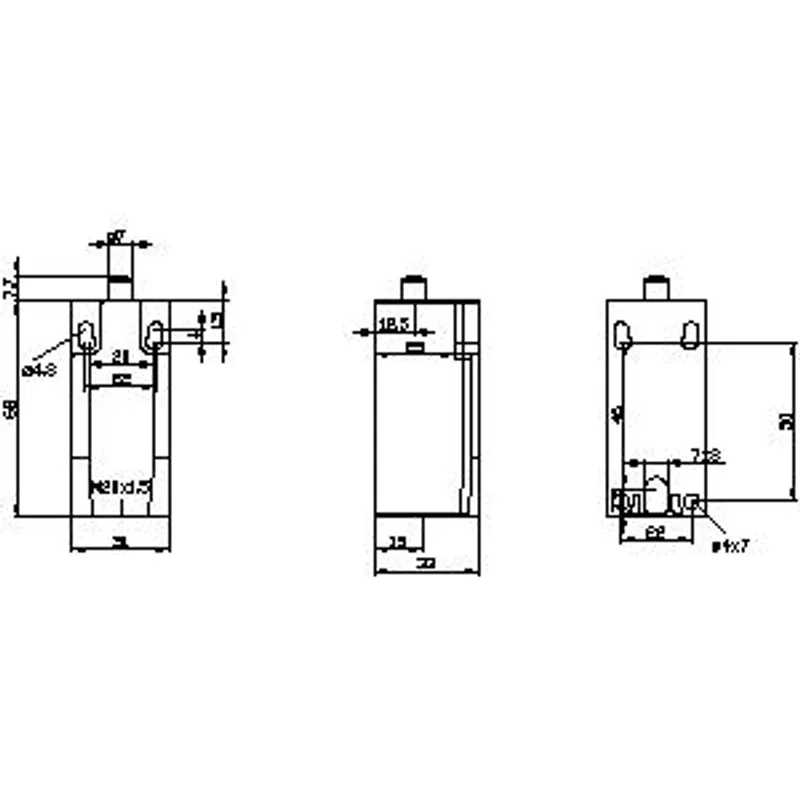

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
Connections/ Terminals
| type of electrical connection | screw terminal |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
