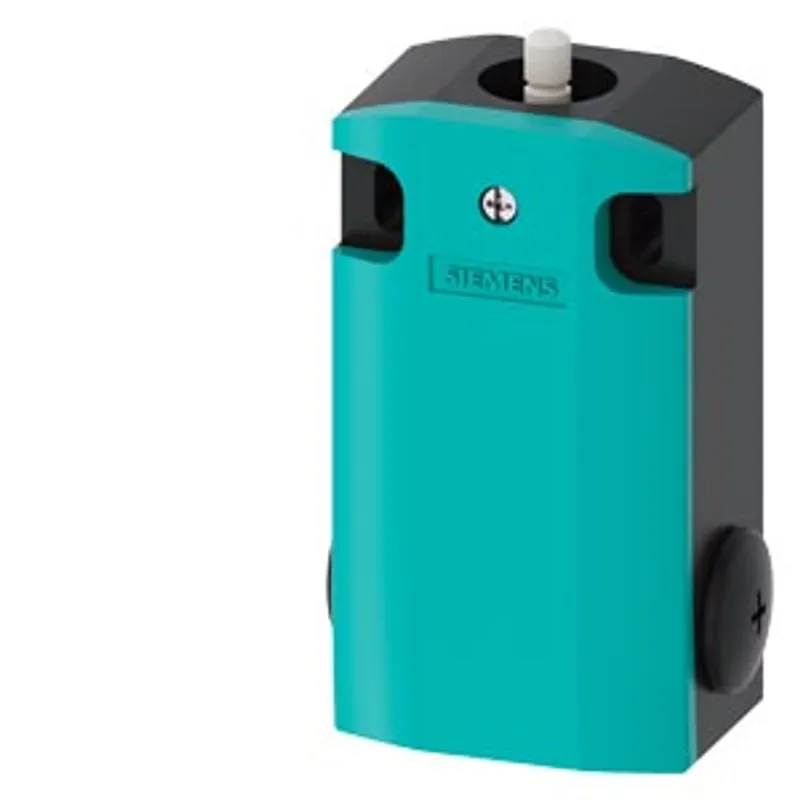

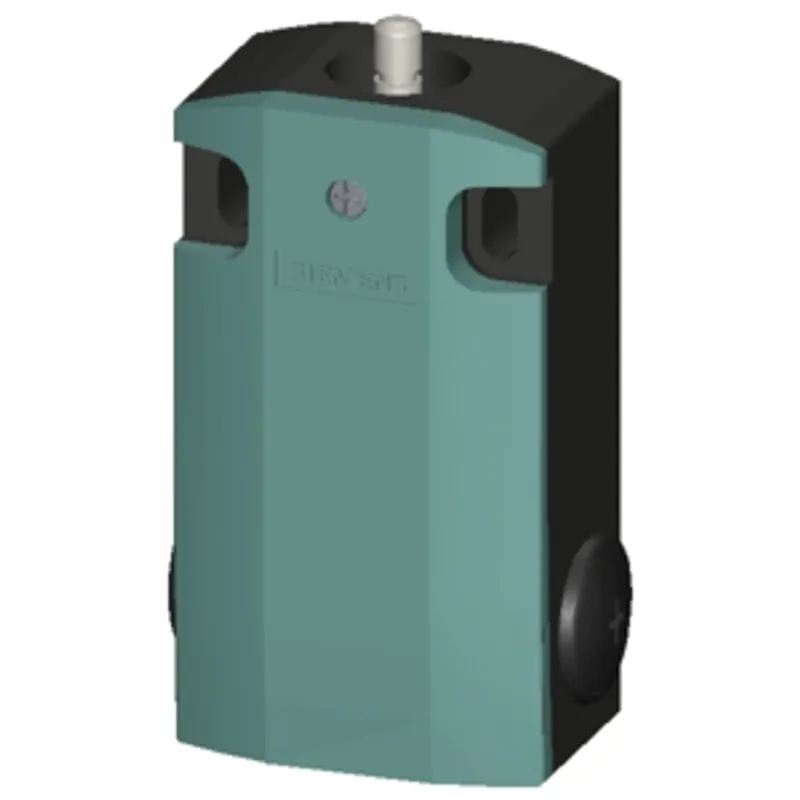

Siemens 3SE5162-0AA00
Empty enclosure for position switch 3SE5162 Metal enclosure XL
- MPN
- 3SE5162-0AA00
- Category
- Accessories and spare parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5162-0AA00?

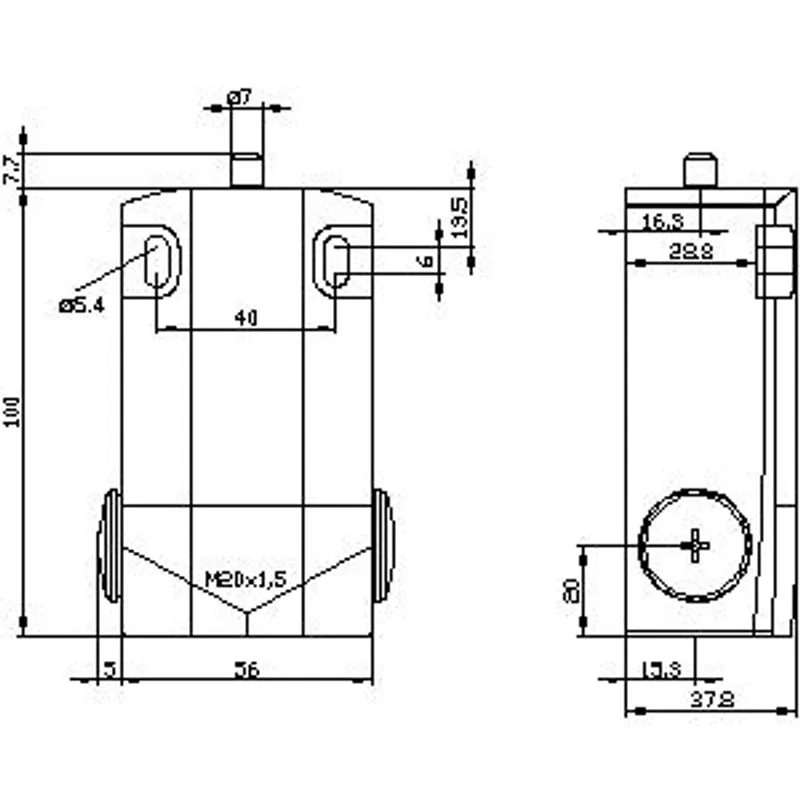

Empty enclosure for position switch 3SE5162 Metal enclosure XL, 56 mm wide Device connection 3x(M20 x 1.5) IP66/IP67 without actuator head
Specifications
General
| product brand name | SIRIUS |
| product designation | enclosure EN50041 long for standard position switch + turquoise cover |
| product type designation | 3SE5 |
General technical data
| insulation voltage rated value | 400 V |
| degree of pollution | class 3 |
| protection class IP | IP66/IP67 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5 g |
| reference code according to IEC 81346-2 | U |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7 |
| Net Weight | 0.391 kg |
| length of the sensor | 100 mm |
| width of the sensor | 56 mm |
Ambient conditions
| ambient temperature — during operation | -25 ... +85 °C |
| ambient temperature — during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Enclosure
| design of the housing | block, wide |
| material of the enclosure | metal |
| coating of the enclosure | cathodic dip coating |
| design of the housing according to standard | No |
Drive Head
| design of the actuating element | Other, without, empty enclosure |
| cable entry type | 3x (M20 x 1.5) |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SE5162-0AA00: frequently asked questions
When can 3SE5162-0AA00 be shipped?
3SE5162-0AA00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SE5162-0AA00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SE5162-0AA00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE5162-0AA00, subject to availability and destination.
