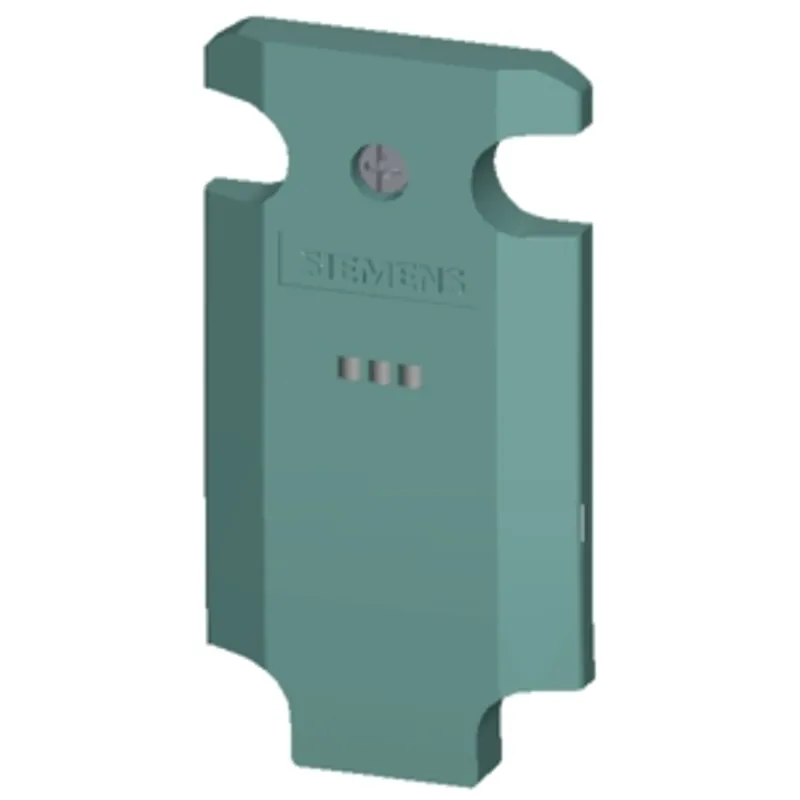

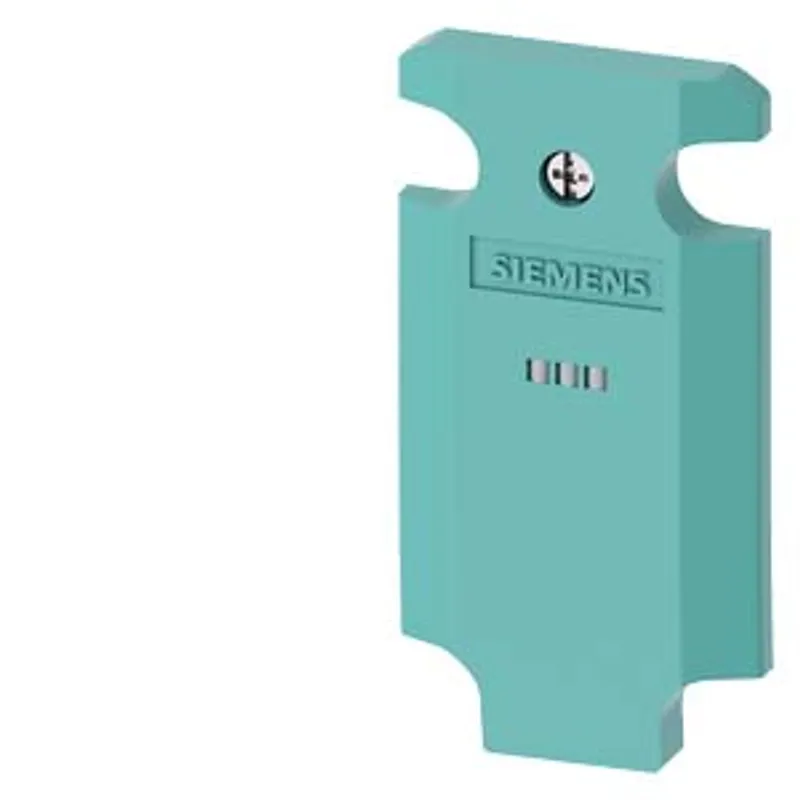

Siemens 3SE5130-1AA00
LED cover for position switch Metal 3SE51 2 LEDs, yellow/green, 24 V DC Color turquoise
- MPN
- 3SE5130-1AA00
- Category
- Accessories and spare parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5130-1AA00?
LED cover for position switch Metal 3SE51 2 LEDs, yellow/green, 24 V DC Color turquoise
Specifications
General
| product brand name | SIRIUS |
| product designation | Cover (plastic) for housing EN50041+LED 24 V DC, turquoise |
| product type designation | 3SE5 |
General technical data
| degree of pollution | class 3 |
| protection class IP | IP66/IP67 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5 g |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.019 kg |

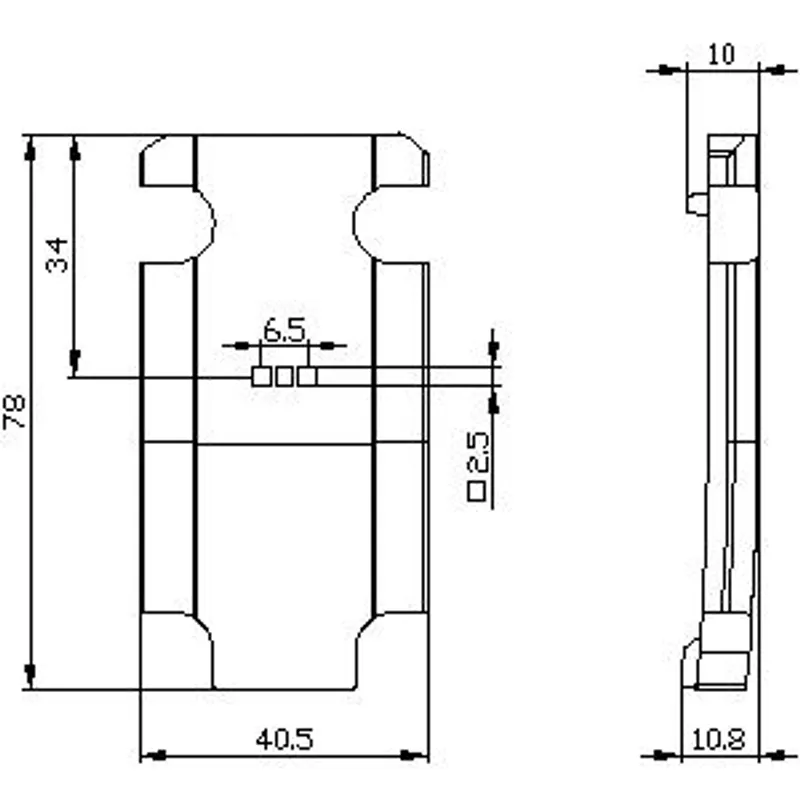

| length of the sensor | 78 mm |
| width of the sensor | 40 mm |
Ambient conditions
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Enclosure
| design of the housing | block, narrow |
| coating of the enclosure | Other types |
Drive Head
| design of the actuating element | Other, without, cover |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
Supply voltage
| type of voltage of the supply voltage of the optional LED display | DC |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
