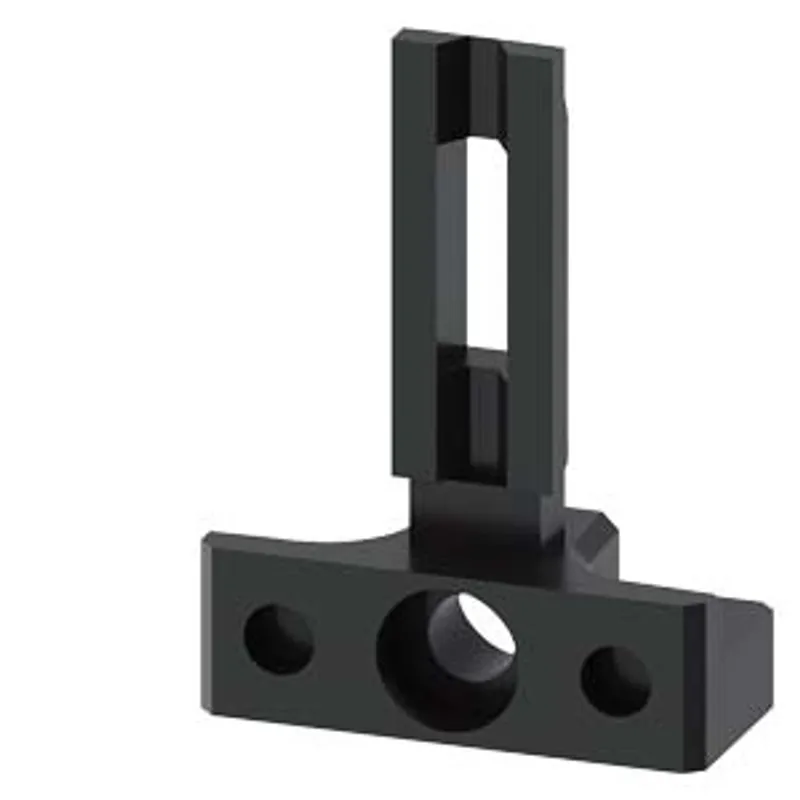

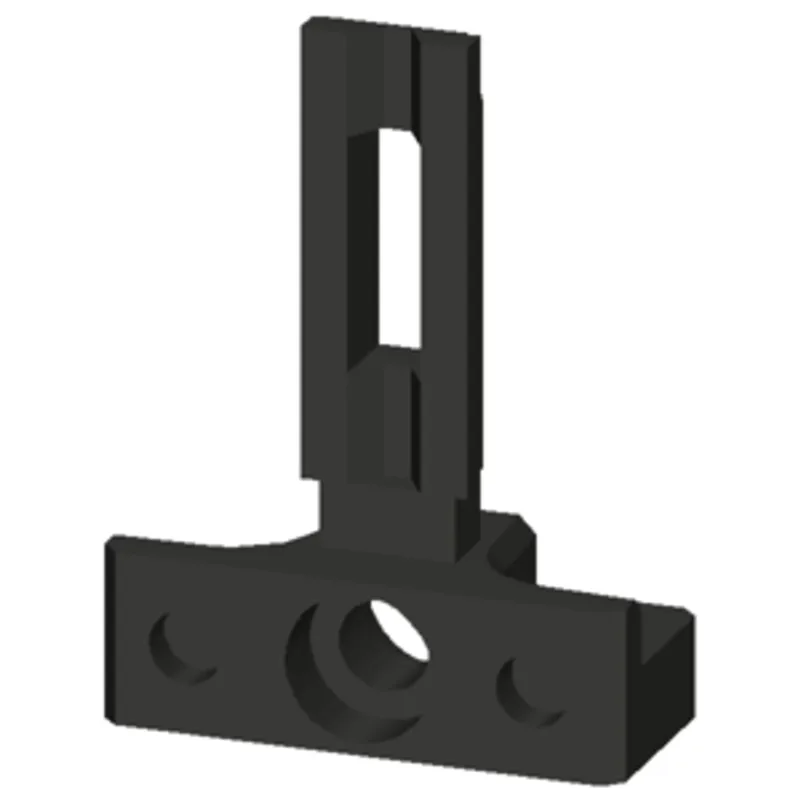

Siemens 3SE5000-0AW11
Standard actuator plastic 40 mm long
- MPN
- 3SE5000-0AW11
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5000-0AW11?
standard actuator plastic 40 mm long, for position switch with separate actuator 3SE51/3SE52 and AS-i 3SF11/3SF12
Specifications
General
| product brand name | SIRIUS |
| product designation | actuator |
| product type designation | 3SE5 |
General technical data
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance — according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 1 000 000 |
| reference code according to IEC 81346-2 | T |
| active principle | mechanical |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.013 kg |
Ambient conditions
| ambient temperature — during operation | -25 ... +85 °C |
| ambient temperature — during storage | -40 ... +90 °C |
Drive Head
| design of the actuating element | Standard actuator, plastic |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SE5000-0AW11: frequently asked questions
When can 3SE5000-0AW11 be shipped?
3SE5000-0AW11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SE5000-0AW11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SE5000-0AW11 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE5000-0AW11, subject to availability and destination.
