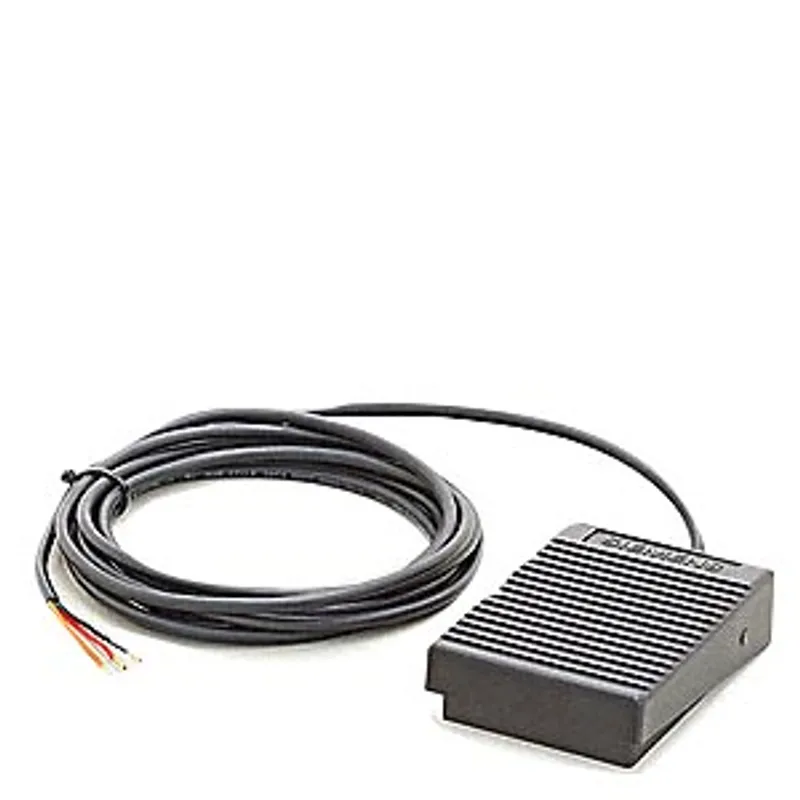

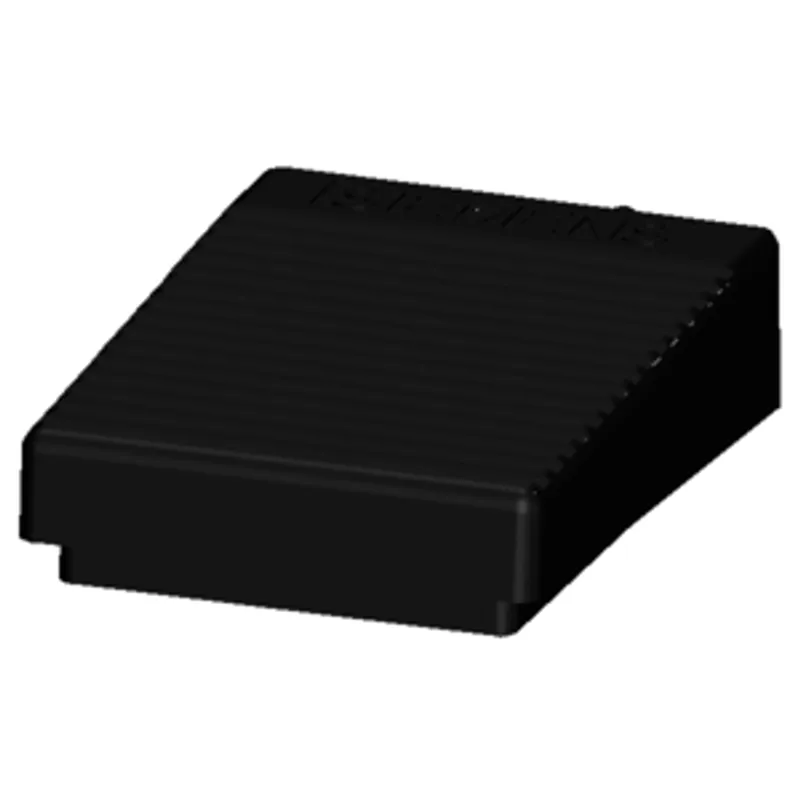

Siemens 3SE3902-4CB20
Foot switch molded-plastic enclosure Pedal switch 1-pedal without cover, 1 change-over contact
- MPN
- 3SE3902-4CB20
- Category
- SIRIUS 3SE2, 3SE3 foot switches
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE3902-4CB20?
Foot switch molded-plastic enclosure Pedal switch 1-pedal without cover, 1 change-over contact
Specifications
General
| product brand name | SIRIUS |
| product designation | momentary-contact foot switch |
| product type designation | 3SE39 |
General technical data
| protection class IP | IP65 |
| mechanical service life (operating cycles) typical | 1 000 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.371 kg |
| number of switching steps | 1 |
| number of the actuation pedals | 1 |
Ambient conditions
| ambient temperature during operation | -10 ... +75 °C |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| operational current at AC-15 at 230 V rated value | 5 A |
Enclosure
| material of the enclosure | plastic with total insulation |
| color — of the enclosure | black |
| color — of the enclosure top part | black |
Actuator
| product feature — interlock | No |
| product feature — latching | No |
| cable entry type | cable, 3 m |

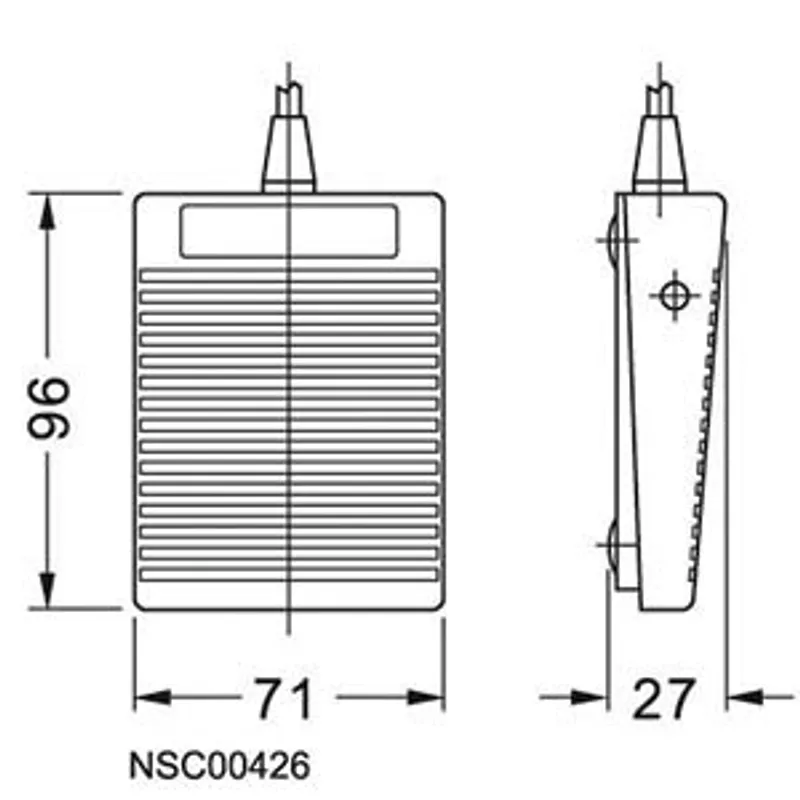

Installation/ mounting/ dimensions
| fastening method | screw fixing |
| height | 96 mm |
| width | 71 mm |
| depth | 27 mm |
