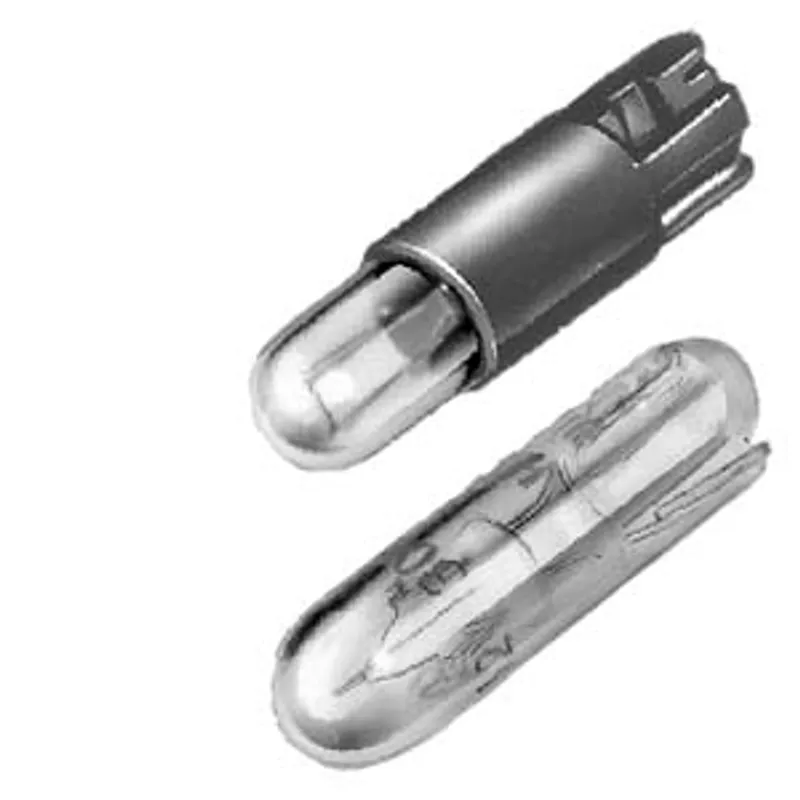

Siemens 3SB2908-1AC

Incandescent lamp, clear, rated voltage 24 V AC/DC, 1.0 W Wedge base W2 x 4.6 d

MPN: 3SB2908-1AC
Category: Mounting parts and components

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3SB2908-1AC?

incandescent lamp, clear, rated voltage 24 V AC/DC, 1.0 W Wedge base W2 x 4.6 d,

Specifications

General technical data

product designation	incandescent lamp
type of light source	filament lamp
color of the light source	clear
socket design	W2 x 4.6d
product component — series resistor	No
product component — diode	No
product component — lamp transformer	No
product component — light source	Yes
type of voltage of the operating voltage for actuation	AC/DC
operating voltage — at AC — at 50 Hz rated value	24 V
operating voltage — at AC — at 60 Hz rated value	24 V
operating voltage — at DC rated value	24 V
relative positive tolerance of the operating voltage	10 %
relative negative tolerance of the operating voltage	-15 %
consumed current for rated value of supply voltage maximum	40 mA
type of electrical connection	Miscellaneous
fastening method	miscellaneous

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3SB2908-1ACPDF

3SB2908-1AC: frequently asked questions

When can 3SB2908-1AC be shipped?

3SB2908-1AC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SB2908-1AC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SB2908-1AC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SB2908-1AC, subject to availability and destination.
