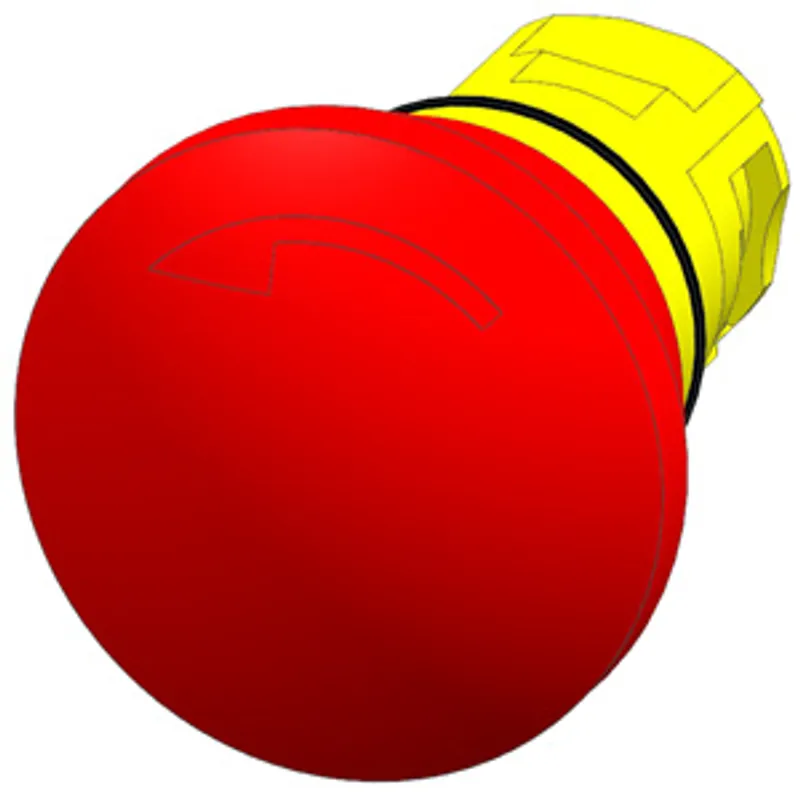

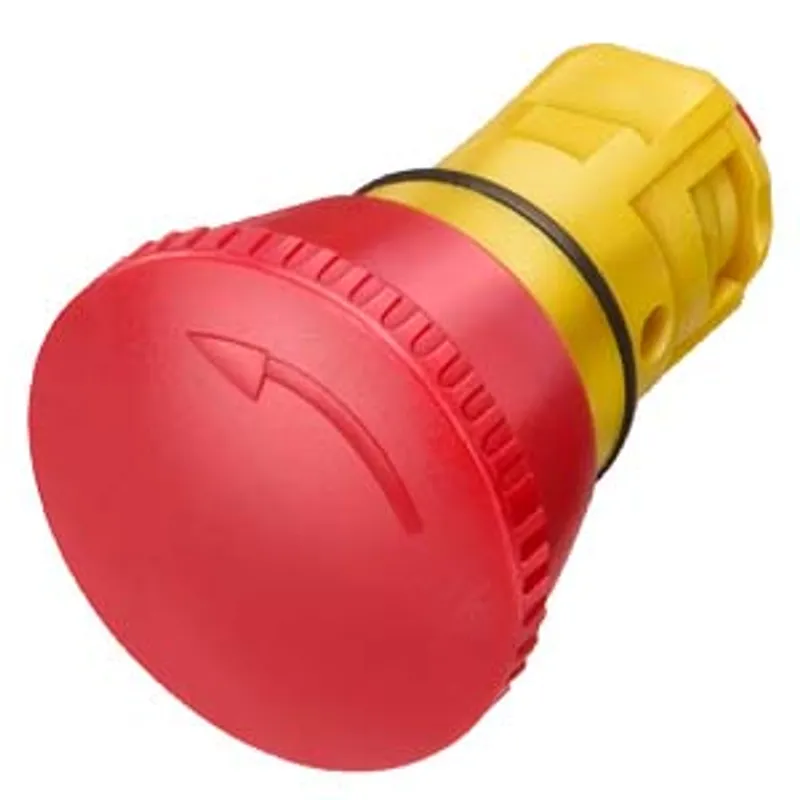

Siemens 3SB2000-1AC01
Emergency stop mushroom pushbutton, 16 mm, round, plastic, red latching, with rotate-to-unlatch mechanism
- MPN
- 3SB2000-1AC01
- Category
- Actuating and signaling elements
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SB2000-1AC01?
Emergency stop mushroom pushbutton, 16 mm, round, plastic, red latching, with rotate-to-unlatch mechanism, according to ISO 13850
Specifications
General
| product brand name | SIRIUS |
| product designation | EMERGENCY STOP mushroom pushbuttons |
| design of the product | Single device round with positive latching in accordance with ISO 13850 |
| product type designation | 3SB2 |
Enclosure
| number of command points | 1 |
Actuator
| design of the actuating element | EMERGENCY STOP mushroom pushbutton |
| principle of operation of the actuating element | latching |
| product extension optional light source | No |
| color of the actuating element | red |
| material of the actuating element | plastic |
| outer diameter of the actuating element | 28.5 mm |
| type of unlocking device | rotate-to-unlatch mechanism |
| number of switching positions | 2 |
Front ring
| product component front ring | No |
Holder
| material of the holder | Plastic |
General technical data
| product function — EMERGENCY OFF function | Yes |
| product function — EMERGENCY STOP function | Yes |
| protection class IP | IP65 |
| vibration resistance according to IEC 60068-2-6 | 20 ... 200 Hz: 5 g |
| operating frequency maximum | 1 000 1/h |
| mechanical service life (operating cycles) typical | 300 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 11.516 g |
Connections/ Terminals
| tightening torque of the screws in the bracket maximum | 0.4 N·m |
Safety related data
| proportion of dangerous failures — with low demand rate according to SN 31920 | 20 % |
| proportion of dangerous failures — with high demand rate according to SN 31920 | 20 % |
| B10 value with high demand rate according to SN 31920 | 100 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
Ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3K6 |

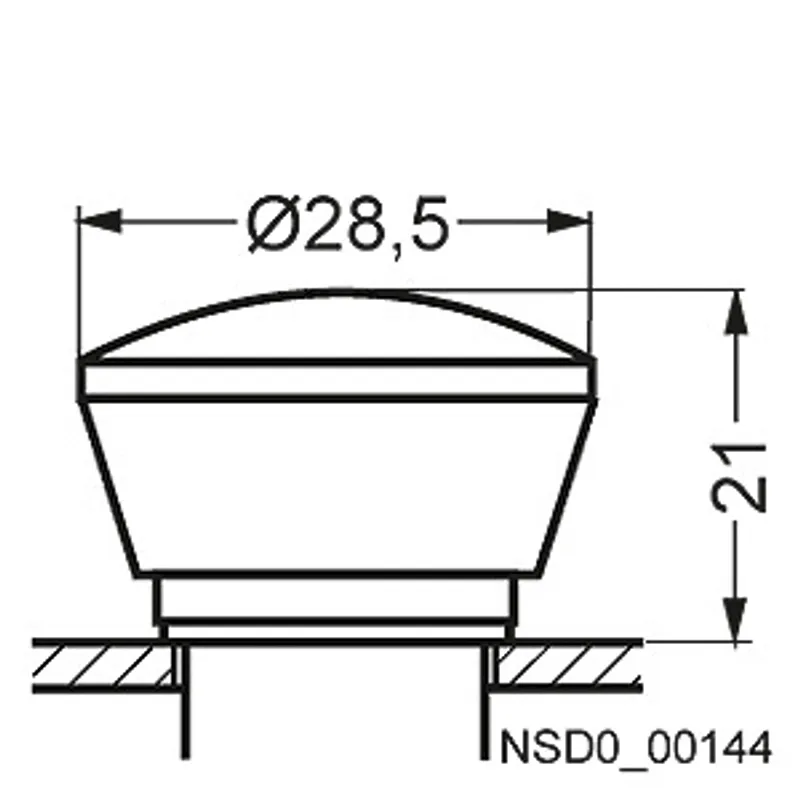

Installation/ mounting/ dimensions
| fastening method | front plate mounting |
| shape of the installation opening | round |
| mounting diameter | 16 mm |
| mounting height | 21 mm |
| installation width | 28.5 mm |
| installation depth | 50 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SB2000-1AC01: frequently asked questions
When can 3SB2000-1AC01 be shipped?
3SB2000-1AC01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SB2000-1AC01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SB2000-1AC01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SB2000-1AC01, subject to availability and destination.
