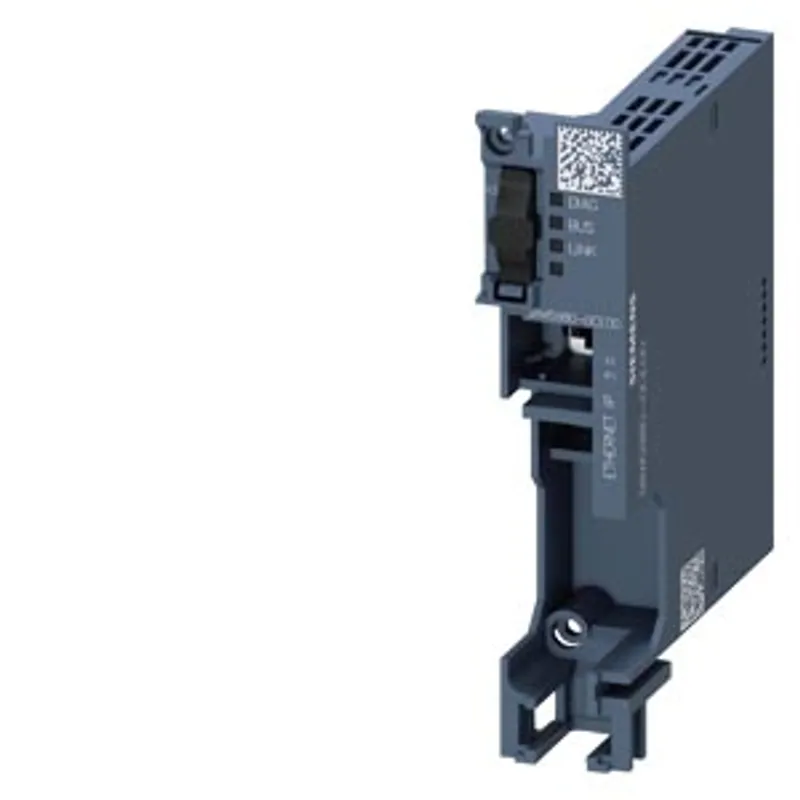

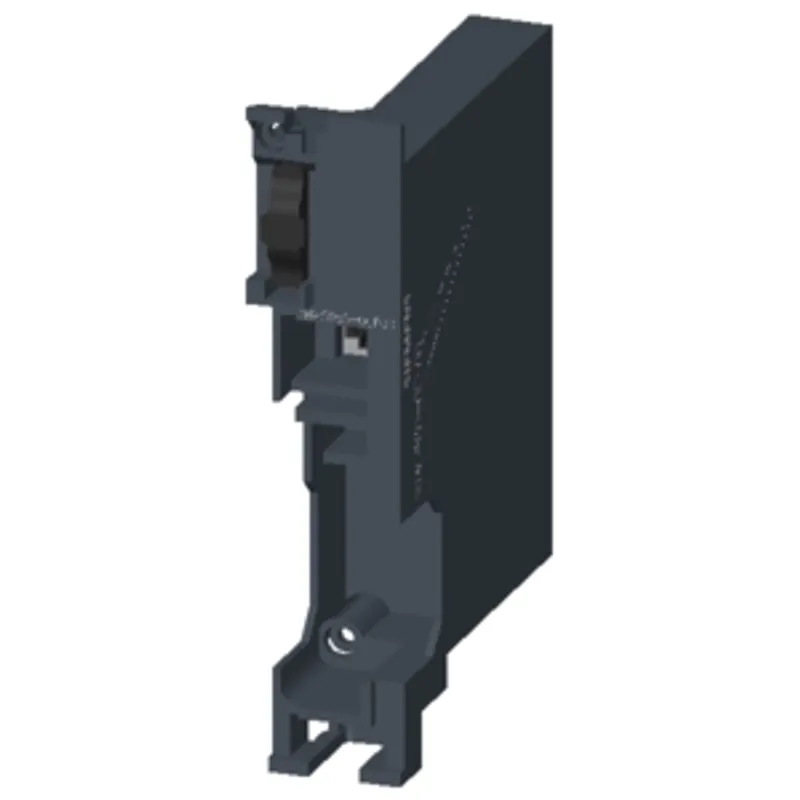

Siemens 3RW5980-0CE00
Communication module Ethernet/IP
- MPN
- 3RW5980-0CE00
- Category
- 3RW55 soft starters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RW5980-0CE00?
communication module Ethernet/IP
Specifications
General
| product brand name | SIRIUS |
| product category | Communication modules |
| product designation | Communication module |
| design of the product | EtherNet/IP |
| product type designation | 3RW59 |
General technical data
| reference code according to IEC 81346-2 | A |
| Substance Prohibitance (day/month/year) | 05/17/2019 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 |
| Net Weight | 0.095 kg |

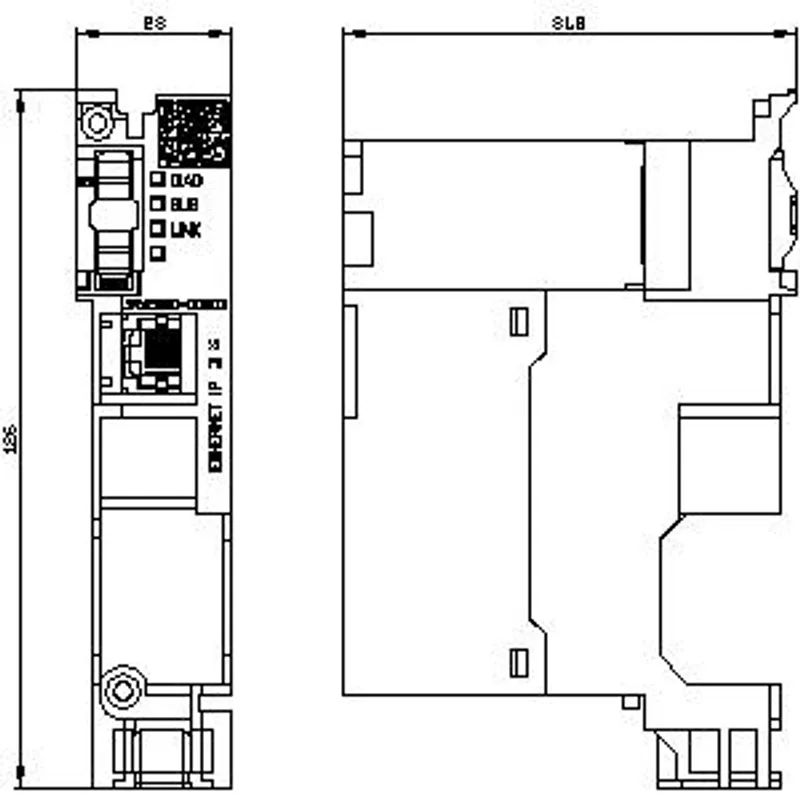

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
| height | 126 mm |
| width | 28 mm |
| depth | 82 mm |
| weight without packaging | 0.1 kg |
Ambient conditions
| installation altitude at height above sea level maximum | 5 000 m |
| ambient temperature — during operation | -25 ... +60 °C; observe derating of basic unit above 40 °C |
| ambient temperature — during storage and transport | -40 ... +80 °C |
| environmental category — during operation according to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| environmental category — during storage according to IEC 60721 | 1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4 |
| environmental category — during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 (max. height of fall 0.8 m) |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RW5980-0CE00: frequently asked questions
When can 3RW5980-0CE00 be shipped?
3RW5980-0CE00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RW5980-0CE00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RW5980-0CE00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RW5980-0CE00, subject to availability and destination.
