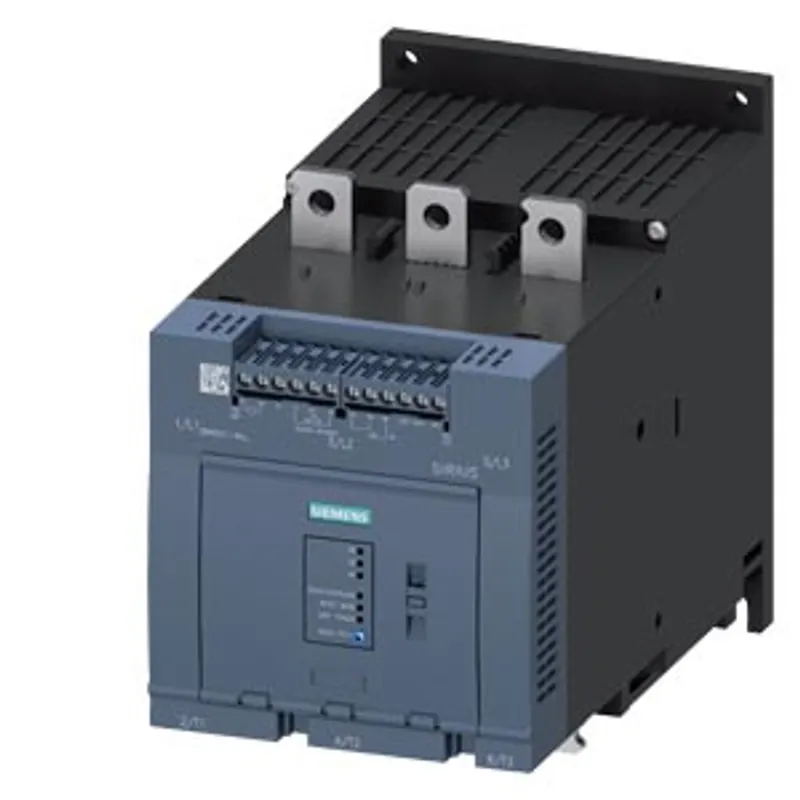

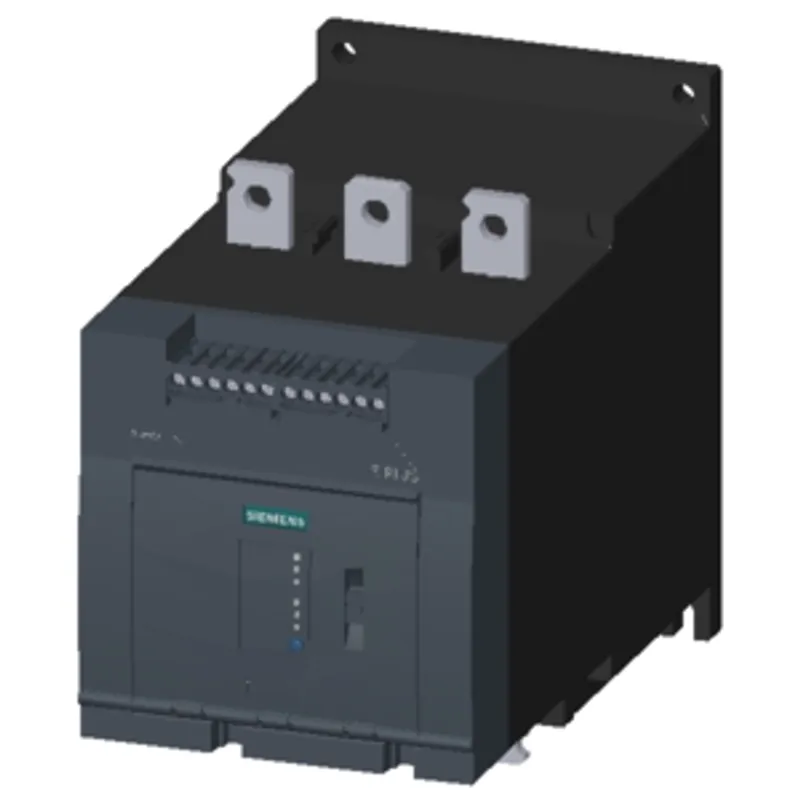

Siemens 3RW5073-6AB05

SIRIUS soft starter 200-600 V 250 A, 24 V AC/DC Screw terminals Analog output

MPN: 3RW5073-6AB05
Category: 3RW50 soft starters

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RW5073-6AB05?

SIRIUS soft starter 200-600 V 250 A, 24 V AC/DC Screw terminals Analog output

Specifications

General

product brand name	SIRIUS
product category	Hybrid switching devices
product designation	Soft starter
product type designation	3RW50
manufacturer's article number — of standard HMI module usable	3RW5980-0HS00
manufacturer's article number — of high feature HMI module usable	3RW5980-0HF00
manufacturer's article number — of communication module PROFINET standard usable	3RW5980-0CS00
manufacturer's article number — of communication module PROFIBUS usable	3RW5980-0CP00
manufacturer's article number — of communication module Modbus TCP usable	3RW5980-0CT00
manufacturer's article number — of communication module Modbus RTU usable	3RW5980-0CR00
manufacturer's article number — of communication module Ethernet/IP	3RW5980-0CE00
manufacturer's article number — of circuit breaker usable at 400 V	3VA2440-7MN32-0AA0; Type of assignment 1, Iq = 65 kA
manufacturer's article number — of circuit breaker usable at 500 V	3VA2440-7MN32-0AA0; Type of assignment 1, Iq = 65 kA
manufacturer's article number — of the gG fuse usable up to 690 V	2x3NA3354-6; Type of coordination 1, Iq = 65 kA
manufacturer's article number — of full range R fuse link for semiconductor protection usable up to 690 V	3NE1 331-0; Type of coordination 2, Iq = 65 kA
manufacturer's article number — of back-up R fuse link for semiconductor protection usable up to 690 V	3NE3 335; Type of coordination 2, Iq = 65 kA
manufacturer's article number — of line contactor usable up to 480 V	3RT1065
manufacturer's article number — of line contactor usable up to 690 V	3RT1065

General technical data

starting voltage [%]	30 ... 100 %
stopping voltage [%]	50 %; non-adjustable
start-up ramp time of soft starter	0 ... 20 s
ramp-down time of soft starter	0 ... 20 s
current limiting value [%] adjustable	130 ... 700 %
certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes
certificate of suitability — CSA approval	Yes
product component — HMI-High Feature	No
product component — is supported HMI-Standard	Yes
product component — is supported HMI-High Feature	Yes
product feature integrated bypass contact system	Yes
number of controlled phases	2
buffering time in the event of power failure — for main current circuit	100 ms
buffering time in the event of power failure — for control circuit	100 ms
insulation voltage rated value	600 V
degree of pollution	3, acc. to IEC 60947-4-2
impulse voltage rated value	6 kV
blocking voltage of the thyristor maximum	1 600 V
service factor	1
surge voltage resistance rated value	6 kV
maximum permissible voltage for protective separation — between main and auxiliary circuit	600 V
shock resistance	15 g / 11 ms, from 12 g / 11 ms with potential contact lifting
vibration resistance	15 mm to 6 Hz; 2 g to 500 Hz
utilization category according to IEC 60947-4-2	AC-53a
reference code according to IEC 81346-2	Q
Substance Prohibitance (day/month/year)	09/23/2019
SVHC substance name	Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Perfluorobutane sulfonic acid (PFBS) and its salts CAS-No. -
Net Weight	7.241 kg
product function — ramp-up (soft starting)	Yes
product function — soft stopping	Yes
product function — Soft Torque	Yes
product function — adjustable current limitation	Yes
product function — pump stop	Yes
product function — intrinsic device protection	Yes
product function — motor overload protection	Yes; Electronic motor overload protection
product function — evaluation of thermistor motor protection	No
product function — auto-RESET	Yes
product function — manual RESET	Yes
product function — remote reset	Yes; By turning off the control supply voltage
product function — communication function	Yes
product function — operating measured value display	Yes; Only in conjunction with special accessories
product function — error logbook	Yes; Only in conjunction with special accessories
product function — via software parameterizable	No
product function — via software configurable	Yes
product function — PROFIenergy	Yes; in connection with the PROFINET Standard communication module
product function — voltage ramp	Yes
product function — torque control	No
product function — analog output	Yes; 4 ... 20 mA (default) / 0 ... 10 V (parameterizable with High Feature HMI)

Power Electronics

operational current — at 40 °C rated value	250 A
operational current — at 50 °C rated value	220 A
operational current — at 60 °C rated value	200 A
operating voltage — rated value	200 ... 600 V
relative negative tolerance of the operating voltage	-15 %
relative positive tolerance of the operating voltage	10 %
operating power for 3-phase motors — at 230 V at 40 °C rated value	75 kW
operating power for 3-phase motors — at 400 V at 40 °C rated value	132 kW
operating power for 3-phase motors — at 500 V at 40 °C rated value	160 kW
Operating frequency 1 rated value	50 Hz
Operating frequency 2 rated value	60 Hz
relative negative tolerance of the operating frequency	-10 %
relative positive tolerance of the operating frequency	10 %
adjustable motor current — at rotary coding switch on switch position 1	100 A
adjustable motor current — at rotary coding switch on switch position 2	110 A
adjustable motor current — at rotary coding switch on switch position 3	120 A
adjustable motor current — at rotary coding switch on switch position 4	130 A
adjustable motor current — at rotary coding switch on switch position 5	140 A
adjustable motor current — at rotary coding switch on switch position 6	150 A
adjustable motor current — at rotary coding switch on switch position 7	160 A
adjustable motor current — at rotary coding switch on switch position 8	170 A
adjustable motor current — at rotary coding switch on switch position 9	180 A
adjustable motor current — at rotary coding switch on switch position 10	190 A
adjustable motor current — at rotary coding switch on switch position 11	200 A
adjustable motor current — at rotary coding switch on switch position 12	210 A
adjustable motor current — at rotary coding switch on switch position 13	220 A
adjustable motor current — at rotary coding switch on switch position 14	230 A
adjustable motor current — at rotary coding switch on switch position 15	240 A
adjustable motor current — at rotary coding switch on switch position 16	250 A
adjustable motor current — minimum	100 A
minimum load [%]	15 %; Relative to smallest settable Ie
power loss [W] for rated value of the current at AC — at 40 °C after startup	23 W
power loss [W] for rated value of the current at AC — at 50 °C after startup	18 W
power loss [W] for rated value of the current at AC — at 60 °C after startup	15 W
power loss [W] at AC at current limitation 350% — at 40 °C during startup	2 454 W
power loss [W] at AC at current limitation 350% — at 50 °C during startup	2 043 W
power loss [W] at AC at current limitation 350% — at 60 °C during startup	1 786 W
type of the motor protection	Electronic, tripping in the event of thermal overload of the motor

Control circuit/ Control

type of voltage of the control supply voltage	AC/DC
control supply voltage at AC — at 50 Hz rated value	24 V
control supply voltage at AC — at 60 Hz rated value	24 V
relative negative tolerance of the control supply voltage at AC at 50 Hz	-20 %
relative positive tolerance of the control supply voltage at AC at 50 Hz	20 %
relative negative tolerance of the control supply voltage at AC at 60 Hz	-20 %
relative positive tolerance of the control supply voltage at AC at 60 Hz	20 %
control supply voltage frequency	50 ... 60 Hz
relative negative tolerance of the control supply voltage frequency	-10 %
relative positive tolerance of the control supply voltage frequency	10 %
control supply voltage at DC rated value	24 V
relative negative tolerance of the control supply voltage at DC	-20 %
relative positive tolerance of the control supply voltage at DC	20 %
control supply current in standby mode rated value	160 mA
holding current in bypass operation rated value	490 mA
inrush current by closing the bypass contacts maximum	7.6 A
inrush current peak at application of control supply voltage maximum	3.3 A
duration of inrush current peak at application of control supply voltage	12.1 ms
design of the overvoltage protection	Varistor
design of short-circuit protection for control circuit	4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A); Is not part of scope of supply

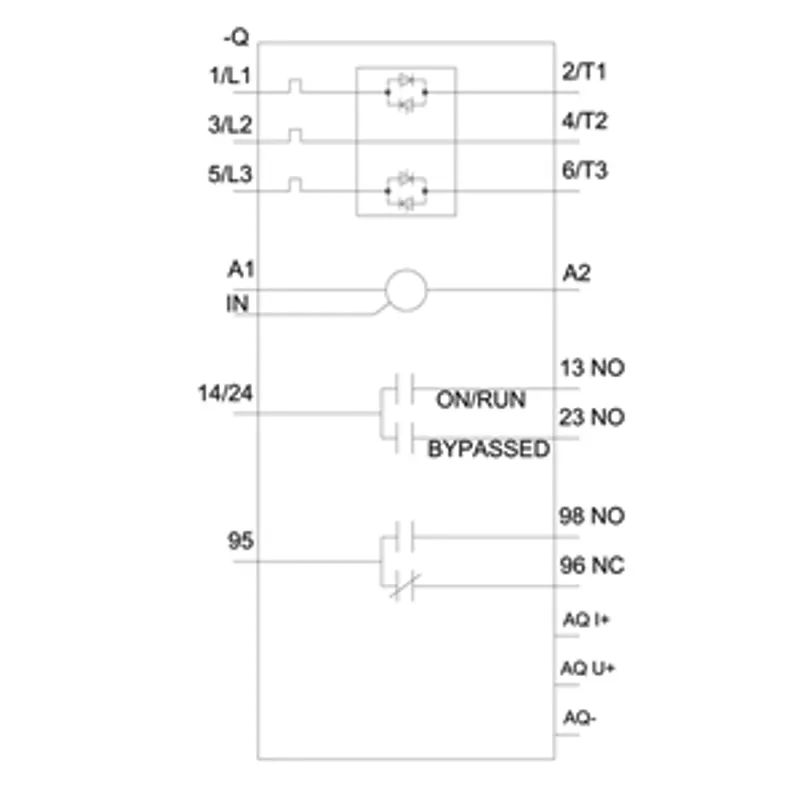

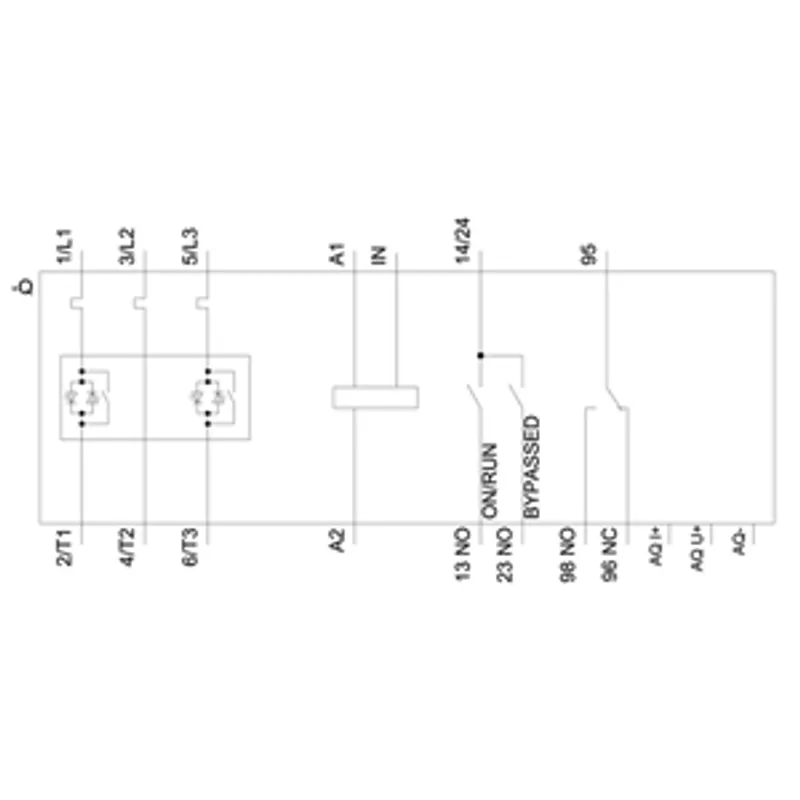

Inputs/ Outputs

number of digital inputs	1
number of digital outputs	3
number of digital outputs — not parameterizable	2
digital output version	2 normally-open contacts (NO) / 1 changeover contact (CO)
number of analog outputs	1
switching capacity current of the relay outputs — at AC-15 at 250 V rated value	3 A
switching capacity current of the relay outputs — at DC-13 at 24 V rated value	1 A

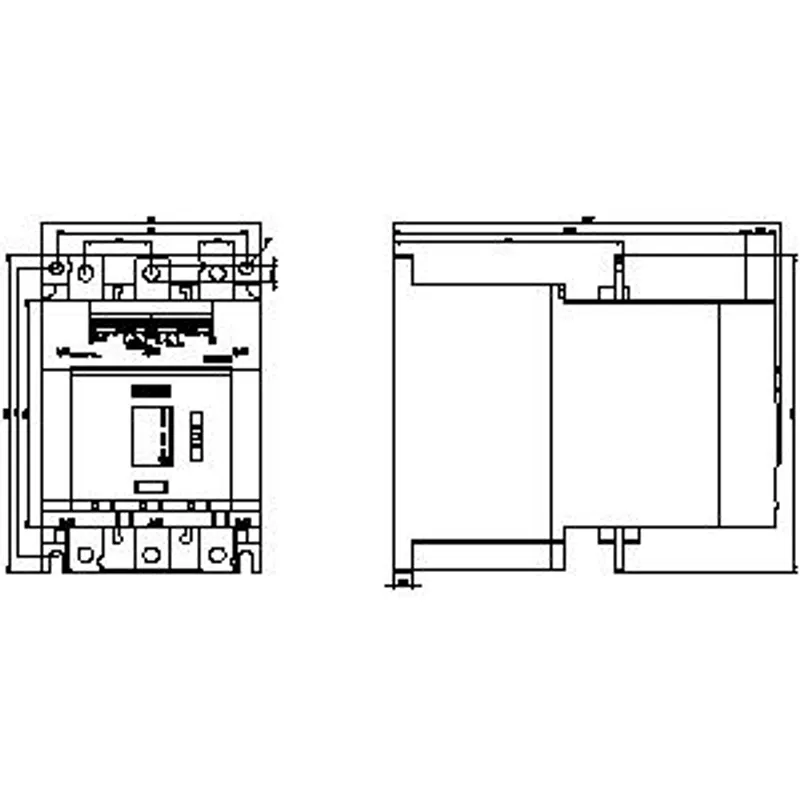

Installation/ mounting/ dimensions

mounting position	with vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
fastening method	screw fixing
height	230 mm
width	160 mm
depth	282 mm
required spacing with side-by-side mounting — forwards	10 mm
required spacing with side-by-side mounting — backwards	0 mm
required spacing with side-by-side mounting — upwards	100 mm
required spacing with side-by-side mounting — downwards	75 mm
required spacing with side-by-side mounting — at the side	5 mm
weight without packaging	7.3 kg

Connections/ Terminals

type of electrical connection — for main current circuit	busbar connection
type of electrical connection — for control circuit	screw-type terminals
width of connection bar maximum	35 mm; with connection cover 3RT1966-4EA1 maximum length 45 mm
type of connectable conductor cross-sections for main contacts for box terminal — using the front clamping point solid	95 ... 300 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using the front clamping point finely stranded with core end processing	70 ... 240 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using the front clamping point finely stranded without core end processing	70 ... 240 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using the front clamping point stranded	95 ... 300 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using the back clamping point solid	120 ... 240 mm²
type of connectable conductor cross-sections for main contacts for box terminal — r box terminal using the back clamping point	250 ... 500 kcmil
type of connectable conductor cross-sections for main contacts for box terminal — using both clamping points solid	min. 2x 70 mm², max. 2x 240 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using both clamping points finely stranded with core end processing	min. 2x 50 mm², max. 2x 185 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using both clamping points finely stranded without core end processing	min. 2x 50 mm², max. 2x 185 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using both clamping points stranded	min. 2x 70 mm², max. 2x 240 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using the back clamping point finely stranded with core end processing	120 ... 185 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using the back clamping point finely stranded without core end processing	120 ... 185 mm²
type of connectable conductor cross-sections for main contacts for box terminal — using the back clamping point stranded	120 ... 240 mm²
type of connectable conductor cross-sections — for AWG cables for main current circuit solid	2/0 ... 500 kcmil
type of connectable conductor cross-sections — for DIN cable lug for main contacts stranded	50 ... 240 mm²
type of connectable conductor cross-sections — for DIN cable lug for main contacts finely stranded	70 ... 240 mm²
type of connectable conductor cross-sections — for control circuit solid	1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections — for control circuit finely stranded with core end processing	1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
type of connectable conductor cross-sections — for AWG cables for control circuit solid	1x (20 ... 12), 2x (20 ... 14)
wire length — between soft starter and motor maximum	800 m
wire length — at the digital inputs at AC maximum	1 000 m
tightening torque — for main contacts with screw-type terminals	14 ... 24 N·m
tightening torque — for auxiliary and control contacts with screw-type terminals	0.8 ... 1.2 N·m
tightening torque [lbf·in] — for main contacts with screw-type terminals	124 ... 210 lbf·in
tightening torque [lbf·in] — for auxiliary and control contacts with screw-type terminals	7 ... 10.3 lbf·in

Ambient conditions

installation altitude at height above sea level maximum	5 000 m
ambient temperature — during operation	-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above
ambient temperature — during storage and transport	-40 ... +80 °C
environmental category — during operation according to IEC 60721	3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category — during storage according to IEC 60721	1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4
environmental category — during transport according to IEC 60721	2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)

Electromagnetic compatibility

EMC emitted interference

acc. to IEC 60947-4-2: Class A

Communication/ Protocol

communication module is supported — PROFINET standard	Yes
communication module is supported — EtherNet/IP	Yes
communication module is supported — Modbus RTU	Yes
communication module is supported — Modbus TCP	Yes
communication module is supported — PROFIBUS	Yes

UL/CSA ratings

manufacturer's article number — of circuit breaker — usable for High Faults at 460/480 V according to UL	Siemens type: 3VA54, max. 600 A; Iq max = 65 kA
manufacturer's article number — of the fuse — usable for Standard Faults up to 575/600 V according to UL	Type: Class L, max. 800 A; Iq = 18 kA
manufacturer's article number — of the fuse — usable for High Faults up to 575/600 V according to UL	Type: Class L, max. 800 A; Iq = 100 kA
operating power [hp] for 3-phase motors — at 200/208 V at 50 °C rated value	60 hp
operating power [hp] for 3-phase motors — at 220/230 V at 50 °C rated value	75 hp
operating power [hp] for 3-phase motors — at 460/480 V at 50 °C rated value	150 hp
operating power [hp] for 3-phase motors — at 575/600 V at 50 °C rated value	200 hp
protection class IP on the front according to IEC 60529	IP00; IP20 with cover
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front with cover

ATEX

Safety Integrity Level (SIL) according to IEC 61508 relating to ATEX	SIL 1
PFHD with high demand rate according to IEC 61508 relating to ATEX	9E-6 1/h
PFDavg with low demand rate according to IEC 61508 relating to ATEX	0.09
hardware fault tolerance according to IEC 61508 relating to ATEX	0
T1 value for proof test interval or service life according to IEC 61508 relating to ATEX	3 a
certificate of suitability — ATEX	Yes
certificate of suitability — IECEx	Yes
certificate of suitability — UKEX	Yes

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing	87.4 kg
global warming potential [CO2 eq] / during sales	2.05 kg
global warming potential [CO2 eq] / during operation	407 kg
global warming potential [CO2 eq] / after end of life	-32.4 kg
global warming potential [CO2 eq] / total	464 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RW5073-6AB05PDF

3RW5073-6AB05: frequently asked questions

When can 3RW5073-6AB05 be shipped?

3RW5073-6AB05 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RW5073-6AB05 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RW5073-6AB05 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RW5073-6AB05, subject to availability and destination.
