Siemens 3RV2935-5E

3-phase supply terminal for 3-phase busbar for self-protection combination motor controller (type E) for…

MPN: 3RV2935-5E
Category: Busbar accessories

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RV2935-5E?

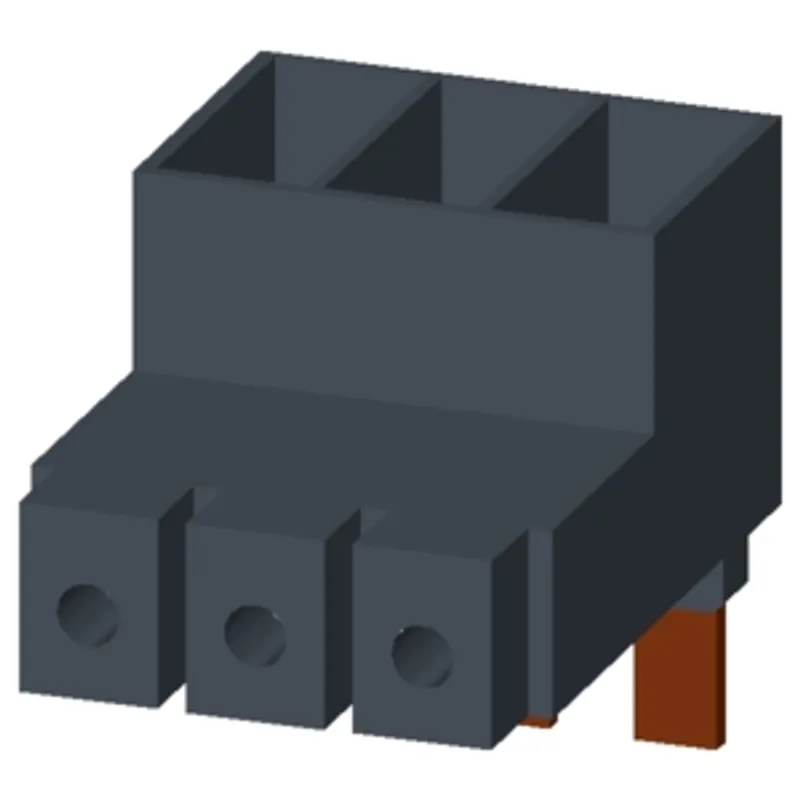

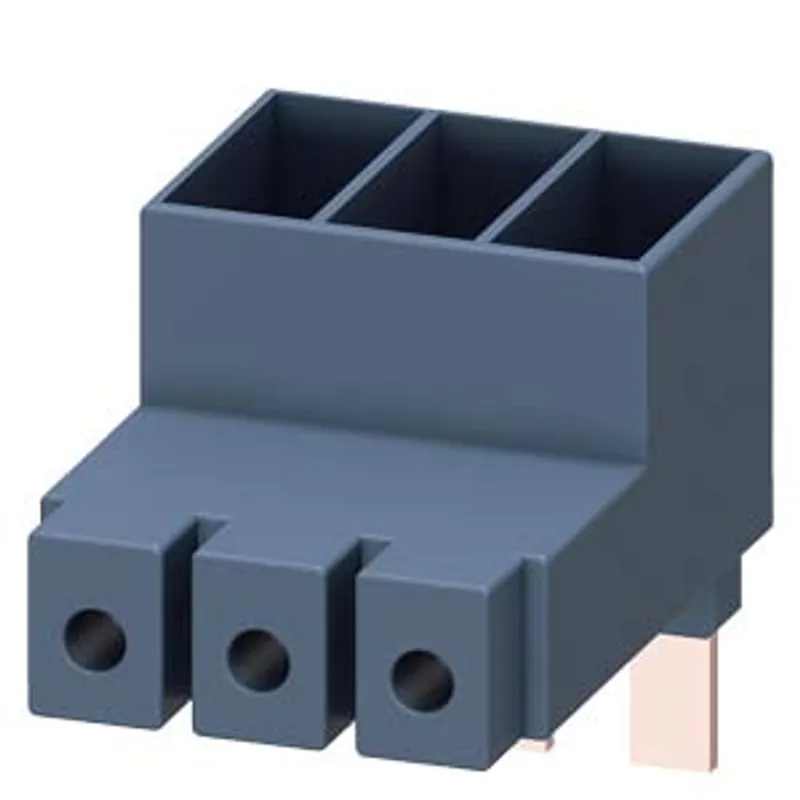

3-phase supply terminal for 3-phase busbar for self-protection combination motor controller (type E) for circuit breaker 3RV2 Size S2 connection from top

Specifications

General

product brand name	SIRIUS
product category	Plugs, adapters and terminals
product designation	3-phase supply terminal
design of the product	from above, Type E, size S2
product type designation	3RV29

General technical data

certificate of suitability	CE / UL / CSA / CCC
size of the circuit-breaker	S2
insulation voltage with degree of pollution 3 at AC rated value	690 V
protection class IP on the front according to IEC 60529	IP20
Substance Prohibitance (day/month/year)	10/15/2014
Net Weight	0.181 kg
ampacity maximum	105 A

Ambient conditions

ambient temperature — during operation	-20 ... +60 °C
ambient temperature — during storage	-50 ... +80 °C
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

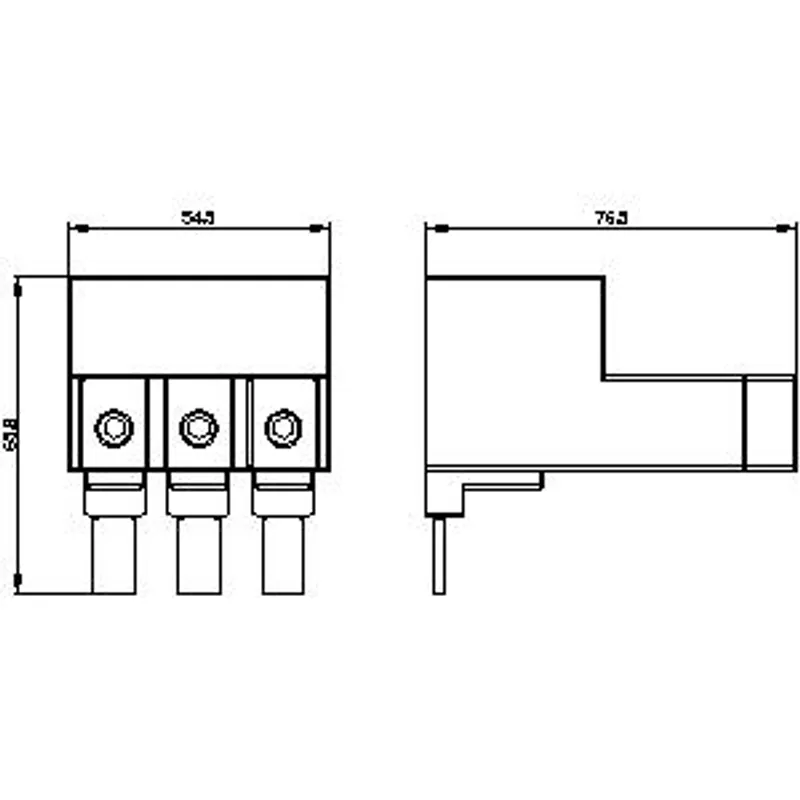

Installation/ mounting/ dimensions

height	66 mm
width	55 mm
depth	77 mm

Connections/ Terminals

type of electrical connection for main current circuit	screw-type terminals
type of connectable conductor cross-sections — for main contacts — solid	2x (2.5 ... 50 mm²), 1x (2.5 ... 70 mm²)
type of connectable conductor cross-sections — for main contacts — stranded	2x (2.5 ... 50 mm²), 1x (2.5 ... 70 mm²)
type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing	2x (2.5 ... 35 mm²), 1x (2.5 ... 50 mm²).
type of connectable conductor cross-sections — for AWG cables for main contacts	2x (10 ... 1/0), 1x (10 ... 2/0)
connectable conductor cross-section for main contacts — solid or stranded	2.5 ... 70 mm²
connectable conductor cross-section for main contacts — stranded	2.5 ... 70 mm²
connectable conductor cross-section for main contacts — finely stranded with core end processing	2.5 ... 50 mm²
AWG number as coded connectable conductor cross section for main contacts	10 ... 2

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing	0.161 kg
global warming potential [CO2 eq] / during operation	139 kg
global warming potential [CO2 eq] / after end of life	-0.0558 kg
global warming potential [CO2 eq] / total	139 kg
