Home / Siemens / Busbar accessories / Siemens 3RV1935-1C

Siemens

Siemens 3RV1935-1C

3-phase busbar for 4 circuit breakers Size S2 Modular spacing: 55 mm

MPN: 3RV1935-1C
Category: Busbar accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RV1935-1C?

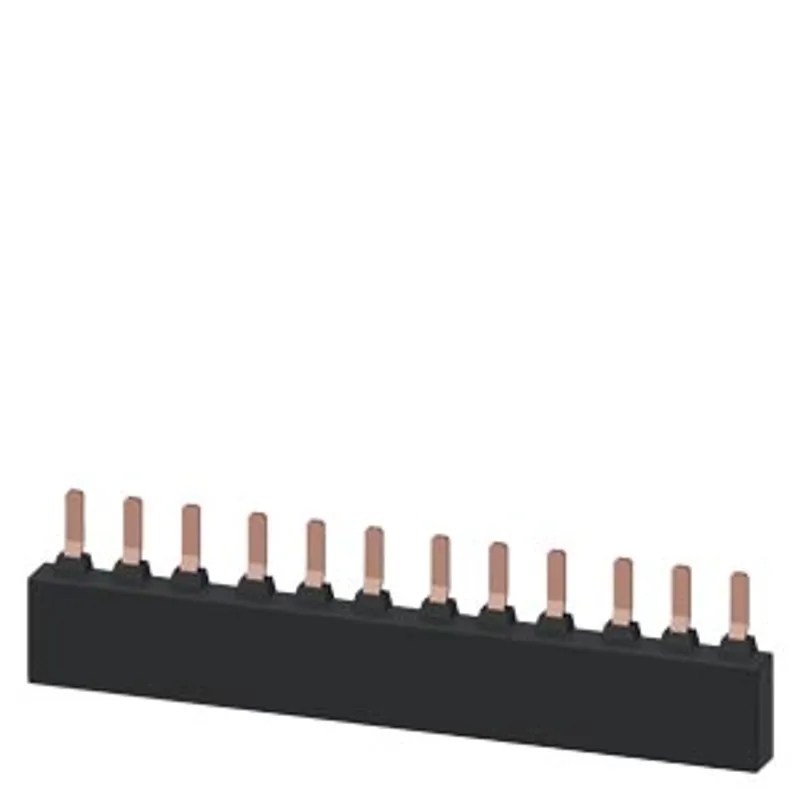

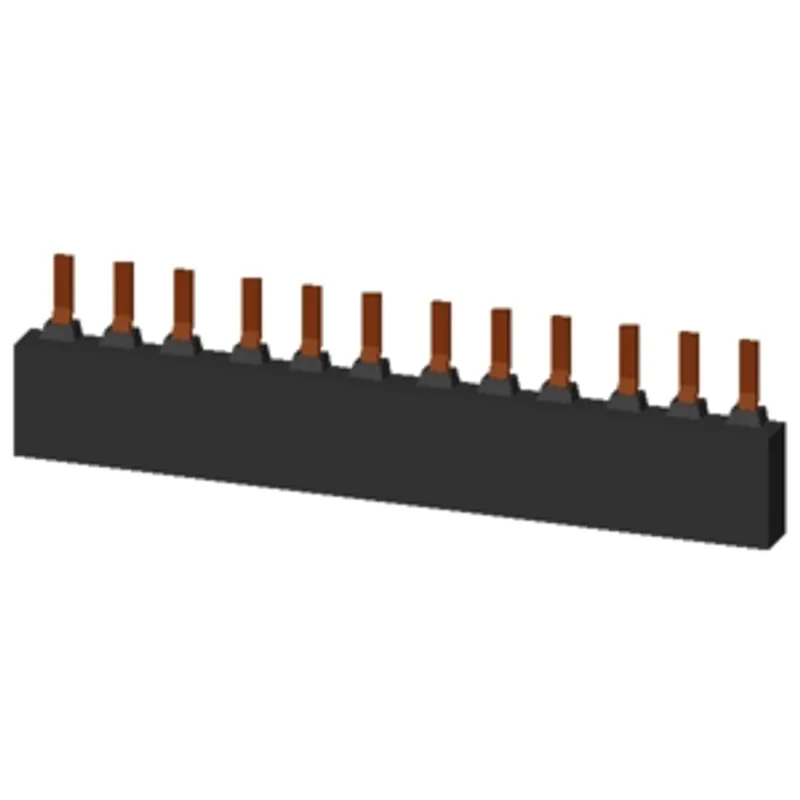

3-phase busbar for 4 circuit breakers Size S2 Modular spacing: 55 mm

Specifications

General

product brand name	SIRIUS
product category	Infeed systems
product designation	3-phase busbar
product type designation	3RV19
suitability for use	circuit-breakers 3RV2

General technical data

size of the circuit-breaker	S2
protection class IP on the front according to IEC 60529	IP20
thermal current	108 A
Substance Prohibitance (day/month/year)	07/01/2006
Net Weight	0.273 kg
number of poles for main current circuit	3
operating voltage at AC rated value	690 V
operational current rated value	108 A

UL/CSA ratings

operating voltage at AC according to UL rated value	600 V
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Connections/ Terminals

type of electrical connection for main current circuit

screw-type terminals

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RV1935-1CPDF

3RV1935-1C: frequently asked questions

When can 3RV1935-1C be shipped?

3RV1935-1C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RV1935-1C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RV1935-1C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RV1935-1C, subject to availability and destination.
