Siemens

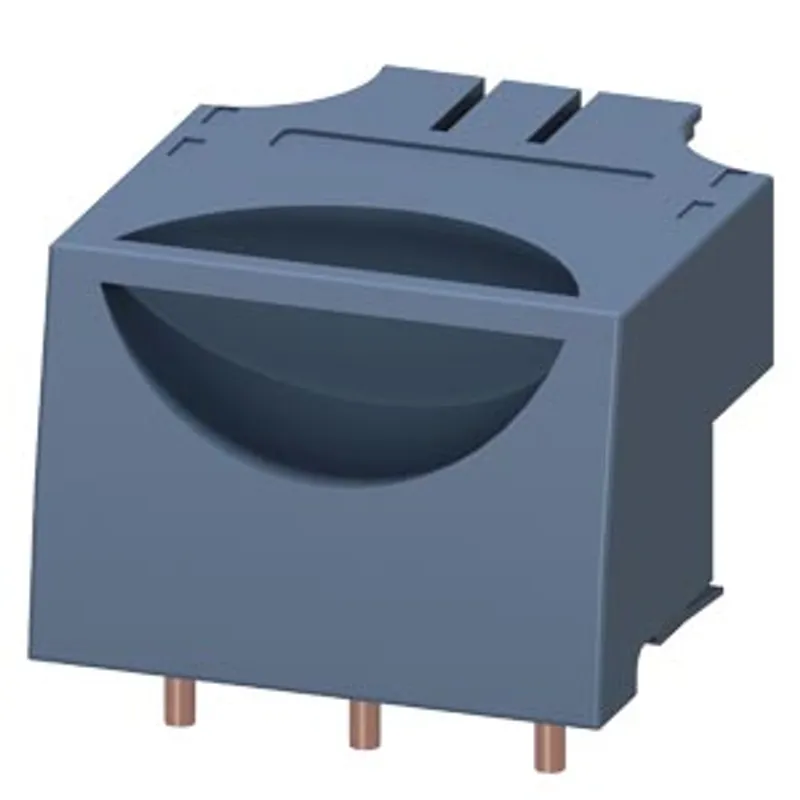

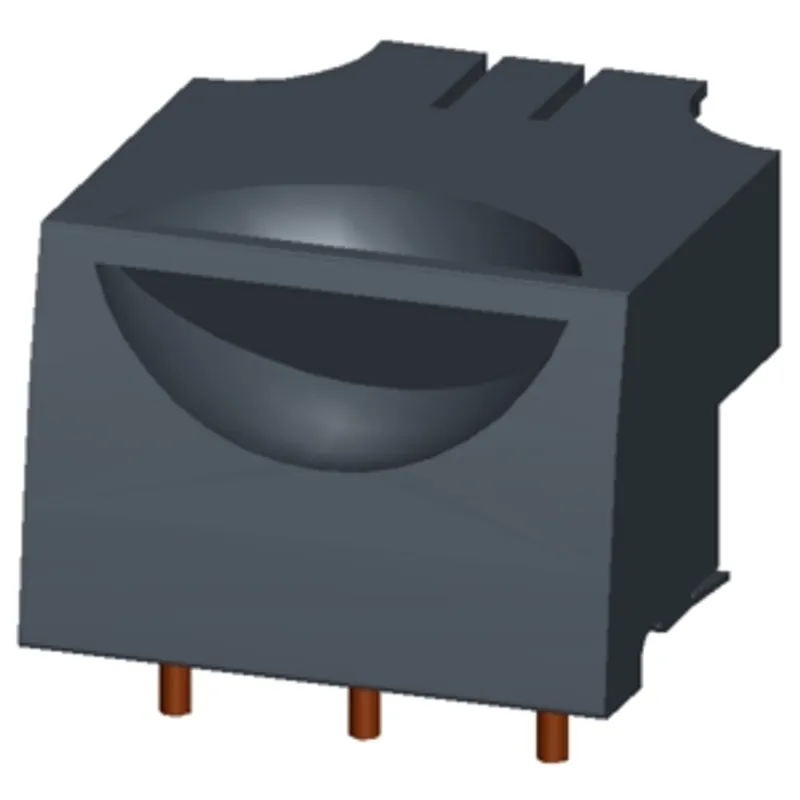

Siemens 3RV1927-5AA00

Cable connector for circuit breaker Size S0 with screw terminal (individual unit packaging)

MPN: 3RV1927-5AA00
Category: Busbar accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RV1927-5AA00?

cable connector for circuit breaker Size S0 with screw terminal (individual unit packaging)

Specifications

General

product brand name	SIRIUS
product category	Infeed systems
product designation	Connection plug
product type designation	3RV19
suitability for use	circuit-breakers 3RV2

General technical data

size of the circuit-breaker	S0
power loss [W] for rated value of the current at AC in hot operating state per pole	1.6 W
type of calculation of power loss current-dependent	quadratic
protection class IP on the front according to IEC 60529	IP20
thermal current	32 A
Substance Prohibitance (day/month/year)	07/01/2006
Net Weight	0.033 kg
number of poles for main current circuit	3
operating voltage at AC rated value	690 V
operational current rated value	32 A

UL/CSA ratings

operating voltage at AC according to UL rated value	600 V
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Short-circuit protection

short-circuit rating

see table in the operating instructions

Connections/ Terminals

type of electrical connection for main current circuit

plug-in without terminals

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing	0.313 kg
global warming potential [CO2 eq] / during operation	8.72 kg
global warming potential [CO2 eq] / after end of life	0.0218 kg
global warming potential [CO2 eq] / total	9.06 kg
