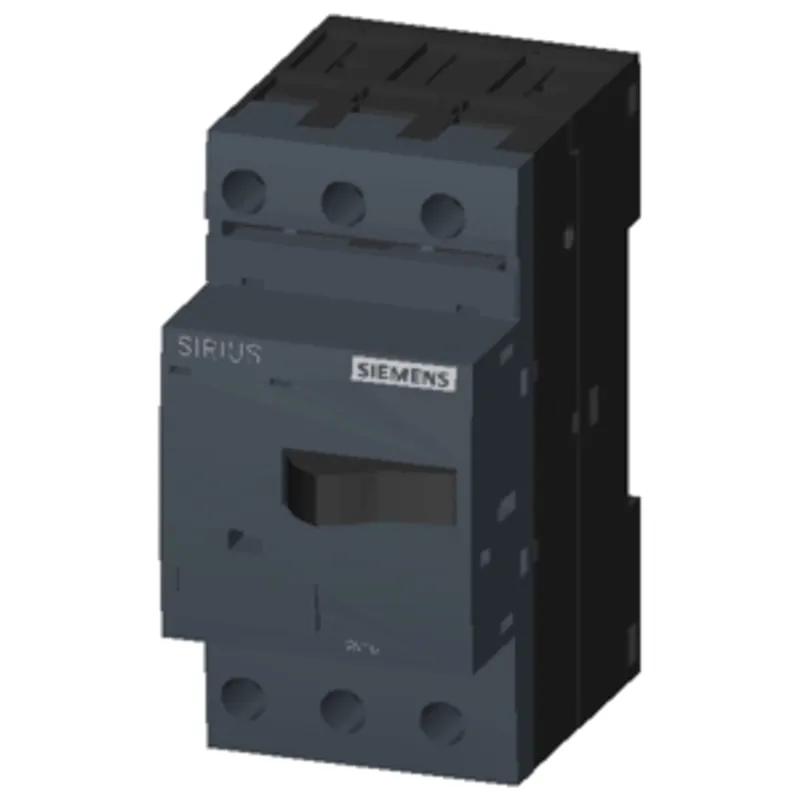

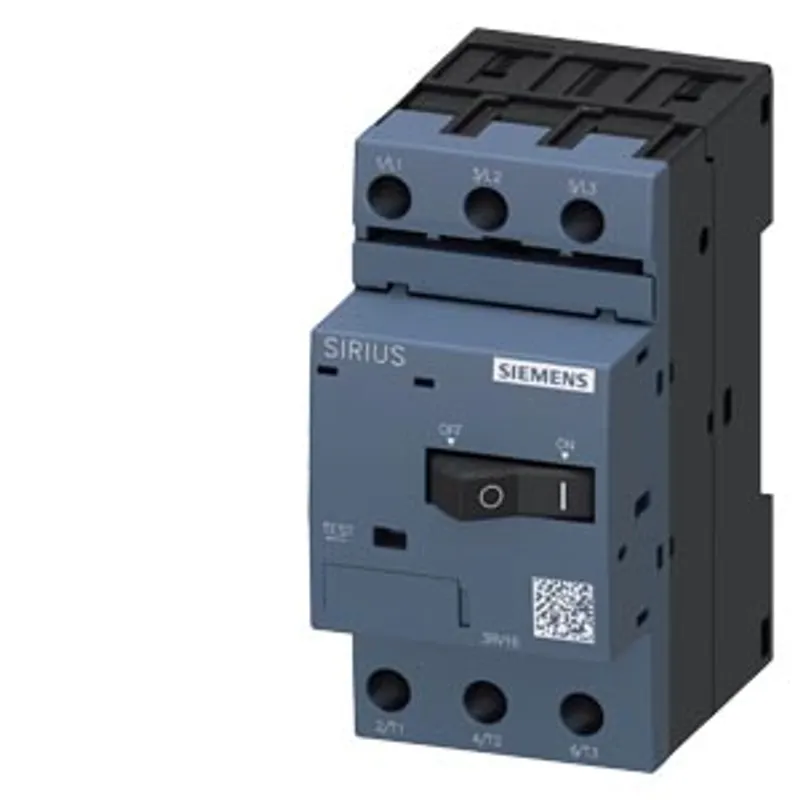

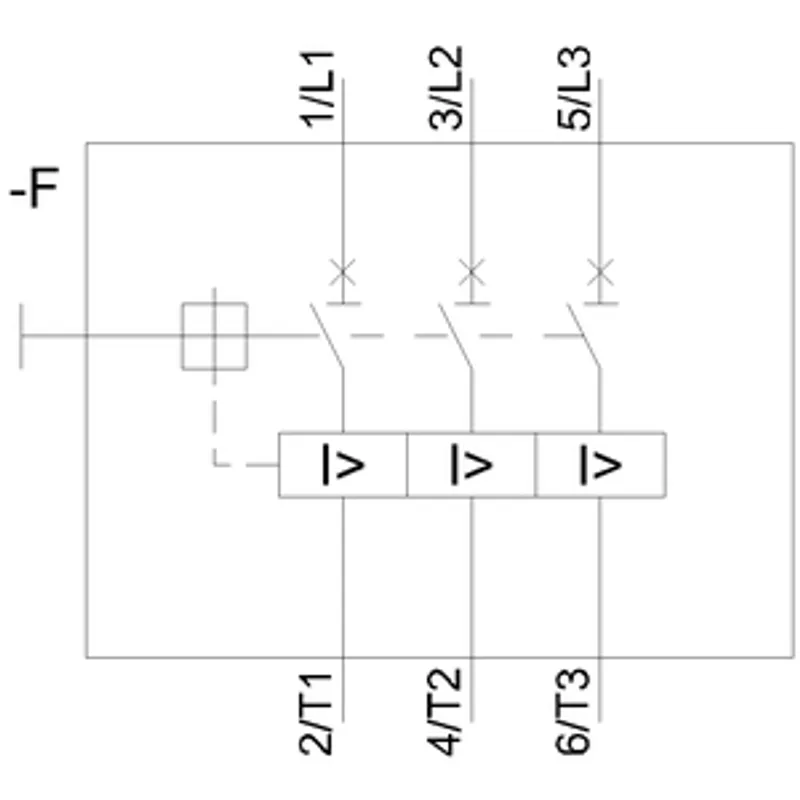

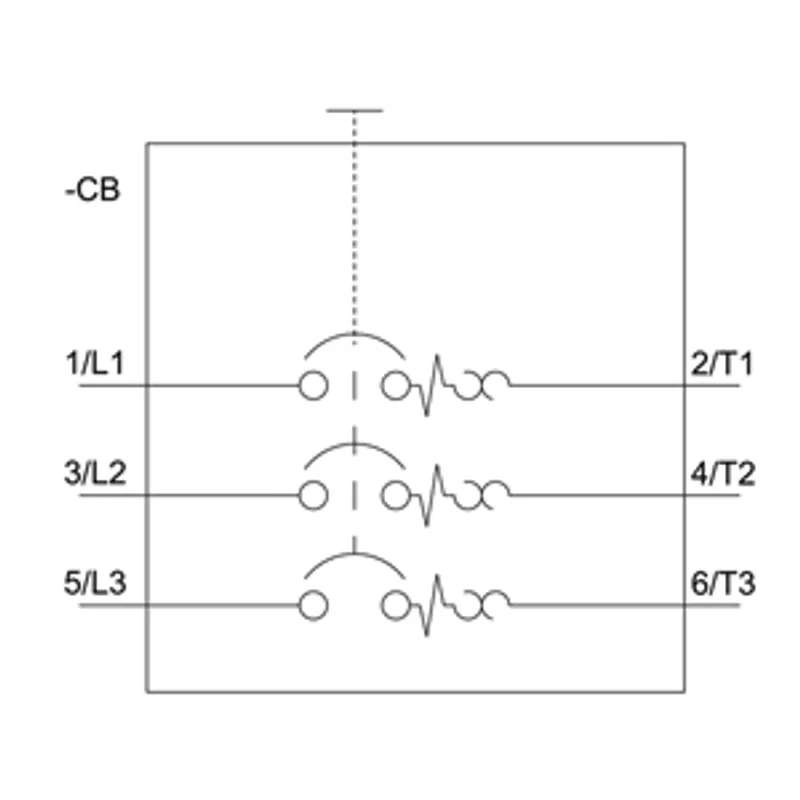

Siemens 3RV1611-0BD10

Circuit breaker size S00 for fuse monitoring Screw terminal A-release 0.2 A N-release 1.2 A

MPN: 3RV1611-0BD10
Category: SIRIUS 3RV1 motor starter protectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RV1611-0BD10?

Circuit breaker size S00 for fuse monitoring Screw terminal A-release 0.2 A N-release 1.2 A

Specifications

General

product brand name	SIRIUS
product designation	Circuit breaker
design of the product	for fuse monitoring
product type designation	3RV1

General technical data

Product equipment of circuit breaker for motor protection complete unit with protection device	Yes
size of the circuit-breaker	S00
product function disconnector functionality	Yes
product extension auxiliary switch	Yes
power loss [W] for rated value of the current — at AC in hot operating state	5.5 W
power loss [W] for rated value of the current — at AC in hot operating state per pole	1.8 W
type of calculation of power loss current-dependent	quadratic
insulation voltage with degree of pollution 3 at AC rated value	690 V
surge voltage resistance rated value	6 kV
maximum permissible voltage for protective separation — in networks with ungrounded star point between main and auxiliary circuit	400 V
maximum permissible voltage for protective separation — in networks with grounded star point between main and auxiliary circuit	400 V
protection class IP — on the front according to IEC 60529	IP20
protection class IP — on the front	IP20
protection class IP — of the terminal	IP00
mechanical service life (operating cycles) — of the main contacts typical	100 000
mechanical service life (operating cycles) — of auxiliary contacts typical	100 000
electrical endurance (operating cycles) typical	100 000
reference code according to IEC 81346-2	Q
continuous current rated value	0.2 A
Substance Prohibitance (day/month/year)	01/01/2013
Net Weight	209.58 g

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature — during operation	-20 ... +60 °C
ambient temperature — during storage	-50 ... +80 °C
ambient temperature — during transport	-50 ... +80 °C
temperature compensation	-20 ... +60 °C
relative humidity during operation	10 ... 95 %

Main circuit

number of poles for main current circuit	3
type of voltage for main current circuit	AC/DC
operating voltage — rated value	690 V
operating voltage — rated value	20 ... 690 V
operating voltage — at AC-3 rated value maximum	690 V
operating voltage — at AC-3e rated value maximum	690 V
operating frequency rated value	50 ... 60 Hz
operational current rated value	0.2 A
operational current — at AC-3 at 400 V rated value	0.2 A
operational current — at AC-3e at 400 V rated value	0.2 A
operating frequency — at AC-3 maximum	15 1/h
operating frequency — at AC-3e maximum	15 1/h

Auxiliary circuit

type of voltage for auxiliary and control circuit	AC/DC
number of NC contacts for auxiliary contacts	0
number of NO contacts for auxiliary contacts	0
number of CO contacts for auxiliary contacts	0

Protective and monitoring functions

product function — ground fault detection	No
product function — phase failure detection	Yes
design of the overload release	thermal
protection function thermal overload protection (ANSI 49)	Yes
maximum short-circuit current breaking capacity (Icu) — at AC at 240 V rated value	100 kA
maximum short-circuit current breaking capacity (Icu) — at AC at 400 V rated value	100 kA
maximum short-circuit current breaking capacity (Icu) — at AC at 500 V rated value	100 kA
maximum short-circuit current breaking capacity (Icu) — at AC at 690 V rated value	100 kA
operating short-circuit current breaking capacity (Ics) at AC — at 240 V rated value	100 kA
operating short-circuit current breaking capacity (Ics) at AC — at 400 V rated value	100 kA
operating short-circuit current breaking capacity (Ics) at AC — at 500 V rated value	100 kA
operating short-circuit current breaking capacity (Ics) at AC — at 690 V rated value	100 kA
short-circuit current breaking capacity (Icn) — at 1 current path at DC at 150 V rated value	10 kA
short-circuit current breaking capacity (Icn) — with 2 current paths in series at DC at 300 V rated value	10 kA
short-circuit current breaking capacity (Icn) — with 3 current paths in series at DC at 450 V rated value	10 kA
response value current of instantaneous short-circuit trip unit	1.2 A

UL/CSA ratings

full-load current (FLA) for 3-phase AC motor — at 480 V rated value	0.2 A
full-load current (FLA) for 3-phase AC motor — at 600 V rated value	0.2 A

Short-circuit protection

product function short circuit protection	Yes
design of the short-circuit trip	magnetic
design of the fuse link for IT network for short-circuit protection of the main circuit — at 240 V	none required
design of the fuse link for IT network for short-circuit protection of the main circuit — at 400 V	None required
design of the fuse link for IT network for short-circuit protection of the main circuit — at 500 V	None required
design of the fuse link for IT network for short-circuit protection of the main circuit — at 690 V	None required

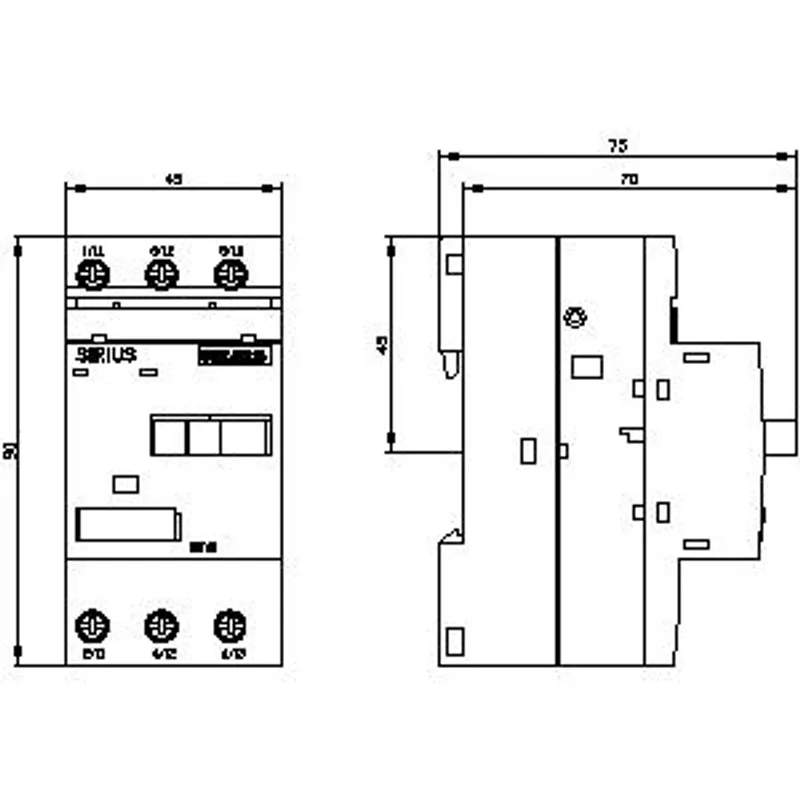

Installation/ mounting/ dimensions

mounting position	any
fastening method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mounting	Yes
height	90 mm
width	45 mm
depth	75 mm
required spacing — for grounded parts at 400 V — downwards	20 mm
required spacing — for grounded parts at 400 V — upwards	20 mm
required spacing — for grounded parts at 400 V — at the side	9 mm
required spacing — for live parts at 400 V — downwards	20 mm
required spacing — for live parts at 400 V — upwards	20 mm
required spacing — for live parts at 400 V — at the side	9 mm
required spacing — for grounded parts at 500 V — downwards	20 mm
required spacing — for grounded parts at 500 V — upwards	20 mm
required spacing — for grounded parts at 500 V — at the side	9 mm
required spacing — for live parts at 500 V — downwards	20 mm
required spacing — for live parts at 500 V — upwards	20 mm
required spacing — for live parts at 500 V — at the side	9 mm
required spacing — for grounded parts at 690 V — downwards	20 mm
required spacing — for grounded parts at 690 V — upwards	20 mm
required spacing — for grounded parts at 690 V — backwards	0 mm
required spacing — for grounded parts at 690 V — at the side	9 mm
required spacing — for grounded parts at 690 V — forwards	0 mm
required spacing — for live parts at 690 V — downwards	20 mm
required spacing — for live parts at 690 V — upwards	20 mm
required spacing — for live parts at 690 V — backwards	0 mm
required spacing — for live parts at 690 V — at the side	9 mm
required spacing — for live parts at 690 V — forwards	0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuit	No
type of electrical connection — for main current circuit	screw-type terminals
arrangement of electrical connectors for main current circuit	Top and bottom
type of connectable conductor cross-sections — for main contacts — solid or stranded	2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x (1 ... 4 mm²)
type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
connectable conductor cross-section for main contacts — solid or stranded	0.5 ... 4 mm²
connectable conductor cross-section for main contacts — finely stranded with core end processing	0.5 ... 2.5 mm²
type of connectable conductor cross-sections — for auxiliary contacts — solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
AWG number as coded connectable conductor cross section for main contacts	18 ... 14
tightening torque — for main contacts with screw-type terminals	0.8 ... 1.2 N·m
tightening torque — for auxiliary contacts with screw-type terminals	0.8 ... 1.2 N·m
design of screwdriver shaft	Diameter 5 to 6 mm
size of the screwdriver tip	Pozidriv size 2
design of the thread of the connection screw — for main contacts	M3
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Display

display version for switching status

Rocker switch
