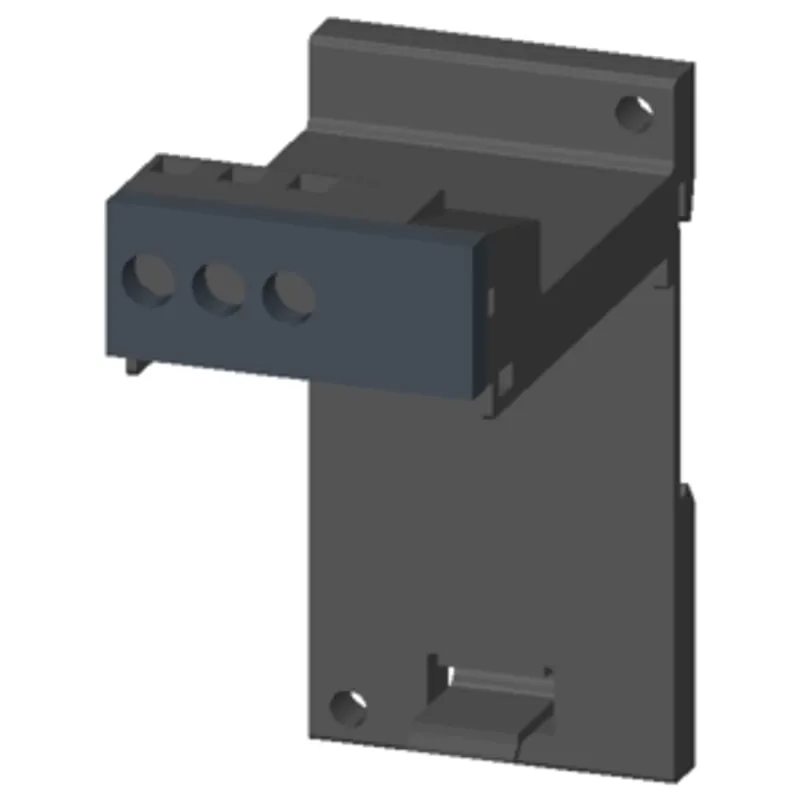

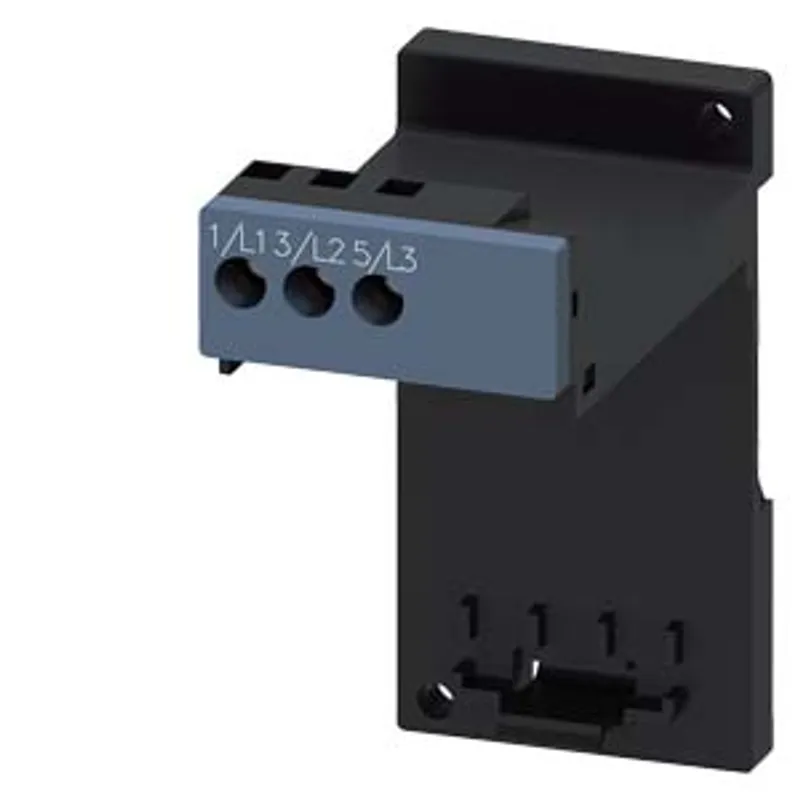

Siemens 3RU2916-3AA01
Stand-alone assembly support for 3RU21/3RB30/3RB31/3RR2 Size S00 Stand-alone installation Main circuit: Screw…
- MPN
- 3RU2916-3AA01
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RU2916-3AA01?
stand-alone assembly support for 3RU21/3RB30/3RB31/3RR2 Size S00 Stand-alone installation Main circuit: Screw Auxiliary circuit: --
Specifications
General
| product brand name | SIRIUS |
| product category | terminal support |
| product type designation | 3RU29 |
General technical data
| size of overload relay | S00 |
| protection class IP on the front — according to IEC 60529 | IP20 |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| Net Weight | 38.98 g |
Ambient conditions
| ambient temperature — during operation | -20 ... +70 °C |
| ambient temperature — during storage | -50 ... +80 °C |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |

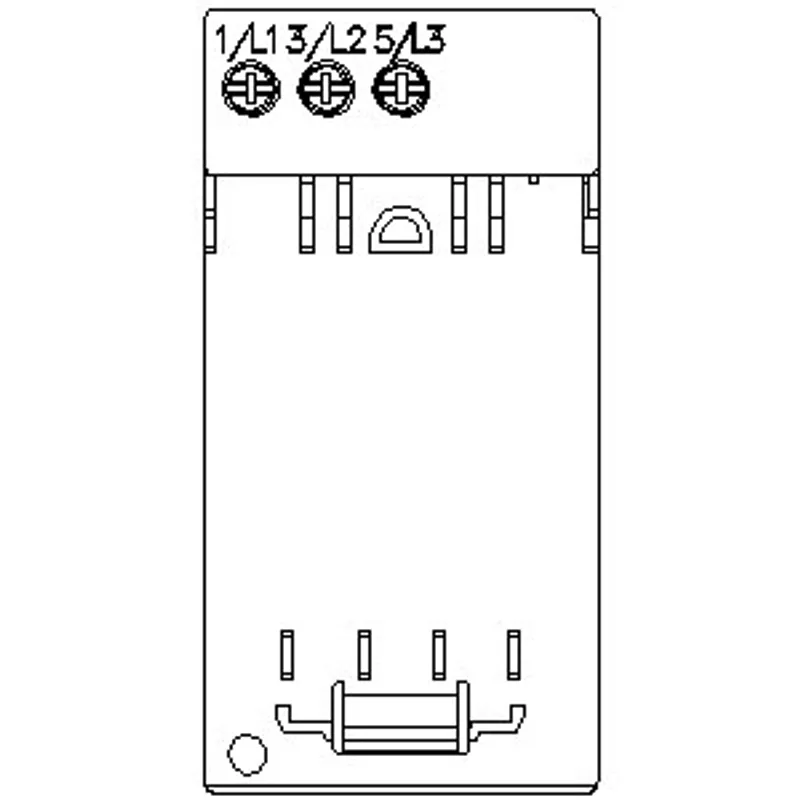

Installation/ mounting/ dimensions
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| height | 89 mm |
| width | 45 mm |
| depth | 75 mm |

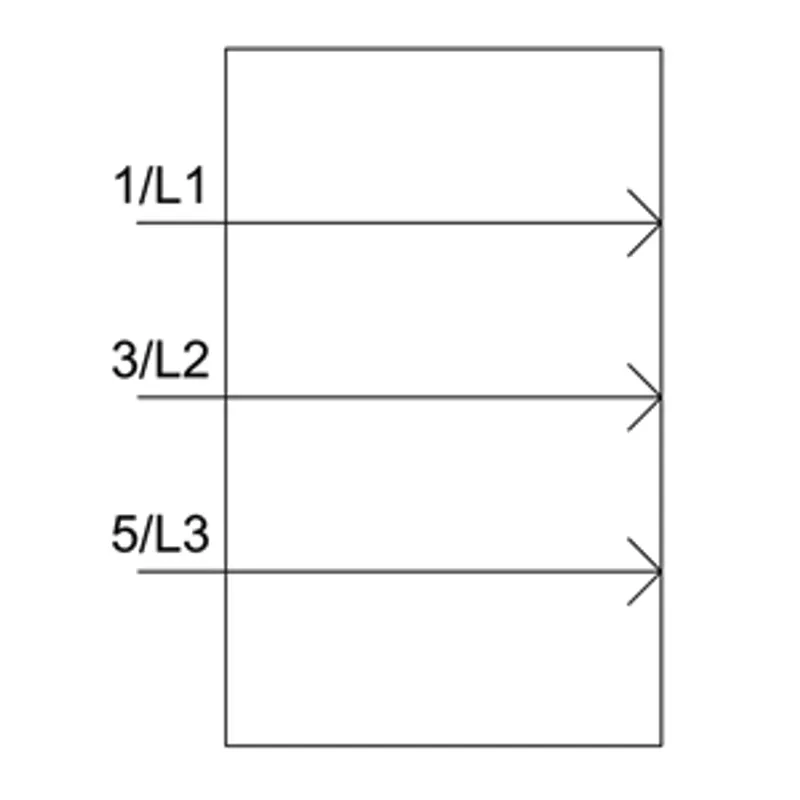

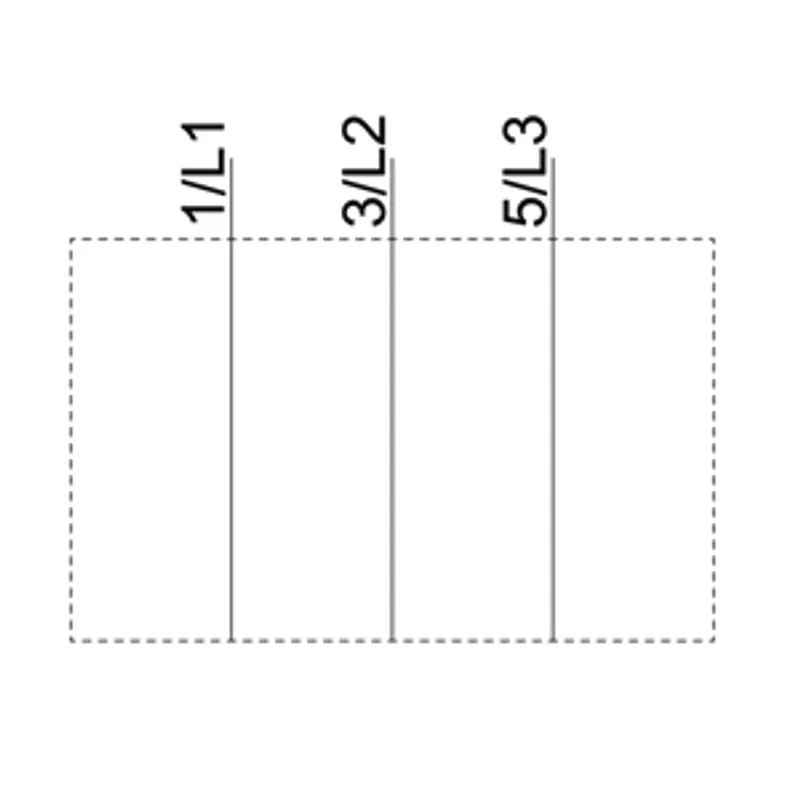

Connections/ Terminals
| type of electrical connection — for main current circuit | screw-type terminals |
| type of connectable conductor cross-sections — for main contacts — solid | 1x (0.5 ... 4 mm²) |
| type of connectable conductor cross-sections — for main contacts — stranded | 1x (0,5 ... 4 mm²) |
| type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing | 0.5 ... 2.5 mm² |
| type of connectable conductor cross-sections — for AWG cables for main contacts | 1x (20 ... 12) |
