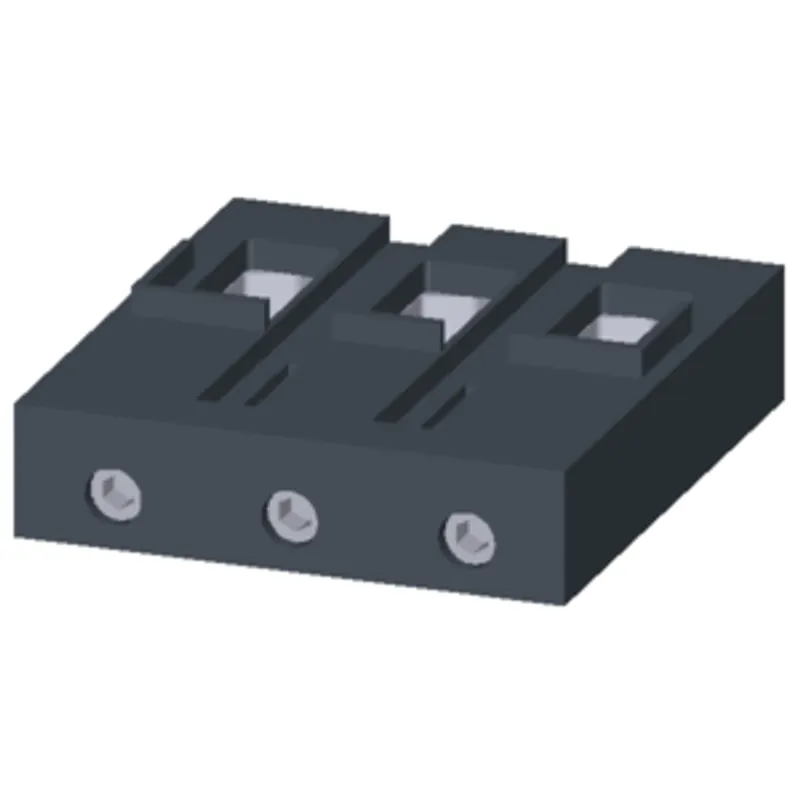

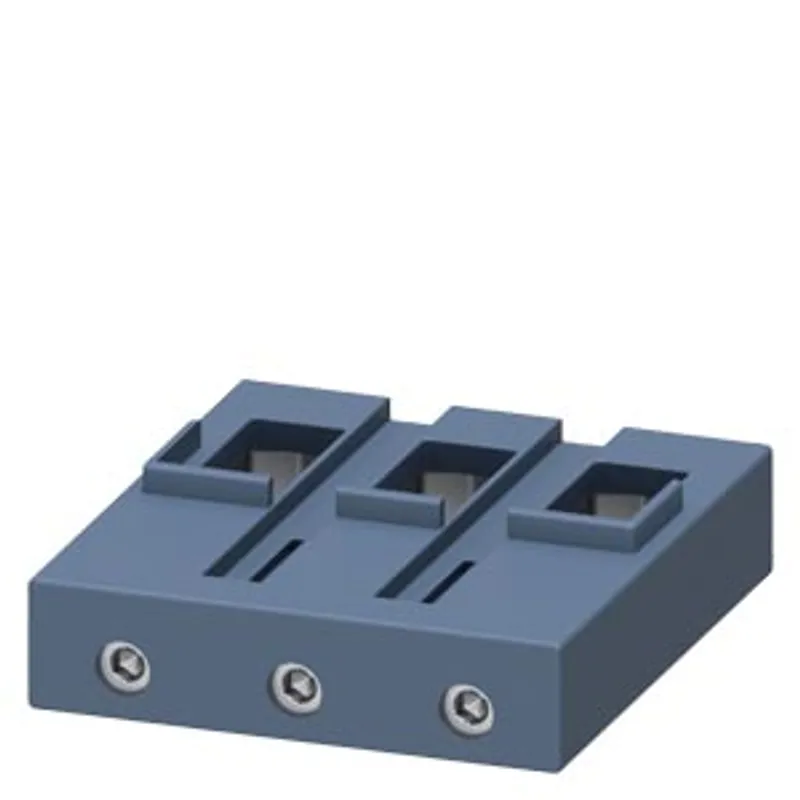

Siemens 3RT2946-4G
Box terminal block, 3-pole for contactor size S3, 3RT2.4
- MPN
- 3RT2946-4G
- Category
- Other
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT2946-4G?
Box terminal block, 3-pole for contactor size S3, 3RT2.4
Specifications
General
| product brand name | SIRIUS |
| product category | Terminal covers |
| product designation | Box terminal block |
| design of the product | up to 70 mm2, can be used for 3RT2.4, 3RV2.4, 3RU2.4 |
| product type designation | 3RT29 |
General technical data
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.124 kg |
Connections/ Terminals
| type of connectable conductor cross-sections — for main contacts — solid or stranded | 2x (6 ... 16 mm²), 2x (10 ... 50), 1x (70 ... 70 mm²) |
| type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing | 2x (2.5 ... 35 mm²), 1x (2.5 ... 50 mm²) |
| type of connectable conductor cross-sections — for AWG cables for main contacts | 2x (10 ... 1/0), 1x (10 ... 2/0) |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.0885 kg |
| global warming potential [CO2 eq] / during operation | 6.96 kg |
| global warming potential [CO2 eq] / after end of life | -0.0061 kg |
| global warming potential [CO2 eq] / total | 7.04 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RT2946-4G: frequently asked questions
When can 3RT2946-4G be shipped?
3RT2946-4G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RT2946-4G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RT2946-4G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RT2946-4G, subject to availability and destination.
