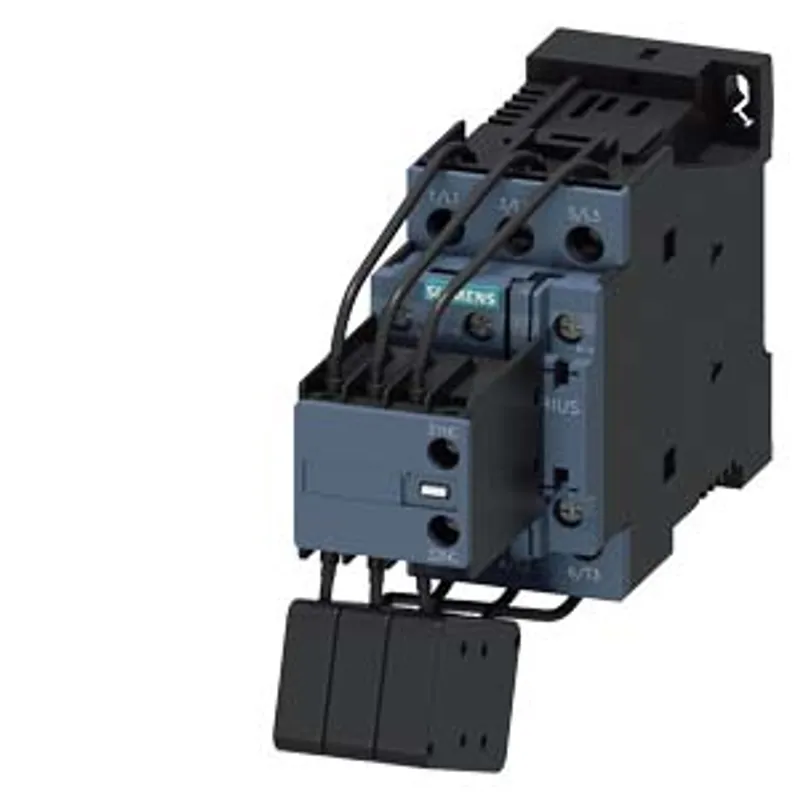

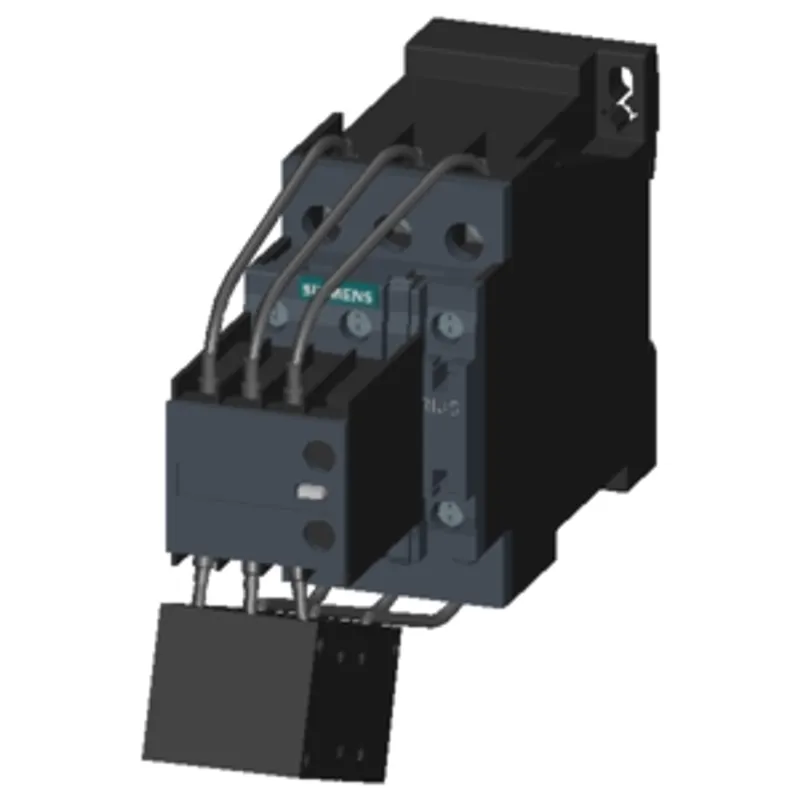

Siemens 3RT2625-1BF45
Capacitor contactor, AC-6b 16.7 kVAr, / 400 V, 3-pole, 110 V DC, auxiliary contacts: 1 NO + 2 NC
- MPN
- 3RT2625-1BF45
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT2625-1BF45?
capacitor contactor, AC-6b 16.7 kVAr, / 400 V, 3-pole, 110 V DC, auxiliary contacts: 1 NO + 2 NC, screw terminal, size: S0
Specifications
General
| product brand name | SIRIUS |
| product designation | capacitor contactors |
| product type designation | 3RT26 |
General technical data
| size of contactor | S0 |
| product extension auxiliary switch | No |
| power loss [W] for rated value of the current — at AC in hot operating state per pole | 0.9 W |
| power loss [W] for rated value of the current — without load current share typical | 5.9 W |
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage — of main circuit with degree of pollution 3 rated value | 690 V |
| insulation voltage — of auxiliary circuit with degree of pollution 3 rated value | 690 V |
| surge voltage resistance — of main circuit rated value | 6 kV |
| surge voltage resistance — of auxiliary circuit rated value | 6 kV |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V |
| shock resistance at rectangular impulse — at DC | 10g / 5 ms, 7,5g / 10 ms |
| shock resistance with sine pulse — at DC | 15 g / 5 ms, 10 g / 10 ms |
| mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical | 3 000 000 |
| electrical endurance (operating cycles) | 200 000 |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 05/01/2014 |
| Net Weight | 0.726 kg |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -55 ... +80 °C |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
Main circuit
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
| operational current at AC-6b at 690 V at ambient temperature 60 °C rated value | 24 A |
| operating reactive power at AC-6b — at 230 V at 50/60 Hz at ambient temperature 60 °C rated value | 3 ... 9.6 kvar |
| operating reactive power at AC-6b — at 400 V at 50/60 Hz at ambient temperature 60 °C rated value | 6 ... 16.7 kvar |
| operating reactive power at AC-6b — at 500 V at 50/60 Hz at ambient temperature 60 °C rated value | 7 ... 21 kvar |
| operating reactive power at AC-6b — at 690 V at 50/60 Hz at ambient temperature 60 °C rated value | 10 ... 29 kvar |
| no-load switching frequency — at DC | 500 1/h |
| operating frequency at AC-6b — at 230 V maximum | 180 1/h |
| operating frequency at AC-6b — at 240 V maximum | 180 1/h |
| operating frequency at AC-6b — at 400 V maximum | 180 1/h |
| operating frequency at AC-6b — at 480 V maximum | 180 1/h |
| operating frequency at AC-6b — at 500 V maximum | 180 1/h |
| operating frequency at AC-6b — at 600 V maximum | 180 1/h |
| operating frequency at AC-6b — at 690 V maximum | 150 1/h |
Control circuit/ Control
| type of voltage | DC |
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC rated value | 110 V |
| operating range factor control supply voltage rated value of magnet coil at DC — initial value | 0.8 |
| operating range factor control supply voltage rated value of magnet coil at DC — full-scale value | 1.1 |
| closing power of magnet coil at DC | 5.9 W |
| holding power of magnet coil at DC | 5.9 W |
| closing delay — at DC | 50 ... 170 ms |
| opening delay — at DC | 15 ... 18 ms |
| arcing time | 10 ms |
| control version of the switch operating mechanism | Standard A1 - A2 |
Auxiliary circuit
| number of NC contacts for auxiliary contacts | 2 |
| number of NC contacts for auxiliary contacts — attachable | 0 |
| number of NC contacts for auxiliary contacts — instantaneous contact | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts — attachable | 0 |
| number of NO contacts for auxiliary contacts — instantaneous contact | 1 |
| operational current of auxiliary contacts at AC-12 maximum | 10 A |
| operational current of auxiliary contacts at AC-15 — at 230 V | 6 A |
| operational current of auxiliary contacts at AC-15 — at 400 V | 3 A |
| operational current of auxiliary contacts at AC-15 — at 690 V | 1 A |
| operational current of auxiliary contacts at DC-13 — at 24 V | 6 A |
| operational current of auxiliary contacts at DC-13 — at 60 V | 2 A |
| operational current of auxiliary contacts at DC-13 — at 110 V | 1 A |
| operational current of auxiliary contacts at DC-13 — at 125 V | 0.9 A |
| operational current of auxiliary contacts at DC-13 — at 220 V | 0.3 A |
| contact reliability of auxiliary contacts | 0.00000001 |
UL/CSA ratings
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| UL File Number (CCN) | E31519 (NLDX, NLDX7) |
Short-circuit protection
| design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V | C characteristic: 10 A; 0.4 kA |
| design of the fuse link — for short-circuit protection of the main circuit with type of coordination 1 required | gG: 50 A (690 V, 50 kA) |
| design of the fuse link — for short-circuit protection of the auxiliary switch required | gG: 10 A (690 V, 1 kA) |

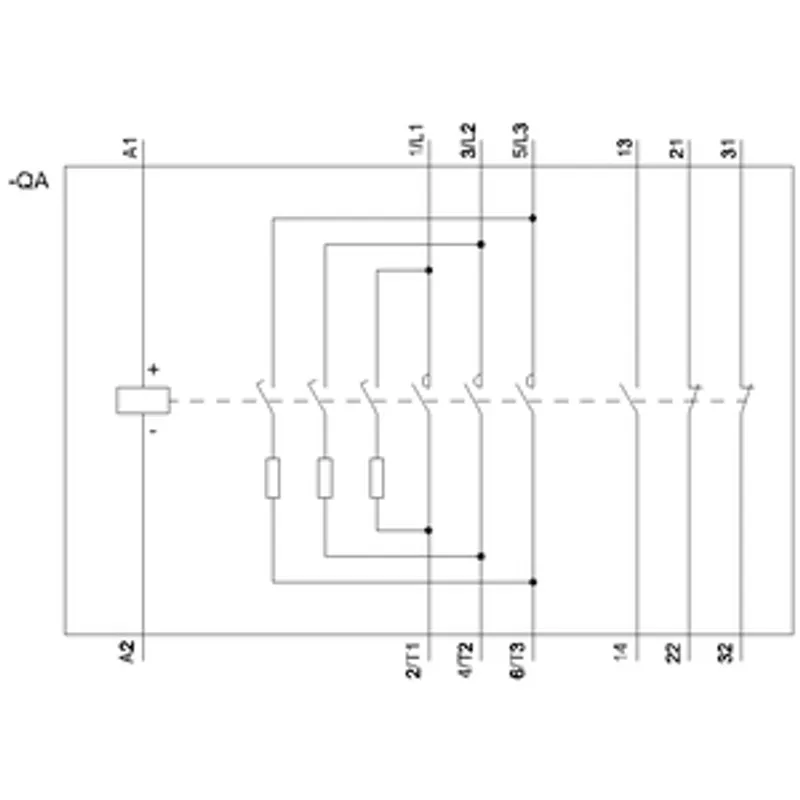

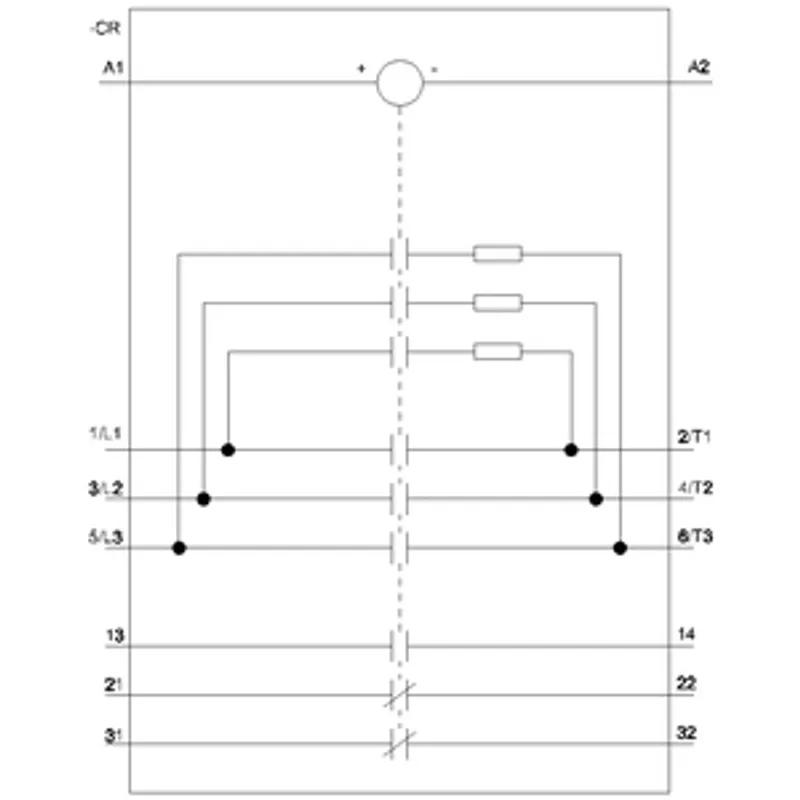

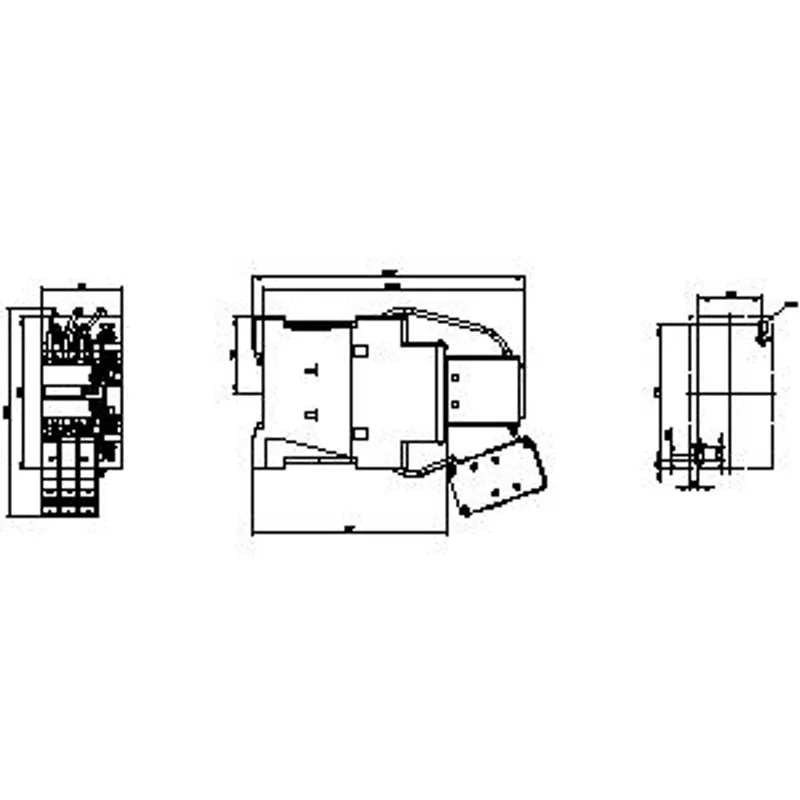

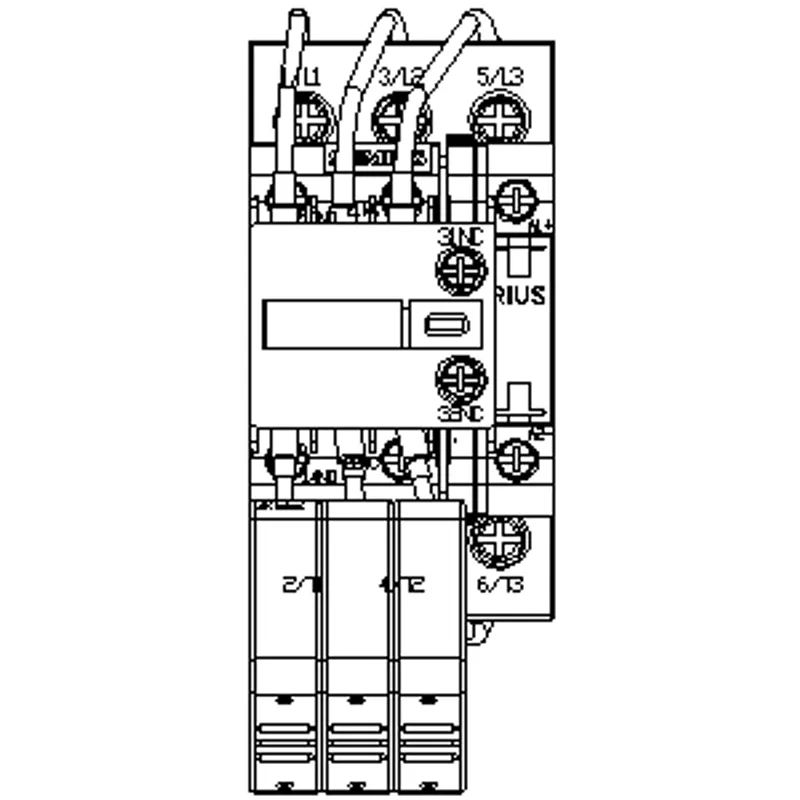

Installation/ mounting/ dimensions
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022 |
| height | 135 mm |
| width | 45 mm |
| depth | 165 mm |
| required spacing — with side-by-side mounting at the side | 10 mm |
| required spacing — for grounded parts at the side | 10 mm |
Connections/ Terminals
| type of electrical connection — for main current circuit | screw-type terminals |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of electrical connection — at contactor for auxiliary contacts | Screw-type terminals |
| type of electrical connection — of magnet coil | screw terminal |
| type of connectable conductor cross-sections for main contacts — solid | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| type of connectable conductor cross-sections for main contacts — stranded | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| type of connectable conductor cross-sections for main contacts — solid or stranded | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| type of connectable conductor cross-sections for main contacts — finely stranded with core end processing | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| type of connectable conductor cross-sections — for auxiliary contacts — solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| type of connectable conductor cross-sections — for auxiliary contacts — solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| type of minimum connectable cross-sections for main contacts at AC-6b — at 40 °C | 1x 6 mm² |
| type of minimum connectable cross-sections for main contacts at AC-6b — at 60 °C | 1x 10 mm², 2x 6 mm² |
| AWG number as coded connectable conductor cross section for main contacts | 16 ... 8 |
Safety related data
| product function — mirror contact according to IEC 60947-4-1 | No |
| product function — positively driven operation according to IEC 60947-5-1 | No |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 2.47 kg |
| global warming potential [CO2 eq] / during operation | 104 kg |
| global warming potential [CO2 eq] / after end of life | -0.226 kg |
| global warming potential [CO2 eq] / total | 106 kg |
