Siemens 3RT1982-5AF31

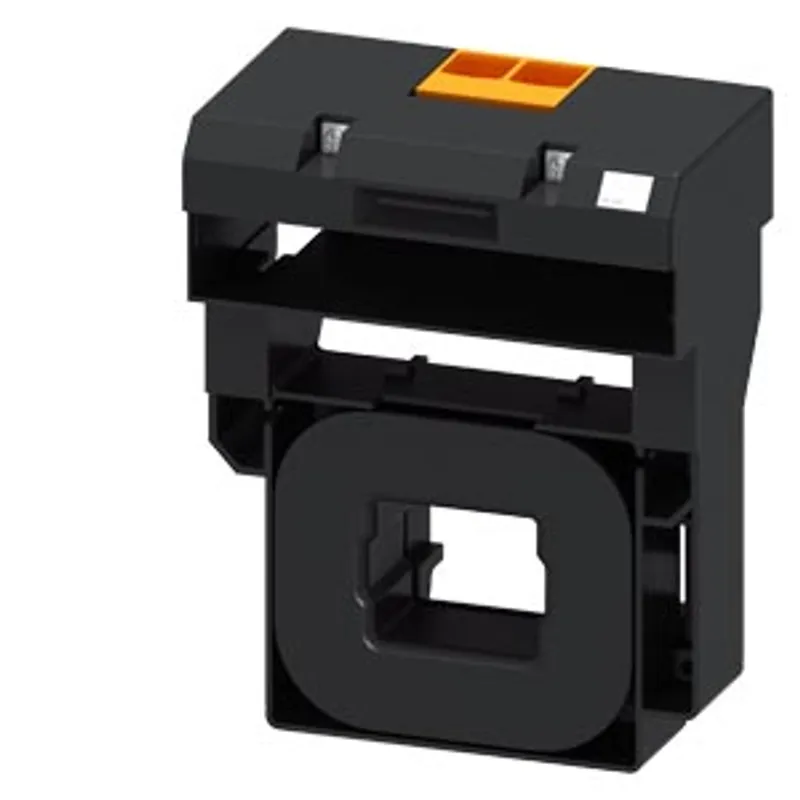

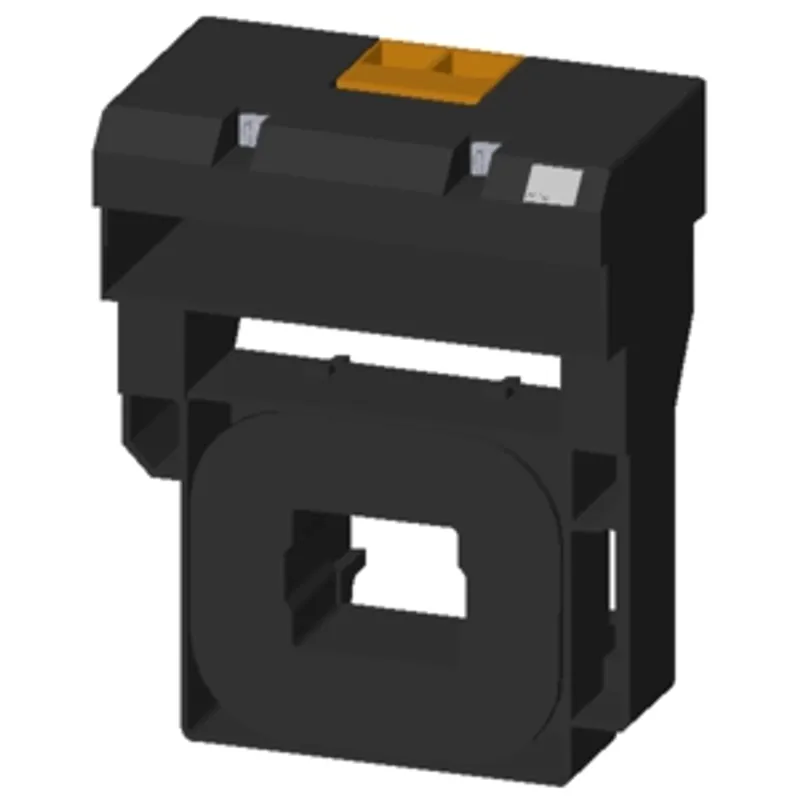

Changeover operating mechanism for 3RT1481 and 3RT1482, AC (50...60 Hz) / DC operation

MPN: 3RT1982-5AF31
Category: SIRIUS 3RT.4 contactors for weak or non-inductive loads (AC-1), 3-pole up to 2 650 A

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RT1982-5AF31?

Changeover operating mechanism for 3RT1481 and 3RT1482, AC (50...60 Hz) / DC operation, 100 … 127 V AC / 100 … 110 V DC

Specifications

General

product brand name	SIRIUS
product category	Solenoid coils
product designation	Changeover operating mechanism
product type designation	3RT19

General technical data

Substance Prohibitance (day/month/year)	03/27/2020
Net Weight	1.875 kg
type of voltage of the control supply voltage	AC/DC
control supply voltage 1 at AC — at 50 Hz rated value	100 V
control supply voltage 1 at AC — at 60 Hz rated value	100 V
control supply voltage 2 at AC — at 50 Hz rated value	127 V
control supply voltage 2 at AC — at 60 Hz rated value	127 V
control supply voltage 1 at DC rated value	100 V
control supply voltage 2 at DC rated value	110 V
operating range factor control supply voltage rated value of magnet coil at AC — at 50 Hz	0.85 ... 1.1
operating range factor control supply voltage rated value of magnet coil at AC — at 60 Hz	0.85 ... 1.1
apparent pick-up power of magnet coil at AC — at 50 Hz	1 000 VA
apparent pick-up power of magnet coil at AC — at 60 Hz	1 000 VA
apparent holding power of magnet coil at AC — at 50 Hz	23 VA
apparent holding power of magnet coil at AC — at 60 Hz	23 VA

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RT1982-5AF31PDF
