Siemens

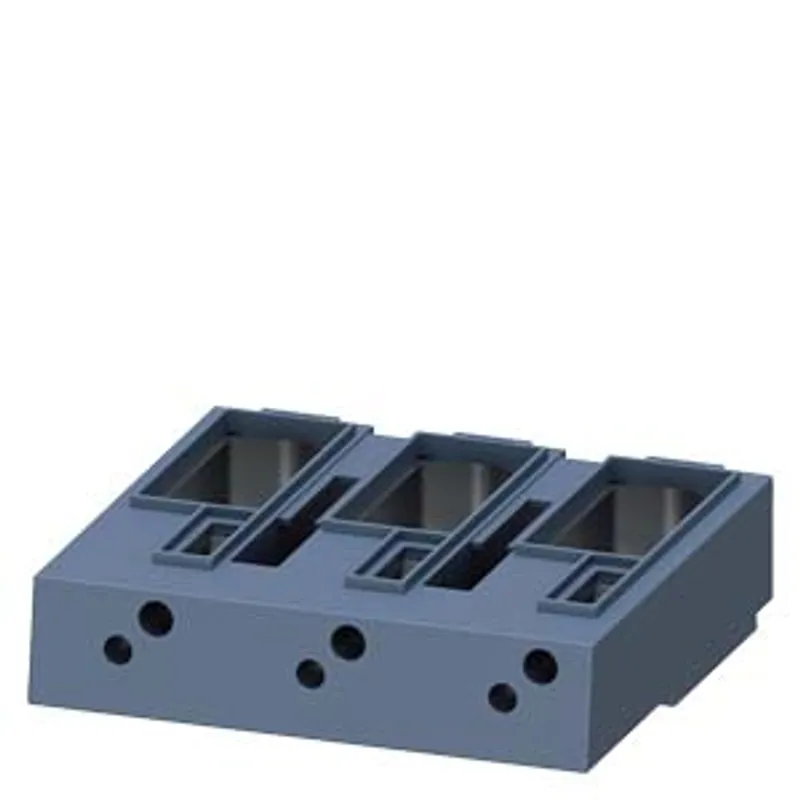

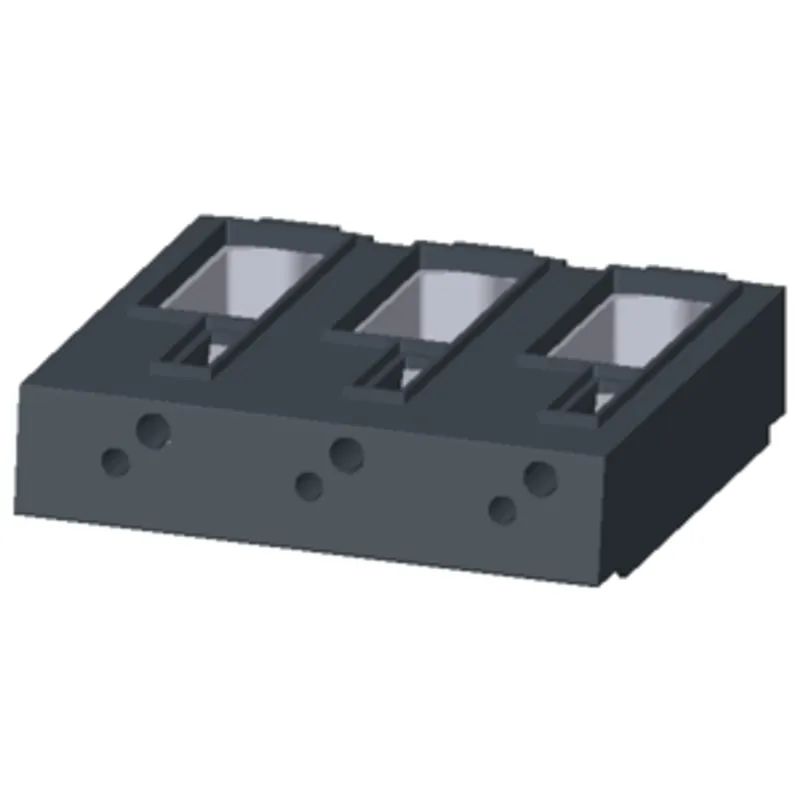

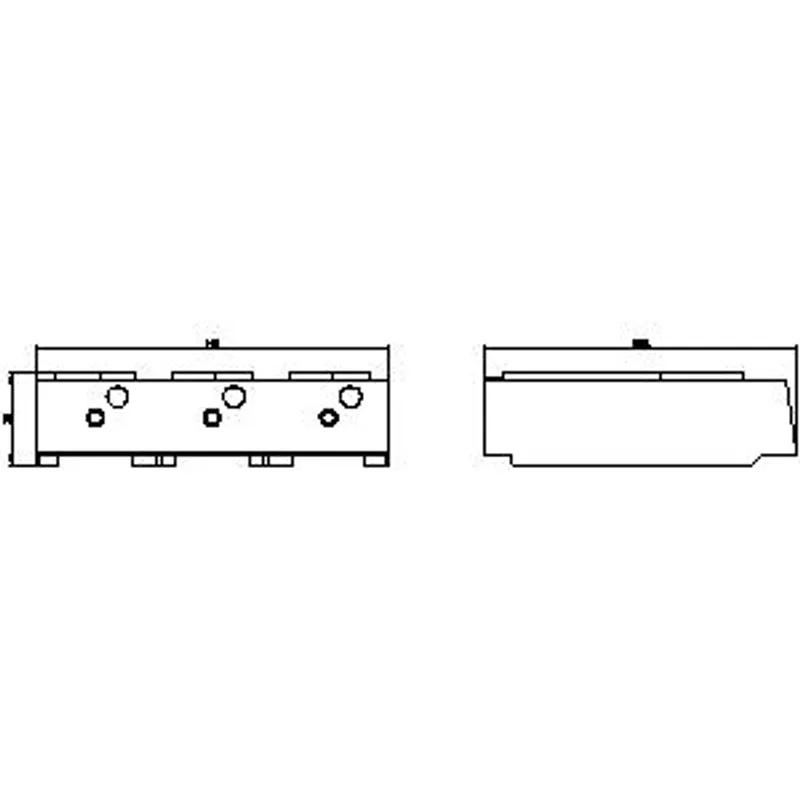

Siemens 3RT1966-4G

Box terminal for 3RT1, 3RB2, 3RW507

MPN: 3RT1966-4G
Category: Other

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RT1966-4G?

box terminal for 3RT1, 3RB2, 3RW507

Specifications

General

product brand name	SIRIUS
product category	Terminal covers
product designation	Box terminal block
design of the product	up to 240 mm2 (with aux. conductor connection), can be used for 3UF71.4-1BA00-0 or 3RW444.
product type designation	3RT19

General technical data

Substance Prohibitance (day/month/year)	07/01/2006
Net Weight	0.68 kg

Connections/ Terminals

type of connectable conductor cross-sections — for main contacts — solid or stranded	min. 2x 70, max. 2x 240 mm²
type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing	min. 2x 95, max. 2x 185 mm²
type of connectable conductor cross-sections — for AWG cables for main contacts	2/0 ... 500 kcmil
type of connectable conductor cross-sections — for auxiliary contacts — solid or stranded	2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
type of connectable conductor cross-sections — for AWG cables for auxiliary contacts	2x (20 ... 16), 2x (18 ... 14), 1x 12

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RT1966-4GPDF

3RT1966-4G: frequently asked questions

When can 3RT1966-4G be shipped?

3RT1966-4G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RT1966-4G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RT1966-4G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RT1966-4G, subject to availability and destination.
