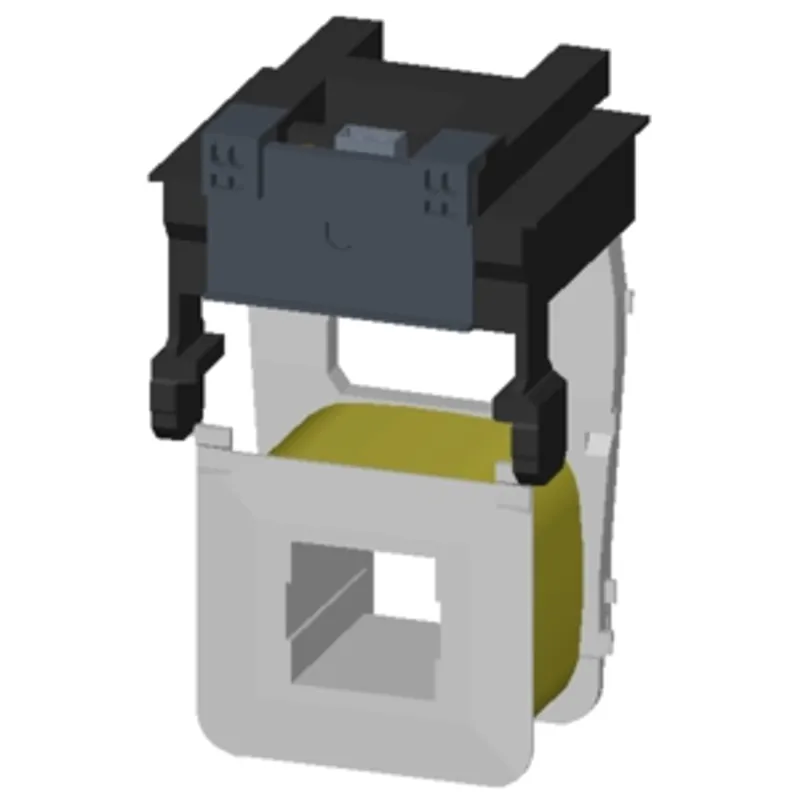

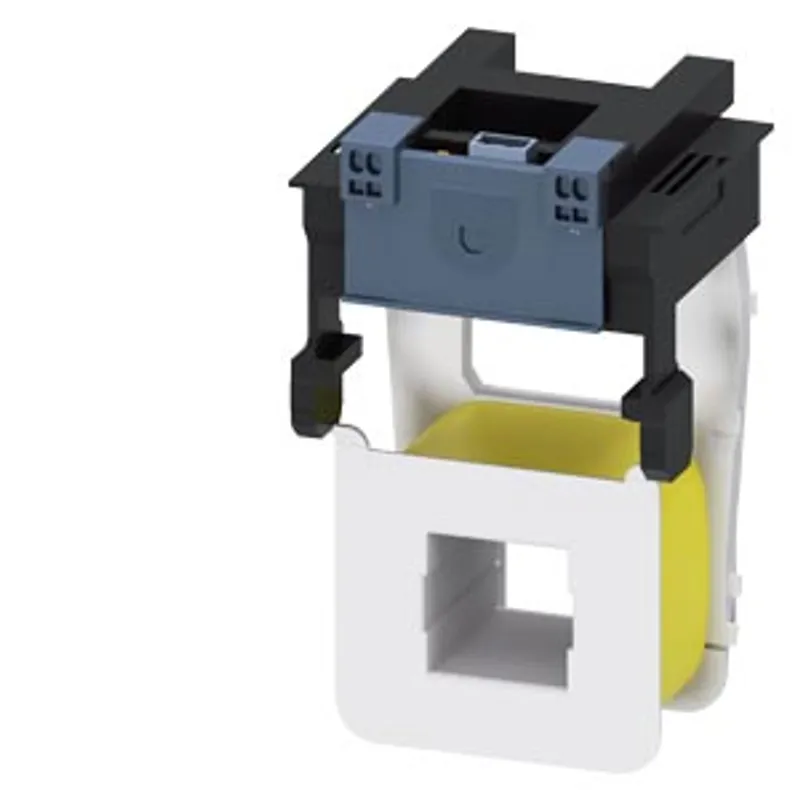

Siemens 3RT1965-5NP32
Changeover operating mechanism for contactors 3RT106, 3RT146 AC (50...60 Hz) / DC operation, 200 ... 277 V
- MPN
- 3RT1965-5NP32
- Category
- Solenoid coils
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT1965-5NP32?

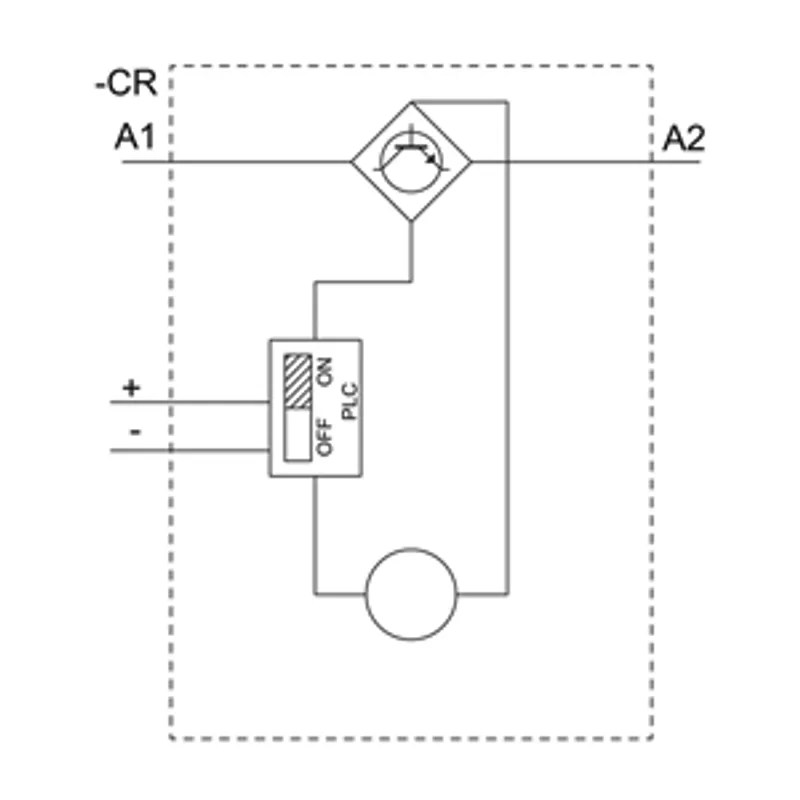

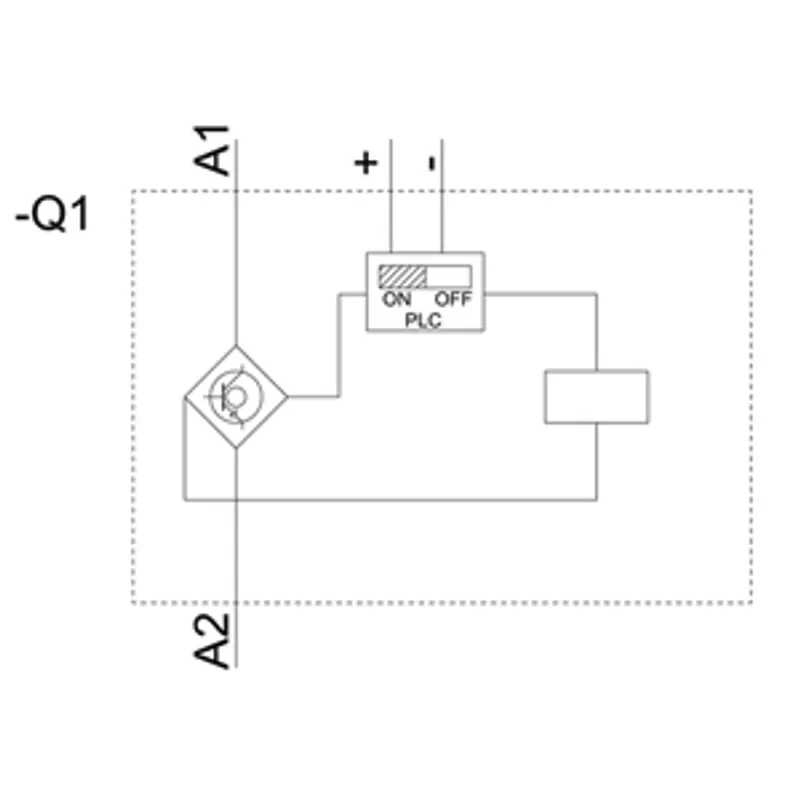

Changeover operating mechanism for contactors 3RT106, 3RT146 AC (50...60 Hz) / DC operation, 200 ... 277 V, Drive: electronic with PLC input 24 V DC Spring-type terminal
Specifications
General
| product brand name | SIRIUS |
| product category | Solenoid coils |
| product designation | Changeover operating mechanism |
| product type designation | 3RT19 |
General technical data
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| Net Weight | 0.72 kg |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage 1 at AC — at 50 Hz | 200 ... 277 V |
| control supply voltage 1 at AC — at 60 Hz | 200 ... 277 V |
| control supply voltage 1 at DC | 200 ... 277 V |
| apparent pick-up power of magnet coil at AC — at 50 Hz | 530 VA |
| apparent pick-up power of magnet coil at AC — at 60 Hz | 530 VA |
| inductive power factor with closing power of the coil — at 50 Hz | 0.8 |
| inductive power factor with closing power of the coil — at 60 Hz | 0.8 |
| apparent holding power of magnet coil at AC — at 50 Hz | 5 VA |
| apparent holding power of magnet coil at AC — at 60 Hz | 5 VA |
| inductive power factor with the holding power of the coil — at 50 Hz | 0.5 |
| inductive power factor with the holding power of the coil — at 60 Hz | 0.5 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RT1965-5NP32: frequently asked questions
When can 3RT1965-5NP32 be shipped?
3RT1965-5NP32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RT1965-5NP32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RT1965-5NP32 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RT1965-5NP32, subject to availability and destination.
